Nissan Altima HL32 Hybrid. Manual - part 373

EM-6

< PREPARATION >

[QR25DE]

PREPARATION

PREPARATION

Special Service Tool

INFOID:0000000004211230

The actual shapes of the Kent-Moore tools may differ from those of the special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

KV10111100
(J-37228)
Seal cutter

Removing steel oil pan and rear timing chain
case

ST0501S000
Engine stand assembly
1. ST05011000
( — )
Engine stand
2. ST05012000
( — )
Base

Disassembling and assembling

KV10106500
( — )
Engine stand shaft

KV10115300
( — )
Engine sub-attachment

KV10116200
(J-26336-B)
Valve spring compressor
1. KV10115900
(J-26336-20)
Attachment

Disassembling valve mechanism

KV10112100
(BT-8653-A)
Angle wrench

Tightening bolts for bearing cap, cylinder
head, etc.

S-NT046

NT042

NT028

ZZA1078D

NT022

S-NT014

PREPARATION

EM-7

< PREPARATION >

[QR25DE]

KV10107902
(J-38959)
Valve oil seal puller

Removing valve oil seal

KV10115600
(J-38958)
Valve oil seal drift

Installing valve oil seal
Use side A.
                                           Unit: mm (in)
a: 20 (0.79) dia.          d: 8 (0.31) dia.
b: 13 (0.51) dia.           e: 10.7 (0.421) dia.
c: 10.3 (0.406) dia.         f: 5 (0.20) dia.

EM03470000
(J-8037)
Piston ring compressor

Installing piston assembly into cylinder bore

ST16610001
(J-23907)
Pilot bushing puller

Removing crankshaft pilot bushing

WS39930000
( — )
Tube presser

Pressing the tube of liquid gasket

16441 6N210
(J-45488)
Quick connector release

Removing fuel tube quick connectors in en-
gine room
(Available in SEC. 164 of PARTS CATALOG:
Part No. 16441 6N210)

—

(J-47242)
Engine support table

Removing engine and transaxle assembly

Tool number
(Kent-Moore No.)
Tool name

Description

S-NT011

S-NT603

S-NT044

S-NT045

S-NT052

PBIC0198E

WBIA0658E

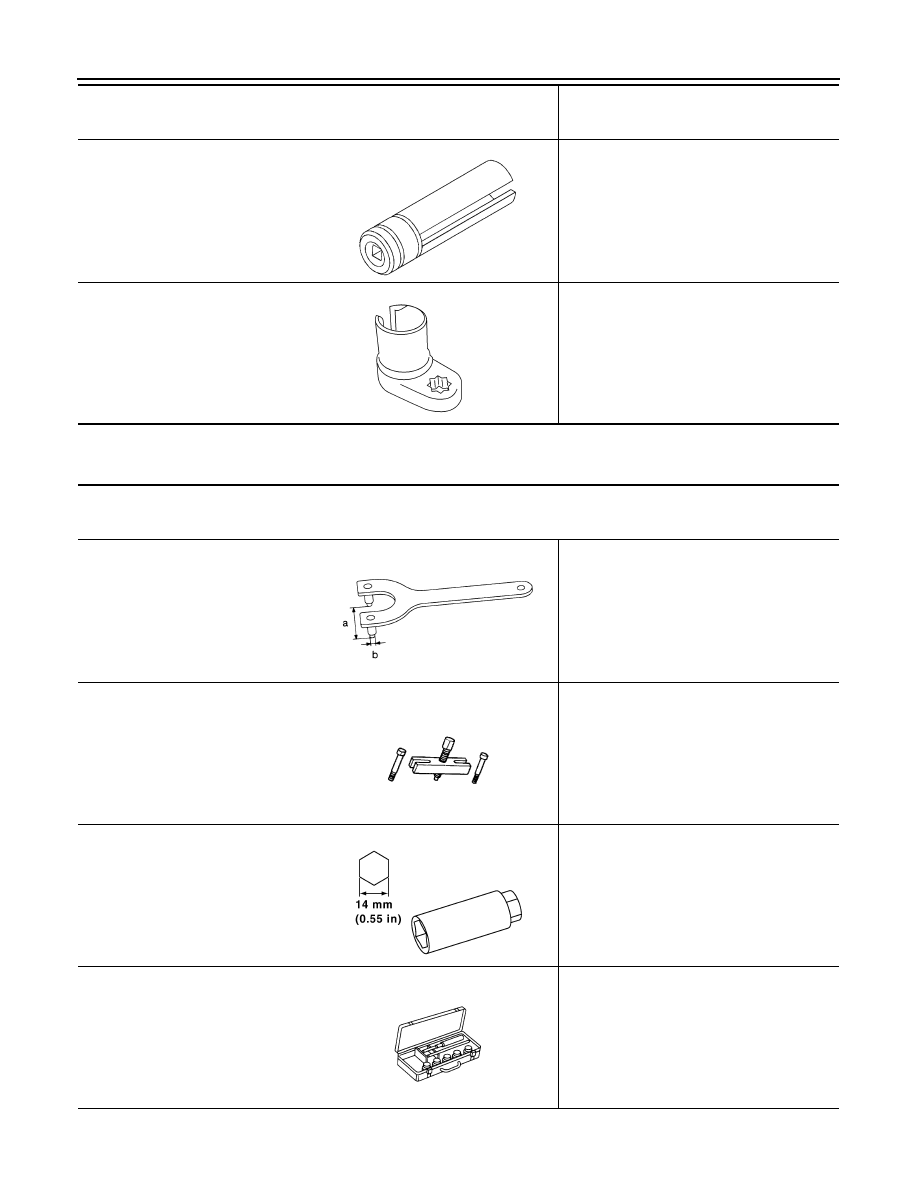

EM-8

< PREPARATION >

[QR25DE]

PREPARATION

Commercial Service Tool

INFOID:0000000004211231

KV10117100
(J-36471-A)
Heated oxygen sensor wrench

Loosening or tightening heated oxygen sen-
sor
For 22 mm (0.87 in) hexagon nut

—

(J-44626)
Air fuel ratio (A/F) sensor wrench

Loosening or tightening air fuel ratio (A/F)
sensor 1

Tool number
(Kent-Moore No.)
Tool name

Description

NT379

LEM054

Tool number
(Kent-Moore No.)
Tool name

Description

Pulley holder

Crankshaft pulley removing and installing
a: 68 mm (2.68 in) dia.
b: 8 mm (0.31 in) dia.

Crank puller

Crankshaft pulley removing

Spark plug wrench

Removing and installing spark plug

Valve seat cutter set

Finishing valve seat dimensions

NT628

ZZA0010D

PBIC2982E

S-NT048

PREPARATION

EM-9

< PREPARATION >

[QR25DE]

Piston ring expander

Removing and installing piston ring

Valve guide drift

Removing and installing valve guide
Intake & Exhaust:
a: 9.5 mm (0.374 in) dia.
b: 5.5 mm (0.217 in) dia.

Valve guide reamer

1: Reaming valve guide inner hole
2: Reaming hole for oversize valve guide
Intake & Exhaust:
d

: 6.0 mm (0.236 in) dia.

: 10.2 mm (0.402 in) dia.

(J-43897-18)
(J-43897-12)
Oxygen sensor thread cleaner

Reconditioning the exhaust system threads
before installing a new heated oxygen sensor
(Use with anti-seize lubricant shown below.)
a: J-43897-18 [18 mm (0.71 in) dia.] for zir-
conia heated oxygen sensor
b: J-43897-12 [12 mm (0.47 in) dia.] for tita-
nia heated oxygen sensor

Anti-seize lubricant (Permatex 133AR
or equivalent meeting MIL specifica-
tion MIL-A-907)

Lubricating oxygen sensor thread cleaning
tool when reconditioning exhaust system
threads

Power tool

Loosening bolts and nuts

E20 Torx® Socket
(J-45816)

Removing and installing CVT drive plate bolts

Tool number
(Kent-Moore No.)
Tool name

Description

S-NT030

S-NT015

S-NT016

AEM488

AEM489

PBIC0190E

LBIA0285E
