EC-224

< COMPONENT DIAGNOSIS >

[QR25DE]

P0171 FUEL INJECTION SYSTEM FUNCTION

P0171 FUEL INJECTION SYSTEM FUNCTION

DTC Logic

INFOID:0000000004211461

DTC DETECTION LOGIC

With the Air/Fuel Mixture Ratio Self-Learning Control, the actual mixture ratio can be brought closely to the

theoretical mixture ratio based on the mixture ratio feedback signal from the A/F sensors 1. The ECM calcu-

lates the necessary compensation to correct the offset between the actual and the theoretical ratios.

In case the amount of the compensation value is extremely large (The actual mixture ratio is too lean.), the

ECM judges the condition as the fuel injection system malfunction and lights up the MIL (2 trip detection logic).

DTC CONFIRMATION PROCEDURE

1.

PRECONDITIONING

If DTC Confirmation Procedure has been previously conducted, always perform the following before conduct-

ing the next test.

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.

>> GO TO 2.

2.

PERFORM DTC CONFIRMATION PROCEDURE-II

1. Clear the mixture ratio self-learning value. Refer to

EC-18, "MIXTURE RATIO SELF-LEARNING VALUE

CLEAR : Special Repair Requirement"

.

2. Activate “INSPECTION MODE 1” (

HBC-104

) to start engine, and let engine idle for at least 5 minutes.

3. Check 1st trip DTC.
Is 1st trip DTC detected?

YES

>> Go to

EC-225, "Diagnosis Procedure"

.

NO

>> GO TO 3.

3.

PERFORM DTC CONFIRMATION PROCEDURE-III

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON (READY).

3. Maintain the following conditions for at least 10 consecutive minutes. Hold the accelerator pedal as steady

as possible.

CAUTION:

Always drive vehicle at a safe speed.

4. Check 1st trip DTC.
Is 1st trip DTC detected?

YES

>> Go to

EC-225, "Diagnosis Procedure"

.

Sensor

Input signal to ECM

ECM function

Actuator

A/F sensor 1

Density of oxygen in exhaust gas
(Mixture ratio feedback signal)

Fuel injection control

Fuel injector

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0171

Fuel injection system too
lean

• Fuel injection system does not operate properly.
• The amount of mixture ratio compensation is too

large. (The mixture ratio is too lean.)

• Intake air leaks
• A/F sensor 1
• Fuel injector
• Exhaust gas leaks
• Incorrect fuel pressure
• Lack of fuel
• Mass air flow sensor
• Incorrect PCV hose connection

VECL SPEED SE

80 - 120 km/h (50 mph - 75 mph)

P0171 FUEL INJECTION SYSTEM FUNCTION

EC-225

< COMPONENT DIAGNOSIS >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

NO

>> INSPECTION END

Diagnosis Procedure

INFOID:0000000004211462

1.

CHECK EXHAUST GAS LEAK

1. Activate “INSPECTION MODE 1” (

HBC-104

) to start engine.

2. Listen for an exhaust gas leak before three way catalyst (manifold).

Is exhaust gas leak detected?

YES

>> Repair or replace.

NO

>> GO TO 2.

2.

CHECK FOR INTAKE AIR LEAK

1. Listen for an intake air leak after the mass air flow sensor.

2. Check PCV hose connection.
Intake air leak detected?

YES

>> Repair or replace.

NO

>> GO TO 3.

3.

CHECK A/F SENSOR 1 INPUT SIGNAL CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect corresponding A/F sensor 1 harness connector.

3. Disconnect ECM harness connector.

4. Check the continuity between A/F sensor 1 harness connector and ECM harness connector.

5. Check the continuity between A/F sensor 1 harness connector or ECM harness connector and ground.

6. Also check harness for short to power.
Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair open circuit or short to ground or short to power in harness or connectors.

4.

CHECK FUEL PRESSURE

1. Check fuel pressure. Refer to

EC-465, "Inspection"

.

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> GO TO 5.

JMBIA0163GB

A/F sensor 1

ECM

Continuity

Connector Terminal Connector Terminal

F44

1

F14

45

Existed

2

49

A/F sensor 1

ECM

Ground

Continuity

Connector Terminal Connector Terminal

F44

1

F14

45

Ground Not existed

2

49

EC-226

< COMPONENT DIAGNOSIS >

[QR25DE]

P0171 FUEL INJECTION SYSTEM FUNCTION

5.

 DETECT MALFUNCTIONING PART

Check fuel hoses and fuel tubes for clogging.
Is the inspection result normal?

YES

>> Replace “fuel filter and fuel pump assembly”.

NO

>> Repair or replace

6.

CHECK MASS AIR FLOW SENSOR

With CONSULT-III

1. Install all removed parts.

2. Check “MASS AIR FLOW” in “DATA MONITOR” mode with CONSULT-III.

3. For specification, refer to

EC-470, "Mass Air Flow Sensor"

.

With GST

1. Install all removed parts.

2. Check mass air flow sensor signal in Service $01 with GST.

3. For specification, refer to

EC-470, "Mass Air Flow Sensor"

.

Is the measurement value within the specification?

YES

>> GO TO 7.

NO

>> Check connectors for rusted terminals or loose connections in the mass air flow sensor circuit or

grounds. Refer to

EC-144, "DTC Logic"

.

7.

CHECK FUNCTION OF FUEL INJECTOR

With CONSULT-III

1. Turn ignition switch ON (READY).

2. Perform “POWER BALANCE” in “ACTIVE TEST” mode with CONSULT-III.

3. Make sure that each circuit produces a momentary engine speed drop.

Without CONSULT-III

1. Activate “INSPECTION MODE 1” (

HBC-104

) to start engine.

2. Listen to each fuel injector operating sound.

Is the inspection result normal?

YES

>> GO TO 8.

NO

>> Perform trouble diagnosis for FUEL INJECTOR, refer to

EC-237, "Diagnosis Procedure"

.

8.

CHECK FUEL INJECTOR

1. Turn ignition switch OFF.

2. Confirm that the engine is cooled down and there are no fire hazards near the vehicle.

3. Disconnect all fuel injector harness connectors.

4. Remove fuel tube assembly. Refer to

EM-35, "Removal and Installation"

.

Keep fuel hose and all fuel injectors connected to fuel tube.

5. Disconnect all ignition coil harness connectors.

6. Prepare pans or saucers under each fuel injector.

7. Turn ignition switch ON (READY).

8. Depress the accelerator pedal to crank engine.

NOTE:

Clicking noise should be heard.

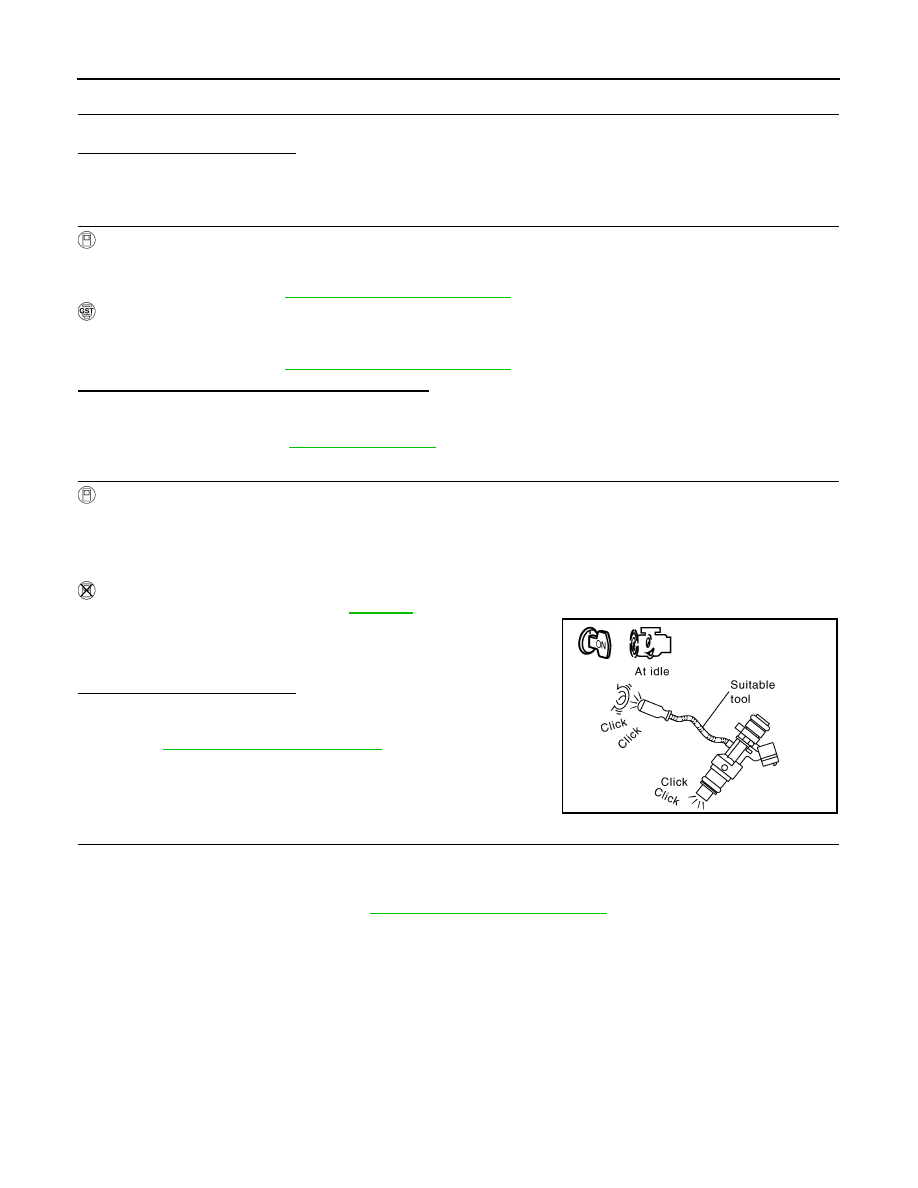

PBIB3332E

P0171 FUEL INJECTION SYSTEM FUNCTION

EC-227

< COMPONENT DIAGNOSIS >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

If step 8 performed, a certain DTC may be detected.

Is the inspection result normal?

YES

>> GO TO 9.

NO

>> Replace fuel injectors from which fuel does not spray

out. Always replace O-ring with new ones.

9.

CHECK INTERMITTENT INCIDENT

Refer to

GI-42, "Intermittent Incident"

.

>> INSPECTION END

Fuel should be sprayed evenly for each fuel injector.

PBIA9666J
