DOOR REQUEST SWITCH

DLK-97

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

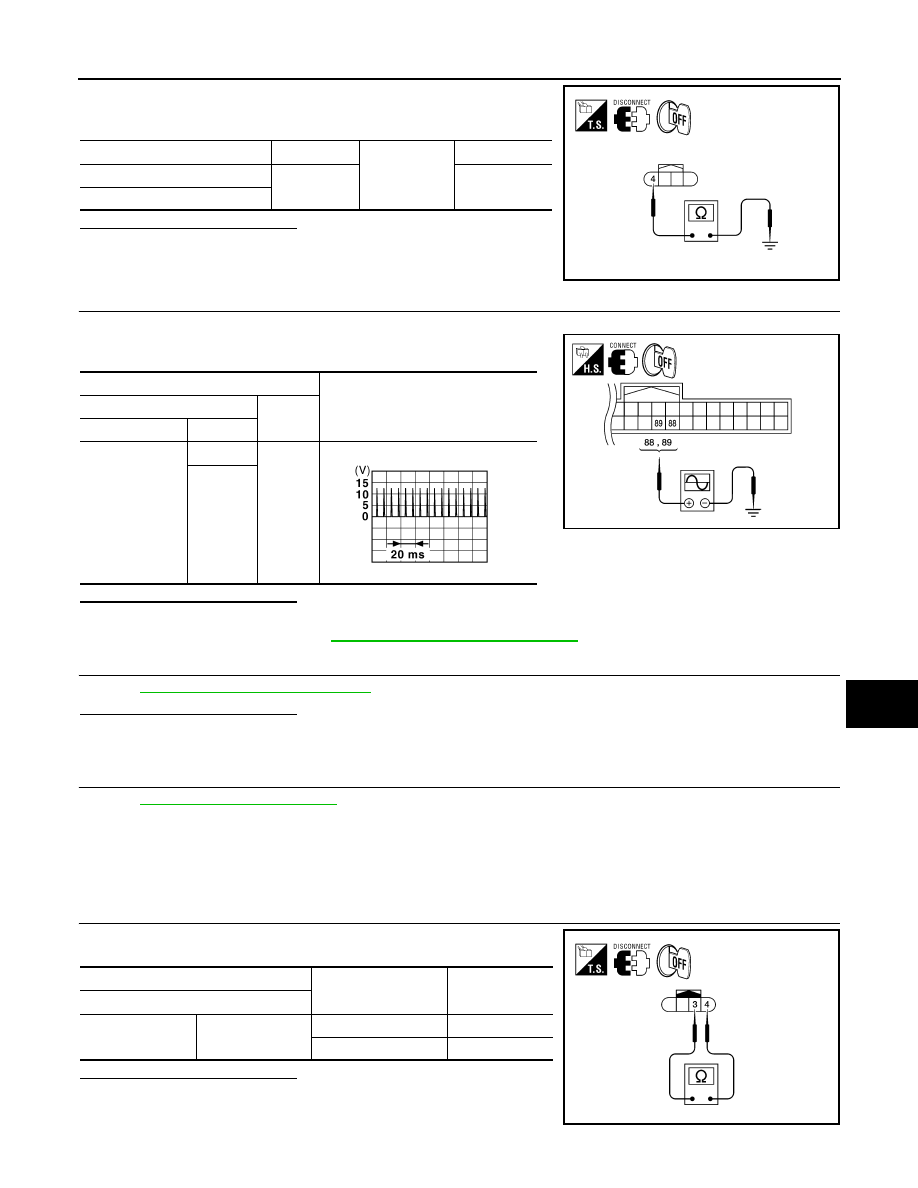

Check continuity between front outside handle connector and

ground.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> Repair or replace front outside handle ground circuit.

4.

CHECK BCM OUTPUT SIGNAL

1. Connect BCM connector.

2. Check voltage between BCM connector and ground.

Is the inspection result normal?

YES

>> GO TO 5

NO

>> Replace BCM. Refer to

BCS-87, "Removal and Installation"

.

5.

CHECK DOOR REQUEST SWITCH

Refer to

DLK-97, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 6

NO

>> Replace malfunctioning front outside handle.

6.

CHECK INTERMITTENT INCIDENT

Refer to

GI-42, "Intermittent Incident"

.

>> Inspection End.

Component Inspection

INFOID:0000000004215705

1.

CHECK DOOR REQUEST SWITCH

Check front outside handle (request switch).

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Replace malfunctioning front outside handle.

Front outside handle connector

Terminal

Ground

Continuity

D6 (driver side)

4

Yes

D106 (passenger side)

ALKIA1365ZZ

Terminals

Voltage (V)

(Approx.)

(+)

(–)

BCM connector

Terminal

M19

89

Ground

88

ALKIA0376ZZ

JMKIA0059GB

Terminal

Door request switch

condition

Continuity

Front outside handle (request switch)

3

4

Pressed

Yes

Released

No

ALKIA1366ZZ

DLK-98

< COMPONENT DIAGNOSIS >

TRUNK OPENER REQUEST SWITCH

TRUNK OPENER REQUEST SWITCH

Description

INFOID:0000000004215706

Performs trunk lid open request when it is pressed.

Component Function Check

INFOID:0000000004215707

1.

CHECK FUNCTION

With CONSULT-III

Check trunk opener request switch REQ SW -BD/TR in "DATA MONITOR" mode.

Is the inspection result normal?

YES

>> Trunk opener request switch is OK.

NO

>> Refer to

DLK-98, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000004215708

1.

CHECK TRUNK OPENER REQUEST SWITCH OUTPUT SIGNAL

1. Turn ignition switch OFF.

2. Check voltage between BCM connector and ground using an

oscilloscope.

Is the inspection result normal?

YES

>> GO TO 6

NO

>> GO TO 2

2.

CHECK TRUNK OPENER REQUEST SWITCH CIRCUIT

1. Disconnect BCM and trunk opener request switch connector.

Monitor item

Condition

 REQ SW -BD/TR

Trunk opener request switch is pressed : ON

Trunk opener request switch is released : OFF

ALKIA0397ZZ

Terminals

Trunk lid opener request

switch condition

Voltage (V)

(Approx.)

(+)

(–)

BCM connector

Terminal

M21

141

Ground

Pressed

0

Released

JPMIA0016GB

TRUNK OPENER REQUEST SWITCH

DLK-99

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

2. Check continuity between BCM connector M21 (A) terminal 141

and trunk opener request switch connector B33 (B) terminal 1.

3. Check continuity between BCM connector M21 (A) terminal 141

and ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair or replace harness between BCM and trunk opener request switch.

3.

CHECK TRUNK OPENER REQUEST SWITCH GROUND CIRCUIT

Check continuity between trunk opener request switch connector

and ground.

Is the inspection result normal?

YES

>> GO TO 4

NO

>> Repair or replace trunk opener request switch ground

circuit.

4.

CHECK BCM OUTPUT SIGNAL

1. Connect BCM connector.

2. Check voltage between BCM connector and ground.

Is the inspection result normal?

YES

>> GO TO 5

NO

>> Replace BCM. Refer to

BCS-87, "Removal and Installation"

.

5.

CHECK TRUNK OPENER REQUEST SWITCH

Refer to

DLK-100, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 6

NO

>> Replace trunk opener request switch.

6.

CHECK INTERMITTENT INCIDENT

Refer to

GI-42, "Intermittent Incident"

.

BCM connector

Terminal

 Trunk opener request

switch connector

Terminal

Continuity

A: M21

141

B: B33

1

Yes

BCM connector

Terminal

Ground

Continuity

A: M21

141

No

ALKIA0398ZZ

Trunk  opener request

switch  connector

Terminal

Ground

Continuity

B33

2

Yes

ALKIA0399ZZ

Terminals

Voltage (V)

(Approx.)

(+)

(–)

BCM connector

Terminal

M21

141

Ground

ALKIA0397ZZ

JPMIA0016GB

DLK-100

< COMPONENT DIAGNOSIS >

TRUNK OPENER REQUEST SWITCH

>> Inspection End.

Component Inspection

INFOID:0000000004215709

1.

CHECK TRUNK OPENER REQUEST SWITCH

Check trunk opener request switch.

Is the inspection result normal?

YES

>> Inspection End.

NO

>> Replace trunk opener request switch.

Terminal

Trunk opener request switch

condition

Continuity

Trunk opener request switch

1

2

Pressed

Yes

Released

No

ALKIA0400ZZ
