Nissan Altima HL32 Hybrid. Manual - part 206





WARNING FUNCTION

DLK-45

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

10. Remote keyless entry receiver M27

(view with instrument panel removed)

11. Instrument panel antenna M49

(view with center console assembly re-
moved)

12. Push button ignition switch M38.

13. BCM M16, M17, M18, M19, M20, M21

(view with instrument panel removed)

14. ECVT device (detent switch)

15.  Combination meter M24

16. Front console antenna M203

(view with center console assembly re-
moved)

17. Rear parcel shelf antenna B29

18.  Trunk opener request switch B33

19. Rear bumper antenna B46

20. Trunk lamp switch and trunk release

solenoid B28
(view with trunk lid inner trim panel re-
moved)

21. Front outside handle LH (outside

key antenna) D6
Front outside handle RH (outside
key antenna) D106

22. Front outside handle LH (request switch) D6

Front outside handle RH (request switch)
D106

23. Front door lock assembly LH D10

Front door lock actuator RH D108

24. Front door switch LH B8

RH B108

25. Rear door switch LH B18

RH B116
Rear bumper antenna B46

DLK-46

< FUNCTION DIAGNOSIS >

KEY REMINDER FUNCTION

KEY REMINDER FUNCTION

System Description

INFOID:0000000004215637

Key reminder is the function that prevents the key from being left in the vehicle.

Key reminder has the following 3 functions.

*:If the door closing impact shocks the door lock knob, or contacts against baggage with the door lock knob might activate the door locks
accidentally but unlock operation will be performed in these cases.

CAUTION:

• The above function operates when the Intelligent Key is inside the vehicle. However, there may be

times when the Intelligent Key cannot be detected, and this function will not operate when the Intelli-

gent Key is on the instrument panel, rear parcel shelf, or in the glove box. Also, this system some-

times does not operate if the Intelligent Key is in the door pocket for the open door.

• When the key reminder function is operated when the trunk is open/closed and the buzzers sound, if

the following operations are performed, the key reminder function is cleared and buzzer sounds are

stopped.

- Remote controller door lock button operation of Intelligent Key

- Remote controller door unlock button operation of Intelligent Key

- When the trunk is closed, the Intelligent Key is not inside the vehicle

- When any door is open

Key reminder function

Operation condition

Operation

Driver door closed*

Right after driver side door is closed under the following conditions
• Door lock operation is performed
• Driver side door is opened
• Driver side door is in unlock state

All doors unlock

Door is open or closed

Right after all doors are closed under the following conditions
• Intelligent Key is inside the vehicle
• Any door is opened
• All doors are locked by door lock and unlock switch or door lock knob

• All doors unlock
• Sounds Intelligent Key warning

buzzer

Trunk is closed

Right after trunk is closed under the following conditions
• Intelligent Key is inside trunk room
• All doors are closed
• All doors are locked

• Trunk open
• Sounds Intelligent Key warning

buzzer

KEY REMINDER FUNCTION

DLK-47

< FUNCTION DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

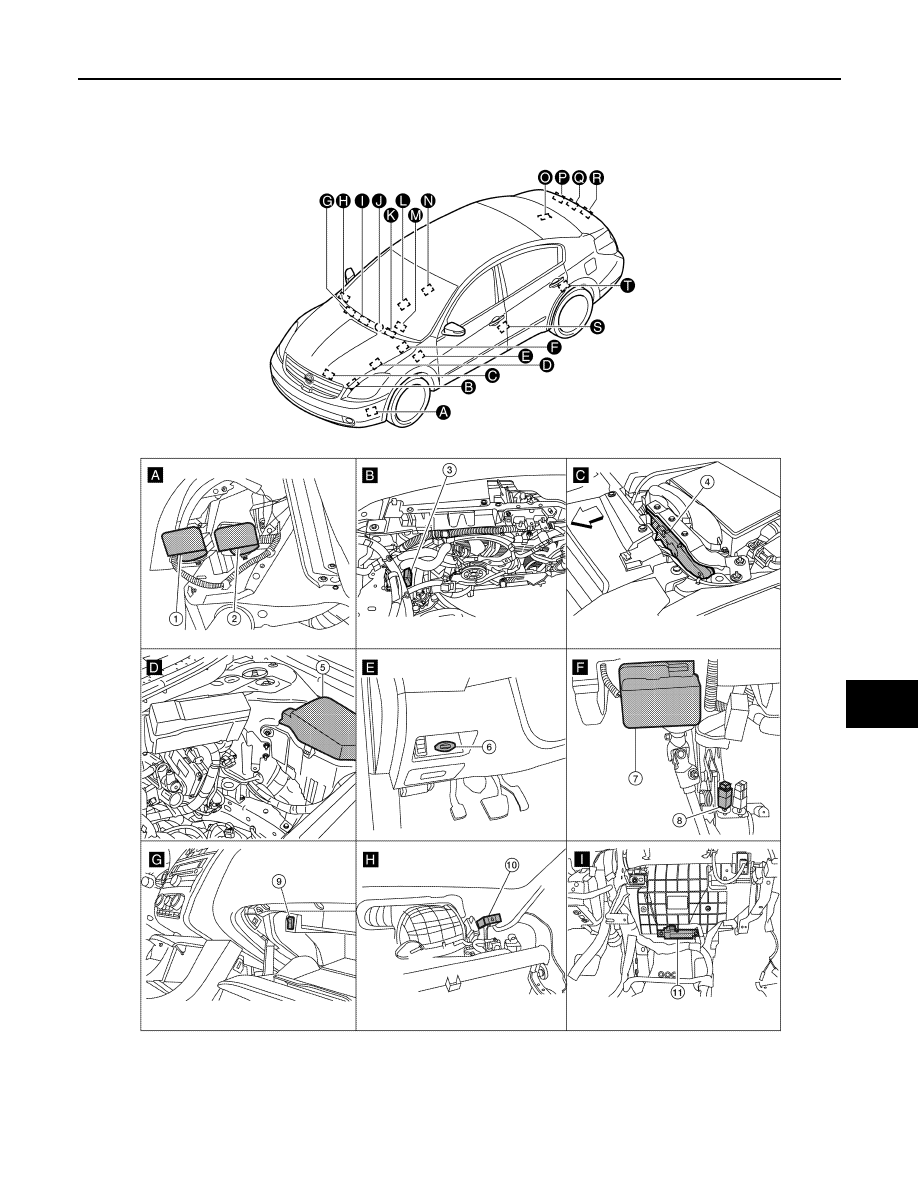

Component Parts Location

INFOID:0000000004466811

ALKIA0323ZZ

DLK-48

< FUNCTION DIAGNOSIS >

KEY REMINDER FUNCTION

ALKIA0324ZZ

1.

Horn (low) E215
(view with front fender protector LH removed)

2.

Horn (high) E216

3.

Intelligent Key warning buzzer
E73

4.

ECM

5.

IPDM E/R E17, E18

6.

 Key slot M40

7.

Electronic steering column lock M32
(view with instrument panel LH removed)

8.

Stop lamp switch E38

9.

Trunk lid opener cancel switch
M74
