BRM-46

< ON-VEHICLE REPAIR >

REPLACEMENT OPERATIONS

Change parts

z

Rear floor rear

ALKIA0241GB

REPLACEMENT OPERATIONS

BRM-47

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

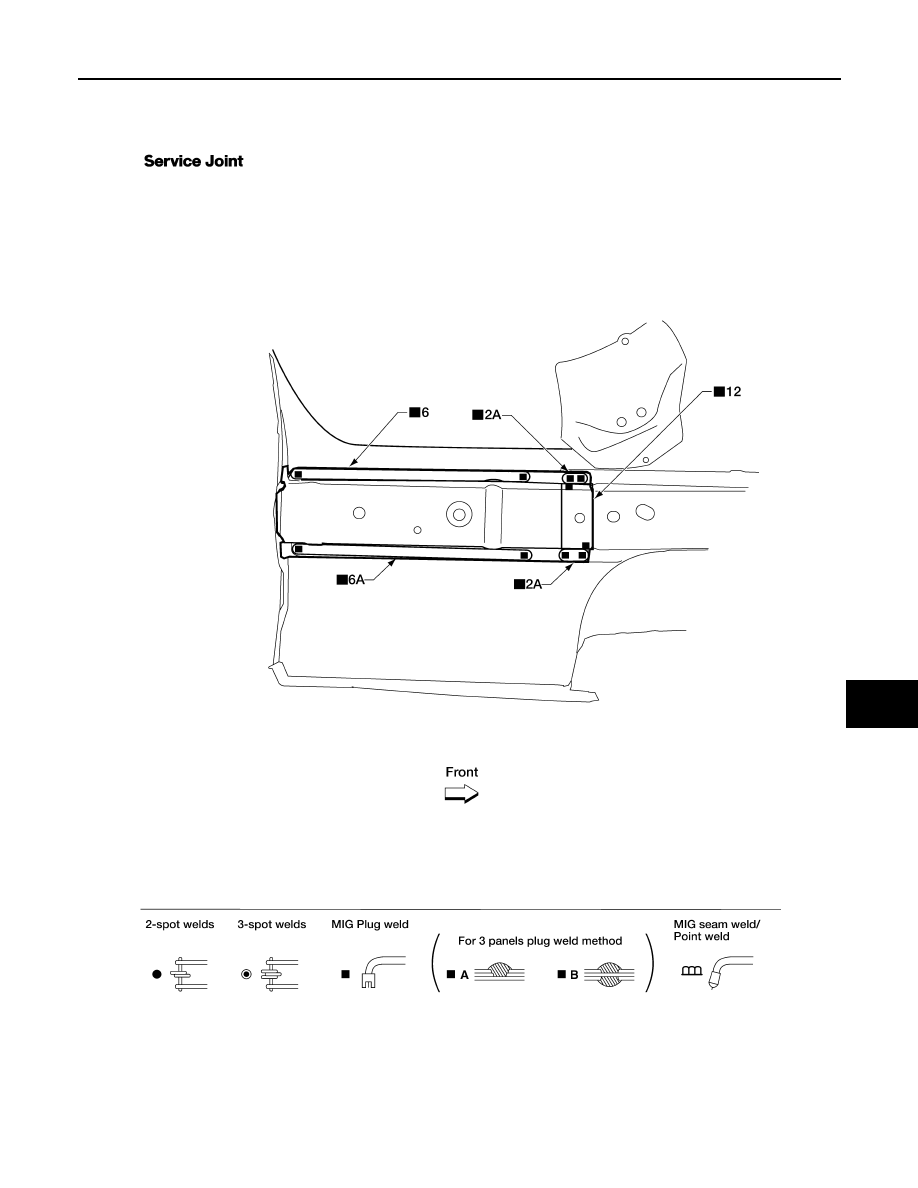

Rear Side Member Extension

INFOID:0000000004216241

• Work after rear panel assembly has been removed.

Change parts

z

Rear side member extension

ALKIA0098GB

BRM-48

< ON-VEHICLE REPAIR >

REPLACEMENT OPERATIONS

Foam Repair

INFOID:0000000004216242

During factory assembly, foam insulators are installed in certain body panels and locations around the vehicle.

Use the following procedure(s) to replace any factory-installed foam insulators.

URETHANE FOAM APPLICATIONS

Use commercially available spray for sealant (foam material) repair of material used on vehicle. Read instruc-

tions on product for fill procedures.

FILL PROCEDURES

1.  Fill procedures after installation service part.

• Remove foam material remaining on vehicle side.

• Clean area in which foam was removed.

• Install service part.

• Insert nozzle into hole near fill area and fill foam material or fill in enough to close gap with service part.

2. Fill procedures before installation service part
• Remove foam material remaining on vehicle side.

• Clean area in which foam material on wheelhouse outer side.

NOTE:

Fill in enough to close gap with service part while avoiding flange

area.

• Install service part.

NOTE:

Refer to label for information on working times.

LIIA1081E

LIIA1082E

REPLACEMENT OPERATIONS

BRM-49

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

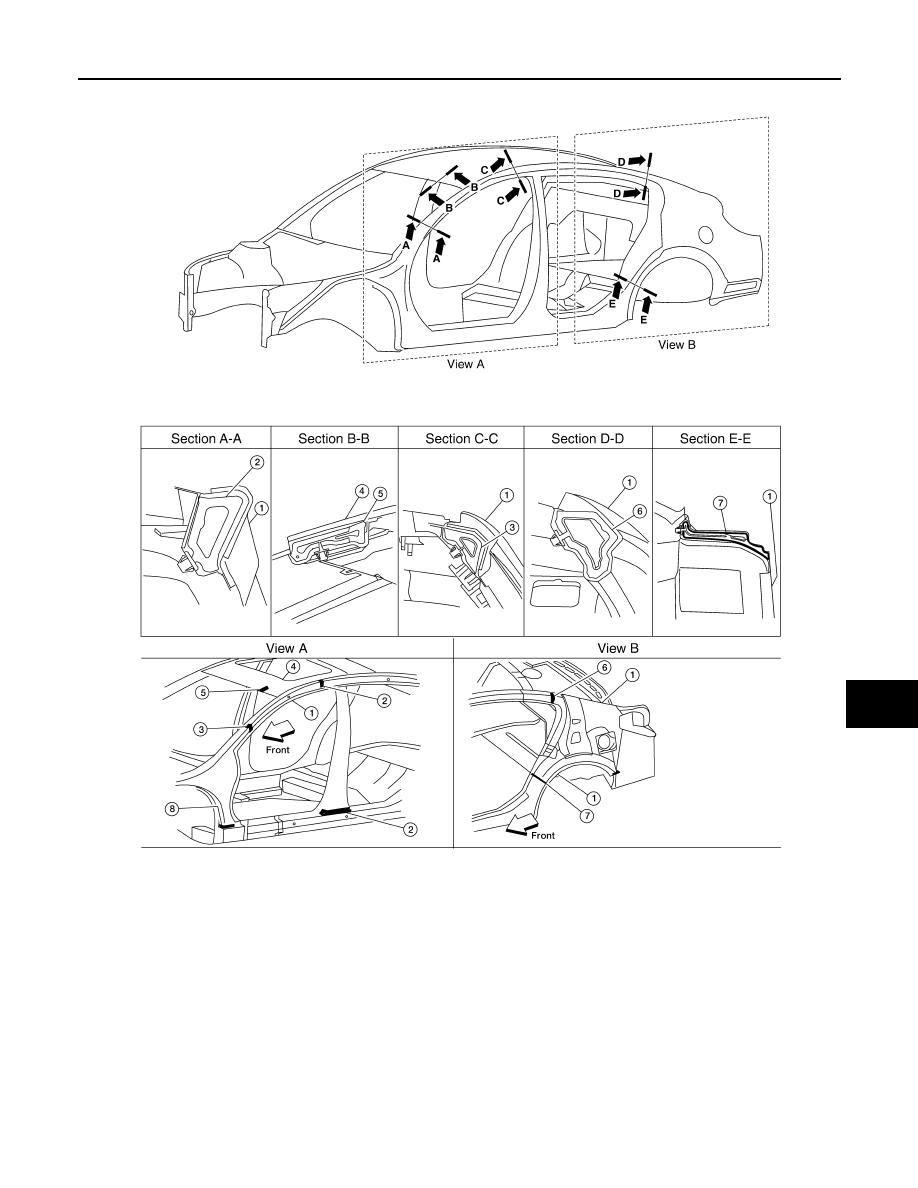

1.

Body side outer

2.

Body side insulation (foam) upper
front pillar

3.

Body side insulation (foam) front pil-
lar

4.

Roof panel assembly

5.

Roof panel insulation (foam) front
roof rail

6.

Body side insulation (foam) rear pil-
lar

7.

Body side insulation (foam) rear pil-
lar lower

8.

Body side insulation strip, front pillar
lower reinforcement

ALKIA0161GB
