Underbody Component Parts

INFOID:0000000004216214

ALKIA0099GB

1.

Upper dash assembly

25. Inner sill (RH, LH)

2.

Lower dash crossmember reinforcement

26. Outer sill support bracket (RH, LH)

3.

Rear crossmember (RH, LH)

27. Outer sill (RH, LH)

BODY COMPONENT PARTS

BRM-7

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

4.

Front crossmember (RHLH)

28. Rear floor front

5.

Front sidemember reinforcement upper (RHLH)

29. Rear seat crossmember

6.

Front floor assembly (RHLH)

30. Rear seat crossmember lower

7.

Front sidemember reinforcement lower

31. Rear floor rear

8.

Front floor center

32. Rear floor rear side (RH, LH)

9.

Front suspension member plate (RH, LH)

33. Rear side member (RH, LH)

10. Front sidemember cap (RH, LH)

34. Rear side member extension (RH, LH)

11. Front sidemember (RH, LH)

35. Rear side member assembly (RH, LH)

12. Outrigger (RH, LH)

36. Rear wheel housing outer (RH, LH)

13. Lower hoodledge support (RH, LH)
14. Radiator core support (RH, LH)
15. Front sidemember assembly (RH, LH)
16. Strut housing bracket (RH, LH)
17. Strut housing (RH, LH)
18. Radiator core support side (RH, LH)
19. Front sidemember extension (RH, LH)
20. Closing plate (RH, LH)
21. Hoodledge assembly (RH, LH)
22. Upper hoodledge (RH, LH)
23. Upper hoodledge lower (RH, LH)
24. Dash side (RH, LH)

BRM-8

< ON-VEHICLE REPAIR >

BODY COMPONENT PARTS

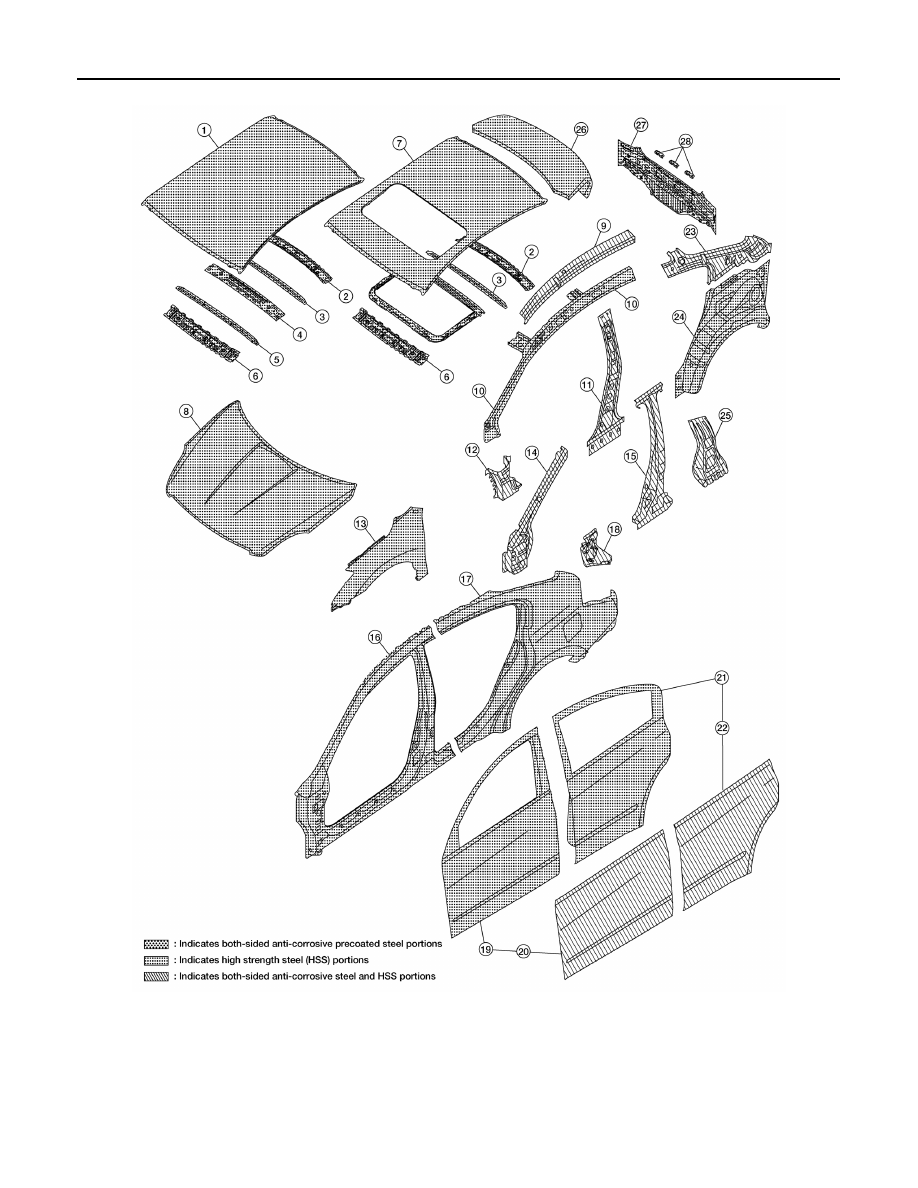

Body Component Parts

INFOID:0000000004216215

ALKIA0100GB

1.

Roof panel assembly

21. Rear door assembly (RH, LH)

2.

Rear roof rail

22. Outer rear door panel (RH, LH)

3.

3rd roof rail

23. Rear pillar reinforcement (RH, LH)

4.

2nd roof rail

24. Rear wheel well housing outer (RH, LH)

5.

1st roof rail

25. Rear pillar inner reinforcement (RH, LH)

6.

Front roof rail

26. Trunk lid assembly (RH, LH)

BODY COMPONENT PARTS

BRM-9

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

7.

Sun roof panel assembly

27. Rear panel assembly

8.

Hood assembly

28. Upper rear bumper retainer

9.

Roof side rail reinforcement (RH, LH)

10. Outer roof side rail (RH, LH)
11. Inner center pillar (RH,LH)
12. Front pillar reinforcement (RHLH)
13. Fender (RH, LH)
14. Front pillar inner (RH, LH)
15. Center pillar reinforcement (RH, LH)
16. Side body (RH, LH)
17. Rear fender (RH, LH)
18. Rear fender corner (RH, LH)
19. Front door assembly (RH, LH)
20. Outer front door panel (RH, LH)
