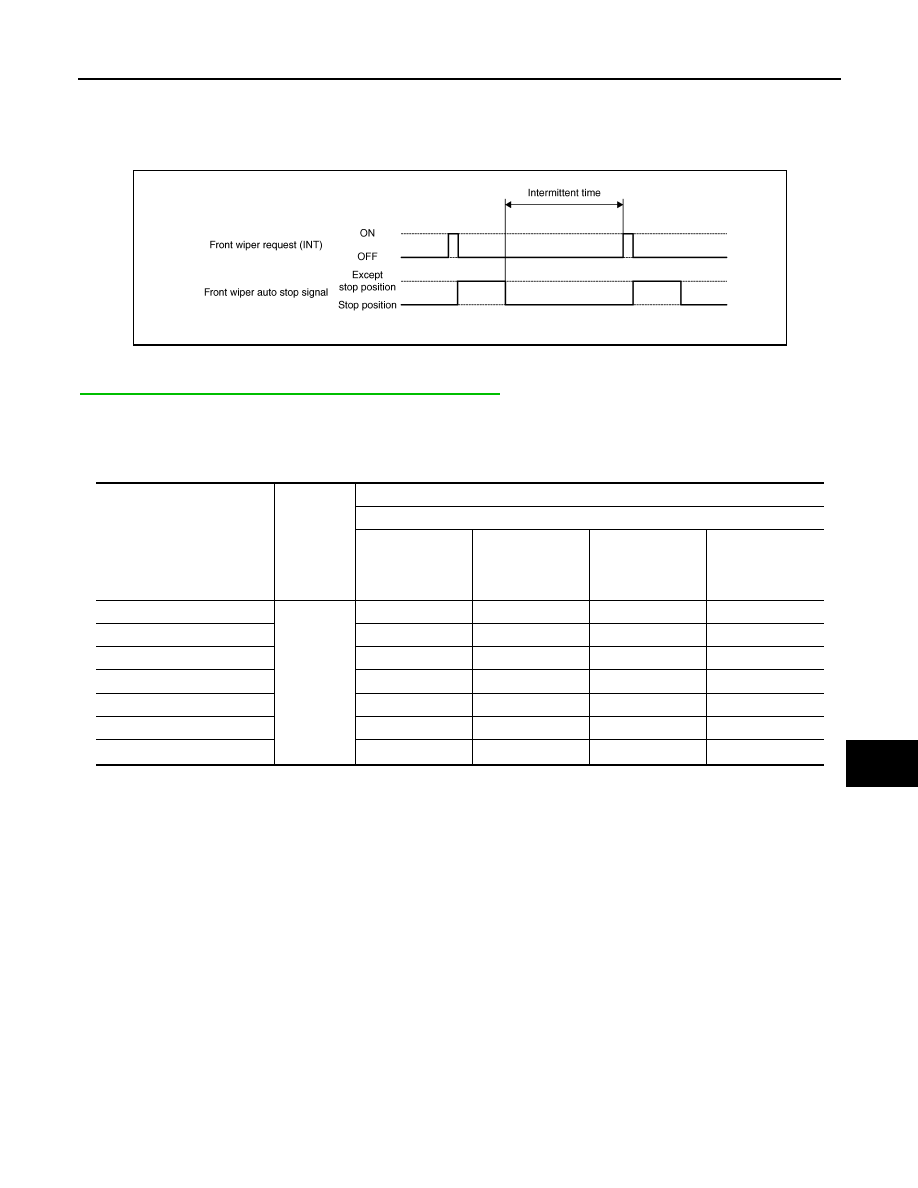

• IPDM E/R turns ON the integrated front wiper relay so that the front wiper is operated only once according to
the front wiper request signal (INT).
• BCM detects stop position/except stop position of the front wiper motor according to the front wiper auto stop
signal received from IPDM E/R with CAN communication.
• BCM transmits the front wiper request signal (INT) again after the intermittent operation delay interval.
NOTE:
Front wiper intermittent operation can be set to the operation with vehicle speed by CONSULT-III. Refer to
BCS-24, "WIPER : CONSULT - III Function (BCM - WIPER)"
.
Front wiper intermittent operation with vehicle speed
• BCM calculates the intermittent operation delay interval from the following
- Vehicle speed signal (received from the combination meter with CAN communication)
- Wiper intermittent dial position
*: When without vehicle speed setting

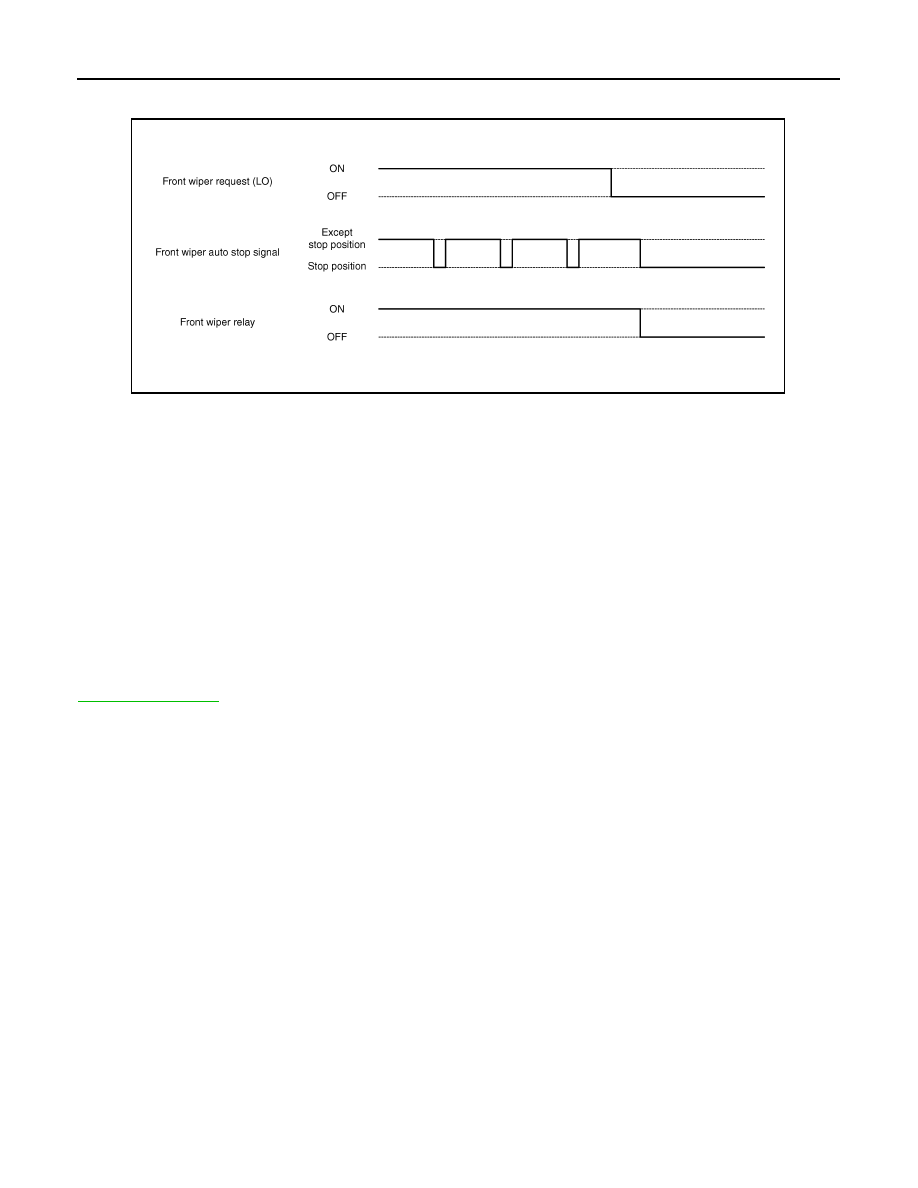

FRONT WIPER AUTO STOP OPERATION
• BCM stops transmitting the front wiper request signal when the front wiper switch is turned OFF.
• IPDM E/R detects the front wiper auto stop signal from the front wiper motor and detects the front wiper
motor position (stop position/except stop position).
Wiper intermittent dial posi-
tion
Intermittent
operation
interval
Intermittent operation delay Interval (s)
Vehicle speed
Vehicle stopped or
less than 5 km/h
(3.1 MPH)
5 km/h (3.1MPH)
or more or less
than 35km/h (21.7
MPH)
35 km/h (21.7
MPH) or more or
less than 65km/h
(40.4 MPH)*
65 km/h
(40.4MPH) or
more
1
Short
↑
↓
Long
0.8
0.6
0.4
0.24
2
4
3
2
1.2
3
10
7.5
5
3
4
16
12
8
4.8
5
24
18
12
7.2
6
32
24
16
9.6
7
42
31.5
21
12.6
