< ECU DIAGNOSIS >

COMBINATION METER

29

R

Washer fluid level switch

ON

Washer fluid level low

0

Washer fluid level normal

Battery voltage

30

L/B

Vehicle speed signal out-
put (2-pulse)

ON

Speedometer operated
[When vehicle speed is ap-
prox. 20 km/h (12 MPH)]

240 Hz

31

V/W

Vehicle speed signal out-
put (8-pulse)

ON

Speedometer operated
[When vehicle speed is ap-
prox. 40 km/h (25 MPH)]

NOTE:
Maximum voltage may be 12V due to spec-
ifications (connected units).

34

G/B

Fuel level sensor signal

—

—

Refer to

MWI-13, "FUEL GAUGE : System

Description"

.

35

W/B

Seat belt buckle switch
LH

ON

Unfastened (ON)

0

Fastened (OFF)

Battery voltage

36

L/W

Seat belt buckle switch
RH

ON

Unfastened (ON)

0

Fastened (OFF)

Battery voltage

Termi-

nal

Wire

color

Item

Condition

Reference value (V)

(Approx.)

Ignition

switch

Operation or condition

PKIC0643E

WCS

COMBINATION METER

WCS-31

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

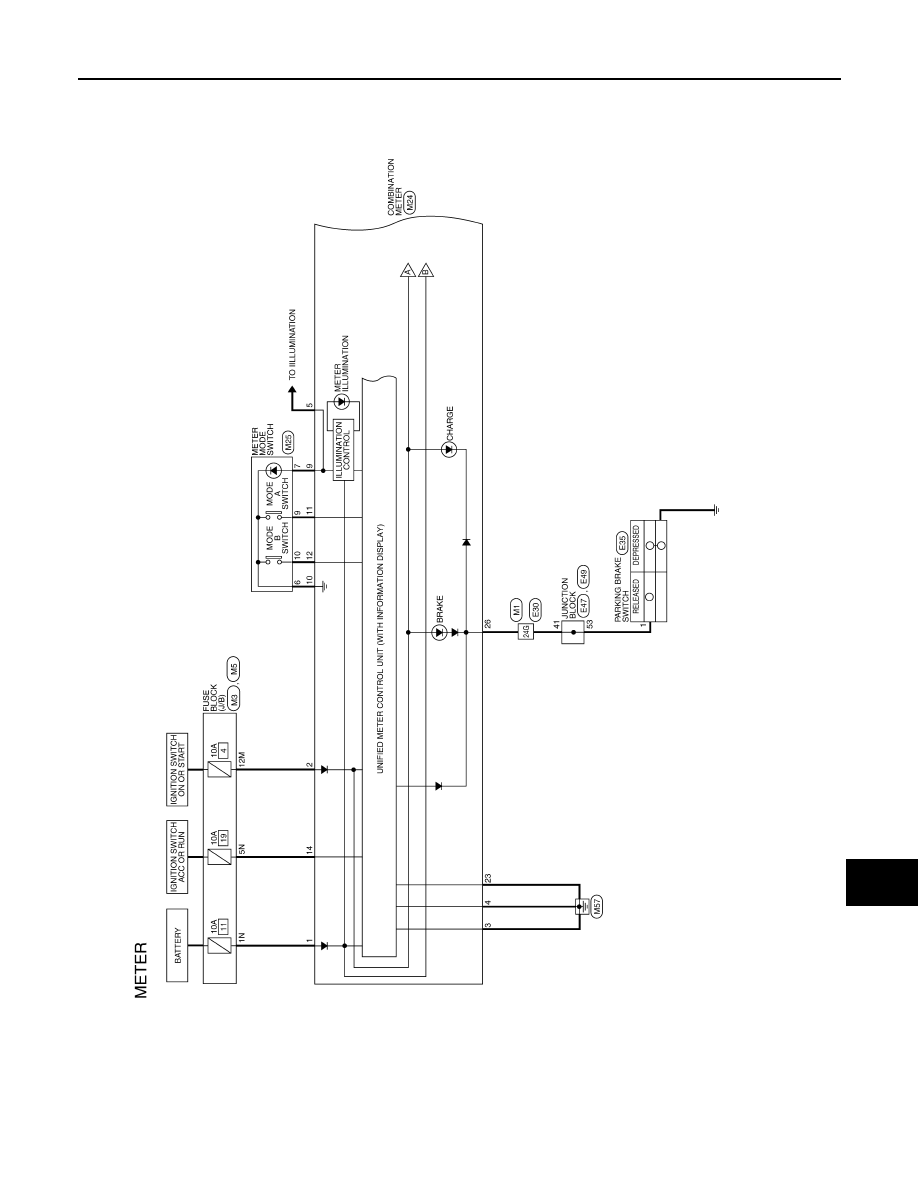

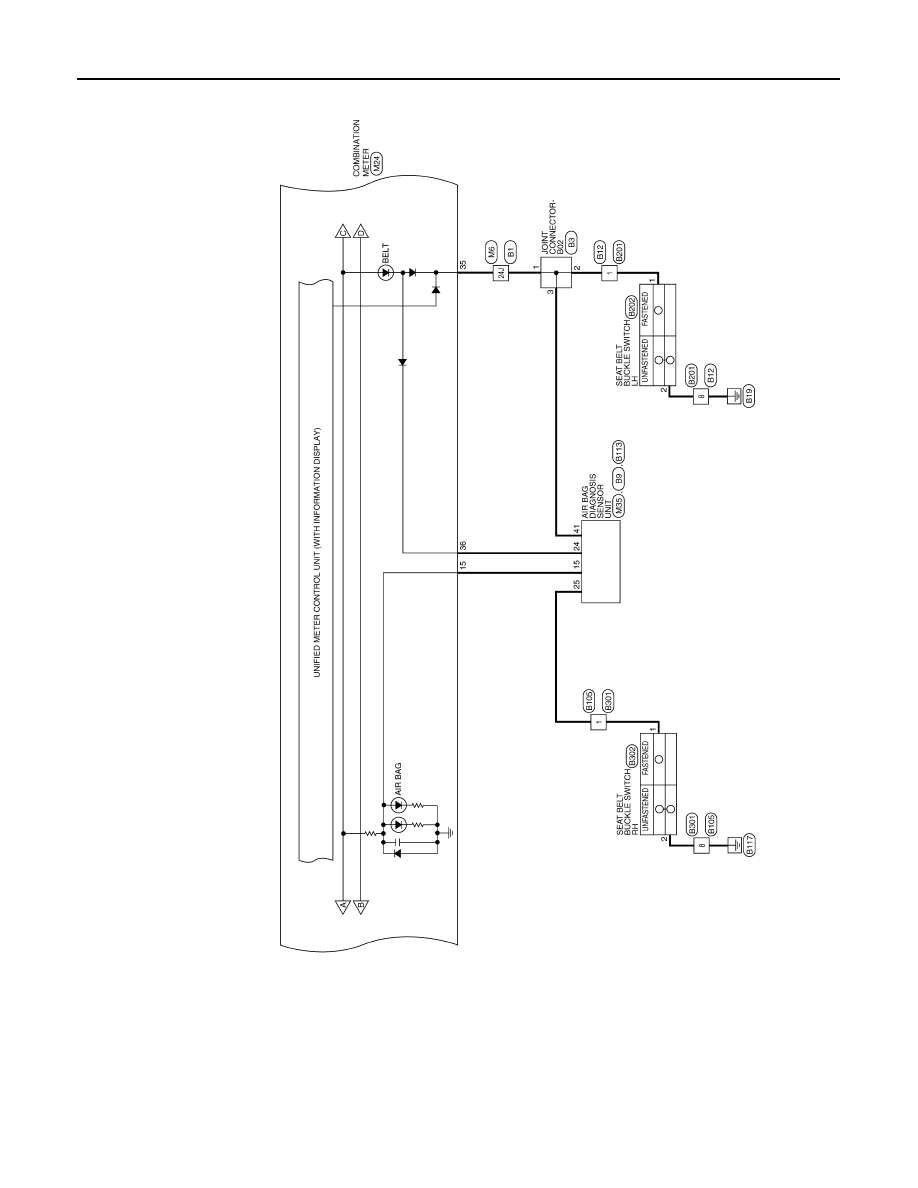

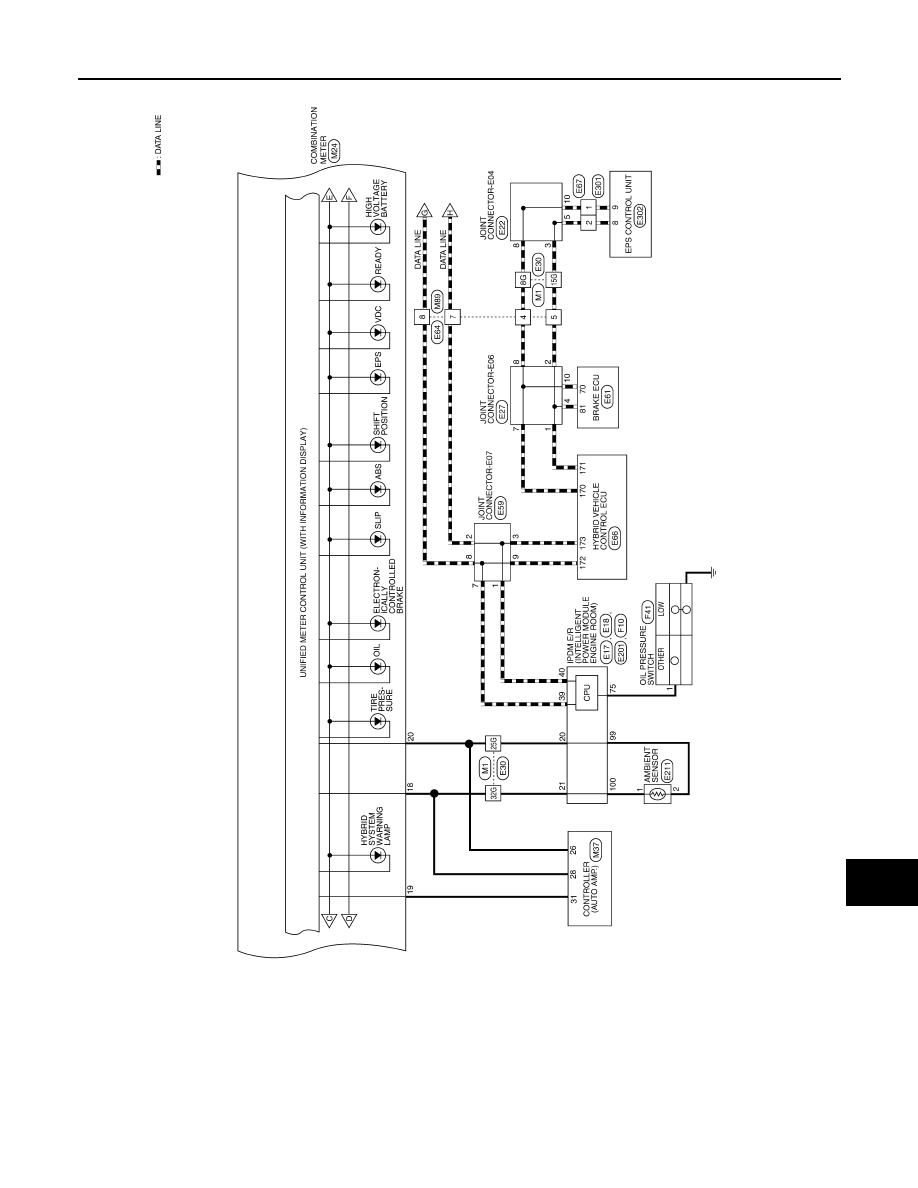

Wiring Diagram
