WCS-26

< COMPONENT DIAGNOSIS >

WARNING CHIME SYSTEM

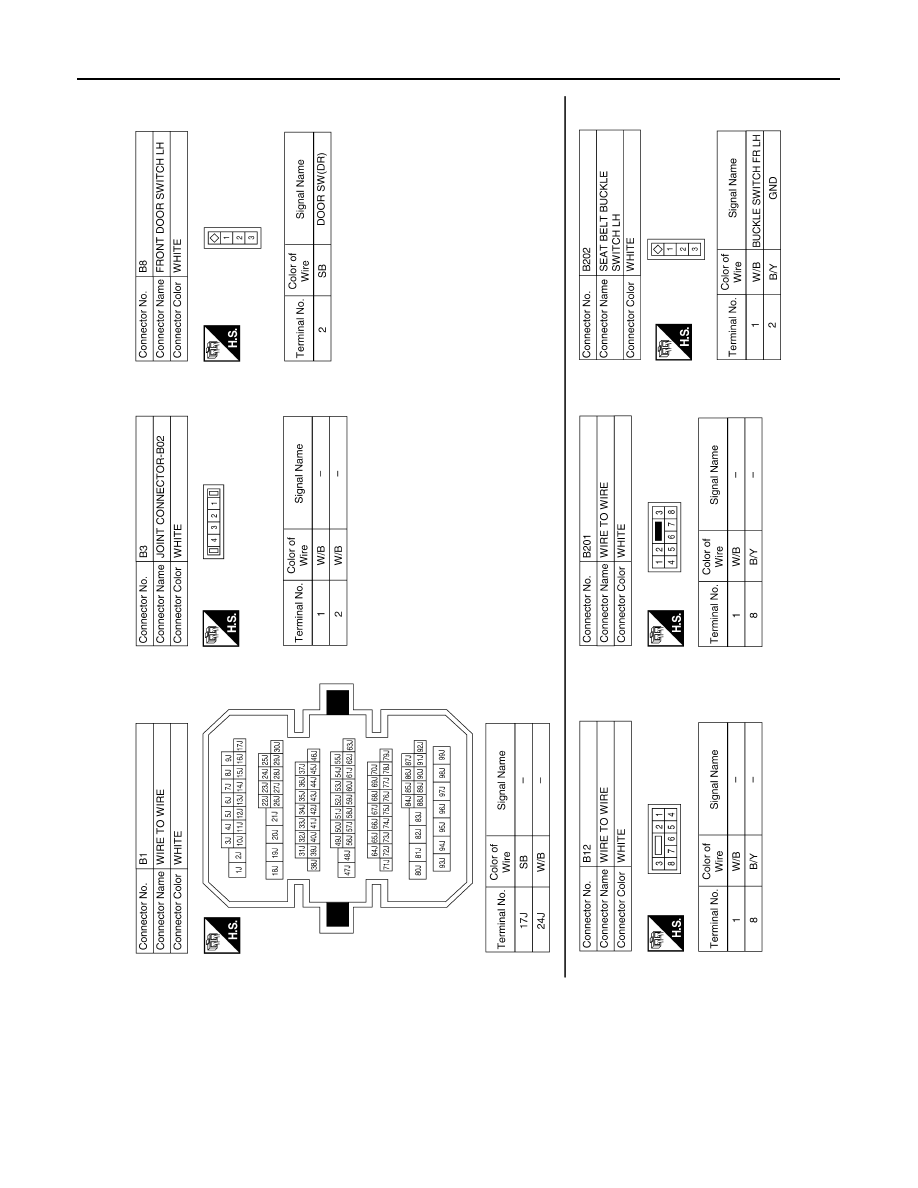

ABNIA0744GB

WCS

WARNING CHIME SYSTEM

WCS-27

< COMPONENT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ABNIA0745GB

WCS-28

< COMPONENT DIAGNOSIS >

WARNING CHIME SYSTEM

ABNIA0746GB

WCS

COMBINATION METER

WCS-29

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

ECU DIAGNOSIS

COMBINATION METER

Reference Value

INFOID:0000000004491006

TERMINAL LAYOUT

PHYSICAL VALUES

WKIA5832E

Termi-

nal

Wire

color

Item

Condition

Reference value (V)

(Approx.)

Ignition

switch

Operation or condition

1

W/L

Battery power supply

—

—

Battery voltage

2

O

Ignition switch ON or
START

ON

—

Battery voltage

3

B

Ground (Power)

—

—

0

4

B

Ground (Illumination)

5

R/Y

Illumination output

—

—

Refer to

INL-9, "System Description"

.

9

GR/W

Illumination switch pow-
er

—

—

Refer to

INL-9, "System Description"

.

10

O/L

Mode switch ground

ON

—

0

11

L/R

Mode switch A

ON

Switch pressed

0

Switch released

5

12

B/R

Mode switch B

ON

Switch pressed

0

Switch released

5

14

V/Y

Ignition switch ACC or
ON

ON

—

Battery voltage

15

BR/W

Air bag warning lamp in-
put

ON

Air bag warning lamp ON

3

Air bag warning lamp OFF

0

18

O/B

Ambient sensor signal

ON

—

0 - 5 (Based on ambient temperature)

20

B/Y

Ambient sensor ground

ON

—

0

21

L

CAN-H

—

—

—

22

P

CAN-L

—

—

—

23

B

Ground (Circuit)

—

—

0

24

B/W

Fuel level sensor ground

ON

—

0

26

G/R

Parking brake switch

ON

Parking brake applied

0

Parking brake released

Battery voltage

28

L/O

Security indicator input

OFF

Security indicator ON

0

Security indicator OFF

Battery voltage
