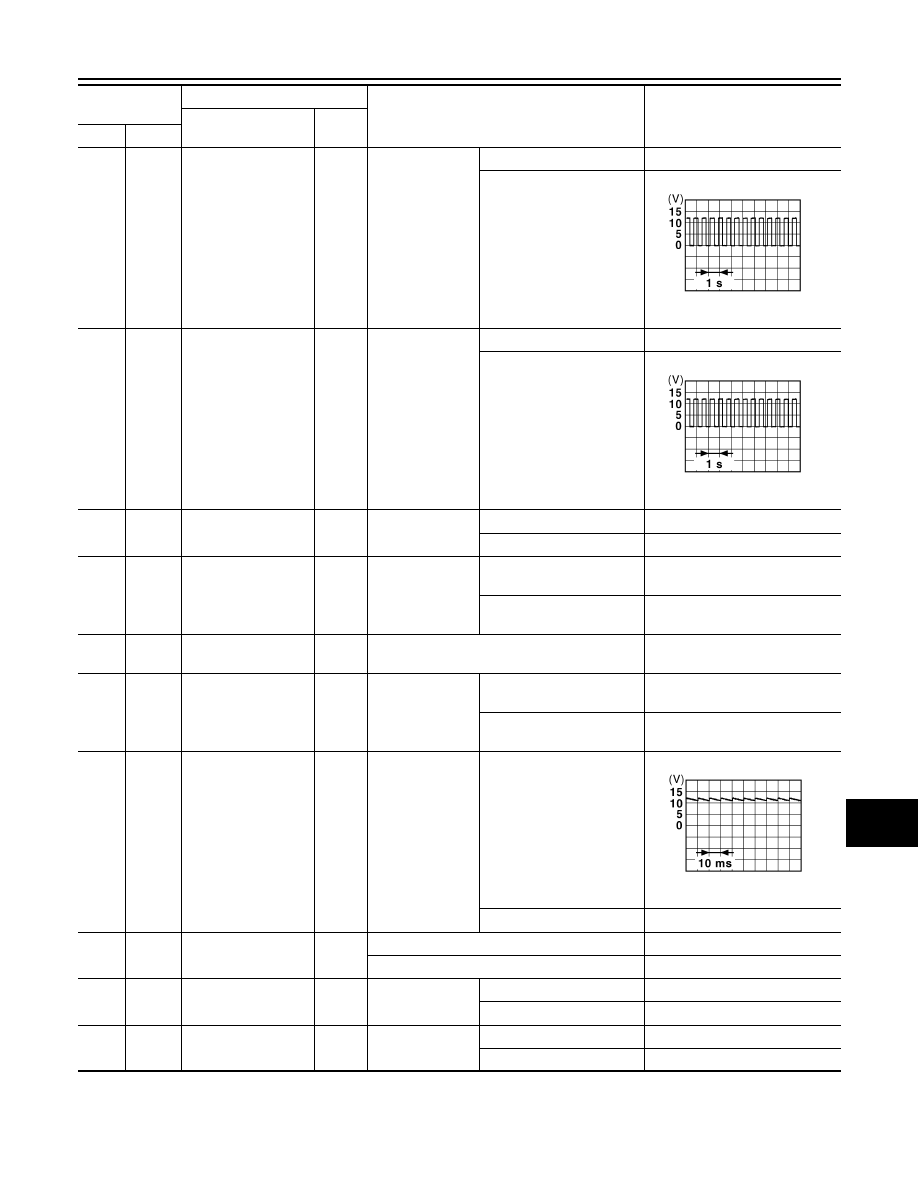

BCS-50 < ECU DIAGNOSIS > [BCM] BCM (BODY CONTROL MODULE) S/L UNLCK-IPDM Electronic steering column lock UNLOCK status (IPDM E/R sends OFF Electronic steering column lock LOCK status (IPDM E/R sends via ON S/L RELAY-REQ Ignition switch OFF or ACC OFF Ignition switch ON ON VEH SPEED 1 While driving Equivalent to speedometer reading VEH SPEED 2 While driving Equivalent to speedometer reading DR DOOR STATE Front door LH LOCK status LOCK Wait with selective UNLOCK operation (5 seconds) READY Front door LH UNLOCK status UNLK AS DOOR STATE Front door RH LOCK status LOCK Wait with selective UNLOCK operation (5 seconds) READY Front door RH UNLOCK status UNLK ID OK FLAG Ignition switch ACC or ON RESET Ignition switch OFF SET PRMT ENG STAT When the hybrid system start is prohibited RESET When the hybrid system start is permitted SET PRMT RKE STAT NOTE: RESET KEY SW -SLOT When Intelligent Key is not inserted into key slot OFF When Intelligent Key is inserted into key slot ON RKE OPE COUN1 During the operation of Intelligent Key Operation frequency of Intelligent Key RKE OPE COUN2 NOTE: Operation frequency of Intelligent Key AIR PRESS FL Ignition switch ON (only when the signal from the transmitter is re- Air pressure of front LH tire AIR PRESS FR Ignition switch ON (only when the signal from the transmitter is re- Air pressure of front RH tire AIR PRESS RR Ignition switch ON (only when the signal from the transmitter is re- Air pressure of rear RH tire AIR PRESS RL Ignition switch ON (only when the signal from the transmitter is re- Air pressure of rear LH tire ID REGST FL1 When ID of front LH tire transmitter is registered (refer to DONE When ID of front LH tire transmitter is not registered (refer to YET ID REGST FR1 When ID of front RH tire transmitter is registered (refer to DONE When ID of front RH tire transmitter is not registered (refer to YET ID REGST RR1 When ID of rear RH tire transmitter is registered (refer to DONE When ID of rear RH tire transmitter is not registered (refer to YET ID REGST RL1 When ID of rear LH tire transmitter is registered (refer to DONE When ID of rear LH tire transmitter is not registered (refer to YET Monitor Item Condition Value/Status |
