< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

TEL ANTENNA

TEL ANTENNA

Removal and Installation

INFOID:0000000004219484

REMOVAL

1. Remove the rear parcel shelf finisher. Refer to

INT-19, "Removal and Installation"

.

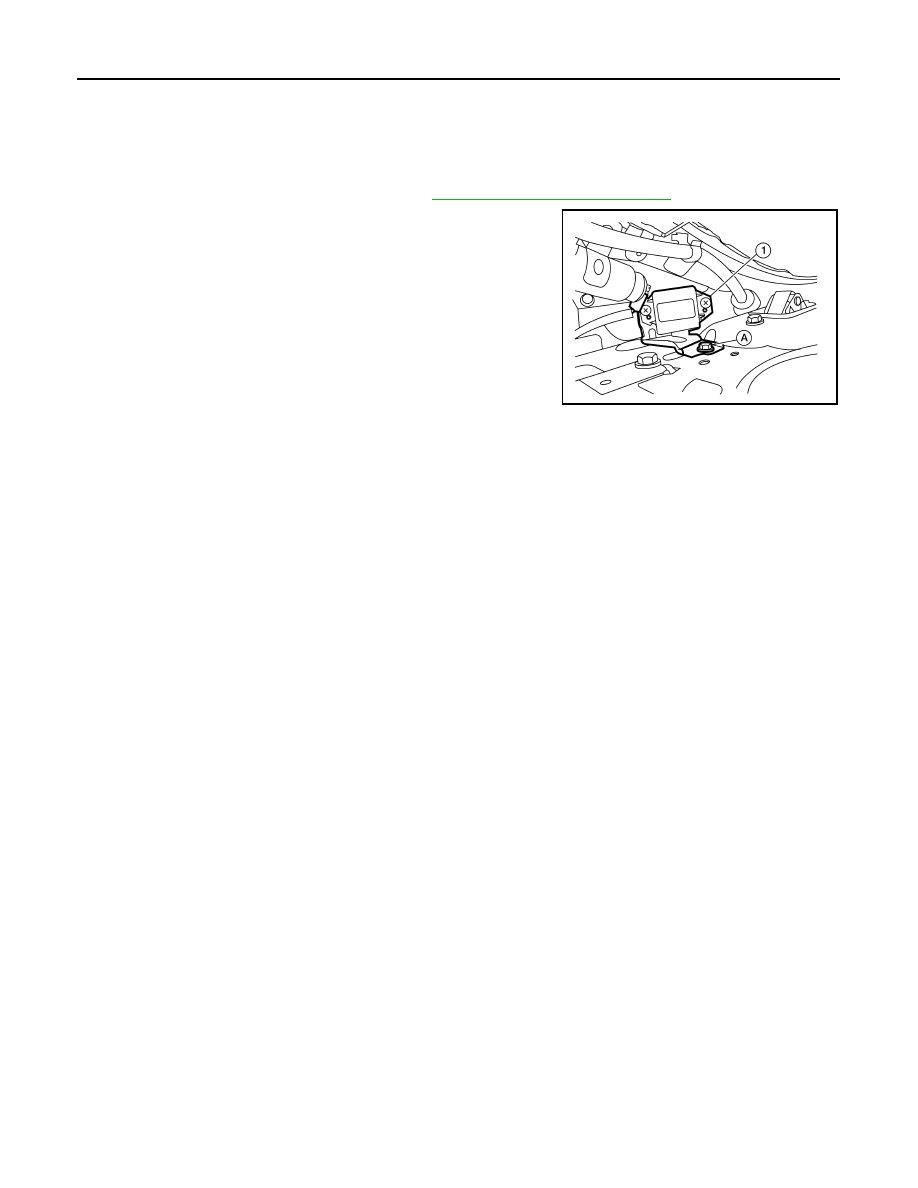

2. Remove the Bluetooth antenna screw (A), disconnect the Blue-

tooth antenna connector and remove the Bluetooth antenna (1).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0058ZZ

AV

TEL ADAPTER UNIT

AV-145

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

TEL ADAPTER UNIT

Removal and Installation

INFOID:0000000004219485

REMOVAL

1. Disconnect the 12-volt battery negative terminal.
2. Remove the rear parcel shelf finisher. Refer to

INT-19, "Removal and Installation"

.

3. Remove the Bluetooth control (tel adapter) unit screws (A), disconnect the Bluetooth control (tel adapter)

unit connectors and remove the Bluetooth control (tel adapter) unit (2).

• Satellite radio tuner (1)

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0055ZZ

AV-146

< BASIC INSPECTION >

[BOSE AUDIO WITH NAVIGATION]

DIAGNOSIS AND REPAIR WORKFLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

Work Flow

INFOID:0000000004219486

OVERALL SEQUENCE

• Reference 1··· Refer to

AV-181, "CONSULT - III Function (MULTI AV)"

.

• Reference 2··· Refer to

AV-266, "Symptom Table"

.

DETAILED FLOW

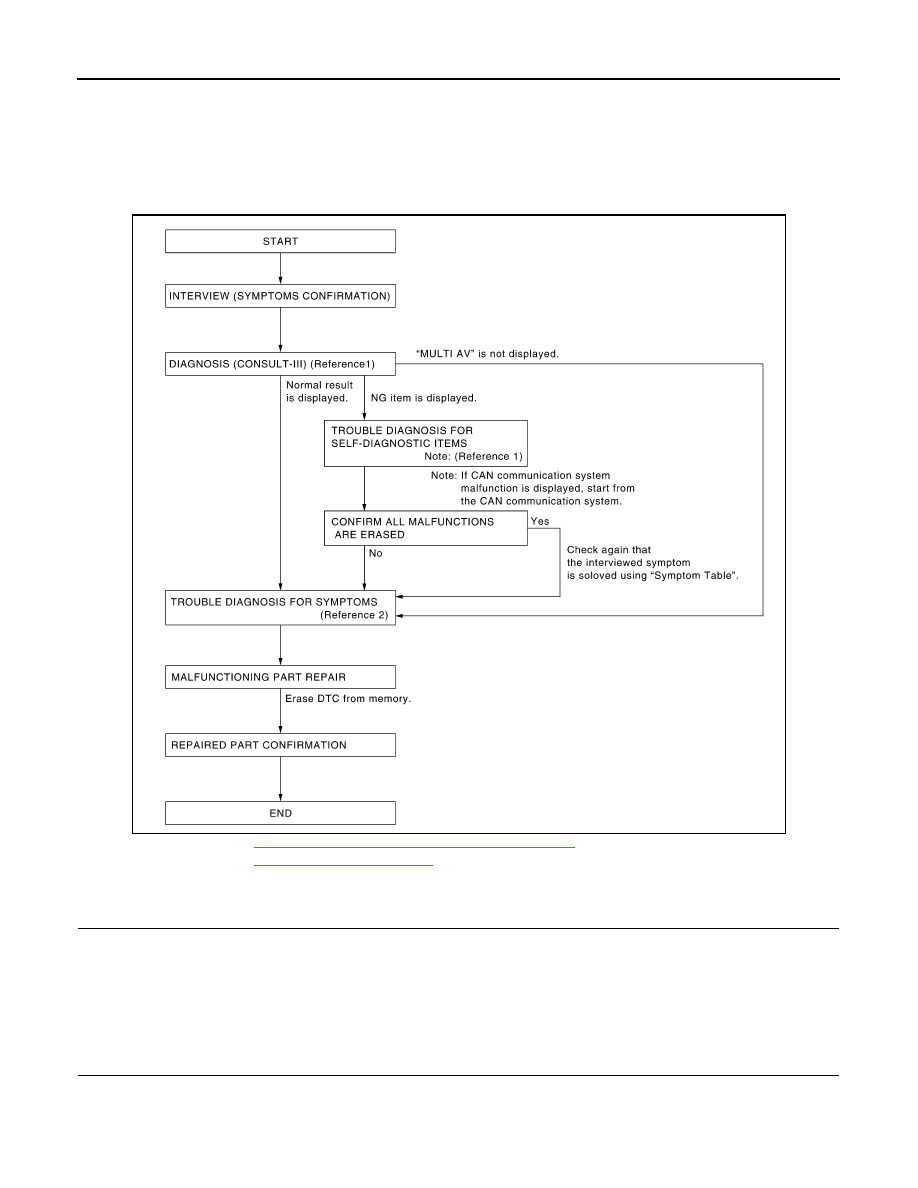

1.

CHECK SYMPTOM

Check the malfunction symptoms by performing the following items.

• Interview the customer to obtain the malfunction information (conditions and environment when the malfunc-

tion occurred).

• Check the symptom.

>> GO TO 2

2.

SELF-DIAGNOSIS (CONSULT-III)

1. Connect CONSULT-III and perform “SELF-DIAGNOSIS” for “MULTI AV”.

NOTE:

Skip to step 4 of the diagnosis procedure if “MULTI AV” is not displayed.

2. Check if any DTC No. is displayed in the self-diagnosis results.

AWNIA0030GB

AV

DIAGNOSIS AND REPAIR WORKFLOW

AV-147

< BASIC INSPECTION >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Is any DTC No. displayed?

YES

>> GO TO 3

NO

>> GO TO 4

3.

CHECK SELF-DIAGNOSIS RESULTS (CONSULT-III)

1. Check the DTC No. indicated in the self-diagnosis results.

2. Perform the relevant diagnosis referring to the DTC No. list. Refer to

AV-257, "DTC Index"

.

NOTE:

Start with the diagnosis for the CAN communication system if “CAN COMM CIRCUIT [U1000] or CONTROL

UNIT (CAN) [U1010]” is displayed.

>> GO TO 5

4.

PERFORM DIAGNOSIS BY SYMPTOM

Perform the relevant diagnosis referring to the diagnosis chart by symptom. Refer to

AV-266, "Symptom

Table"

.

>> GO TO 5

5.

REPAIR OR REPLACE MALFUNCTIONING PARTS

Repair or replace the identified malfunctioning parts.

NOTE:

Erase the stored self-diagnosis results after repairing or replacing the relevant components if any DTC No. has

been indicated in the self-diagnosis results.

>> GO TO 6

6.

CHECK AFTER REPAIR

1. Perform self-diagnosis for “MULTI AV” with CONSULT-III after repairing or replacing the malfunctioning

parts.

2. Check if any DTC No. is displayed in the self-diagnosis results.
Is any DTC No. displayed?

YES

>> GO TO 3

NO

>> GO TO 7

7.

FINAL CHECK

Perform the operation check to confirm that the malfunction symptom is solved or that any other symptoms

are present.
Are any symptoms present?

YES

>> GO TO 4

NO

>> Inspection End.
