Nissan Altima HL32 Hybrid. Manual - part 17

AV-60

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

AUDIO SYSTEM

Component Description

INFOID:0000000004219429

7.

Front door speaker
LH D3
RH D103

8.

Rear subwoofer RH B124

9.

Rear subwoofer LH B120

10. Rear door speaker

LH D202
RH D302

11. Satellite radio tuner B123, B133

(viewed under parcel shelf near rear
speaker LH)

12. Bluetooth control unit B125, B126

(viewed under parcel shelf near rear
speaker LH) (with Bluetooth)

13. Microphone R7 (with Bluetooth)

14. BOSE speaker amp B121, B122

(view with rear seat back removed)

Part name

Description

Audio unit

Controls audio system and satellite radio system functions

BOSE speaker amp.

Receives power (amp ON) and audio signals from audio unit, and outputs au-
dio signals to each speaker.

Steering switches

• Each audio operation can be operated
• Steering switch signal (operation signal) is output to audio unit

Front door speakers

• Outputs audio signal from BOSE speaker amp.
• Outputs high, mid and low range sounds

Tweeters

• Outputs audio signal from BOSE speaker amp.
• Outputs high range sounds

Center speaker

• Outputs audio signal from BOSE speaker amp.
• Outputs high range sounds

Rear door speakers

• Outputs audio signal from BOSE speaker amp.
• Outputs high, mid and low range sounds

Rear subwoofers

• Outputs audio signal from BOSE speaker amp.
• Outputs low range sounds

Satellite radio tuner

• Receives radio signals from satellite antenna
• Sends audio signals to audio unit

Satellite antenna

Audio signal (satellite radio) is received and output to audio unit.

AV

HANDS-FREE PHONE SYSTEM

AV-61

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

HANDS-FREE PHONE SYSTEM

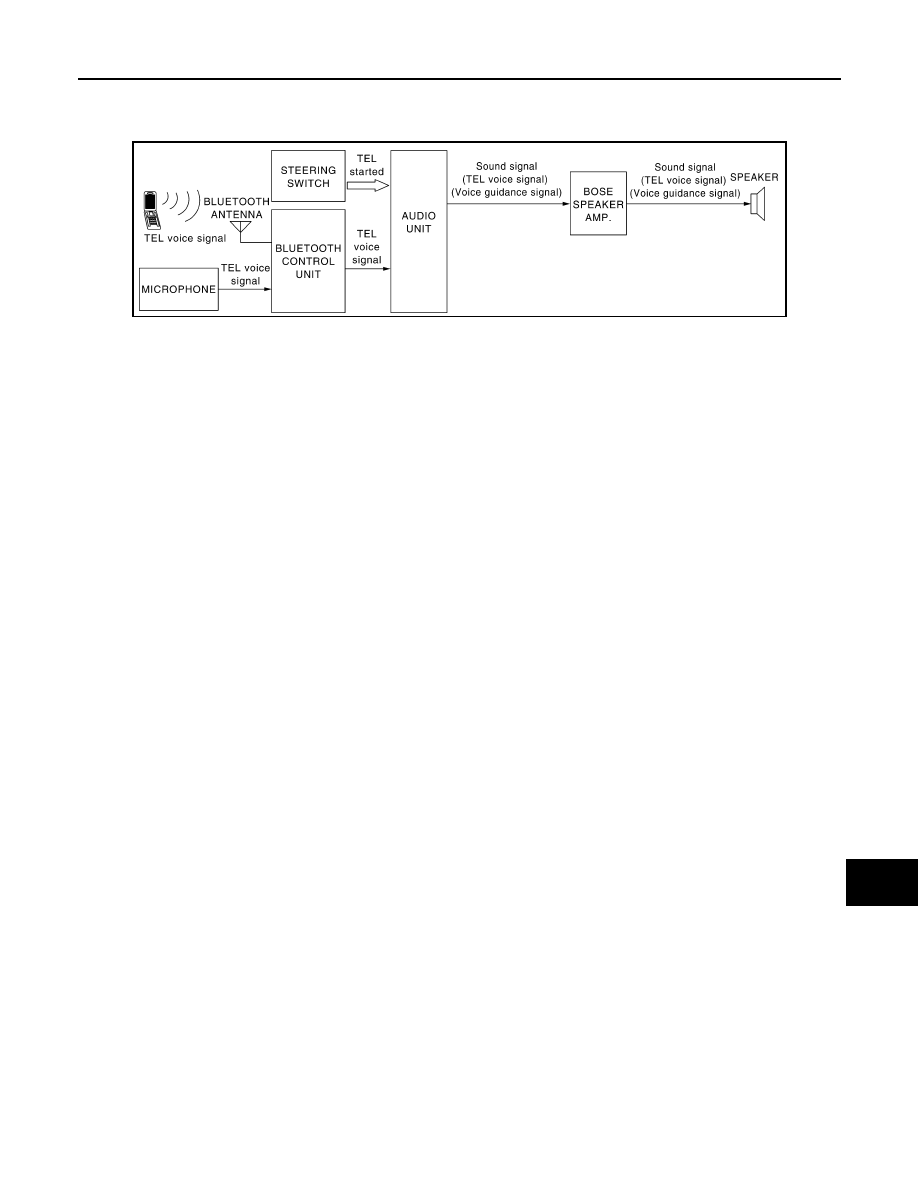

System Diagram

INFOID:0000000004219430

System Description

INFOID:0000000004219431

Refer to the owner's manual for Bluetooth telephone system operating instructions.

NOTE:

Cellular telephones must have their wireless connection set up (paired) before using the Bluetooth telephone

system.

Bluetooth telephone system allows users who have a Bluetooth cellular telephone to make a wireless connec-

tion between their cellular telephone and the Bluetooth control unit. Hands-free cellular telephone calls can be

sent and received. Personal memos can be created using the Nissan Voice Recognition system. Some Blue-

tooth cellular telephones may not be recognized by the Bluetooth control unit. When a cellular telephone or

the Bluetooth control unit is replaced, the telephone must be paired with the Bluetooth control unit. Different

cellular telephones may have different pairing procedures. Refer to the cellular telephone operating manual.

BLUETOOTH CONTROL UNIT

When the ignition switch is turned to ACC or ON, the Bluetooth control unit will power up. During power up, the

Bluetooth control unit is initialized and performs various self checks.   Initialization may take up to 10 seconds.

If a phone is present in the vehicle and paired with the Bluetooth control unit, Nissan Voice Recognition will

then become active. Bluetooth telephone functions can be turned off using the Nissan Voice Recognition sys-

tem.

STEERING WHEEL AUDIO CONTROL SWITCHES

When buttons on the steering wheel audio control switch are pushed, the resistance in steering wheel audio

control switch circuit changes depending on which button is pushed. The Bluetooth control unit uses this sig-

nal to perform various functions while navigating through the voice recognition system.

The following functions can be performed using the steering wheel audio control switch:

• Initiate Self Diagnosis of the Bluetooth telephone system

• Start a voice recognition session

• Answer and end telephone calls

• Adjust the volume of calls

• Record memos

MICROPHONE

The microphone is located in the roof console assembly. The microphone sends a signal to the Bluetooth con-

trol unit. The microphone can be actively tested during self-diagnosis.

AUDIO UNIT

The audio unit receives signals from the Bluetooth control unit and sends audio signals to the speakers.

AWNIA0029GB

AV-62

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

HANDS-FREE PHONE SYSTEM

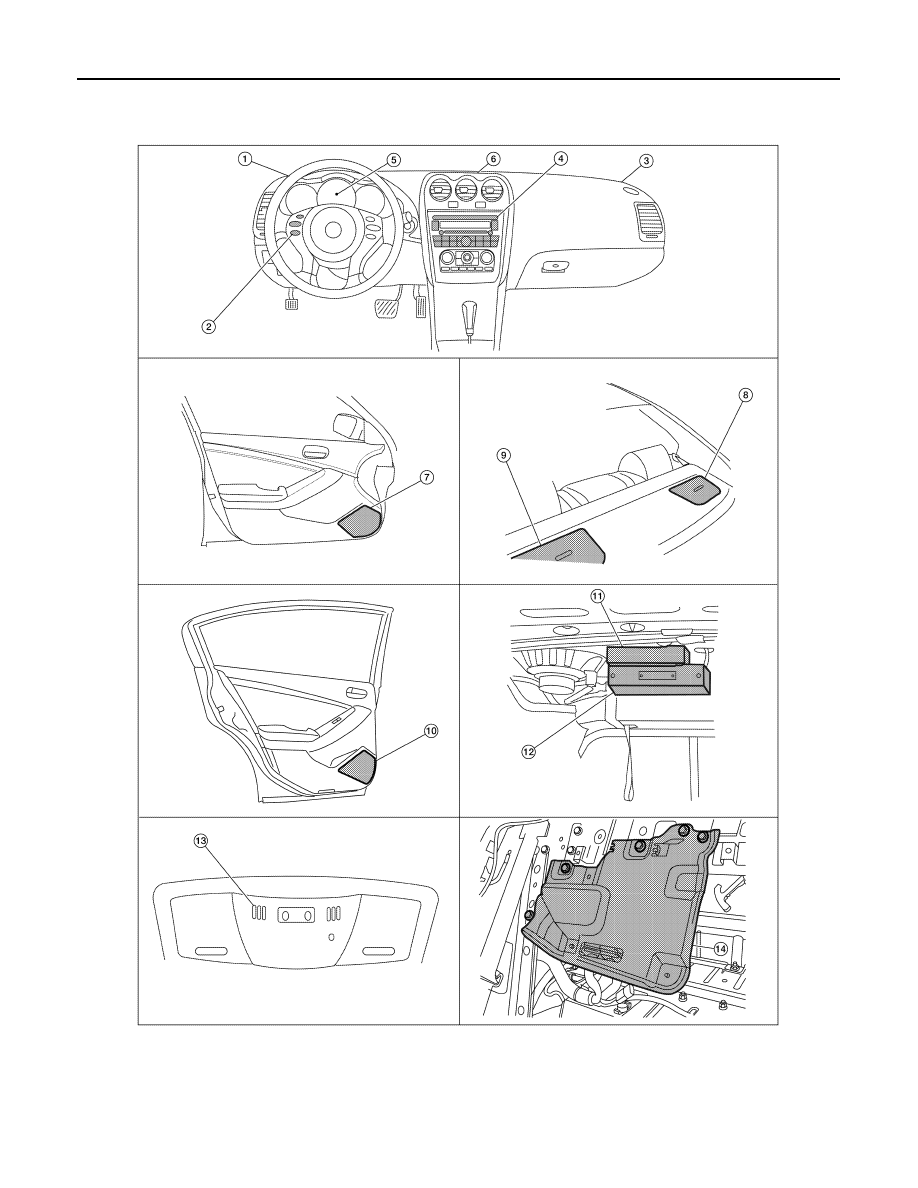

Component Parts Location

INFOID:0000000004219432

1.

Tweeter LH M51

2.

Steering wheel audio control switch-
es

3.

Tweeter RH M52

4.

Audio unit M43, M44, M45, M81

5.

Combination meter M24

6.

Center speaker M151

AWNIA0933ZZ

AV

HANDS-FREE PHONE SYSTEM

AV-63

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Component Description

INFOID:0000000004219433

7.

Front door speaker
LH D3
RH D103

8.

Rear subwoofer RH B124

9.

Rear subwoofer LH B120

10. Rear door speaker

LH D202
RH D302

11. Satellite radio tuner B123, B133

(viewed under parcel shelf near rear
speaker LH)

12. Bluetooth control unit B125, B126

(viewed under parcel shelf near rear
speaker LH) (with Bluetooth)

13. Microphone R7 (with Bluetooth)

14. BOSE speaker amp B121, B122

(view with rear seat back removed)

Part name

Description

Audio unit

• Receives telephone voice signal from Bluetooth control unit
• Sends telephone voice and voice guidance signals to BOSE speaker amp.

BOSE speaker amp.

Inputs power (amp ON) and sound signal from audio unit, and outputs sound
signal to each speaker.

Front door speaker

Receives telephone voice and voice guidance signals from BOSE speaker
amp.

Tweeter

Center speaker

Steering switches

• Start a voice recognition session
• Answer and end telephone calls
• Adjust the volume level

Microphone

Sends voice signals to Bluetooth control unit

Bluetooth control unit

Controls hands-free phone functions

Bluetooth antenna

Sends telephone voice signal to bluetooth control unit
