LAN-66

< WIRING DIAGRAM >

[CAN]

CAN SYSTEM

ABMIA5225GB

LAN

CAN COMMUNICATION SYSTEM

LAN-67

< DTC/CIRCUIT DIAGNOSIS >

[CAN]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

DTC/CIRCUIT DIAGNOSIS

CAN COMMUNICATION SYSTEM

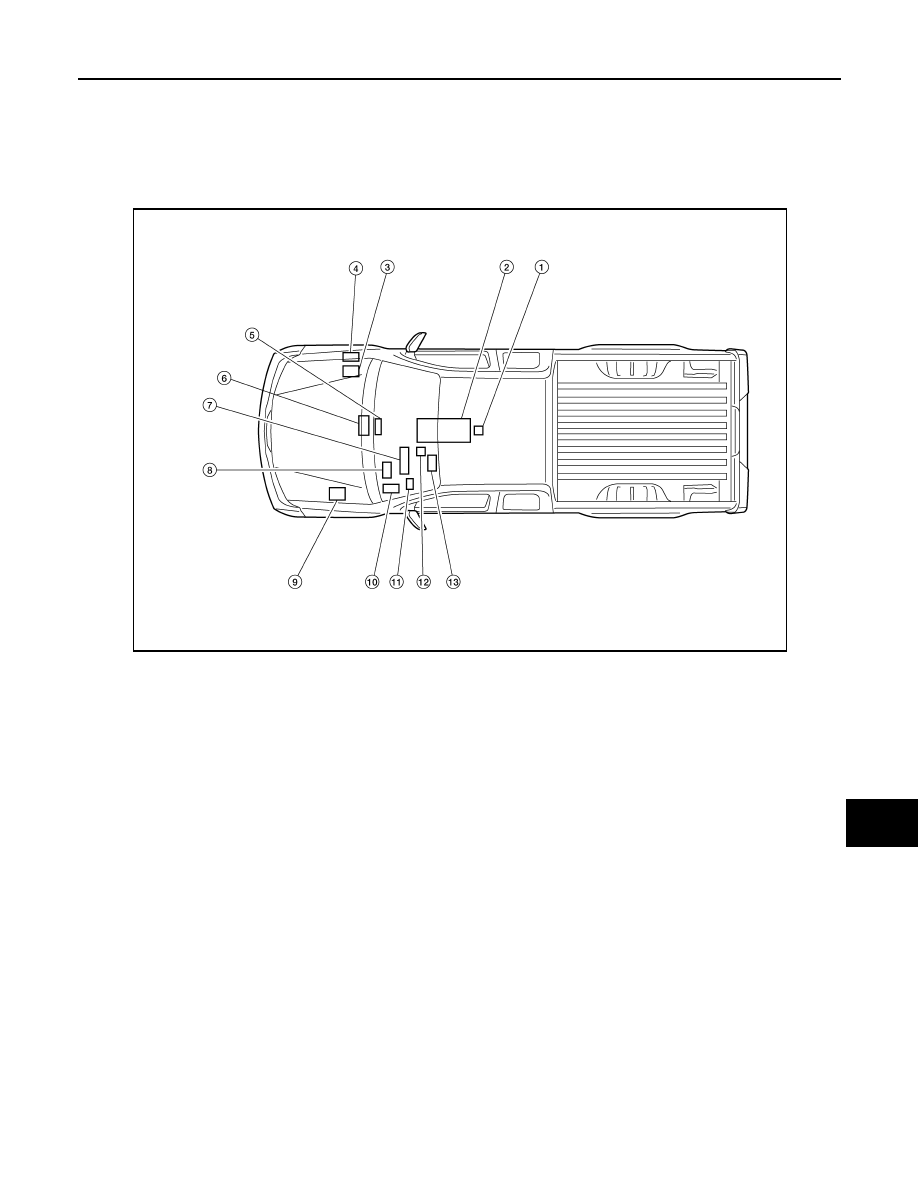

Component Parts Location

INFOID:0000000009479124

1.

Air bag diagnosis sensor unit M35

2.

A/T assembly F9

3.

IPDM E/R E122

4.

ECM
E8: VQ engine models for Mexico
E16: QR engine models
E55: VQ engine models except for
Mexico

5.

Front air control
M56: With auto A/C
M59: With manual A/C

6.

AV control unit M96

7.

Combination meter M24

8.

BCM M18

9.

ABS actuator and electric unit (con-
trol unit) E127

10. Transfer control unit M152

11. Differential lock control unit M70

12. Data link connector M22

13. Steering angle sensor M47

ALMIA0679ZZ

LAN-68

< DTC/CIRCUIT DIAGNOSIS >

[CAN]

MALFUNCTION AREA CHART

MALFUNCTION AREA CHART

Main Line

INFOID:0000000009479125

Branch Line

INFOID:0000000009479126

Short Circuit

INFOID:0000000009479127

Malfunction area

Reference

Main line between TCM and front air control

LAN-69, "Diagnosis Procedure"

Main line between TCM and data link connector

LAN-71, "Diagnosis Procedure"

Main line between front air control and data link connector

LAN-73, "Diagnosis Procedure"

Main line between data link connector and ABS actuator and
electric unit (control unit)

LAN-74, "Diagnosis Procedure"

Malfunction area

Reference

ECM branch line circuit

LAN-75, "Diagnosis Procedure"

TCM branch line circuit

LAN-76, "Diagnosis Procedure"

AV control unit branch line circuit

LAN-77, "Diagnosis Procedure"

Front air control branch line circuit

LAN-78, "Diagnosis Procedure"

Transfer control unit branch line circuit

LAN-79, "Diagnosis Procedure"

Air bag diagnosis sensor unit branch line circuit

LAN-80, "Diagnosis Procedure"

BCM branch line circuit

LAN-81, "Diagnosis Procedure"

Differential lock control unit branch line circuit

LAN-82, "Diagnosis Procedure"

Data link connector branch line circuit

LAN-83, "Diagnosis Procedure"

Combination meter branch line circuit

LAN-84, "Diagnosis Procedure"

Steering angle sensor branch line circuit

LAN-85, "Diagnosis Procedure"

ABS actuator and electric unit (control unit) branch line circuit

LAN-86, "Diagnosis Procedure"

IPDM E/R branch line circuit

LAN-87, "Diagnosis Procedure"

Malfunction area

Reference

CAN communication circuit

LAN-88, "Diagnosis Procedure"

LAN

MAIN LINE BETWEEN TCM AND HVAC CIRCUIT

LAN-69

< DTC/CIRCUIT DIAGNOSIS >

[CAN]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

MAIN LINE BETWEEN TCM AND HVAC CIRCUIT

Diagnosis Procedure

INFOID:0000000009479130

1.

CHECK CONNECTOR

1. Turn the ignition switch OFF.

2. Disconnect the battery cable from the negative terminal.

3. Check the following terminals and connectors for damage, bend and loose connection (connector side

and harness side).

-

Harness connector F14

-

Harness connector E5

-

Harness connector E152

-

Harness connector M31

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair the terminal and connector.

2.

CHECK HARNESS CONTINUITY (OPEN CIRCUIT)

1. Disconnect the following harness connectors.

-

A/T assembly

-

Harness connectors F14 and E5

2. Check the continuity between the A/T assembly harness connector and the harness connector.

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Repair the main line between the A/T assembly and the harness connector F14.

3.

CHECK HARNESS CONTINUITY (OPEN CIRCUIT)

1. Disconnect the harness connectors E152 and M31.

2. Check the continuity between the harness connectors.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair the main line between the harness connectors E5 and E152.

4.

CHECK HARNESS CONTINUITY (OPEN CIRCUIT)

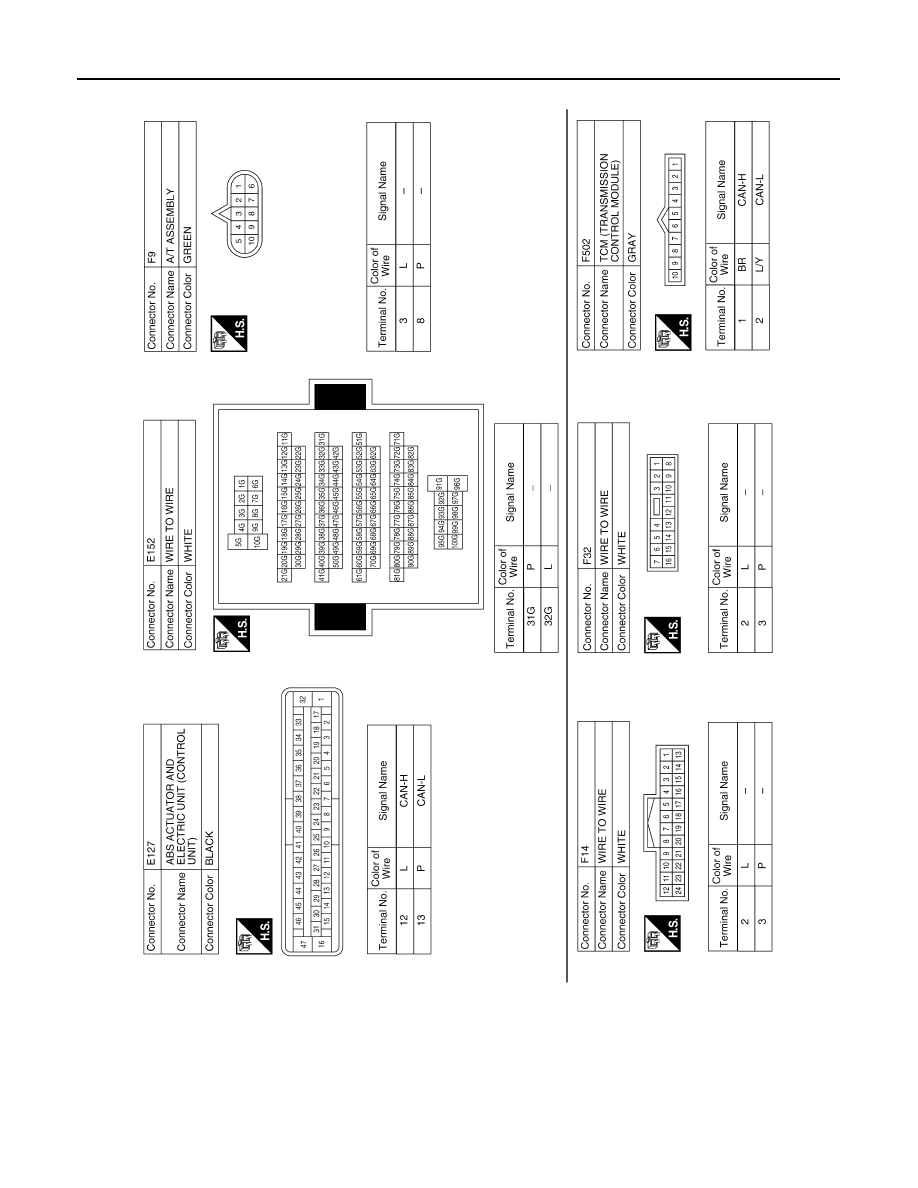

1. Disconnect the connector of front air control.

2. Check the continuity between the harness connector and the front air control harness connector.

-

With auto A/C models

-

With manual A/C models

A/T assembly harness connector

Harness connector

Continuity

Connector No.

Terminal No.

Connector No.

Terminal No.

F9

3

F14

2

Existed

8

3

Existed

Harness connector

Harness connector

Continuity

Connector No.

Terminal No.

Connector No.

Terminal No.

E5

2

E152

32G

Existed

3

31G

Existed

Harness connector

Front air control harness connector

Continuity

Connector No.

Terminal No.

Connector No.

Terminal No.

M31

32G

M56

37

Existed

31G

36

Existed
