TROUBLE DIAGNOSIS

Replace the unit when “NG” is indicated on the “INITIAL DIAG”.

Differential Lock Control Unit

NOTE:

Replace the unit when “NG” is indicated on the “INITIAL DIAG”.

Combination Meter

0: Error at present, 1 – 39: Error in the past (Number means the number of times the ignition switch is turned OFF

→ON)

*: 39 or higher number is fixed at 39 until the self-diagnosis result is erased.

ABS Actuator and Electric Unit (Control Unit)

ITEM

CAN DIAG SUP-

PORT MNTR

Description

Normal

Error

PRESENT

BCM

INITIAL DIAG

Status of CAN controller

OK

NG

TRANSMIT DIAG

Signal transmission status

UNKWN

ECM

Signal receiving status from the ECM

IPDM E/R

Signal receiving status from the IPDM E/R

METER/M&A

Signal receiving status from the combination meter

I-KEY

Not used even though indicated

ITEM

CAN DIAG SUP-

PORT MNTR

Description

Normal

Error

PRESENT

DIFF

INITIAL DIAG

Status of CAN controller

OK

NG

TRANSMIT DIAG

Signal transmission status

UNKWN

ECM

Signal receiving status from the ECM

VDC/TCS/ABS

Signal receiving status from the ABS actuator and electric unit (con-
trol unit)

AWD/4WD

Signal receiving status from the transfer control unit

ITEM

CAN DIAG SUP-

PORT MNTR

Description

Normal

Error

PRESENT

PAST

PRESENT

PAST

M&A

TRANSMIT DIAG

Signal transmission status

OK

OK

or

1 – 39

*

UNKWN

0

ECM

Signal receiving status from the ECM

TCM

Signal receiving status from the TCM

BCM/SEC

Signal receiving status from the BCM

VDC/TCS/ABS

Signal receiving status from the ABS ac-
tuator and electric unit (control unit)

IPDM E/R

Signal receiving status from the IPDM E/
R

DISPLAY

Not used even though indicated

I-KEY

EPS

AWD/4WD

e4WD

ICC/ADAS

LANE CAMERA

TIRE-P

LAN

TROUBLE DIAGNOSIS

LAN-59

< SYSTEM DESCRIPTION >

[CAN]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

CAUTION:

Never replace the unit even when “NG” is indicated on the “INITIAL DIAG” at this stage. Follow the trouble diagnosis proce-
dures.

Front Air Control

0: Error at present, 1 – 39: Error in the past (Number means the number of times the ignition switch is turned OFF

→ON)

*: 39 or higher number is fixed at 39 until the self-diagnosis result is erased.

IPDM E/R

0: Error at present, 1 – 39: Error in the past (Number means the number of times the ignition switch is turned OFF

→ON)

*: 39 or higher number is fixed at 39 until the self-diagnosis result is erased.

ITEM

CAN DIAG SUP-

PORT MNTR

Description

Normal

Error

PRESENT

ABS

INITIAL DIAG

Status of CAN controller

OK

NG

Caution

TRANSMIT DIAG

Signal transmission status

UNKWN

ECM

Signal receiving status from the ECM

TCM

Signal receiving status from the TCM

METER/M&A

Not used even though indicated

STRG

Signal receiving status from the steering angle sensor

OK

UNKWN

ICC/ADAS

Not used even though indicated

AWD/4WD

Signal receiving status from the transfer control unit

OK

UNKWN

DIFF LOCK

Signal receiving status from the differential lock control unit

ITEM

CAN DIAG SUP-

PORT MNTR

Description

Normal

Error

PRESENT

PAST

PRESENT

PAST

HVAC

TRANSMIT DIAG

Signal transmission status

OK

OK

or

1 – 39

*

UNKWN

0

ECM

Signal receiving status from the ECM

TCM

Not used even though indicated

BCM/SEC

Signal receiving status from the BCM

OK

OK

or

1 – 39

*

UNKWN

0

VDC/TCS/ABS

Signal receiving status from the ABS ac-
tuator and electric unit (control unit)

IPDM E/R

Not used even though indicated

DISPLAY

I-KEY

EPS

AWD/4WD

e4WD

ICC/ADAS

LANE CAMERA

TIRE-P

METER/M&A

ITEM

CAN DIAG SUP-

PORT MNTR

Description

Normal

Error

PRESENT

PAST

PRESENT

PAST

IPDM-E

TRANSMIT DIAG

Signal transmission status

OK

OK

or

1 – 39

*

UNKWN

0

ECM

Signal receiving status from the ECM

BCM/SEC

Signal receiving status from the BCM

LAN-60

< SYSTEM DESCRIPTION >

[CAN]

TROUBLE DIAGNOSIS

DTC Index

INFOID:0000000009479122

DTC

Self-diagnosis item

 (CONSULT indication)

DTC detection condition

Inspection/Action

U0101

LOST COMM (TCM)

When ECM is not transmitting or receiving CAN commu-
nication signal of OBD (emission-related diagnosis) from
TCM for 2 seconds or more.

Refer to

LAN-36

.

U0140

LOST COMM (BCM)

When ECM is not transmitting or receiving CAN commu-
nication signal of OBD (emission-related diagnosis) from
BCM for 2 seconds or more.

U0164

LOST COMM (HVAC)

When ECM is not transmitting or receiving CAN commu-
nication signal of OBD (emission-related diagnosis) from
front air control or unified meter and A/C amp. for 2 sec-
onds or more.

U1000

CAN COMM CIRCUIT

ECM

When ECM is not transmitting or receiving
CAN communication signal of OBD (emission-
related diagnosis) for 2 seconds or more.

Except
for ECM

When a control unit (except for ECM) is not
transmitting or receiving CAN communication
signal for 2 seconds or more.

U1001

CAN COMM CIRCUIT

When ECM is not transmitting or receiving CAN commu-
nication signal other than OBD (emission-related diagno-
sis) for 2 seconds or more.

U1002

SYSTEM COMM

When a control unit is not transmitting or receiving CAN
communication signal for 2 seconds or less.

Start the inspection. Refer
to the applicable section
of the indicated control
unit.

U1010

CONTROL UNIT(CAN)

When an error is detected during the initial diagnosis for
CAN controller of each control unit.

Replace the control unit
indicating “U1010” or
“P0607”.

P0607

ECM

LAN

CAN SYSTEM

LAN-61

< WIRING DIAGRAM >

[CAN]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

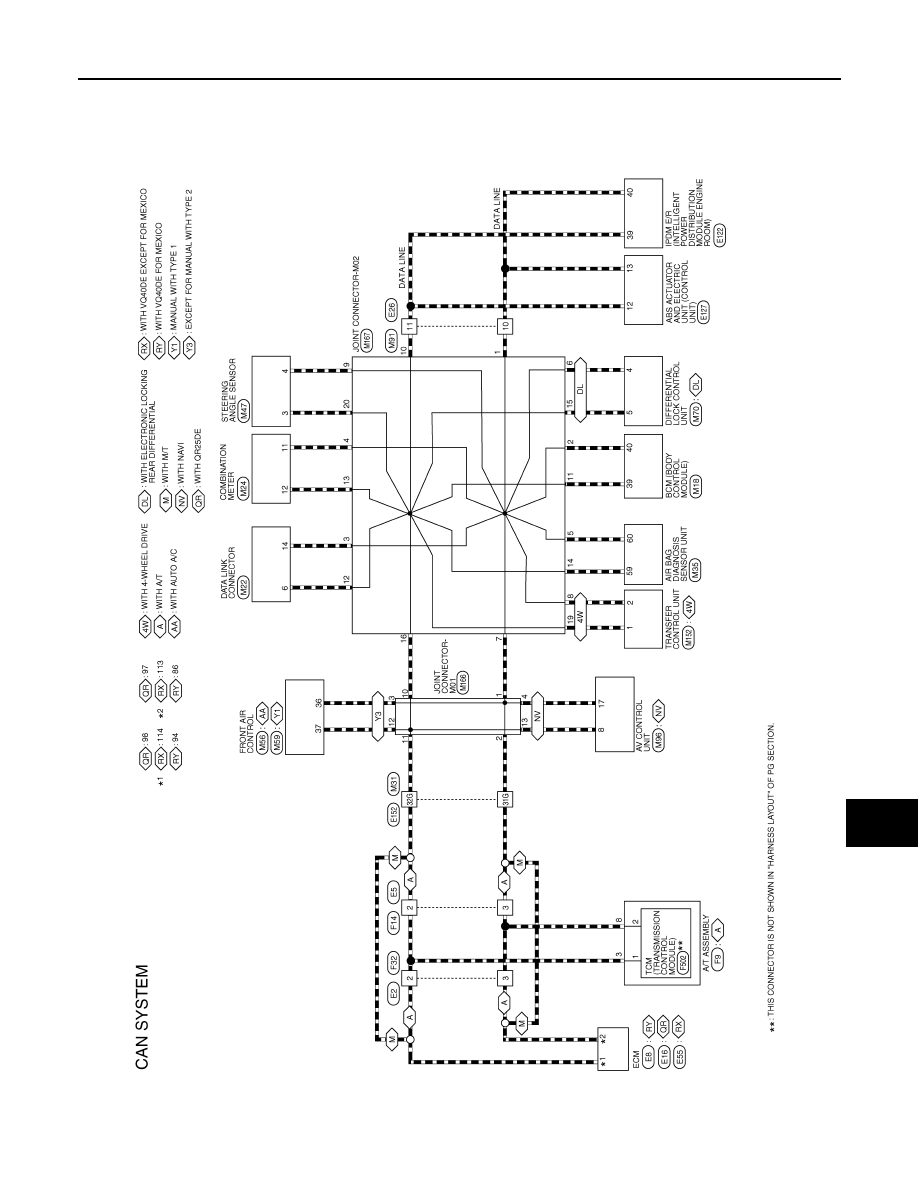

WIRING DIAGRAM

CAN SYSTEM

Wiring Diagram

INFOID:0000000009479123

ABMWA2193GB
