< BASIC INSPECTION >

[CAN]

DIAGNOSIS AND REPAIR WORKFLOW

Diagnosis Sheet (CAN Type 11)

INFOID:0000000009479118

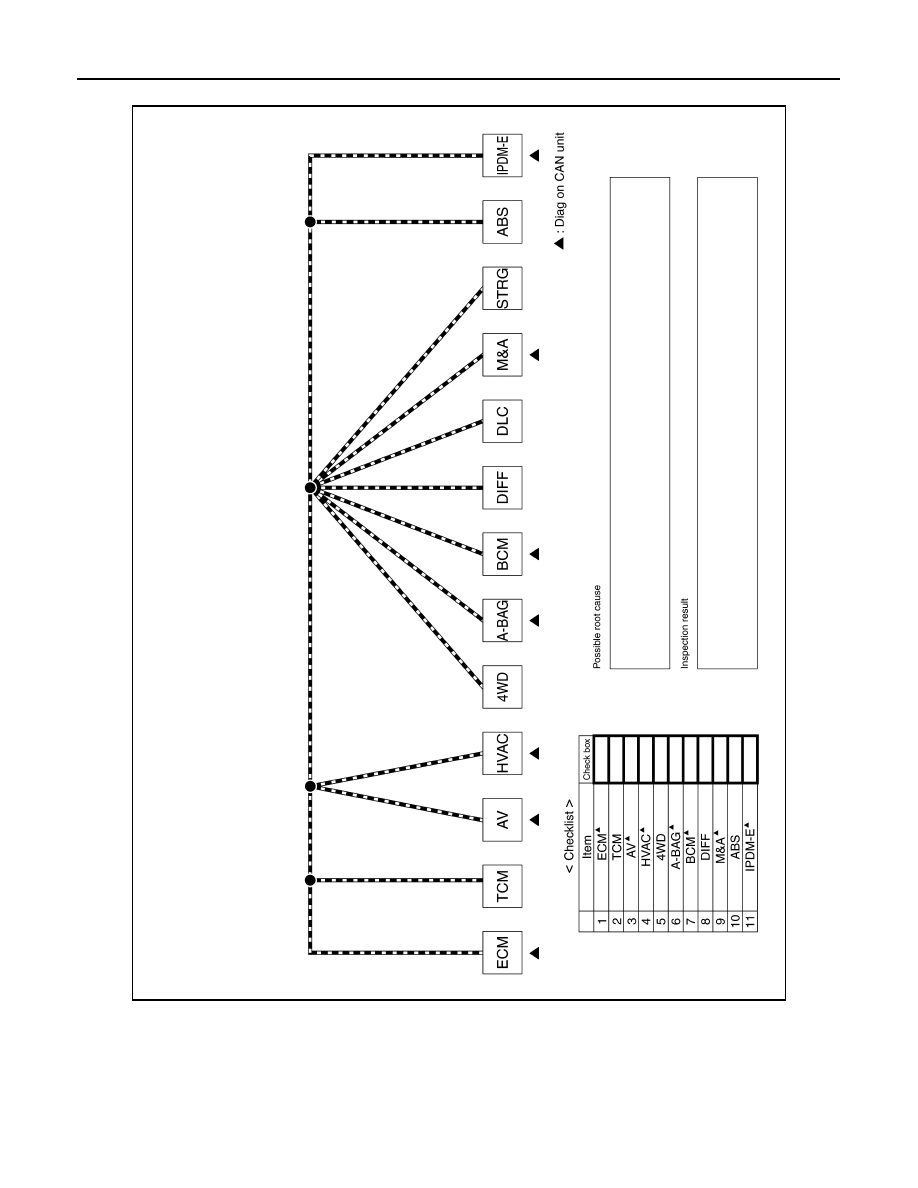

JSMIA1331GB

LAN

DIAGNOSIS AND REPAIR WORKFLOW

LAN-51

< BASIC INSPECTION >

[CAN]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

Diagnosis Sheet (CAN Type 12)

INFOID:0000000010493844

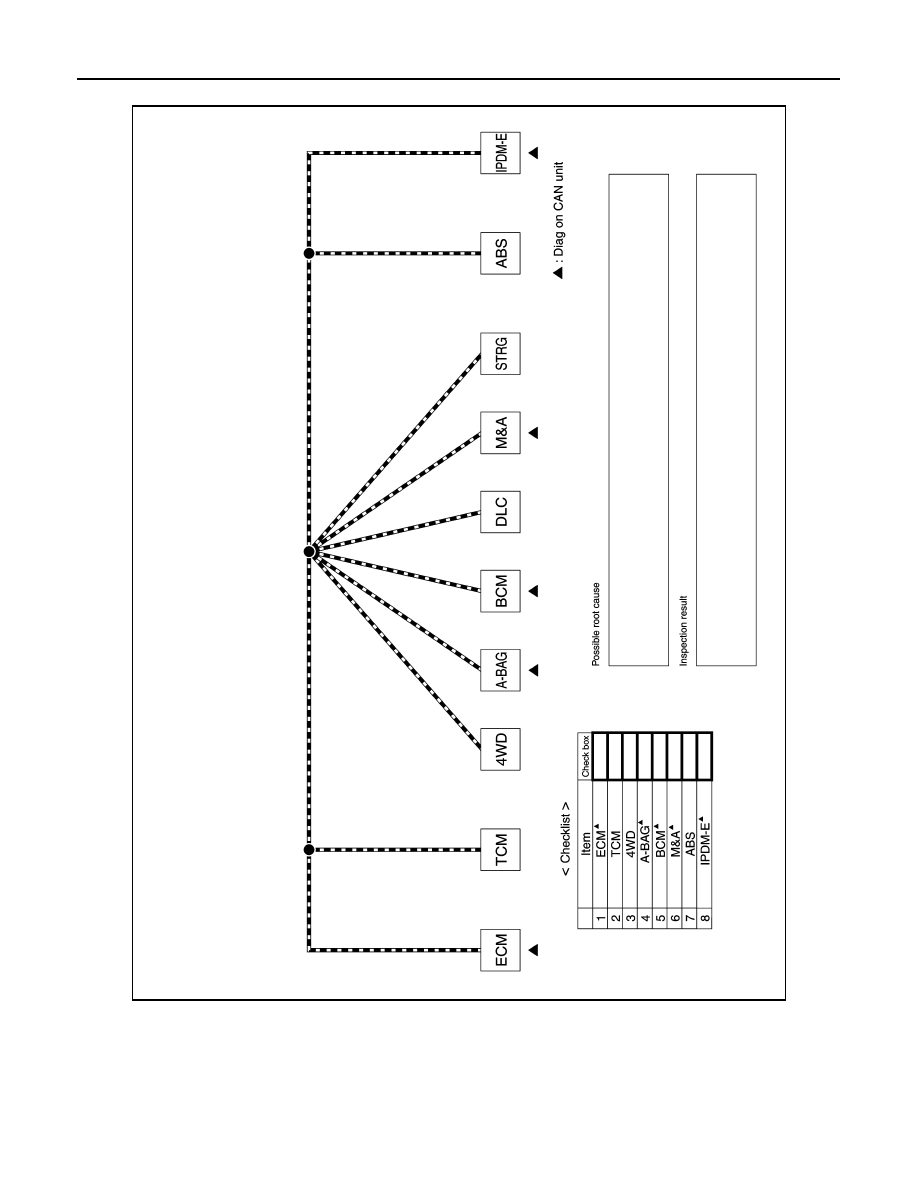

JSMIA0900GB

LAN-52

< BASIC INSPECTION >

[CAN]

DIAGNOSIS AND REPAIR WORKFLOW

Diagnosis Sheet (CAN Type 13)

INFOID:0000000010493846

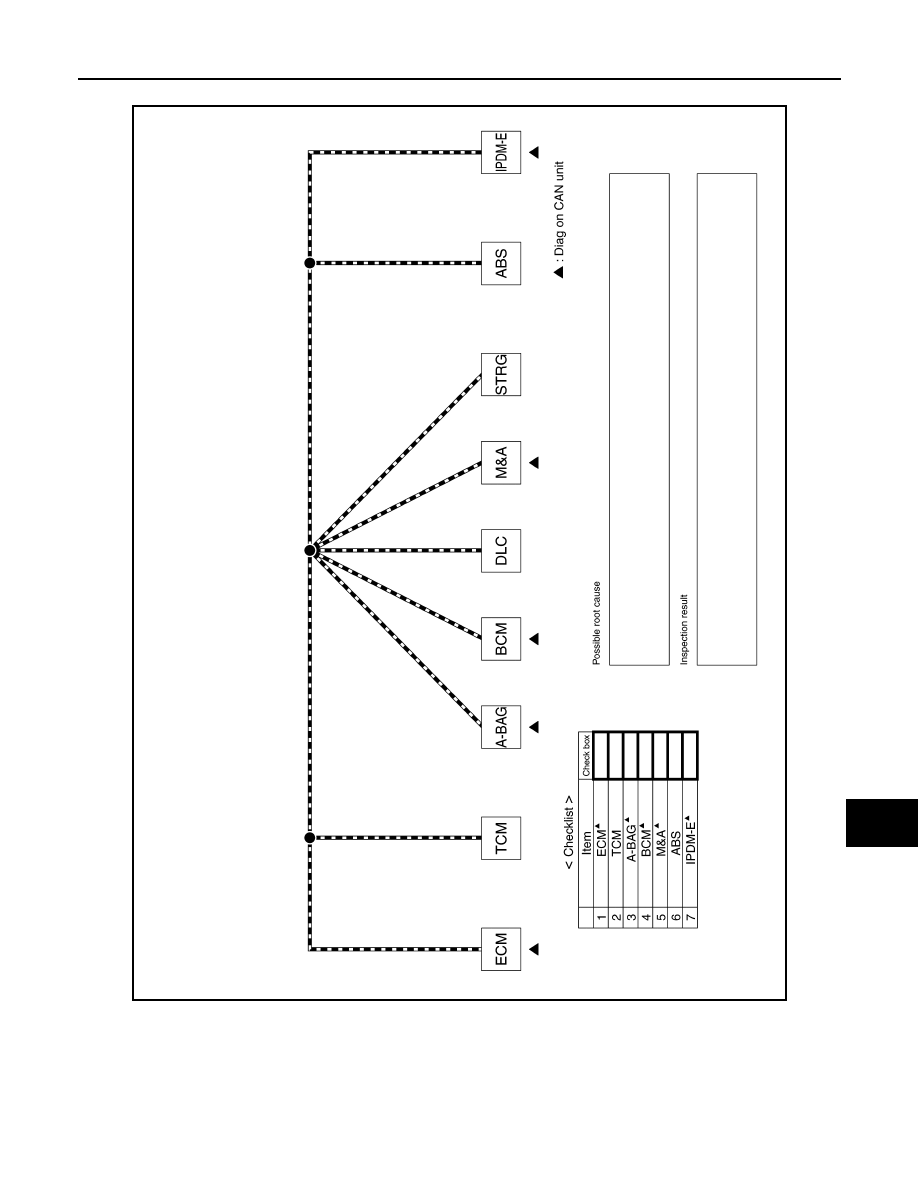

JSMIA0857GB

LAN

CAN COMMUNICATION SYSTEM

LAN-53

< SYSTEM DESCRIPTION >

[CAN]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

SYSTEM DESCRIPTION

CAN COMMUNICATION SYSTEM

CAN System Specification Chart

INFOID:0000000009479119

Determine CAN system type from the following specification chart. Then choose the correct diagnosis sheet.

NOTE:

Refer to

LAN-14, "Trouble Diagnosis Procedure"

 for how to use CAN system specification chart.

×: Applicable

VEHICLE EQUIPMENT IDENTIFICATION INFORMATION

NOTE:

Check CAN system type from the vehicle shape and equipment.

Body type

Truck

Axle

2WD

4WD

Engine

QR25DE

VQ40DE

Transmission

M/T

A/T

M/T

A/T

M/T

A/T

Brake control

VDC

Navigation system

×

×

×

Electronic locking rear differential

×

×

×

Manual air conditioner (3 control dial
type)

×

×

CAN  system  type

1

2

3

4

5

12

6

7

8

9

10

13

11

Diagnosis sheet

LAN-

40

LAN-

41

LAN-

42

LAN-

43

LAN-

44

LAN-

51

LAN-

45

LAN-

46

LAN-

47

LAN-

48

LAN-

49

LAN-

52

LAN-

50

1.

NAVI switch

2.

Differential lock mode switch

3.

Manual A/C controls

A.

With navigation system

B.

With electronic locking rear differen-
tial

C.

With manual air conditioner (3 con-
trol dial type)

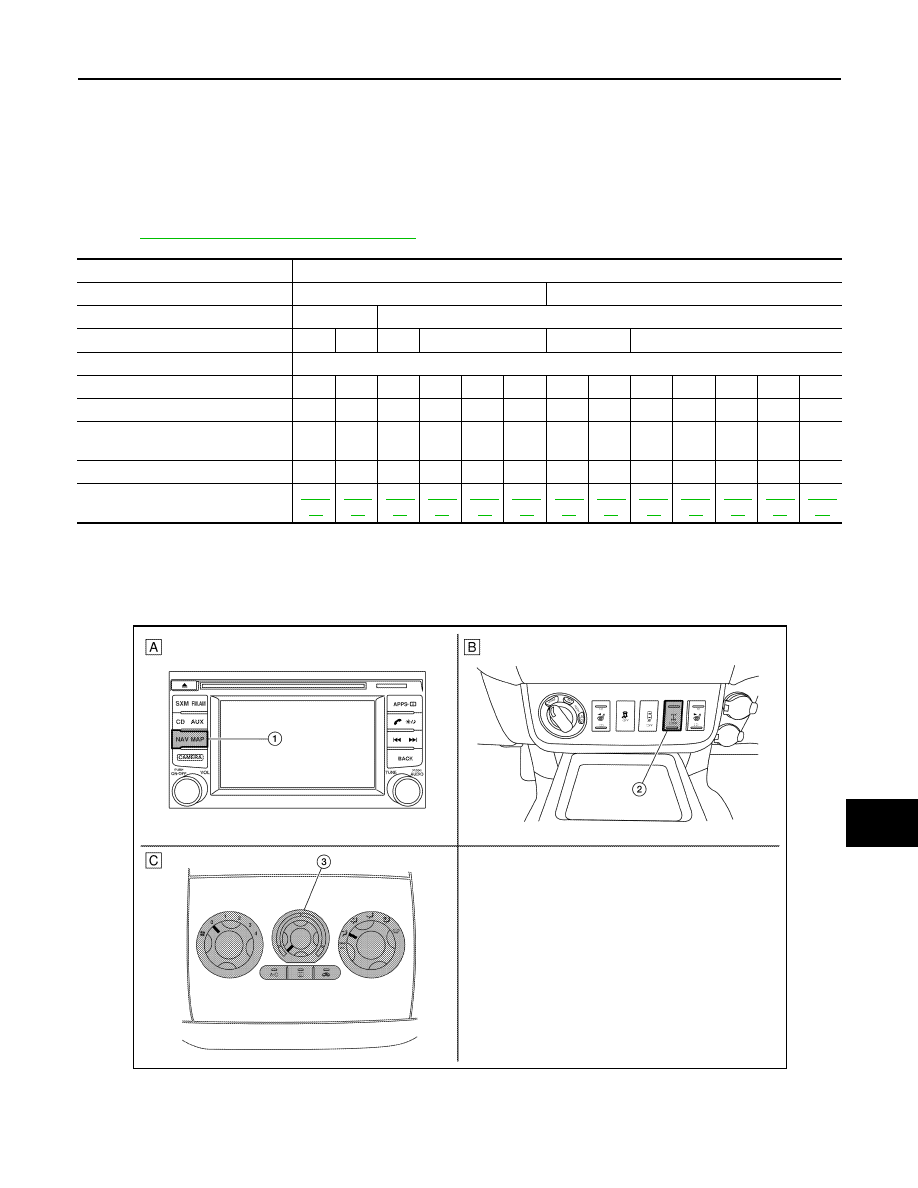

ALMIA0713ZZ
