< PRECAUTION >

[CAN]

PRECAUTIONS

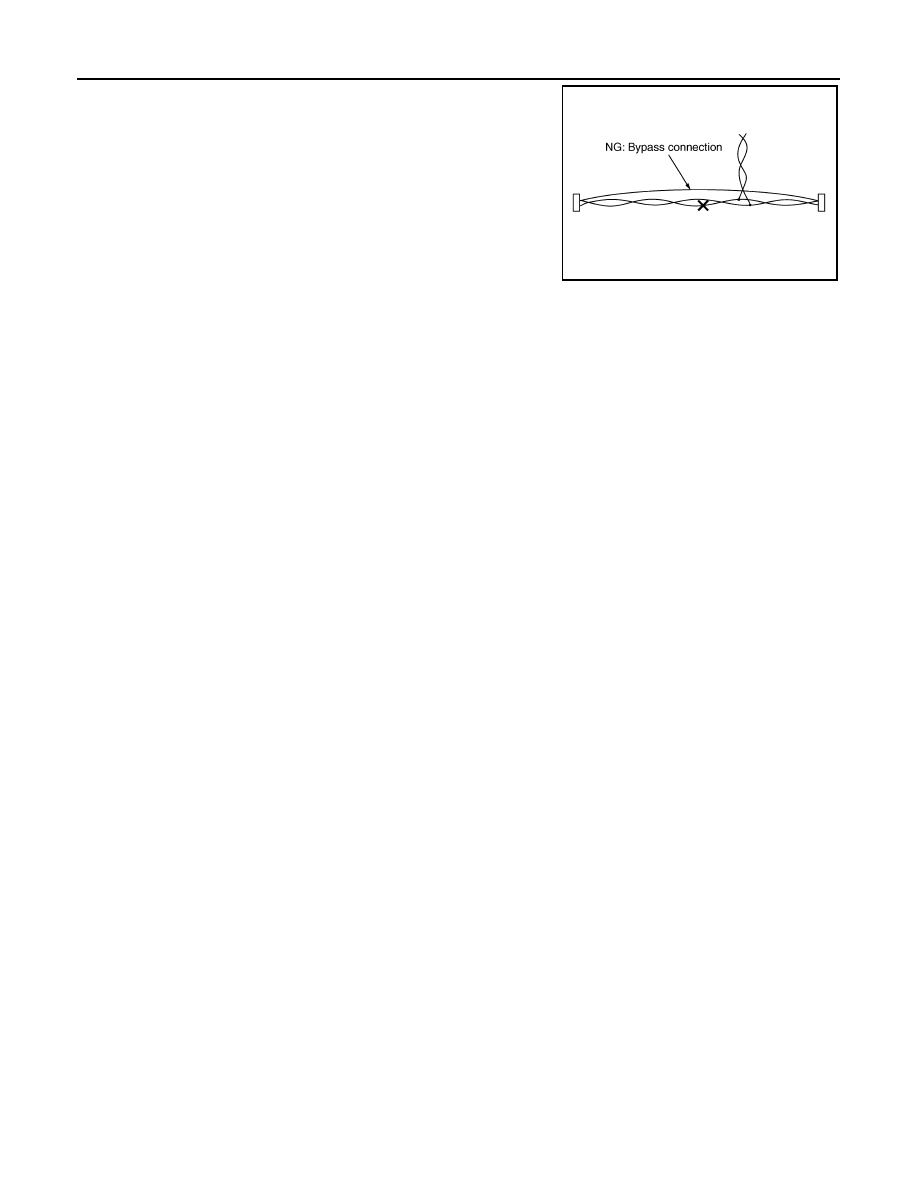

• Bypass connection is never allowed at the repaired area.

NOTE:

Bypass connection may cause CAN communication error. The

spliced wire becomes separated and the characteristics of twisted

line are lost.

• Replace the applicable harness as an assembly if error is detected on the shield lines of CAN communica-

tion line.

SKIB8767E

LAN

DIAGNOSIS AND REPAIR WORKFLOW

LAN-39

< BASIC INSPECTION >

[CAN]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORKFLOW

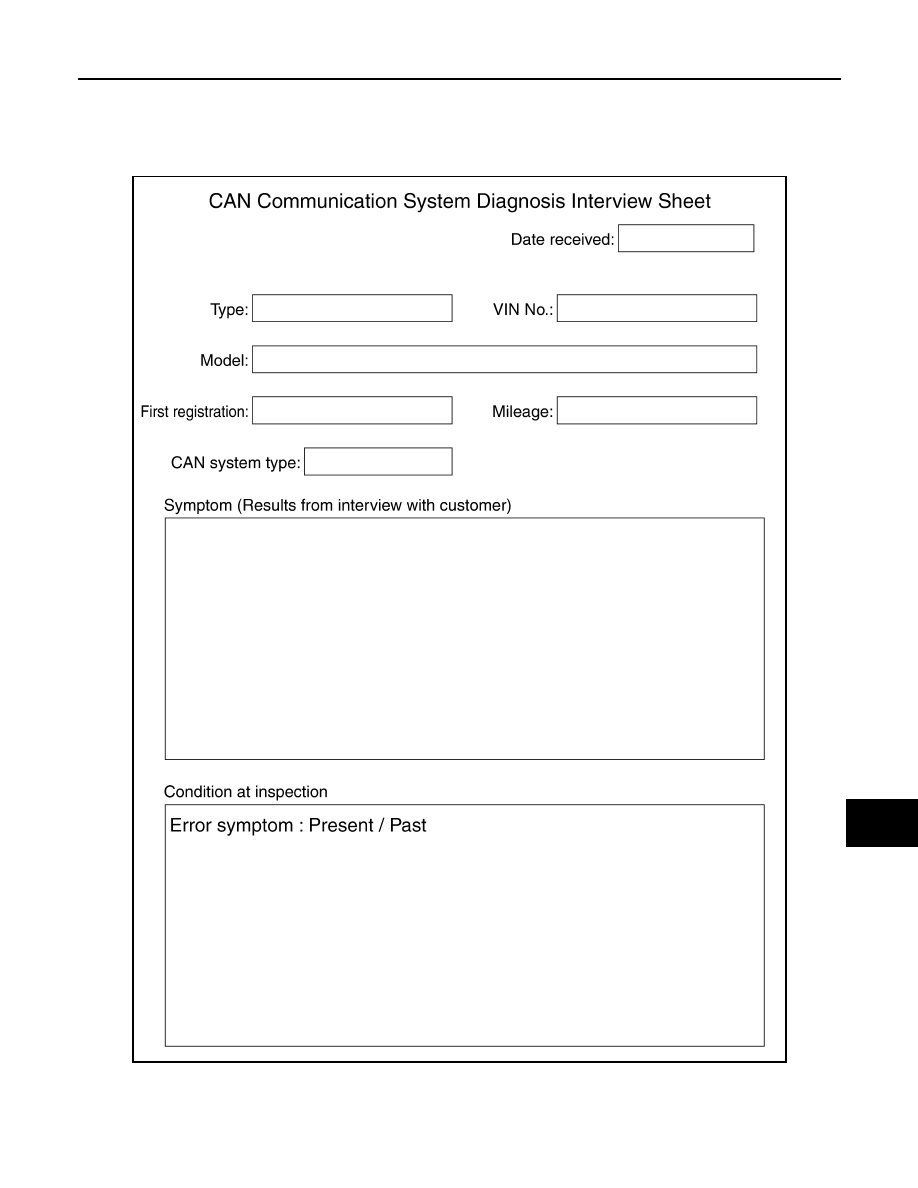

Interview Sheet

INFOID:0000000009479101

SKIB8898E

LAN-40

< BASIC INSPECTION >

[CAN]

DIAGNOSIS AND REPAIR WORKFLOW

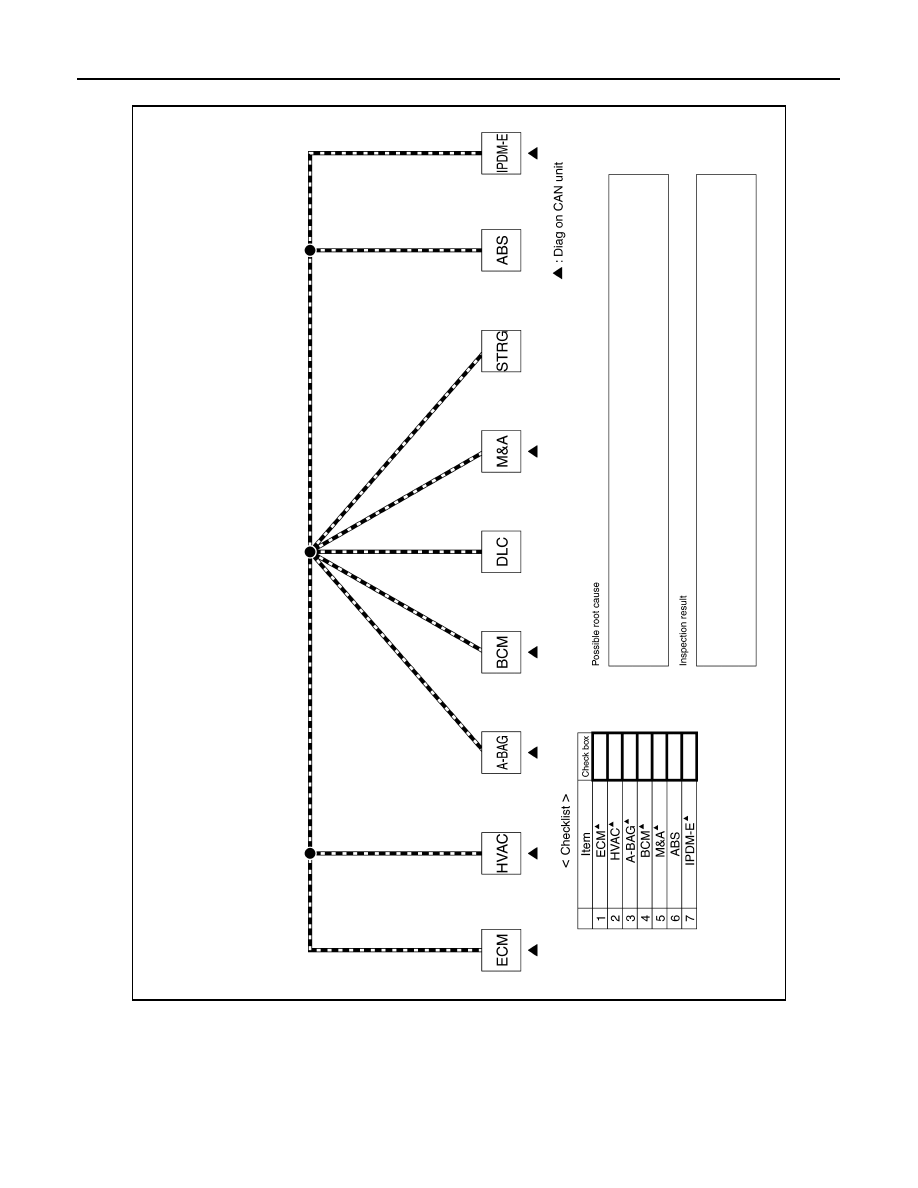

Diagnosis Sheet (CAN Type 1)

INFOID:0000000010244742

JSMIA1622GB

LAN

DIAGNOSIS AND REPAIR WORKFLOW

LAN-41

< BASIC INSPECTION >

[CAN]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

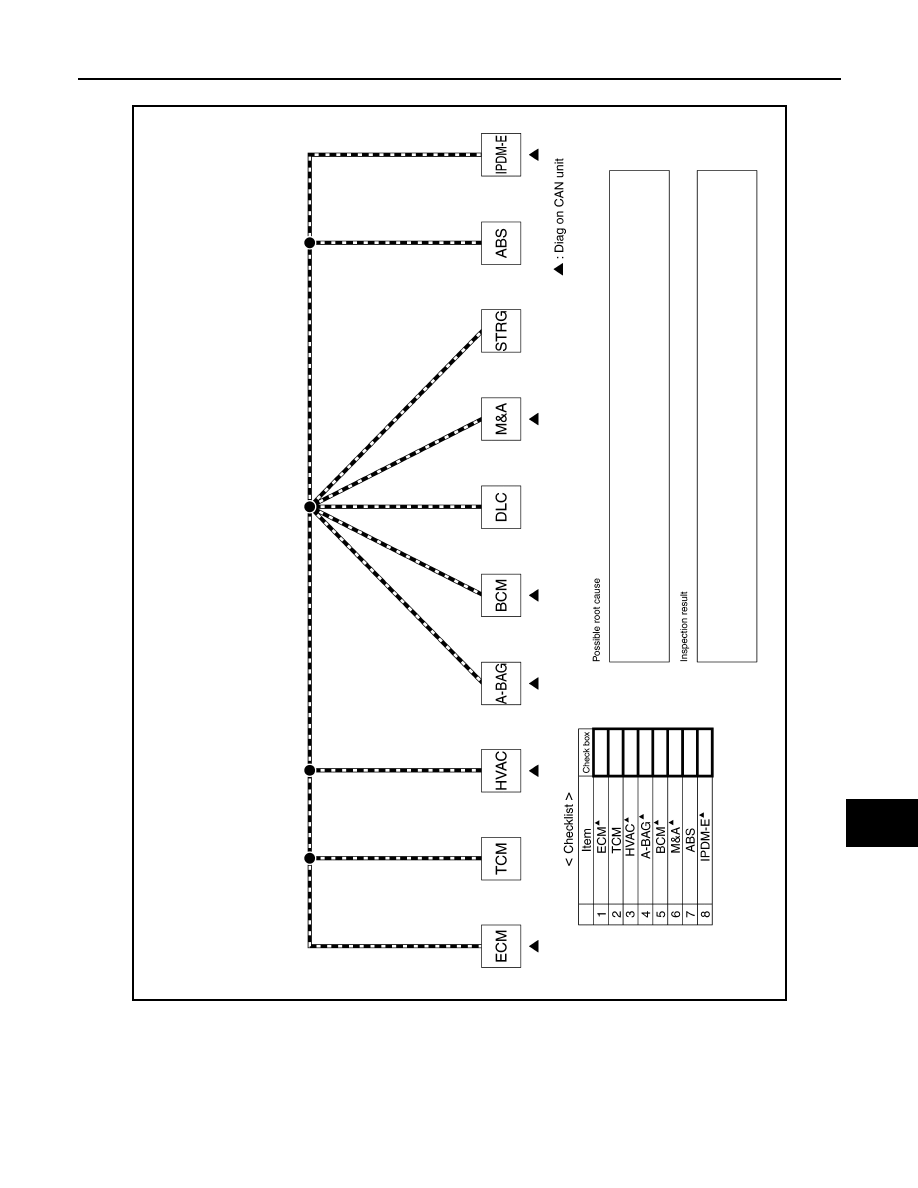

Diagnosis Sheet (CAN Type 2)

INFOID:0000000010244743

JSMIA1623GB
