DIAGNOSIS AND REPAIR WORKFLOW

7. Perform the inspection procedure for the possible cause. Refer to “MALFUNCTION AREA CHART”.

Past Error — Short Circuit —

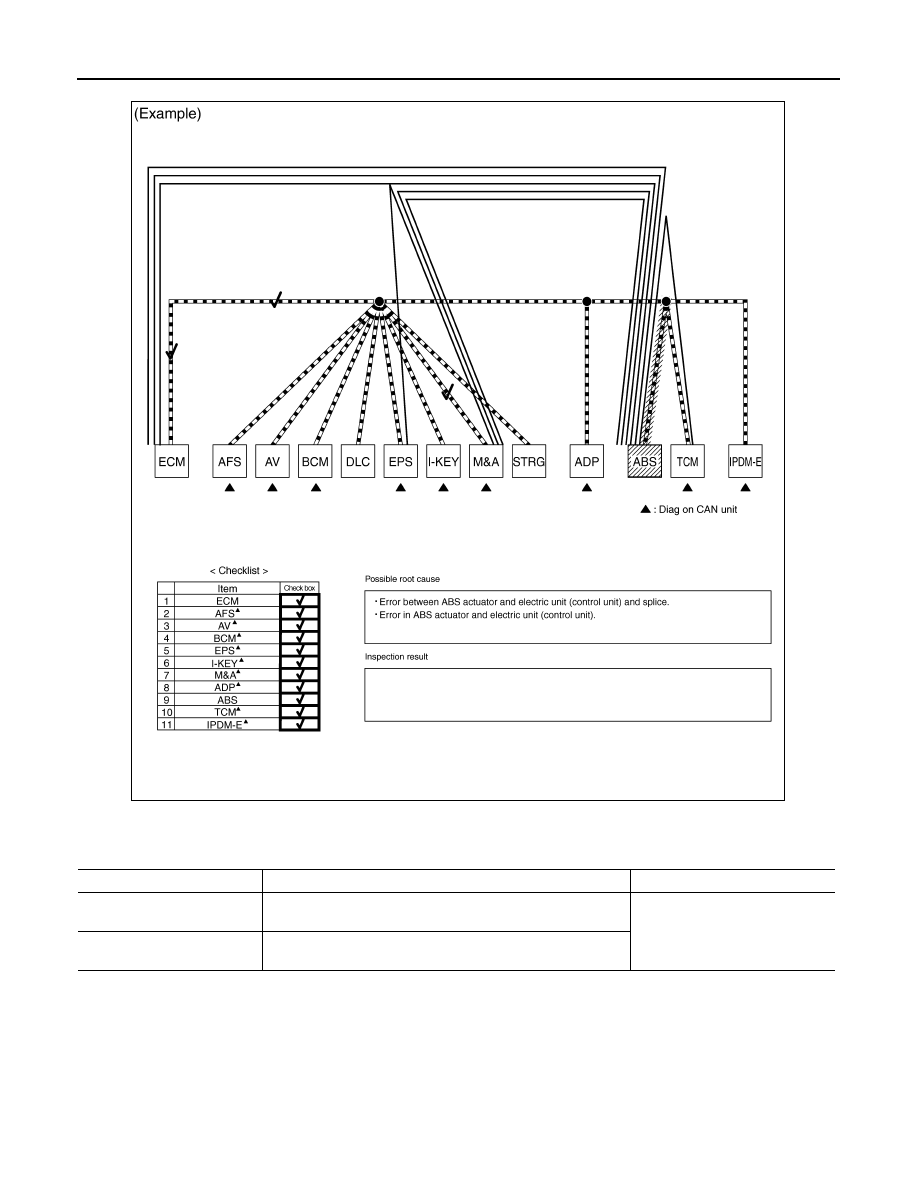

When the symptoms listed below exist, a short circuit of the CAN communication line is a possible cause.

PKID1224E

Item (CONSULT)

Indication

Inspection procedure

SELF-DIAG RESULTS

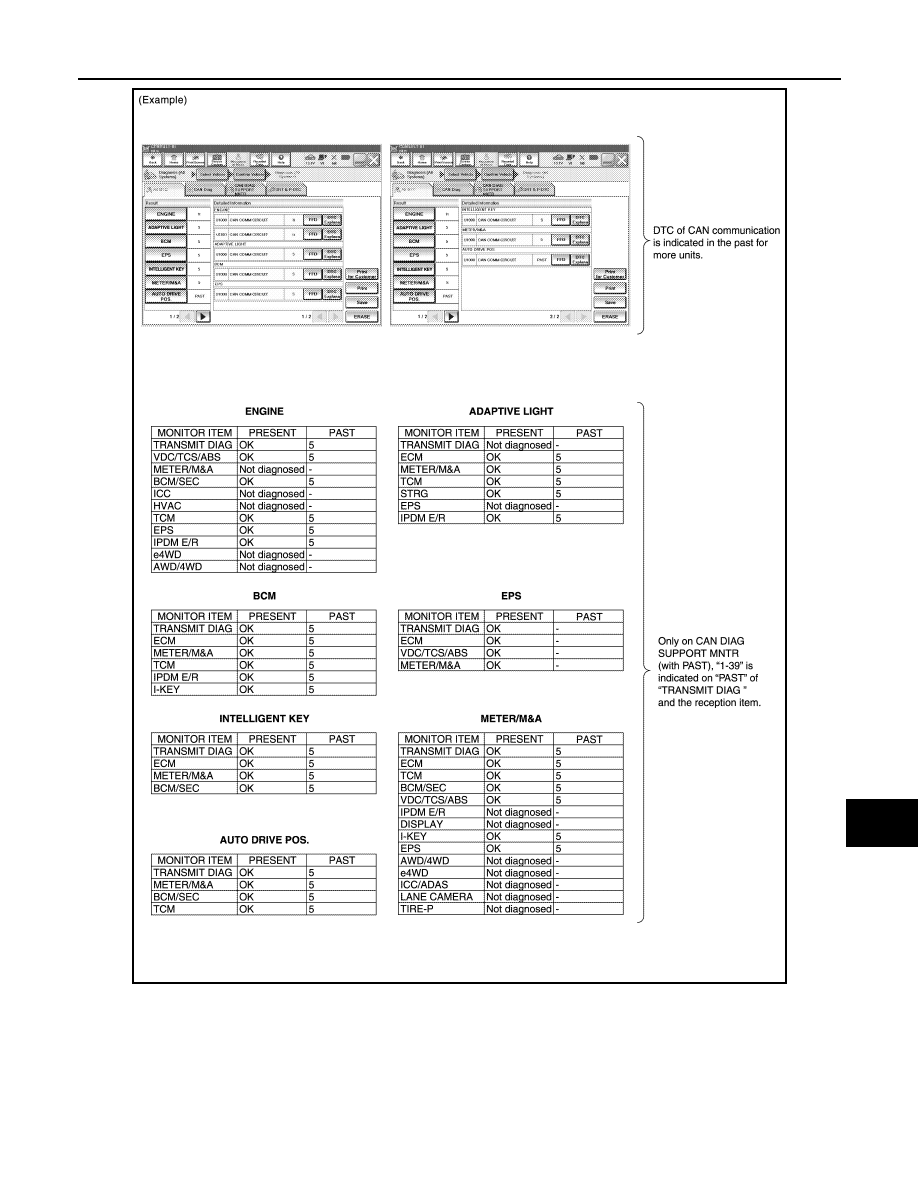

DTC of CAN communication is indicated in the past for most
units.

Refer to “MALFUNCTION AREA
CHART”.

CAN DIAG SUPPORT MNTR

Only on CAN DIAG SUPPORT MNTR (with PAST), “1 - 39” is in-
dicated on “PAST” of “TRANSMIT DIAG” and the reception item.

LAN

DIAGNOSIS AND REPAIR WORKFLOW

LAN-35

< BASIC INSPECTION >

[CAN FUNDAMENTAL]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

JSMIA0822GB
