4. Install the room lamp lens.

INL-120

< REMOVAL AND INSTALLATION >

[WITHOUT POWER DOOR LOCKS]

ILLUMINATION

ILLUMINATION

Removal and Installation

INFOID:0000000009480192

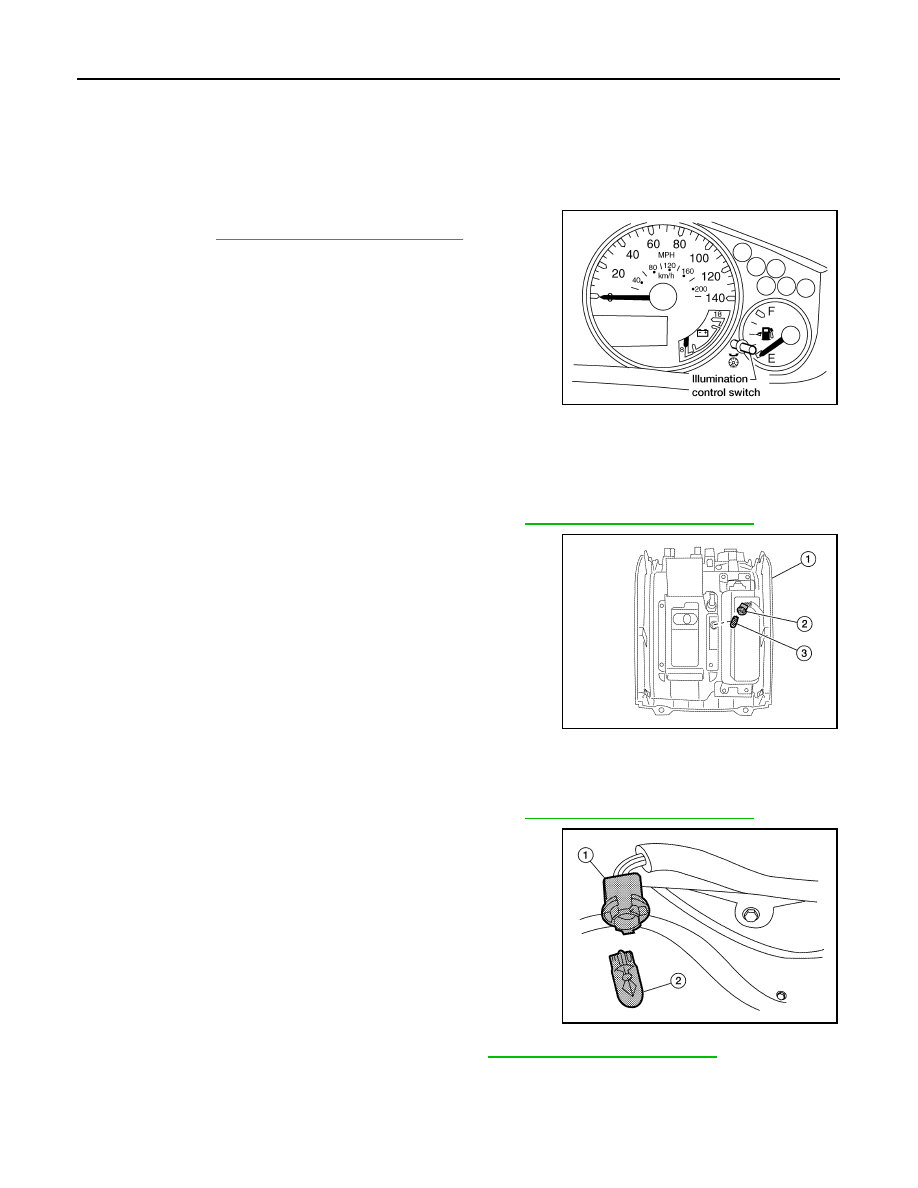

ILLUMINATION CONTROL SWITCH

Removal

The illumination control switch is replaced as a part of the combina-

tion meter. Refer to

MWI-90, "Removal and Installation"

.

Installation

Installation is in the reverse order of removal.

SHIFT SELECTOR FINISHER LAMP

Removal

1. Remove shift selector finisher from center console. Refer to

IP-25, "Removal and Installation"

.

2. Rotate shift selector finisher lamp socket (2) with bulb (3) coun-

terclockwise, then pull away from finisher (1).

Installation

Installation is in the reverse order of removal.

Bulb Replacement

1. Remove shift selector finisher from center console. Refer to

IP-25, "Removal and Installation"

.

2. Remove shift selector finisher lamp socket (1), then pull bulb (2)

straight out away from socket.

3. Install the bulb (2) into the shift selector finisher socket (1).

4. Install shift selector finisher in center console. Refer to

IP-25, "Removal and Installation"

.

LKIA0579E

ALLIA0590ZZ

AT finisher lamp bulb

: 12V - 3W

ALLIA0321ZZ

BULB SPECIFICATIONS

INL-121

< SERVICE DATA AND SPECIFICATIONS (SDS)

[WITHOUT POWER DOOR LOCKS]

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

BULB SPECIFICATIONS

Bulb Specifications

INFOID:0000000009480193

*: Always check with the Parts Department for the latest parts information.

Item

Wattage (W)*

Front room/map lamp (if equipped)

8

Vanity lamp

–

Room lamp 2nd row

8

Shift selector finisher lamp

3
