ILLUMINATION

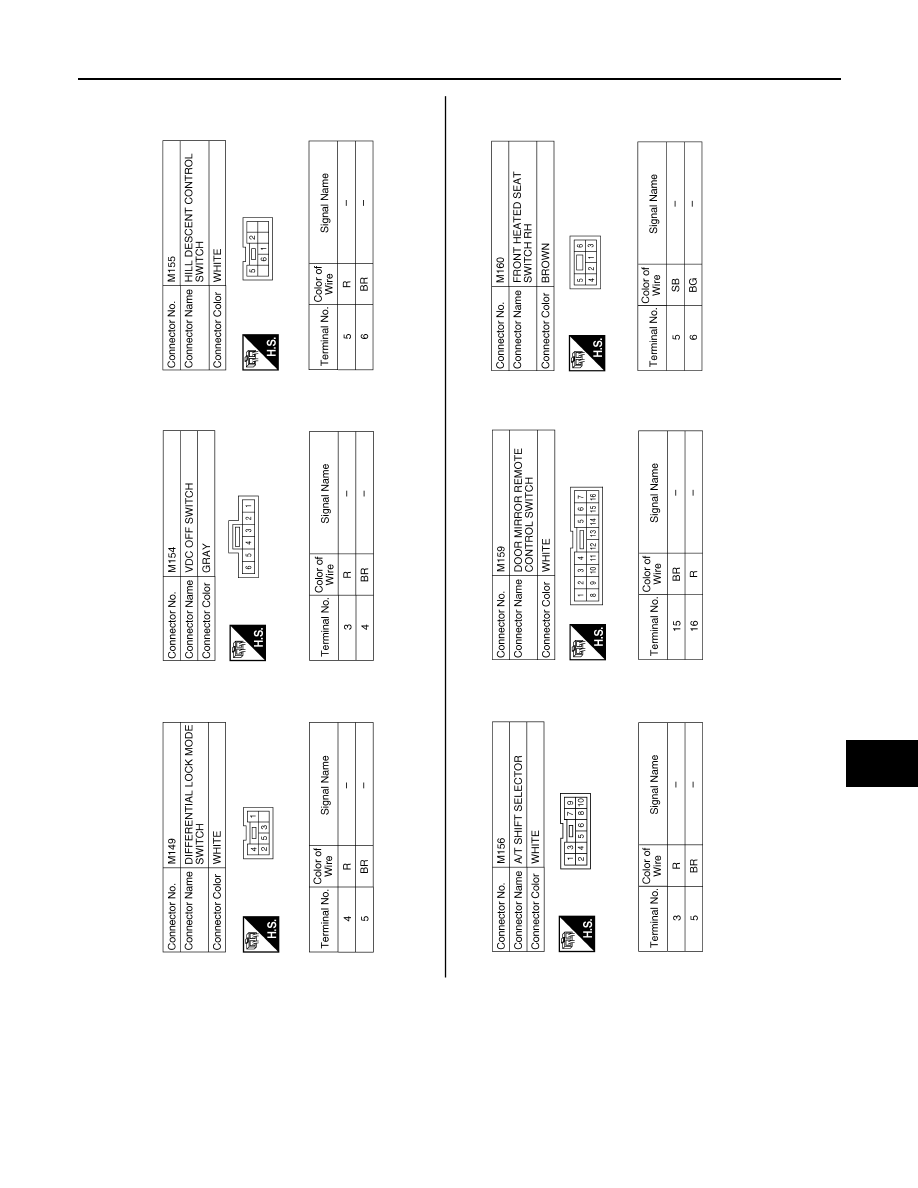

INL-111

< WIRING DIAGRAM >

[WITHOUT POWER DOOR LOCKS]

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

ABLIA5649GB

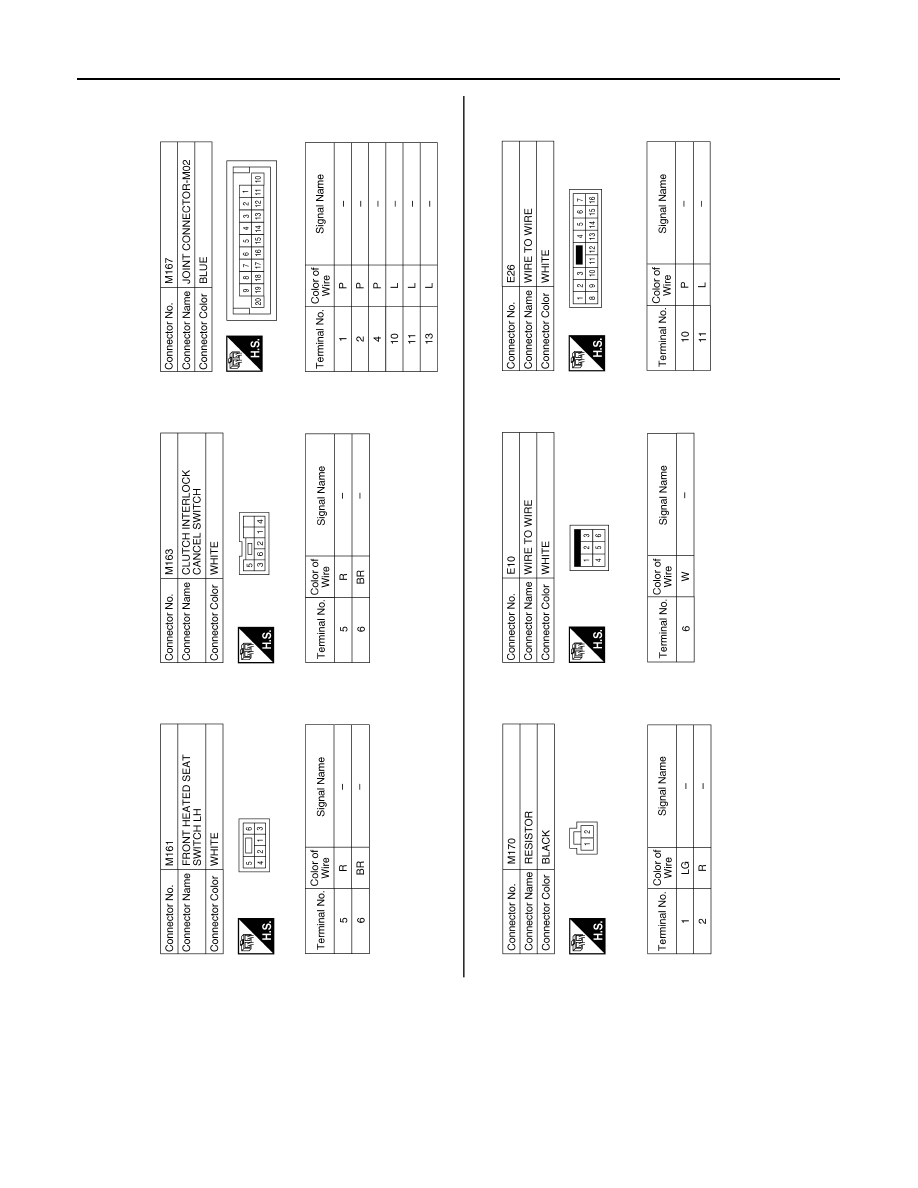

INL-112

< WIRING DIAGRAM >

[WITHOUT POWER DOOR LOCKS]

ILLUMINATION

ABLIA5692GB

ILLUMINATION

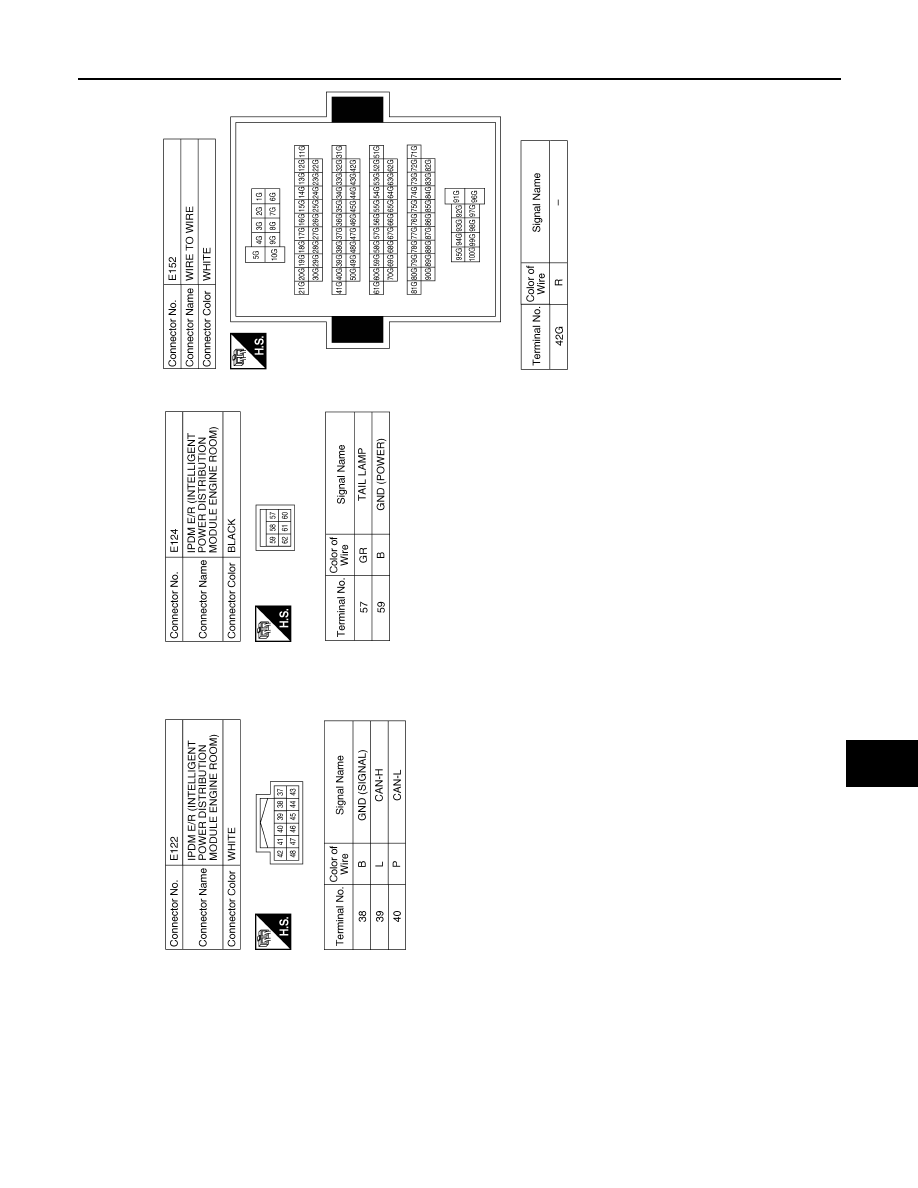

INL-113

< WIRING DIAGRAM >

[WITHOUT POWER DOOR LOCKS]

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

ABLIA5650GB

INL-114

< SYMPTOM DIAGNOSIS >

[WITHOUT POWER DOOR LOCKS]

INTERIOR LIGHTING SYSTEM SYMPTOMS

SYMPTOM DIAGNOSIS

INTERIOR LIGHTING SYSTEM SYMPTOMS

Symptom Table

INFOID:0000000009480187

CAUTION:

Perform the self-diagnosis with CONSULT before the symptom diagnosis. Perform the trouble diagno-

sis if any DTC is detected.

Symptom

Possible cause

Inspection item

interior room lamps do not turn ON/OFF
• Room lamp 2nd row
• Front room/map lamp assembly

• Harness between fuse block (J/B)

and each interior room lamp

• Harness between each interior

room lamp and door switches

• Door switches

Interior room lamp
Refer to

INL-78

.

Cargo lamp does not turn ON/OFF

• Harness between fuse block (J/B)

and cargo lamp relay

• Harness between cargo lamp relay

and cargo lamp

• Harness between BCM and cargo

lamp relay

• BCM

Cargo lamp control circuit
Refer to

INL-80

.
