INTERIOR ROOM LAMP CONTROL SYSTEM

INL-7

< SYSTEM DESCRIPTION >

[WITH POWER DOOR LOCKS]

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

If an interior lamp is left ON and does not turn OFF even when the doors are closed, the BCM turns off power

to the interior lamps automatically to save the battery 10 minutes after the ignition switch is turned OFF.

The BCM controls power and ground to all interior lamps.

After the battery saver system turns the lamps OFF, the lamps will illuminate again when

• a signal is received from a main power window and door lock/unlock switch, or when the front door lock

assembly LH (key cylinder switch) is locked or unlocked

• a door is opened or closed

The interior lamp battery saver control time period can be changed with the CONSULT.

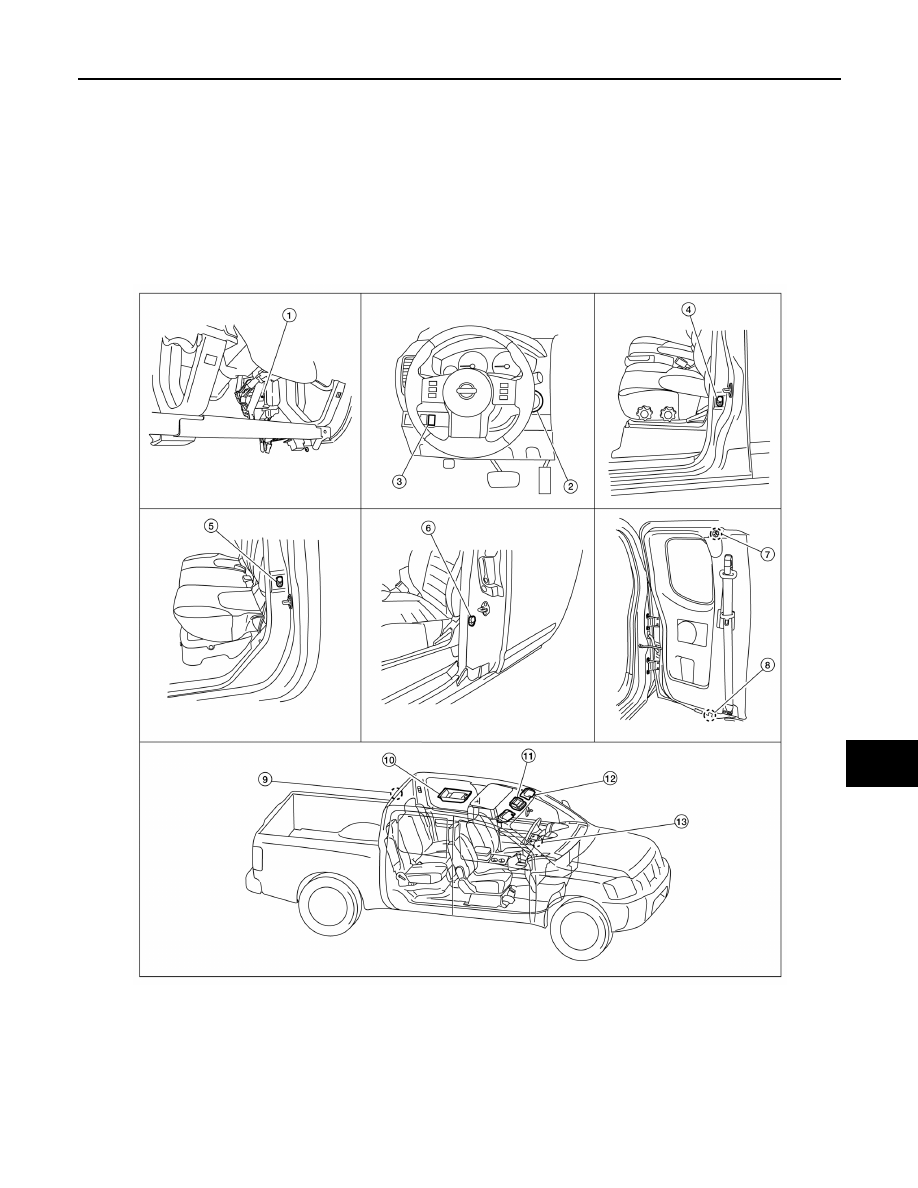

Component Parts Location

INFOID:0000000009480126

1.

BCM M18, M19, M20 (view with lower
instrument panel LH removed)

2.

Key switch M27

3.

Cargo lamp switch M71

4.

Front door switch LH B8 (crew cab)
Front door switch RH B108 (crew cab)

5.

Rear door switch LH B18 (crew cab)
Rear door switch RH B116 (crew cab)

6.

Front door switch LH D213 (king cab)
Front door switch RH D314 (king cab)

7.

Rear door switch upper LH D211 (king
cab)
Rear door switch upper RH D312 (king
cab)

8.

Rear door switch lower LH D212 (king
cab)
Rear door switch lower RH D313 (king
cab)

9.

Cargo lamp B161

ABLIA2842ZZ

INL-8

< SYSTEM DESCRIPTION >

[WITH POWER DOOR LOCKS]

INTERIOR ROOM LAMP CONTROL SYSTEM

Component Description

INFOID:0000000009480127

10. Room lamp 2nd row R10

11. Front room/map lamp assembly R9

12. Vanity lamp LH B80 (if equipped)

Vanity lamp RH B81 (if equipped)

13. Ignition keyhole illumination M150 (if

equipped)

Part name

Description

BCM

Provides power and ground and controls timer functions for the
interior room lamps and cargo lamp.

Key switch

Provides key in ignition status to the BCM.

Door switches

Provides door OPEN/CLOSED status to the BCM.

Cargo lamp switch

Provides cargo lamp ON/OFF request  to the BCM.

Main power window and door lock/unlock switch

Provides door lock/unlock position switch status to the BCM.

Power window and door lock/unlock switch RH

Front door lock assembly LH (key cylinder switch)

Provides door lock/unlock status to the BCM.

ILLUMINATION CONTROL SYSTEM

INL-9

< SYSTEM DESCRIPTION >

[WITH POWER DOOR LOCKS]

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

ILLUMINATION CONTROL SYSTEM

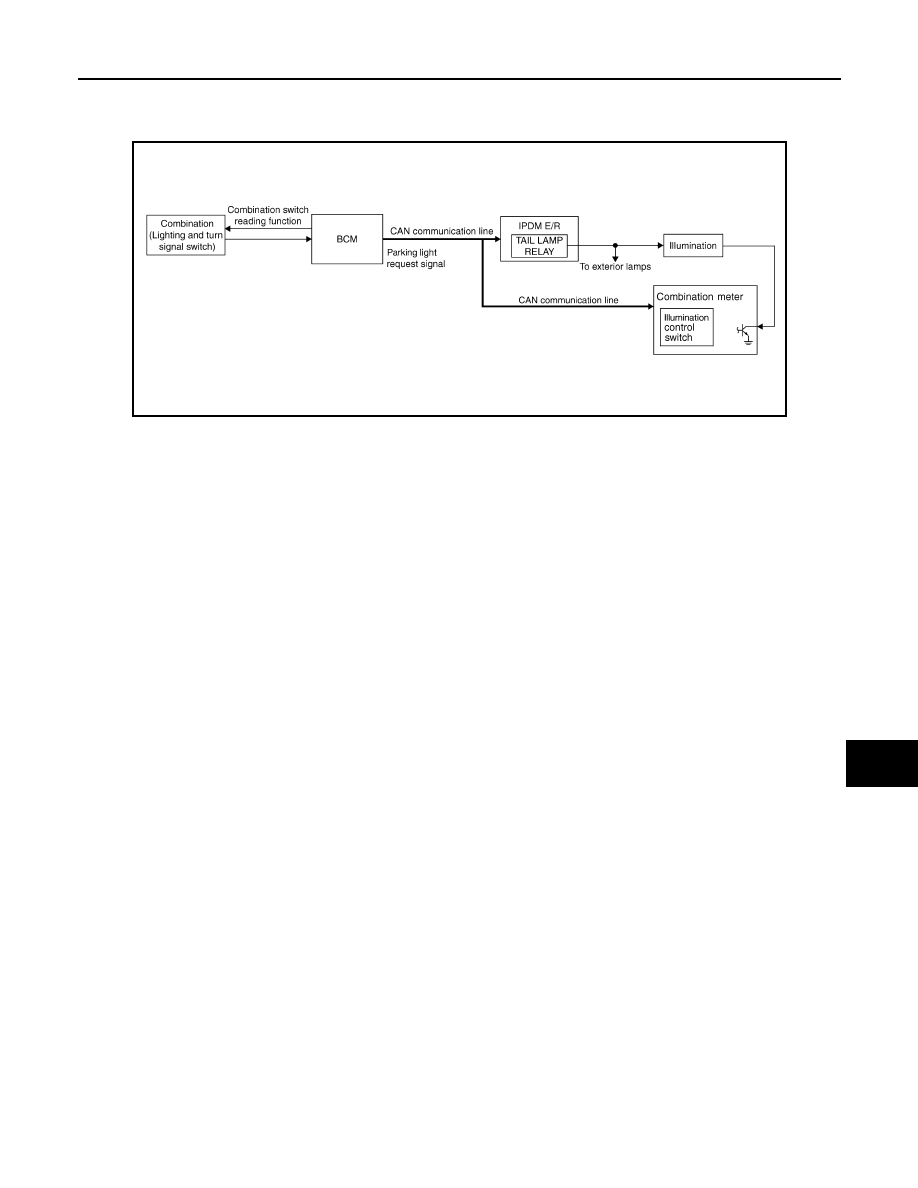

System Diagram

INFOID:0000000009480128

System Description

INFOID:0000000009480129

The illumination lamps operation is dependent upon the position of the combination switch (lighting and turn

signal switch). When the combination switch (lighting and turn signal switch) is placed in the 1ST or 2ND posi-

tion (or if the auto light system is activated) the BCM (body control module) receives input requesting the park-

ing lamps to illuminate. This input is communicated to the IPDM E/R (intelligent power distribution module

engine room) via the CAN communication lines. The CPU (central processing unit) of the IPDM E/R controls

the tail lamp relay coil. When energized, this relay directs power to the parking and illumination lamps, which

then illuminate.

BATTERY SAVER CONTROL

When the combination switch (lighting and turn signal switch) is in the 1ST or 2ND position and the ignition

switch is turned from ON or ACC to OFF, the battery saver control feature is activated. Under this condition,

the illumination lamps remain illuminated for 10 minutes unless the combination switch (lighting and turn signal

switch) position is changed. If the combination switch (lighting and turn signal switch) position is changed, then

the illumination lamps are turned off after a 30 second delay. When the combination switch (lighting and turn

signal switch) is turned from OFF to 1ST or 2ND position (or if auto light system is activated) after illumination

lamps have been turned off by the battery saver control, the illumination lamps illuminate again.

AWLIA1754GB

INL-10

< SYSTEM DESCRIPTION >

[WITH POWER DOOR LOCKS]

ILLUMINATION CONTROL SYSTEM

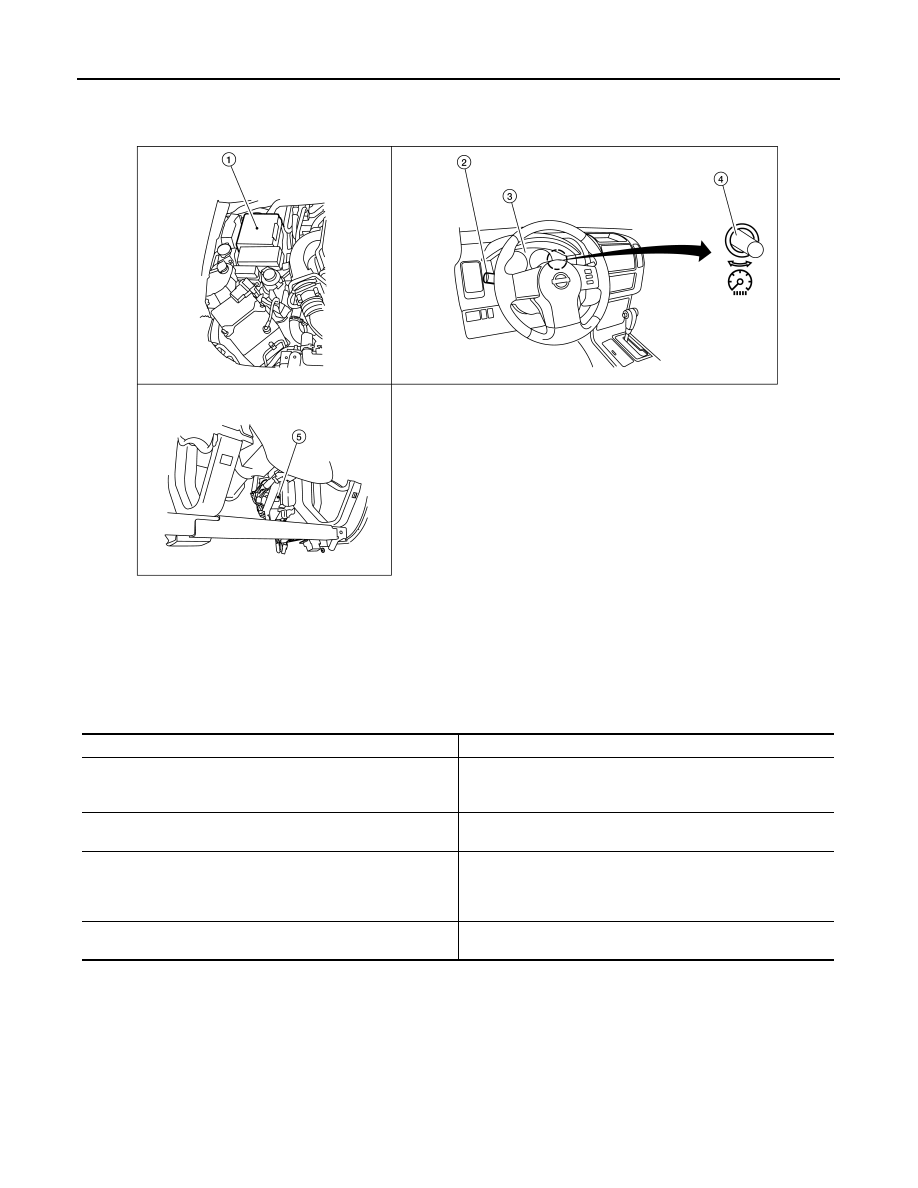

Component Parts Location

INFOID:0000000009480130

Component Description

INFOID:0000000009480131

1.

IPDM E/R E122, E124

2.

Combination switch (lighting and turn
signal switch) M28

3.

Combination meter M24

4.

Illumination control switch (built into
combination meter)

5.

BCM M18, M20 (view with lower instru-
ment panel LH removed)

WKIA5029E

Part name

Description

BCM

The BCM monitors the lighting switch position with the combina-
tion switch reading function.  The BCM requests, via CAN com-
munication, that the IPDM E/R activate the tail lamp relay.

IPDM E/R

The IPDM E/R activates the tail lamp relay based on inputs re-
ceived from the BCM via the CAN communication network.

Combination meter (illumination control switch)

The illumination control switch is a part of the combination meter.
The combination meter controls illumination intensity by varying
ground to the illumination lamps based on the illumination control
switch position.

Combination switch (lighting and turn signal switch)

The combination switch (lighting and turn signal switch) provides
input to the BCM about the lighting switch position.
