HAC-6
< BASIC INSPECTION >
[AUTOMATIC AIR CONDITIONER]
INSPECTION AND ADJUSTMENT
INSPECTION AND ADJUSTMENT

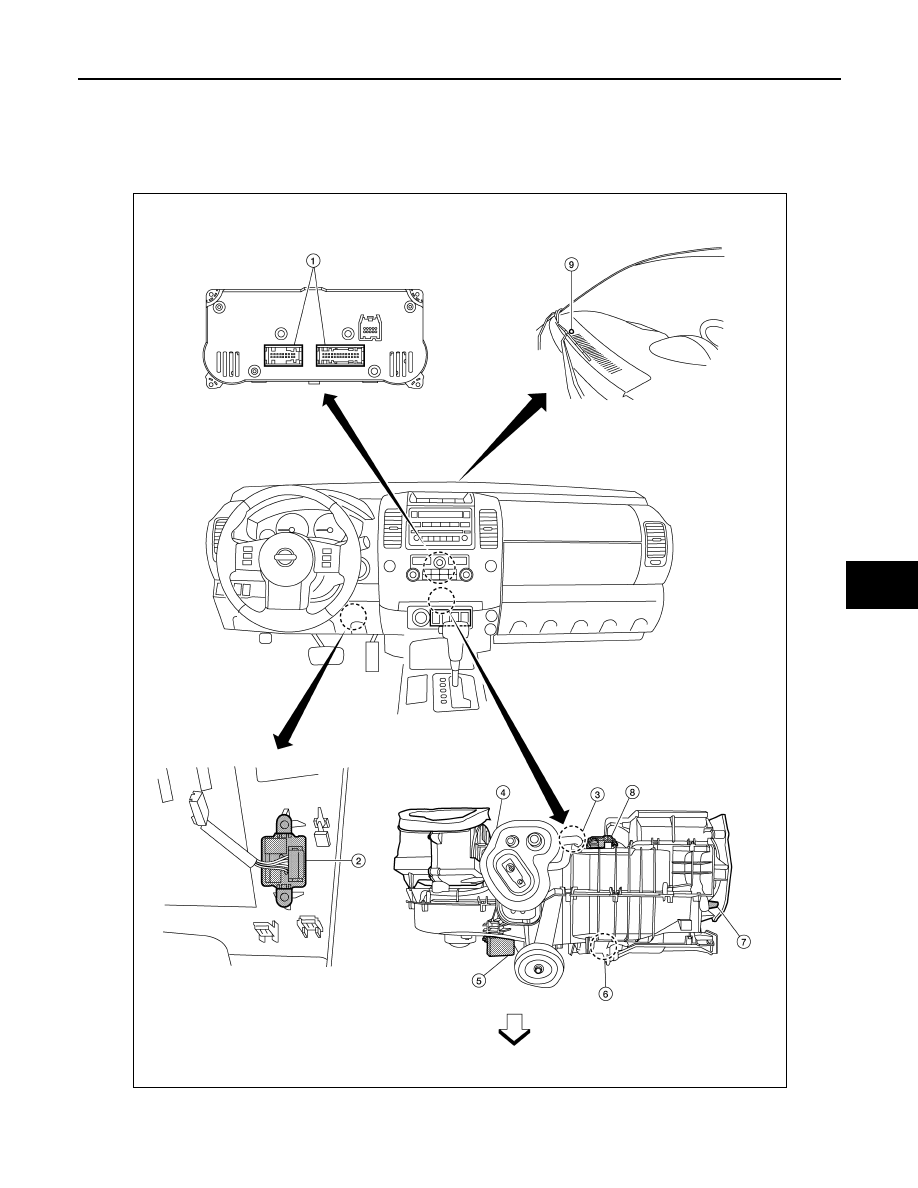

Operational Check
INFOID:0000000009478260
The purpose of the operational check is to confirm that the system operates properly.
CHECKING MEMORY FUNCTION
1. Set the temperature to 32
° (90°F).
2. Press the OFF switch.
3. Turn ignition switch OFF.
4. Turn ignition switch ON.
5. Press the AUTO switch.
6. Confirm that the set temperature remains at previous temperature.
7. Press the OFF switch.
If NG, go to trouble diagnosis procedure for
HAC-85, "Memory Function Check"
If OK, continue with next check.
CHECKING BLOWER
1. Rotate the blower control dial clockwise once, blower should operate on low speed.
2. Rotate the blower control dial again, and continue checking blower speed until all speeds are checked.
3. Leave blower on maximum speed.
If NG, go to trouble diagnosis procedure for
HAC-37, "Front Blower Motor Diagnosis Procedure"
.
If OK, continue with next check.
CHECKING DISCHARGE AIR
1. Press each MODE switch and the DEF
switch.
2. Each MODE position indicator should illuminate.
3. Confirm that discharge air comes out according to the air distribution table. Refer to
.
Mode door position is checked in the next step.
If NG, go to trouble diagnosis procedure for
HAC-22, "Mode Door Motor Diagnosis Procedure"
If OK, continue the check.
NOTE:

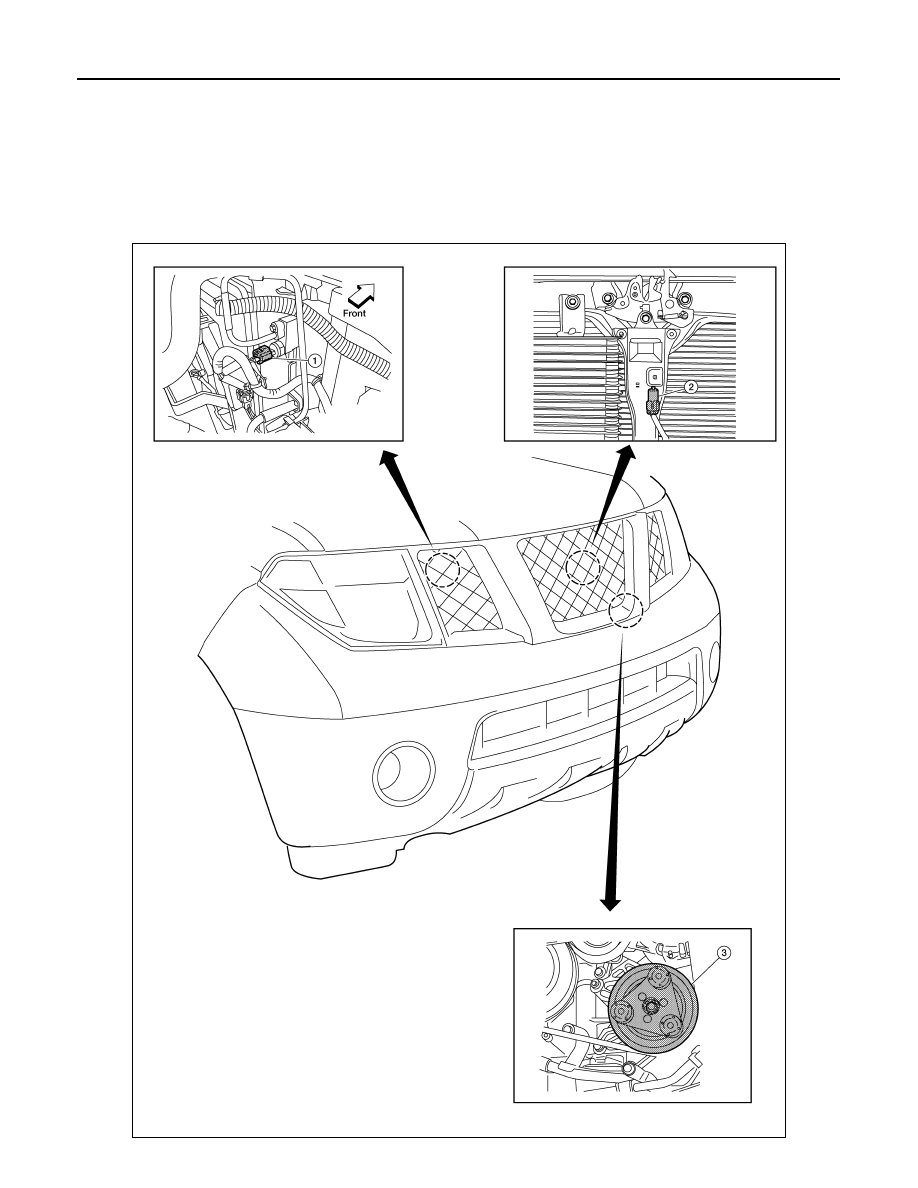

Confirm that the compressor clutch is engaged (sound or visual inspection) and intake door position is at
fresh when the DEF or D/F is selected.
CHECKING RECIRCULATION ( , ONLY)
1. Press recirculation (
) switch one time. Recirculation indicator should illuminate.
2. Press recirculation (
) switch one more time. Recirculation indicator should go off.
3. Listen for intake door position change (blower sound should change slightly).
If NG, go to trouble diagnosis procedure for
HAC-34, "Intake Door Motor Diagnosis Procedure"
.
If OK, continue the check.
NOTE:
Confirm that the compressor clutch is engaged (sound or visual inspection) and intake door position is at fresh
when the DEF or D/F is selected. REC (
) is not allowed in DEF (
) D/F (
) or FOOT (
).
CHECKING TEMPERATURE DECREASE
1. Rotate temperature control dial (drive or passenger) counterclockwise until 18
°C (60°F) is displayed.
2. Check for cold air at appropriate discharge air outlets.
If NG, listen for sound of air mix door motor operation. If OK, go to trouble diagnosis procedure for
. If air mix door motor appears to be malfunctioning, go to
Motor (Driver) Component Function Check"
Conditions
: Engine running and at normal operating temperature
