LICENSE PLATE LAMP

EXL-145

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

LICENSE PLATE LAMP

Bulb Replacement

INFOID:0000000009478530

REMOVAL

1. Turn bulb socket counterclockwise to unlock bulb socket.
2. Pull bulb to remove from bulb socket.

INSTALLATION

Installation is in the reverse order of removal.

Removal and Installation

INFOID:0000000009478531

REMOVAL

1. Disconnect the harness connector from the license plate lamp.
2. Depress tab to remove license plate lamp from rear bumper.

INSTALLATION

Installation is in the reverse order of removal.

EXL-146

< REMOVAL AND INSTALLATION >

REAR COMBINATION LAMP

REAR COMBINATION LAMP

Bulb Replacement

INFOID:0000000009478532

REMOVAL

1. Remove rear combination lamp. Refer to

EXL-146, "Removal

and Installation"

.

2. Turn bulb socket counterclockwise to remove..
3. Pull bulb straight out away from socket.

INSTALLATION

Installation is in the reverse order of removal.

Removal and Installation

INFOID:0000000009478533

REMOVAL

1. Open tail gate and remove rear combination lamp bolts.
2. Pull combination lamp housing rearward to release locating

snap.

3. Rotate each bulb socket counterclockwise and remove.

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

 During installation, align locating snap on body prior to installing bolts.

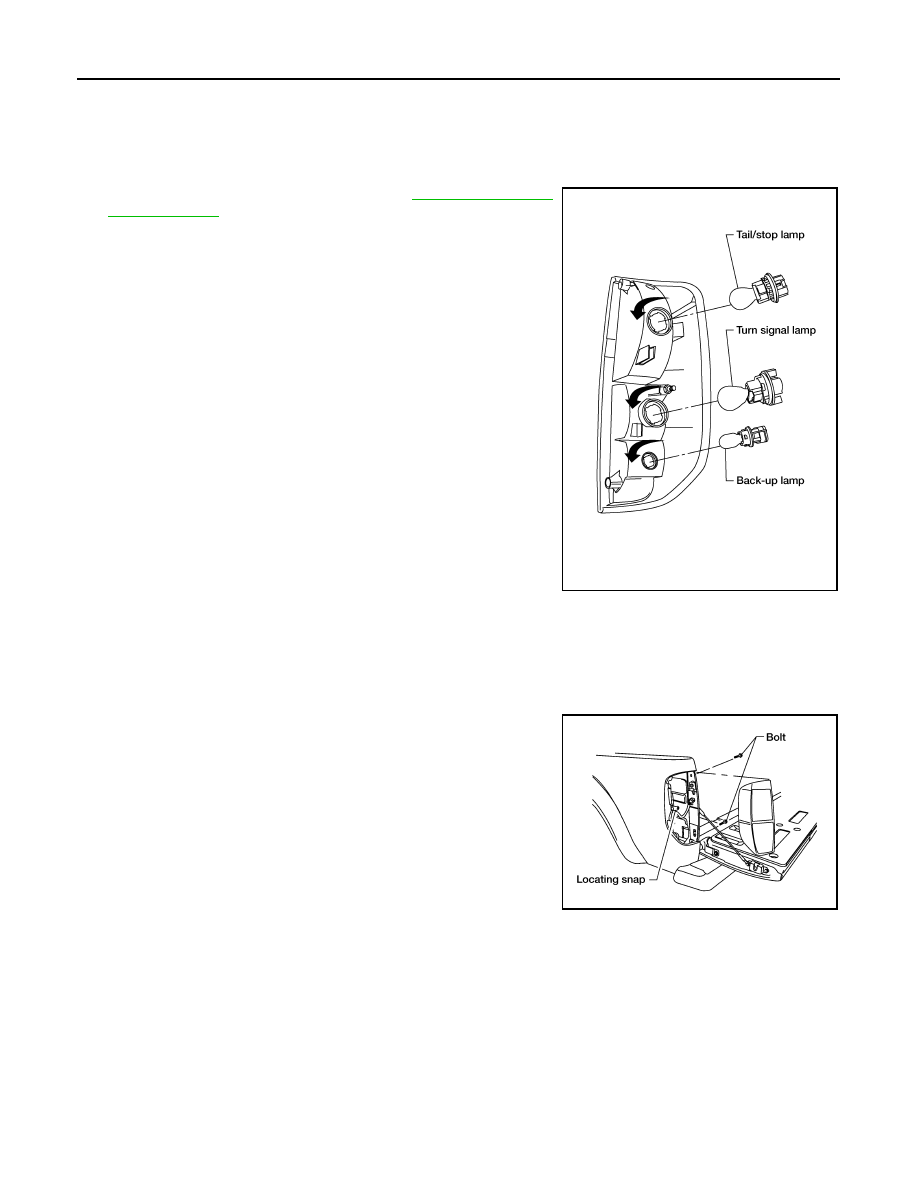

WKIA3780E

WKIA3781E

Rear combination lamp bolts

: 2.4 Nm (0.24 kg-m, 21 in-lb)

LIGHTING & TURN SIGNAL SWITCH

EXL-147

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

LIGHTING & TURN SIGNAL SWITCH

Removal and Installation

INFOID:0000000009478534

REMOVAL

1. Remove instrument lower panel LH. Refer to

IP-18, "Removal and Installation"

.

2. Remove steering column covers.
3. Disconnect the harness connector from the lighting and turn sig-

nal switch.

4. While pressing tabs, pull lighting and turn signal switch toward

driver door and release from the steering column.

INSTALLATION

Installation is in the reverse order of removal.

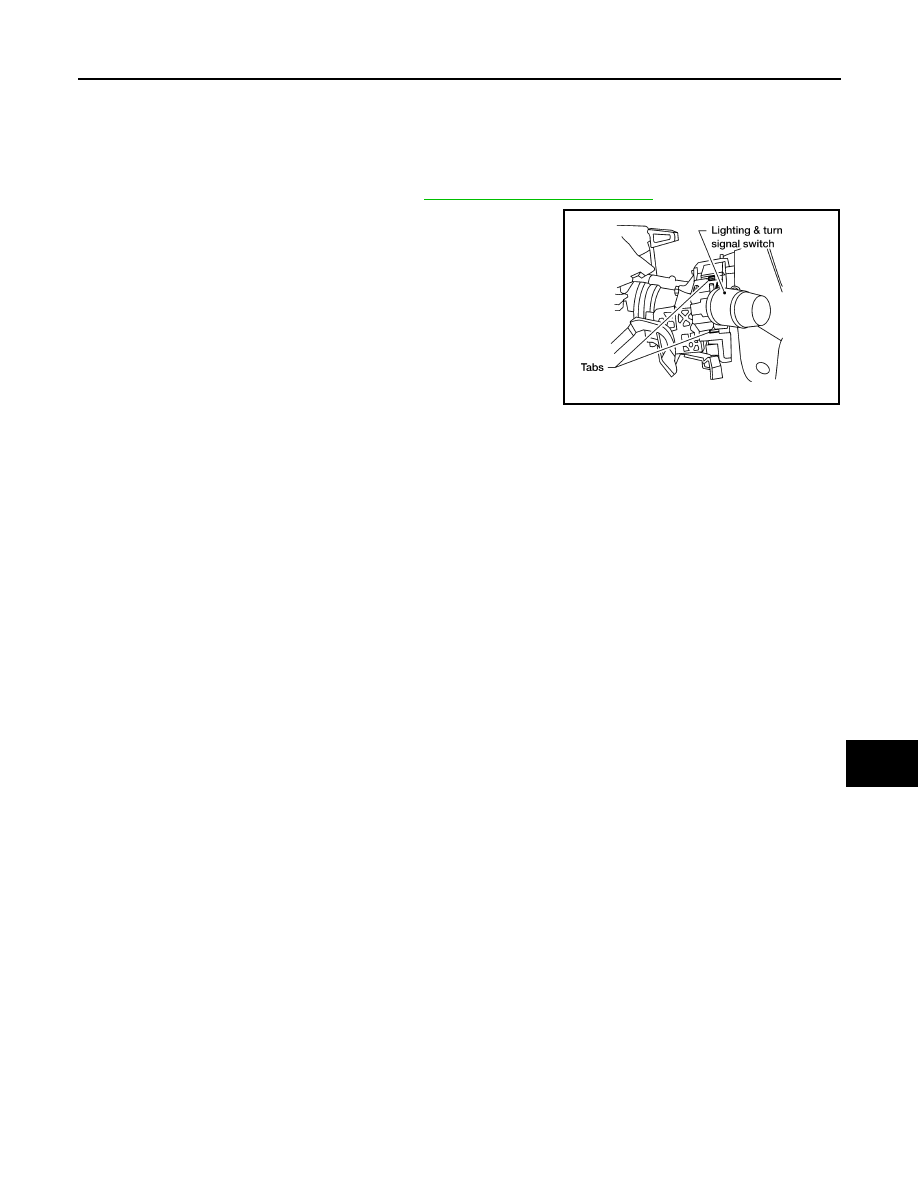

LKIA0013E

EXL-148

< REMOVAL AND INSTALLATION >

HAZARD SWITCH

HAZARD SWITCH

Removal and Installation

INFOID:0000000009478535

REMOVAL

1. Remove cluster lid C. Refer to

IP-19, "Removal and Installation"

.

2. Remove the screws and the hazard switch.

INSTALLATION

Installation is in the reverse order of removal.

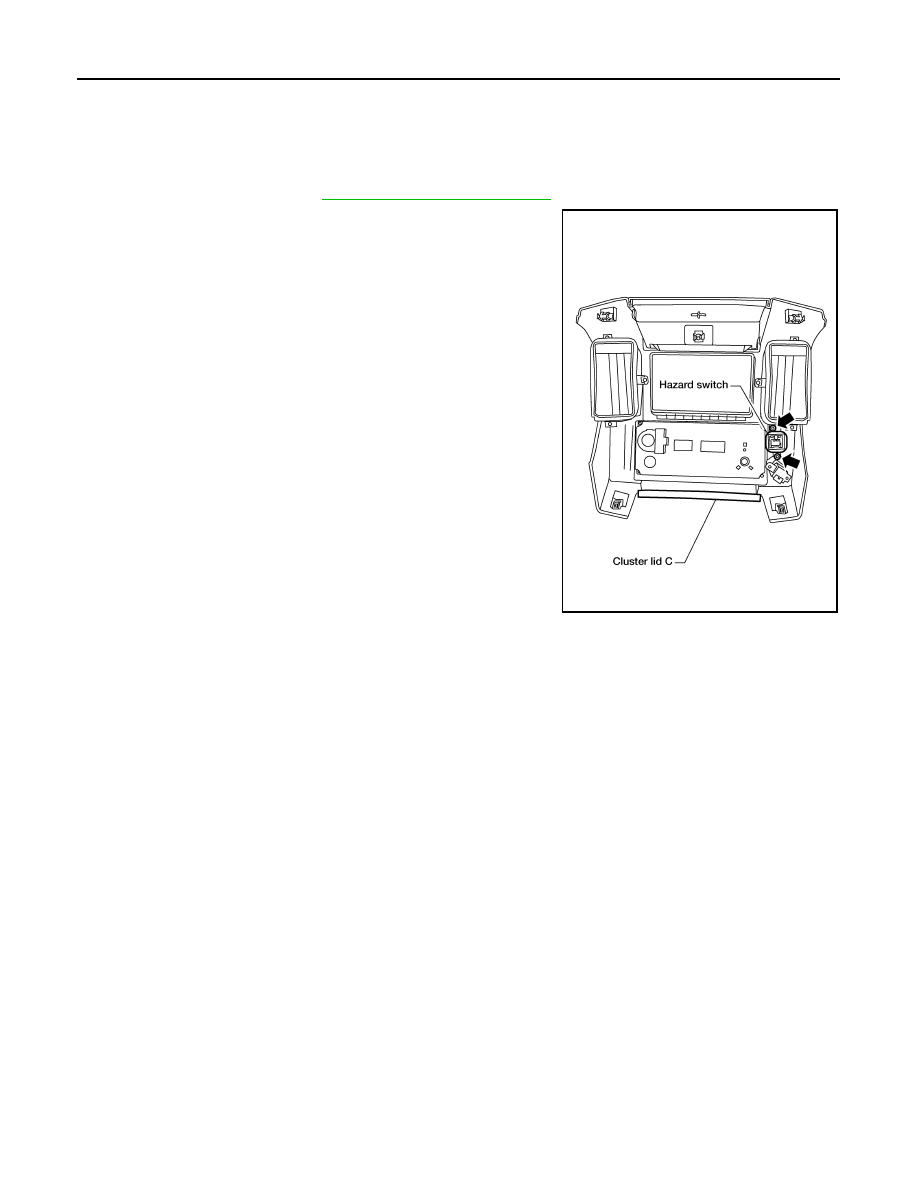

LKIA0575E
