HEADLAMP

EXL-141

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

REMOVAL AND INSTALLATION

HEADLAMP

Bulb Replacement

INFOID:0000000009478523

WARNING:

Do not touch bulb with your hand while it is on or right after being turned off. Burning may result.

CAUTION:

Do not touch the glass surface of the bulb with bare hands or allow oil or grease to get on it to prevent

damage to the bulb.Do not leave bulb out of lamp reflector for a long time because dust, moisture,

smoke, etc. may affect the performance of lamp. When replacing bulb, be sure to replace it with new

one.

HEADLAMP

Removal

1. Turn front headlamp switch OFF.
2. Disconnect the harness connector from the headlamp.
3. Rotate the headlamp bulb retaining ring counterclockwise and remove.
4. Pull the headlamp bulb straight out from the headlamp assembly.

CAUTION:

Grasp only the plastic base when handling headlamp bulb. Do not touch the glass envelope.

Installation

Installation is in the reverse order of removal.

CAUTION:

After installing bulb, be sure to install the bulb socket and plastic cap securely to ensure watertight-

ness.

FRONT TURN SIGNAL/PARKING LAMP

Removal

1. Turn the bulb socket counterclockwise and remove.
2. Pull the bulb to remove it from the socket.

Installation

Installation is in the reverse order of removal.

CAUTION:

After installing bulb, be sure to install the bulb socket and plastic cap securely to ensure watertight-

ness.

FRONT SIDE MARKER LAMP

Removal

1. Turn the bulb socket counterclockwise and remove.
2. Pull the bulb to remove it from the socket.

Installation

Installation is in the reverse order of removal.

CAUTION:

After installing bulb, be sure to install the bulb socket securely for watertightness.

Removal and Installation

INFOID:0000000009478524

FRONT COMBINATION LAMP

Removal

1. Position front fender protector aside. Refer to

EXT-27, "Removal and Installation of Front Fender Protec-

tor"

.

2. For steel bumper, remove the front bumper upper valance. Refer to

EXT-15, "Removal and Installation"

.

3. For plastic bumper, remove the front bumper assembly. Refer to

EXT-15, "Removal and Installation"

.

EXL-142

< REMOVAL AND INSTALLATION >

HEADLAMP

4. Remove the front combination lamp bolts.
5. Disconnect the harness connector from the front combination lamp and remove.

Installation

Installation is in the reverse order of removal.

NOTE:

After installation, perform headlamp aiming adjustment. Refer to

EXL-137, "Aiming Adjustment"

.

Disassembly and Assembly

INFOID:0000000009478525

DISASSEMBLY

WARNING:

Do not touch bulb with your hand while it is on or right after being turned off. Burning may result.

CAUTION:

Do not touch the glass surface of the bulb with bare hands or allow oil or grease to get on it to prevent

damage to the bulb.Do not leave bulb out of lamp reflector for a long time because dust, moisture,

smoke, etc. may affect the performance of lamp. When replacing bulb, be sure to replace it with new

one.
1. Rotate headlamp bulb retaining ring counterclockwise and remove.
2. Turn front turn signal/parking lamp bulb socket counterclockwise to unlock and remove.
3. Turn front side marker lamp bulb socket counterclockwise to unlock and remove.

ASSEMBLY

Installation is in the reverse order of removal.

CAUTION:

After installing bulb, be sure to install the bulb socket and plastic cap securely to ensure watertight-

ness.

Front combination lamp bolt

: 6.0 N·m (0.61 kg-m, 53 in-lb)

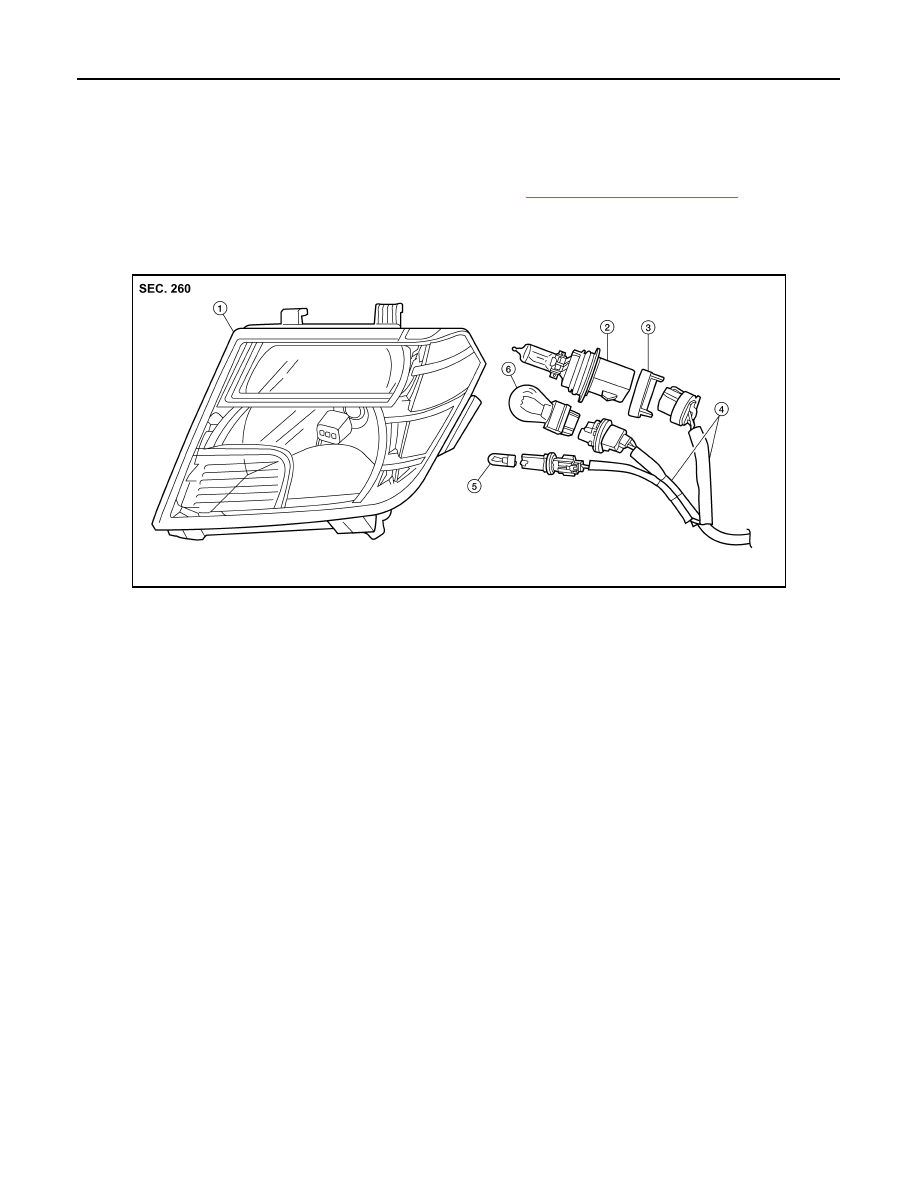

AWKIA1437GB

1. Front combination lamp

2. Headlamp bulb

3. Headlamp bulb retaining ring

4. Harness assembly

5. Front side marker lamp bulb

6. Front turn signal/parking lamp bulb

FRONT FOG LAMP

EXL-143

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

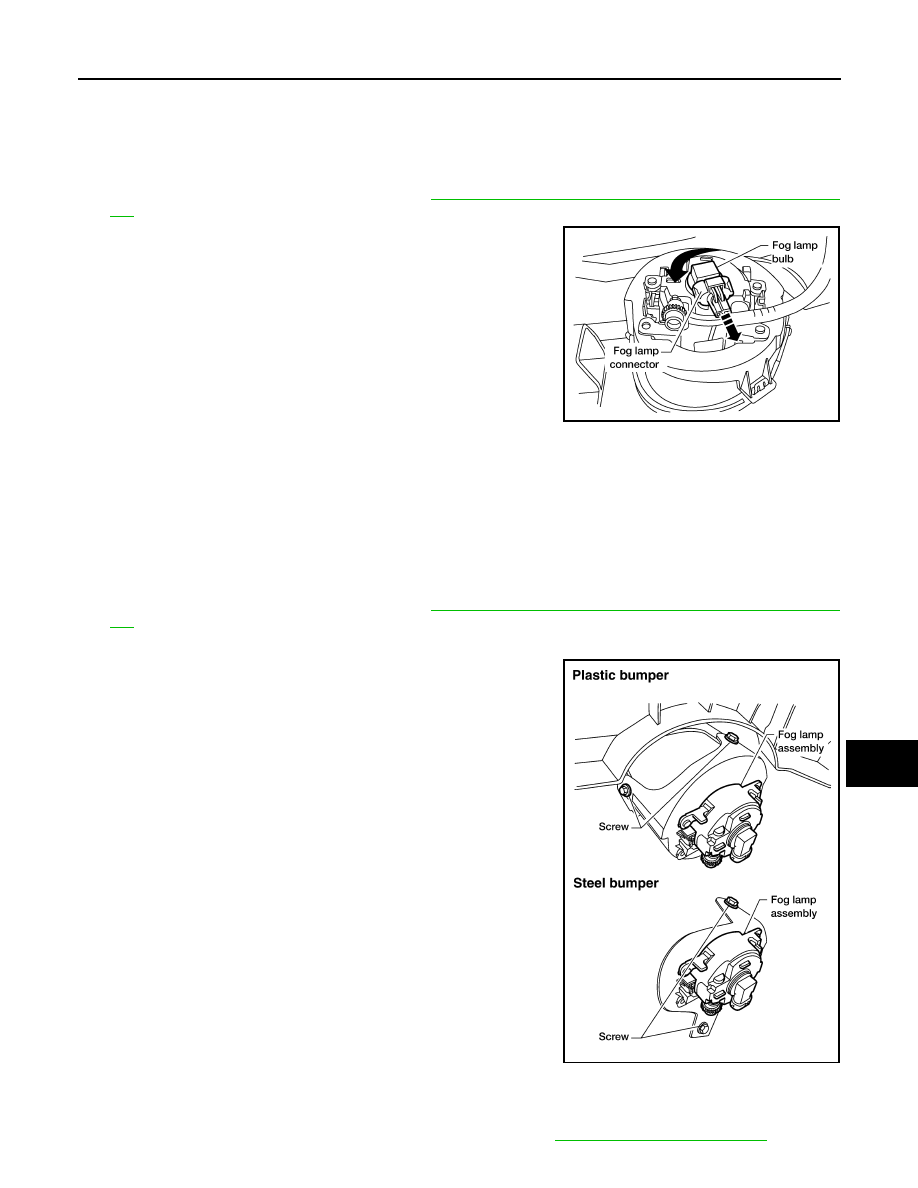

FRONT FOG LAMP

Bulb Replacement

INFOID:0000000009478526

REMOVAL

1. Position front fender protector aside. Refer to

EXT-27, "Removal and Installation of Front Fender Protec-

tor"

.

2. Disconnect the harness connector from the fog lamp.
3. Turn the bulb counterclockwise to remove it.

WARNING:

Do not touch bulb by hand while it is lit or right after being

turned off. Burning may result.

CAUTION:

• Do not touch the glass of bulb directly by hand. Keep

grease and other oily substances away from it.

• Do not leave bulb out of fog lamp reflector for a long time

because dust, moisture smoke, etc. may affect the perfor-

mance of fog lamp. When replacing bulb, be sure to

replace it with new one.

INSTALLATION

Installation is in the reverse order of removal.

Removal and Installation

INFOID:0000000009478527

REMOVAL

Note:

The fog lamp is a semi-sealed beam type which uses a replaceable halogen bulb.
1. Position front fender protector aside. Refer to

EXT-27, "Removal and Installation of Front Fender Protec-

tor"

2. Disconnect the harness connector from the fog lamp.
3. Remove fog lamp screws and pull fog lamp rearward out of front

bumper.

CAUTION:

• Do not leave fog lamp assembly without bulb for a long

period of time. Dust, moisture, smoke, etc. entering the

fog lamp body may affect the performance. Remove the

bulb from the headlamp assembly just before replace-

ment bulb is installed.

• Grasp only the plastic base when handling the bulb. Do

not touch the glass envelope. Touching the glass could

significantly affect the bulb life and/or fog lamp perfor-

mance.

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

After installation, perform front fog lamp aiming adjustment. Refer to

EXL-139, "Aiming Adjustment"

.

LKIA0573E

LKIA0660E

EXL-144

< REMOVAL AND INSTALLATION >

STOP LAMP

STOP LAMP

Bulb Replacement

INFOID:0000000009478528

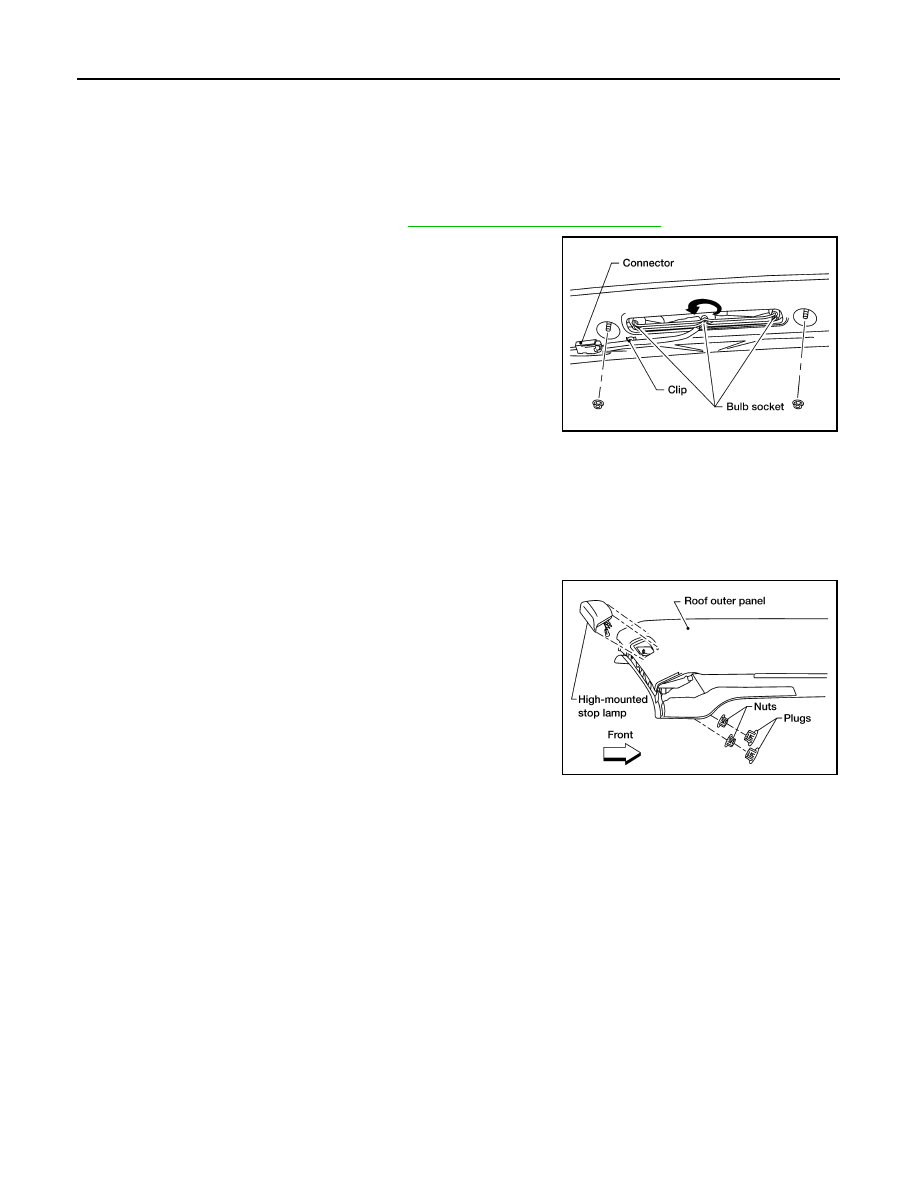

HIGH-MOUNTED STOP LAMP

Removal

1. Remove high-mounted stop lamp. Refer to

EXL-144, "Removal and Installation"

.

2. Rotate the center bulb socket counterclockwise and remove.
3. Pull bulb straight out from bulb socket.

Installation

Installation is in the reverse order of removal.

Removal and Installation

INFOID:0000000009478529

HIGH-MOUNTED STOP LAMP

Removal

1. Remove plugs on headlining.
2. Remove the nuts and remove high-mounted stop lamp from out-

side of roof outer panel.

3. Rotate the bulb sockets counterclockwise and remove the high-

mounted stop lamp assembly.

Installation

Installation is in the reverse order of removal.

WKIA3545E

WKIA3782E

High-mounted stop lamp nuts

: 3.38 N·m (0.34 kg-m, 30 in-lb)
