Nissan Frontier. Manual - part 777





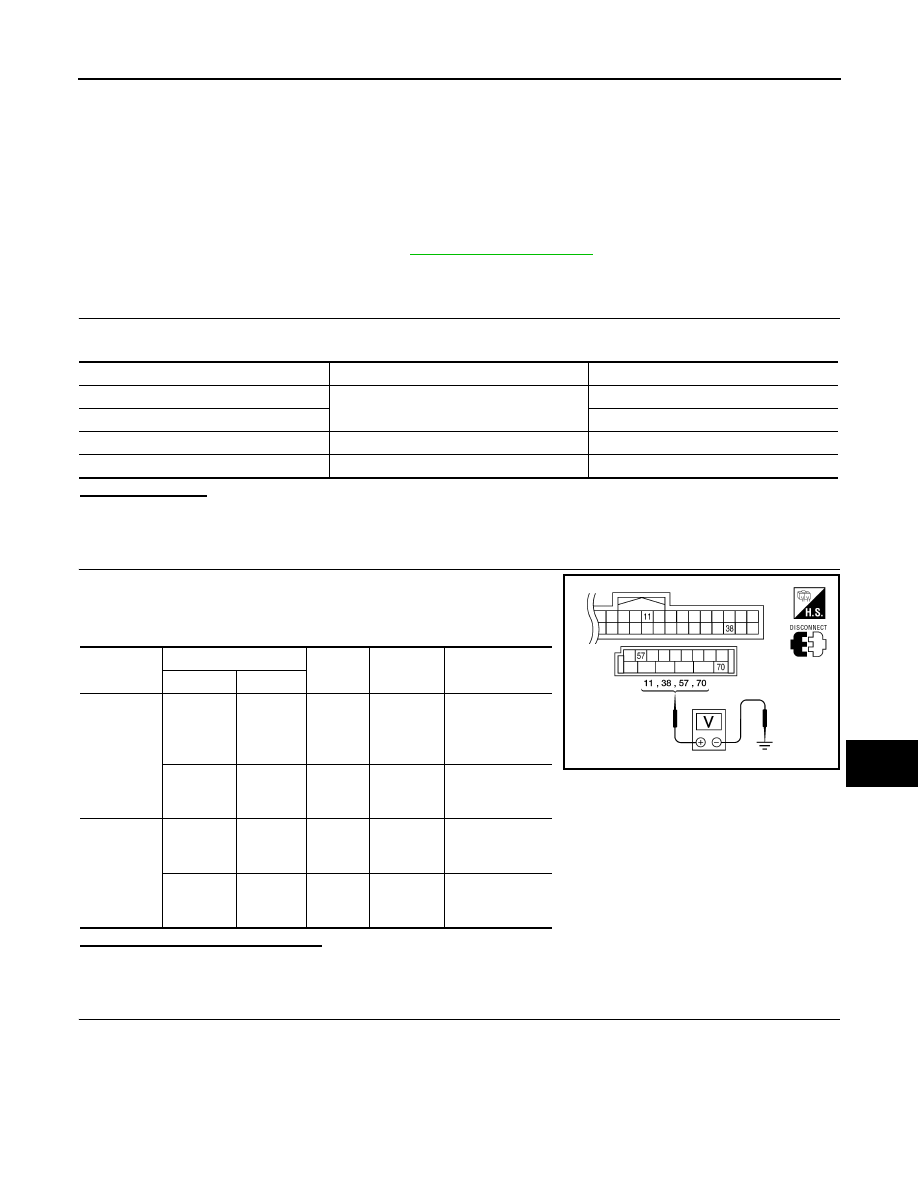

POWER SUPPLY AND GROUND CIRCUIT

EXL-33

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

DTC/CIRCUIT DIAGNOSIS

POWER SUPPLY AND GROUND CIRCUIT

BCM (BODY CONTROL MODULE)
BCM (BODY CONTROL MODULE) : Diagnosis Procedure

INFOID:0000000010227895

Regarding Wiring Diagram information, refer to

BCS-43, "Wiring Diagram"

.

1.

 CHECK FUSES AND FUSIBLE LINK

Check that the following fuses and fusible link are not blown.

Is the fuse blown?

YES

>> Replace the blown fuse or fusible link after repairing the affected circuit.

NO

>> GO TO 2

2.

 CHECK POWER SUPPLY CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect BCM.

3. Check voltage between BCM harness connector and ground.

Is the measurement value normal?

YES

>> GO TO 3

NO

>> Repair or replace harness.

3.

 CHECK GROUND CIRCUIT

Terminal No.

Signal name

Fuses and fusible link No.

57

Battery power supply

21 (10A)

70

G (50A)

11

Ignition ACC or ON

4 (10A)

38

Ignition ON or START

1 (10A)

Connector

Terminals

Power

source

Condition

Voltage (V) (Ap-

prox.)

(+)

(-)

M18

11

Ground

ACC

power

supply

Ignition

switch

ACC or

ON

Battery voltage

38

Ground

Ignition

power

supply

Ignition

switch ON

or START

Battery voltage

M20

57

Ground

Battery

power

supply

Ignition

switch

OFF

Battery voltage

70

Ground

Battery

power

supply

Ignition

switch

OFF

Battery voltage

LIIA2415E

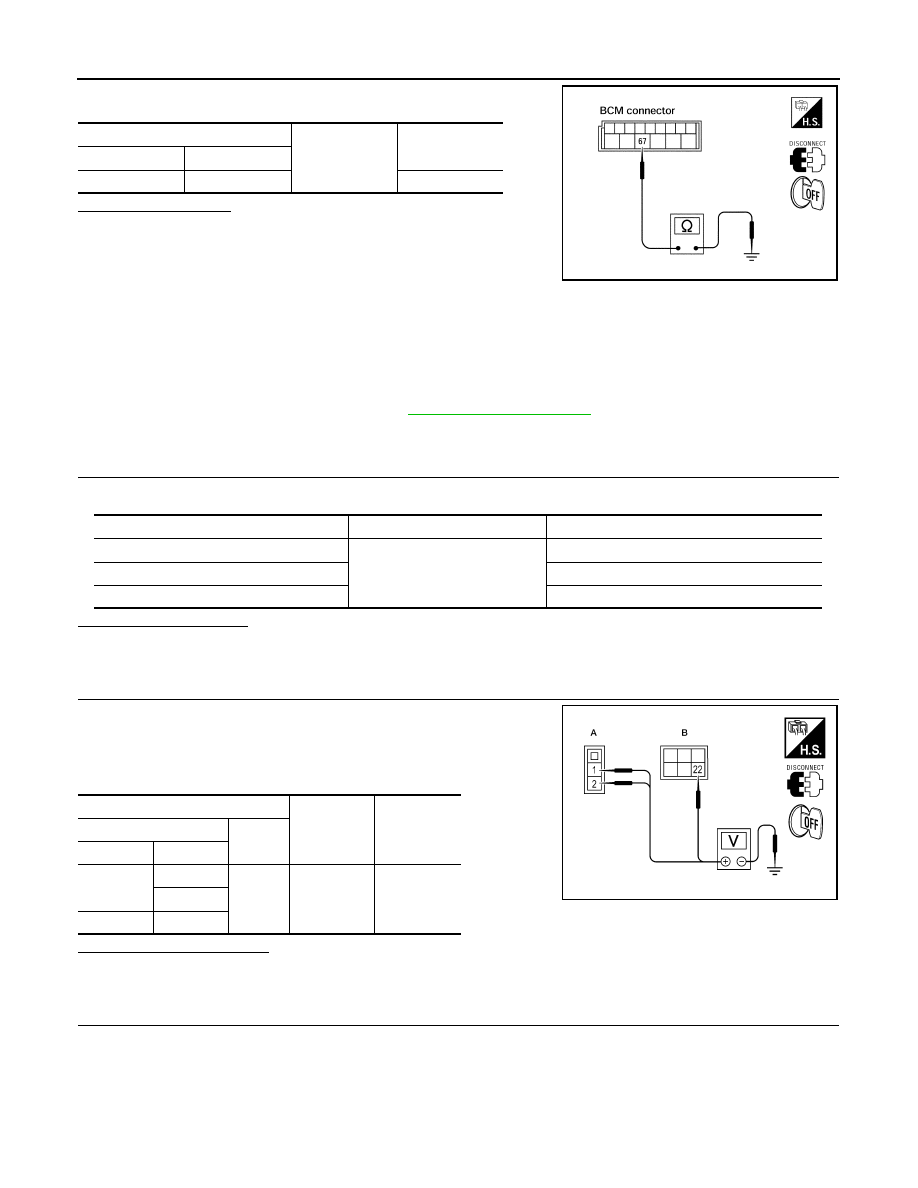

EXL-34

< DTC/CIRCUIT DIAGNOSIS >

POWER SUPPLY AND GROUND CIRCUIT

Check continuity between BCM harness connector and ground.

Does continuity exist?

YES

>> Inspection End.

NO

>> Repair or replace harness.

IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM)
IPDM E/R (INTELLIGENT POWER DISTRIBUTION MODULE ENGINE ROOM) : Di-
agnosis Procedure

INFOID:0000000010227896

Regarding Wiring Diagram information, refer to

PCS-22, "Wiring Diagram"

.

1.

 CHECK FUSIBLE LINKS

Check that the following IPDM E/R fusible links are not blown.

Is the fusible link blown?

YES

>> Replace the blown fusible link after repairing the affected circuit.

NO

>> GO TO 2

2.

 CHECK BATTERY POWER SUPPLY CIRCUIT

1. Turn ignition switch OFF.

2. Disconnect IPDM E/R.

3. Check voltage between IPDM E/R harness connectors and

ground.

Is there voltage on all pins?

YES

>> GO TO 3

NO

>> Repair or replace harness.

3.

 CHECK GROUND CIRCUIT

1. Turn ignition switch OFF.

BCM

Ground

Continuity

Connector

Terminal

M20

67

Yes

LIIA0915E

Terminal No.

Signal name

Fusible link No.

1

Battery

A, D

2

C

22

A, E, I

Terminals

Ignition

switch posi-

tion

Voltage (V)

(Approx.)

(+)

(

−)

Connector

Terminal

E118 (A)

1

Ground

OFF

Battery
voltage

2

E120 (B)

22

AWMIA0506ZZ

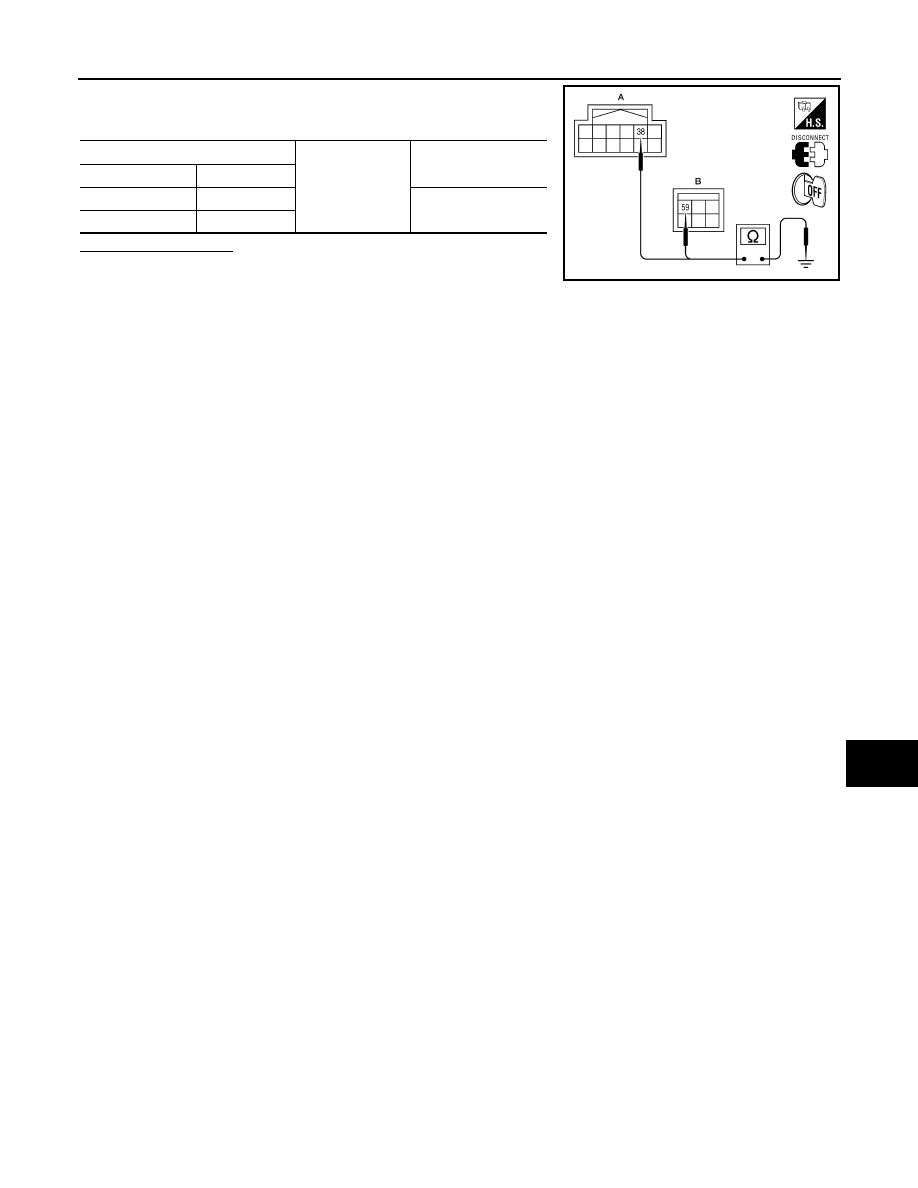

POWER SUPPLY AND GROUND CIRCUIT

EXL-35

< DTC/CIRCUIT DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

2. Check continuity between IPDM E/R harness connectors and

ground.

Does continuity exist?

YES

>> Inspection End.

NO

>> Repair or replace harness.

IPDM E/R

Ground

Continuity

Connector

Terminal

E122 (A)

38

Yes

E124 (B)

59

AWMIA0024ZZ

EXL-36

< DTC/CIRCUIT DIAGNOSIS >

HEADLAMP (HI) CIRCUIT

HEADLAMP (HI) CIRCUIT

Description

INFOID:0000000009478464

The IPDM E/R (intelligent power distribution module engine room) controls the headlamp high relay based on

inputs from the BCM via the CAN communication lines. When the headlamp high relay is energized, power

flows through fuses 34 and 35, located in the IPDM E/R. Power then flows to the front combination lamps to

the headlamp high beam.

Component Function Check

INFOID:0000000009478465

1.

CHECK HEADLAMP (HI) OPERATION

WITHOUT CONSULT

1. Start IPDM E/R auto active test. Refer to

PCS-9, "Diagnosis Description"

.

2. Check that the headlamp switches to the high beam.

NOTE:

HI/LO is repeated 1 second each when using the IPDM E/R auto active test.

WITH CONSULT

1. Select "EXTERNAL LAMPS" of IPDM E/R active test item.

2. With the test item operating, check that the headlamp switches to high beam.

Does the headlamp switch to high beam?

YES

>> Headlamp (HI) circuit is normal.

NO

>> Refer to

EXL-36, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009478466

Regarding Wiring Diagram information, refer to

EXL-72, "Wiring Diagram"

(without DTRL) or

EXL-76, "Wiring

Diagram"

(with DTRL).

1.

CHECK HEADLAMP (HI) FUSES

1. Turn the ignition switch OFF.

2. Check that the following fuses are not open.

Is the fuse open?

YES

>> Replace the fuse after repairing the affected circuit.

NO

>> GO TO 2

2.

CHECK HEADLAMP (HI) OUTPUT VOLTAGE

HI

: Headlamp switches to the high beam.

OFF

: Headlamp OFF

Unit

Location

Fuse No.

Capacity

Headlamp HI (LH)

IPDM E/R

35

10A

Headlamp HI (RH)

IPDM E/R

34

10A
