Nissan Frontier. Manual - part 775





COMBINATION SWITCH READING SYSTEM

EXL-25

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

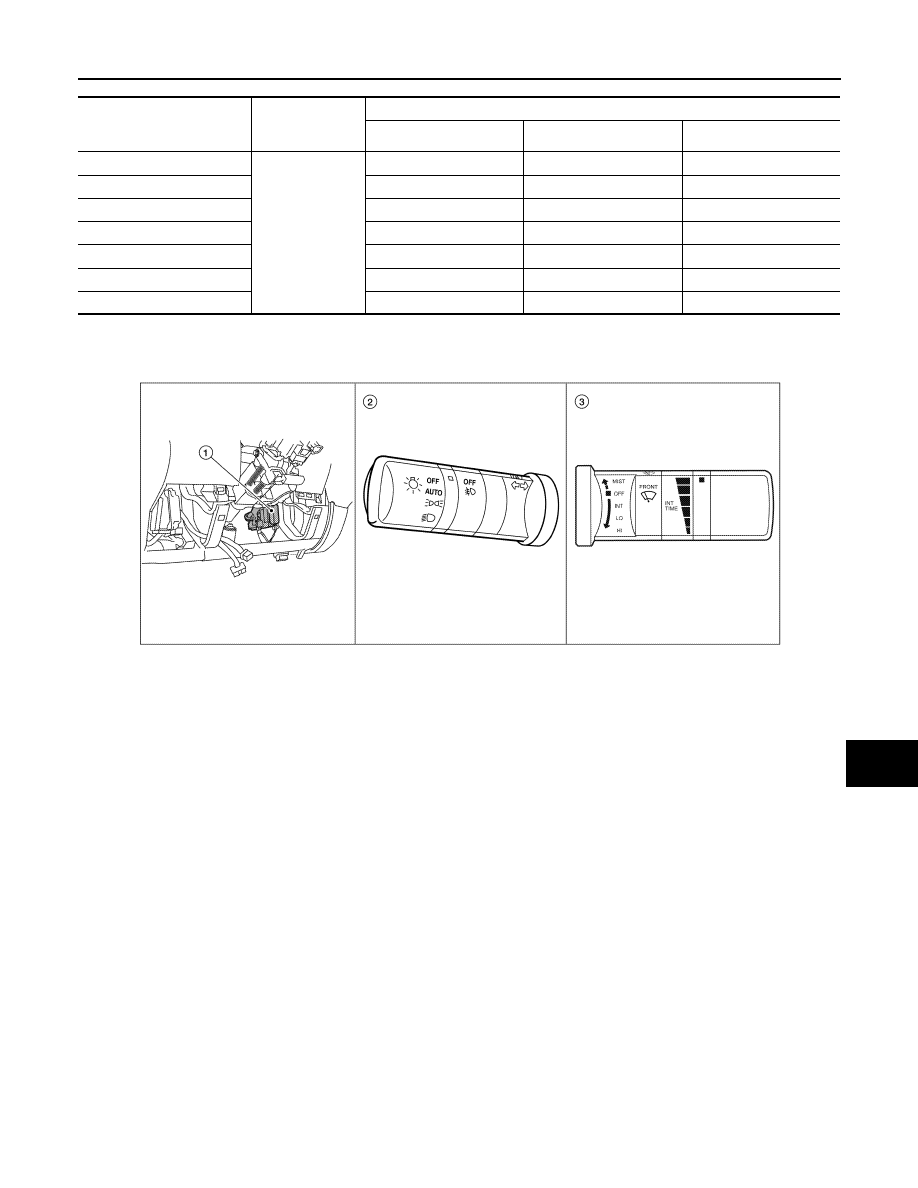

Component Parts Location

INFOID:0000000010227885

Wiper intermittent

dial position

Intermittent

operation delay

interval

INT VOLUME switch ON/OFF status

INT VOLUME 1

INT VOLUME 2

INT VOLUME 3

1

Short

Long

ON

ON

ON

2

ON

ON

OFF

3

ON

OFF

OFF

4

OFF

OFF

OFF

5

OFF

OFF

ON

6

OFF

ON

ON

7

OFF

ON

OFF

1.

BCM M18, M19, M20 (view with low-
er instrument panel LH removed)

2.

Combination switch (lighting and
turn signal switch) M28

3.

Combination switch (wiper and
washer switch) M28

ALMIA0416ZZ

EXL-26

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM)

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM
COMMON ITEM : CONSULT Function (BCM - COMMON ITEM)

INFOID:0000000010227889

APPLICATION ITEM

CONSULT performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions.

HEADLAMP

Direct Diagnostic Mode

Description

ECU Identification

The BCM part number is displayed.

Self Diagnostic Result

The BCM self diagnostic results are displayed.

Data Monitor

The BCM input/output data is displayed in real time.

Active Test

The BCM activates outputs to test components.

Work support

The settings for BCM functions can be changed.

Configuration

• The vehicle specification can be read and saved.
• The vehicle specification can be written when replacing BCM.

CAN Diag Support Mntr

The result of transmit/receive diagnosis of CAN communication is displayed.

System

Sub System

Direct Diagnostic Mode

E

C

U Ide

nt

ifi

ca

tio

n

Se

lf Di

ag

no

st

ic Re

su

lt

Da

ta

 Mo

ni

tor

A

cti

ve

 T

est

W

o

rk support

Co

nf

igu

rat

ion

CA

N Diag

 Su

pp

ort Mn

tr

Door lock

DOOR LOCK

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Interior room lamp timer

INT LAMP

×

×

×

Remote keyless entry system

MULTI REMOTE ENT

×

×

×

Exterior lamp

HEAD LAMP

×

×

×

Wiper and washer

WIPER

×

×

×

Turn signal and hazard warning lamps FLASHER

×

×

Air conditioner

AIR CONDITIONER

×

Combination switch

COMB SW

×

BCM

BCM

×

×

×

×

×

Immobilizer

IMMU

×

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

×

Vehicle security system

THEFT ALM

×

×

×

RAP system

RETAINED PWR

×

×

×

Signal buffer system

SIGNAL BUFFER

×

×

TPMS

AIR PRESSURE MONITOR

×

×

×

×

Panic alarm system

PANIC ALARM

×

DIAGNOSIS SYSTEM (BCM)

EXL-27

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

J

K

M

A

B

EXL

N

O

P

HEADLAMP : CONSULT Function (BCM - HEADLAMP)

INFOID:0000000010227890

DATA MONITOR

ACTIVE TEST

WORK SUPPORT

Monitor Item [Unit]

Description

IGN ON SW [On/Off]

Indicates condition of ignition switch ON position.

ACC ON SW [On/Off]

Indicates condition of ignition switch ACC position.

HI BEAM SW [On/Off]

Indicates condition of combination switch.

HEAD LAMP SW 1 [On/Off]

HEAD LAMP SW 2 [On/Off]

LIGHT SW 1ST [On/Off]

AUTO LIGHT SW [On/Off]

PASSING SW [On/Off]

FR FOG SW [On/Off]

DOOR SW-DR [On/Off]

Indicates condition of front door switch LH.

DOOR SW-AS [On/Off]

Indicates condition of front door switch RH.

DOOR SW-RR [On/Off]

Indicates condition of rear door switch RH.

DOOR SW-RL [On/Off]

Indicates condition of rear door switch LH.

TURN SIGNAL R [On/Off]

Indicates condition of combination switch.

TURN SIGNAL L [On/Off]

CARGO LAMP SW [On/Off]

Indicates condition of cargo lamp switch.

OPTICAL SENSOR [V]

Indicates voltage signal from optical sensor.

Test Item

Description

TAIL LAMP

This test is able to check tail lamp operation [Off/On].

HEAD LAMP

This test is able to check head lamp operation [Off/Lo/Hi].

FR FOG LAMP

This test is able to check front fog lamp operation [Off/On].

CARGO LAMP

This test is able to check cargo lamp operation [Off/On].

Support Item

Setting

Description

BATTERY SAVER SET

Off

Exterior lamp battery saver function OFF.

On*

Exterior lamp battery saver function ON.

CUSTOM A/LIGHT SETTING

MODE4

Less sensitive setting than normal setting (Turns ON later than
normal operation).

MODE3

More sensitive setting than MODE 2 (Turns ON earlier than
MODE 2).

MODE2

More sensitive setting than normal setting (Turns ON earlier
than normal operation).

MODE1*

Normal.

EXL-28

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (BCM)

*: Initial setting

FLASHER
FLASHER : CONSULT Function (BCM - FLASHER)

INFOID:0000000010227891

DATA MONITOR

ACTIVE TEST

COMB SW
COMB SW : CONSULT Function (BCM - COMB SW)

INFOID:0000000010227892

DATA MONITOR

ILL DELAY SET

MODE8

180 sec

Sets delay timer function operation time
(All doors closed).

MODE7

150 sec

MODE6

120 sec

MODE5

90 sec

MODE4

60 sec

MODE3

30 sec

MODE2

OFF

MODE1*

45 sec

Support Item

Setting

Description

Monitor Item [Unit]

Description

IGN ON SW [On/Off]

Indicates condition of ignition switch ON position.

HAZARD SW [On/Off]

Indicates condition of hazard switch.

TURN SIGNAL R [On/Off]

Indicates condition of turn signal function of combination switch.

TURN SIGNAL L [On/Off]

BRAKE SW [On/Off]

Indicates condition of brake switch.

Test Item

Description

FLASHER

This test is able to check turn signal lamp operation [Off/LH/RH].

Monitor Item [Unit]

Description

TURN SIGNAL R [On/Off]

Indicates condition of turn signal operation of combination switch.

TURN SIGNAL L [On/Off]

HI BEAM SW [On/Off]

Indicates condition of hi beam operation of combination switch.

HEAD LAMP SW 1 [On/Off]

Indicates condition of headlamp operation of combination switch.

HEAD LAMP SW 2 [On/Off]

LIGHT SW 1ST [On/Off]

Indicates condition of lighting operation of combination switch.

PASSING SW [On/Off]

Indicates condition of passing switch operation of combination switch.

AUTO LIGHT SW [On/Off]

Indicates condition of auto light operation of combination switch.

FR FOG SW [On/Off]

Indicates condition of front fog light operation of combination switch.

FR WIPER HI [On/Off]

Indicates condition of front wiper operation of combination switch.

FR WIPER LOW [On/Off]

FR WIPER INT [On/Off]

FR WASHER SW [On/Off]

Indicates condition of front washer operation of combination switch.

INT VOLUME [1 - 7]

Indicates condition of intermittent wiper operation of combination switch.
