PRECAUTIONS

EM-121

< PRECAUTION >

[VQ40DE]

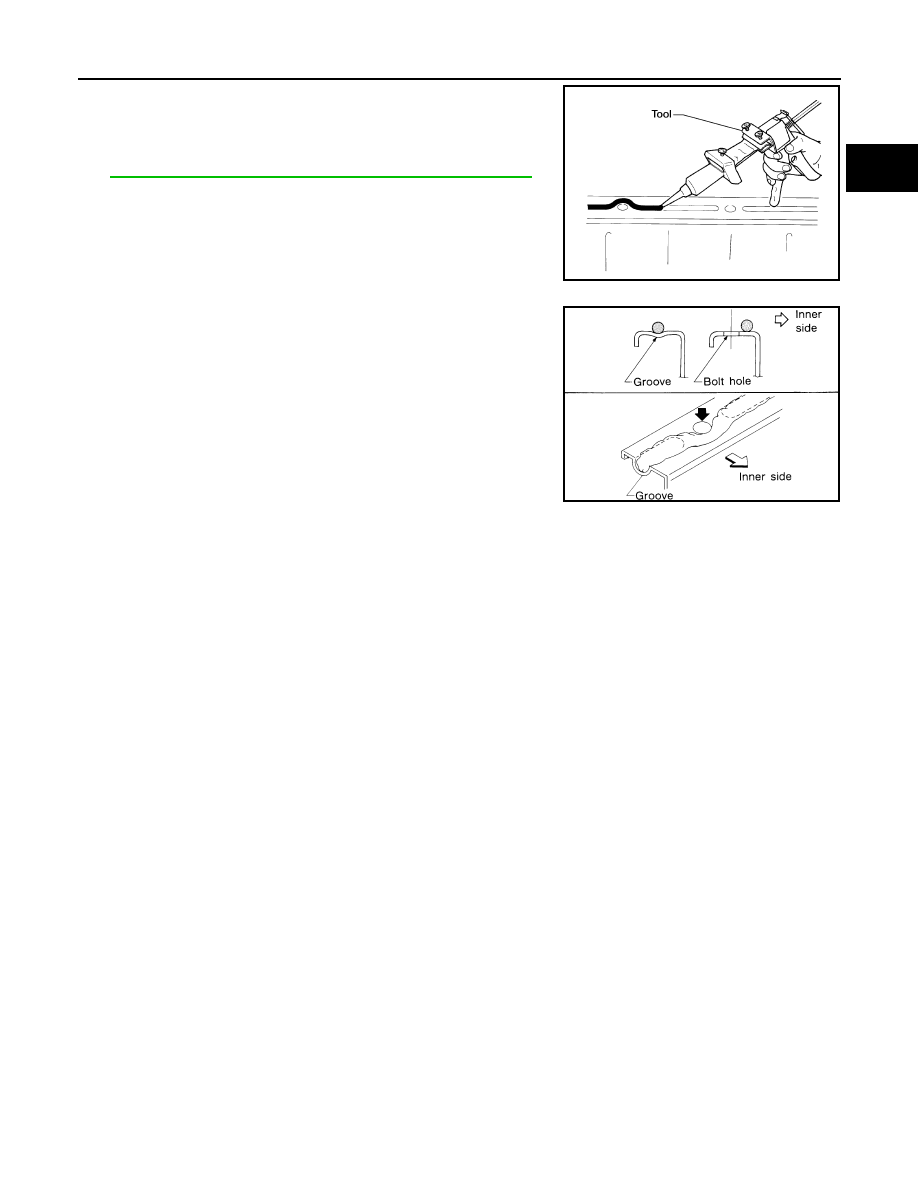

3. Attach the liquid gasket tube to the Tool.

Use Genuine RTV Silicone Sealant or equivalent. Refer to

4. Apply the liquid gasket without breaks to the specified location

with the specified dimensions.

• If there is a groove for the liquid gasket application, apply the

liquid gasket to the groove.

• Normally apply the liquid gasket on the inside edge of the bolt

holes. Also apply to the outside edge of the bolt holes when

specified in the procedure.

• Within five minutes of liquid gasket application, install the mat-

ing component.

• If the liquid gasket protrudes, wipe it off immediately.

• Do not retighten after the installation.

• Wait 30 minutes or more after installation before refilling the

engine with oil or coolant.

CAUTION:

If there are more specific instructions in the procedures contained in this manual conerning liquid

gasket application, observe them.

Tool number

: WS39930000 ( — )

WBIA0567E

SEM159F

EM-122

< PREPARATION >

[VQ40DE]

PREPARATION

PREPARATION

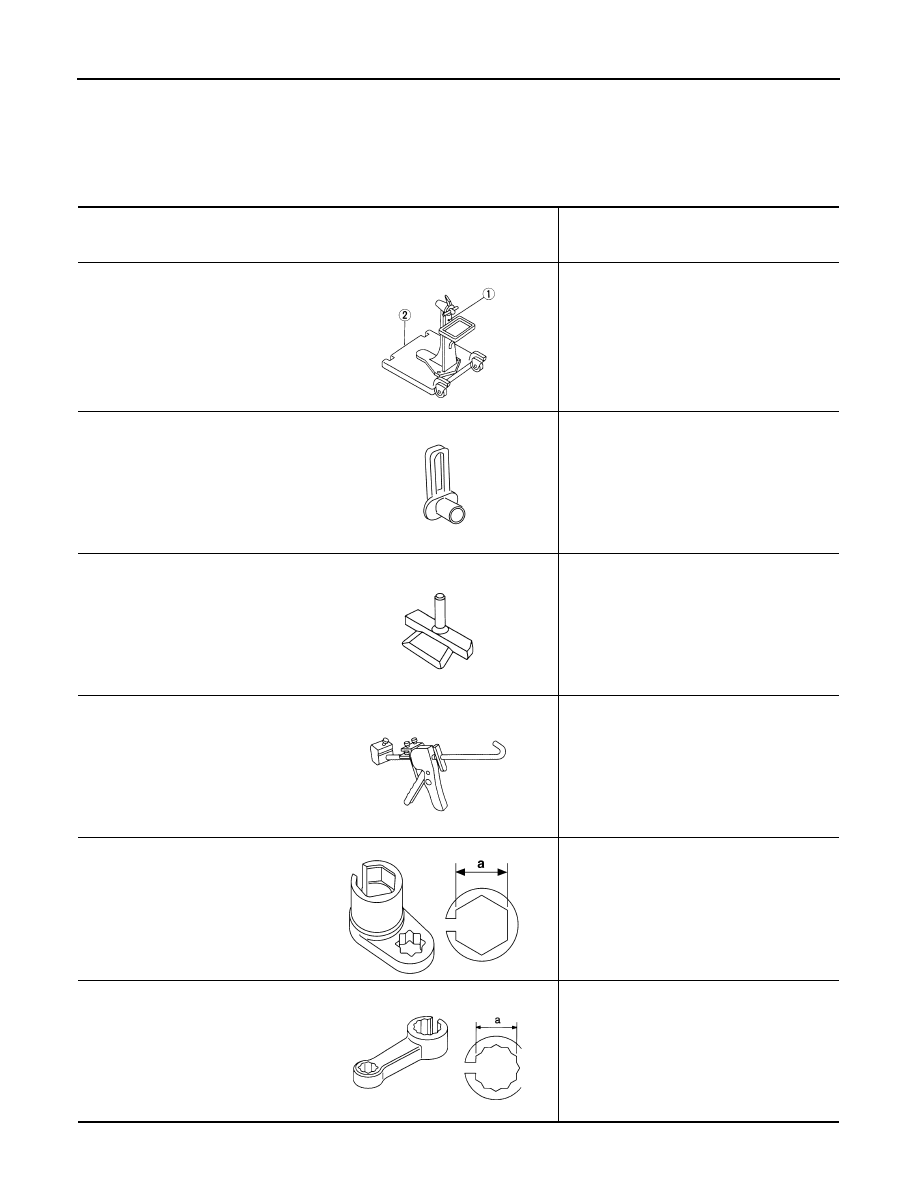

Special Service Tool

INFOID:0000000009478091

The actual shape of the tools may differ from those tools illustrated here.

Tool number
(TechMate No.)
Tool name

Description

ST0501S000
( — )
Engine stand assembly
1. ST05011000
( — )
Engine stand
2. ST05012000
( — )
Base

Disassembling and assembling engine

16441 6N210
(J-45488)
Quick connector release

Removing fuel tube quick connectors in en-
gine room.

KV10111100
(J-37228)
Seal cutter

Removing oil pan (lower and upper), front and
rear timing chain case, etc.

WS39930000
( — )
Tube presser

Pressing the tube of liquid gasket

KV991J0050
(J-44626)
Air fuel sensor Socket

Loosening or tightening air fuel ratio A/F sen-
sor
a: 22 mm (0.87 in)

KV10114400
(J-38365)
Heated oxygen sensor wrench

Loosening or tightening heated oxygen sen-
sor 1
a: 22 mm (0.87 in)

NT042

PBIC0198E

NT046

NT052

LBIA0444E

NT636

PREPARATION

EM-123

< PREPARATION >

[VQ40DE]

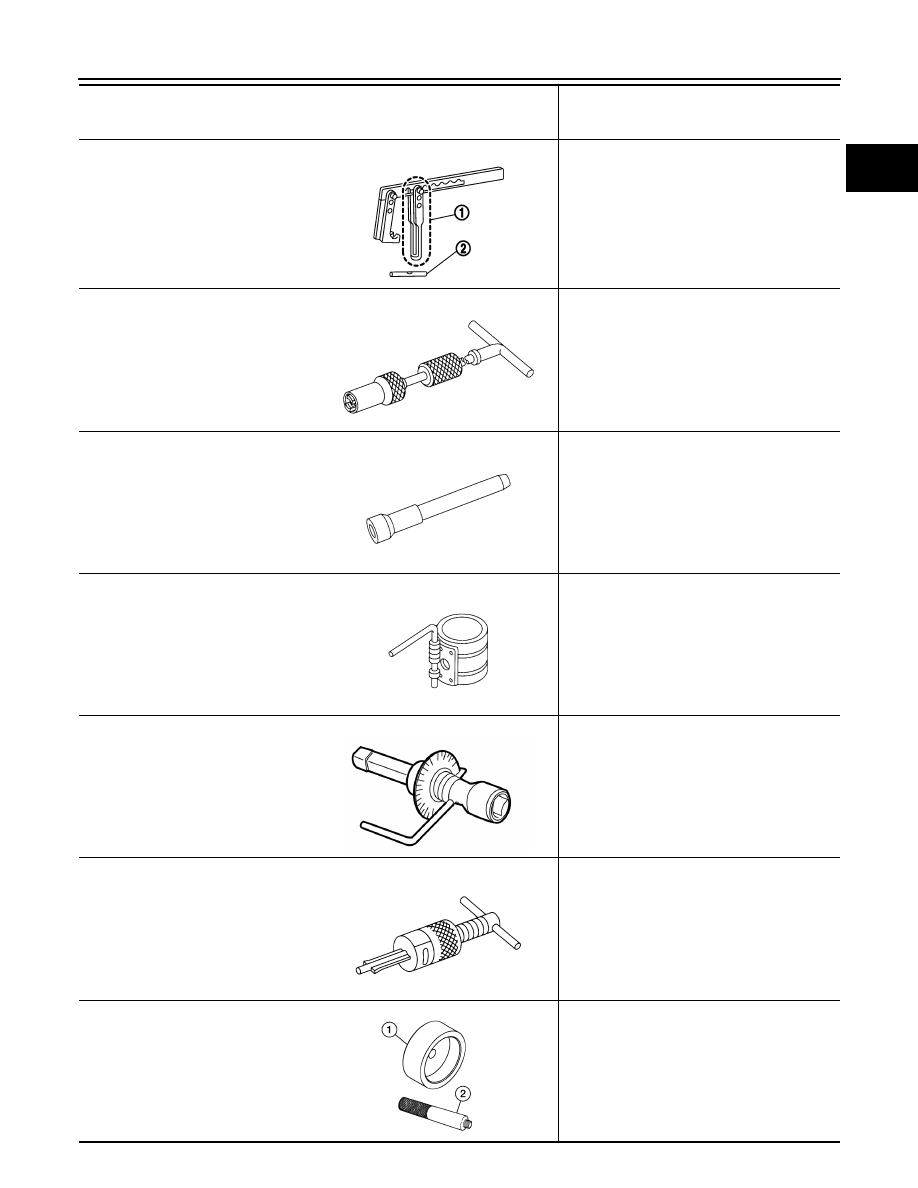

KV10116200
(J-26336-B)
Valve spring compressor
1. KV10115900
(J-26336-20)
Attachment
2.KV10109220
( — )
Adapter

Disassembling valve mechanism
Part (1) is a component of KV10116200 (J-
26336-B), but Part (2) is not so.

KV10107902
(J-38959)
Valve oil seal puller

Replacing valve oil seal

—

(J-39386)
Valve oil seal drift

Installing valve oil seal

EM0347000
(J-8037)
Piston ring compressor

Installing piston assembly into cylinder bore

KV10112100
(BT-8653-A)
Angle wrench

Tightening bolts for cylinder head, main bear-
ing cap and connecting rod cap

ST16610001
(J-23907)
Pilot bushing puller

Removing pilot converter

—
1. (J-49815)
2. (J-8092)
Seal installer and driver handle

Installing rear main seal

Tool number
(TechMate No.)
Tool name

Description

PBIC1650E

NT011

NT024

NT044

AWBIA1043ZZ

NT045

AWBIA0862ZZ

EM-124

< PREPARATION >

[VQ40DE]

PREPARATION

Commercial Service Tool

INFOID:0000000009478092

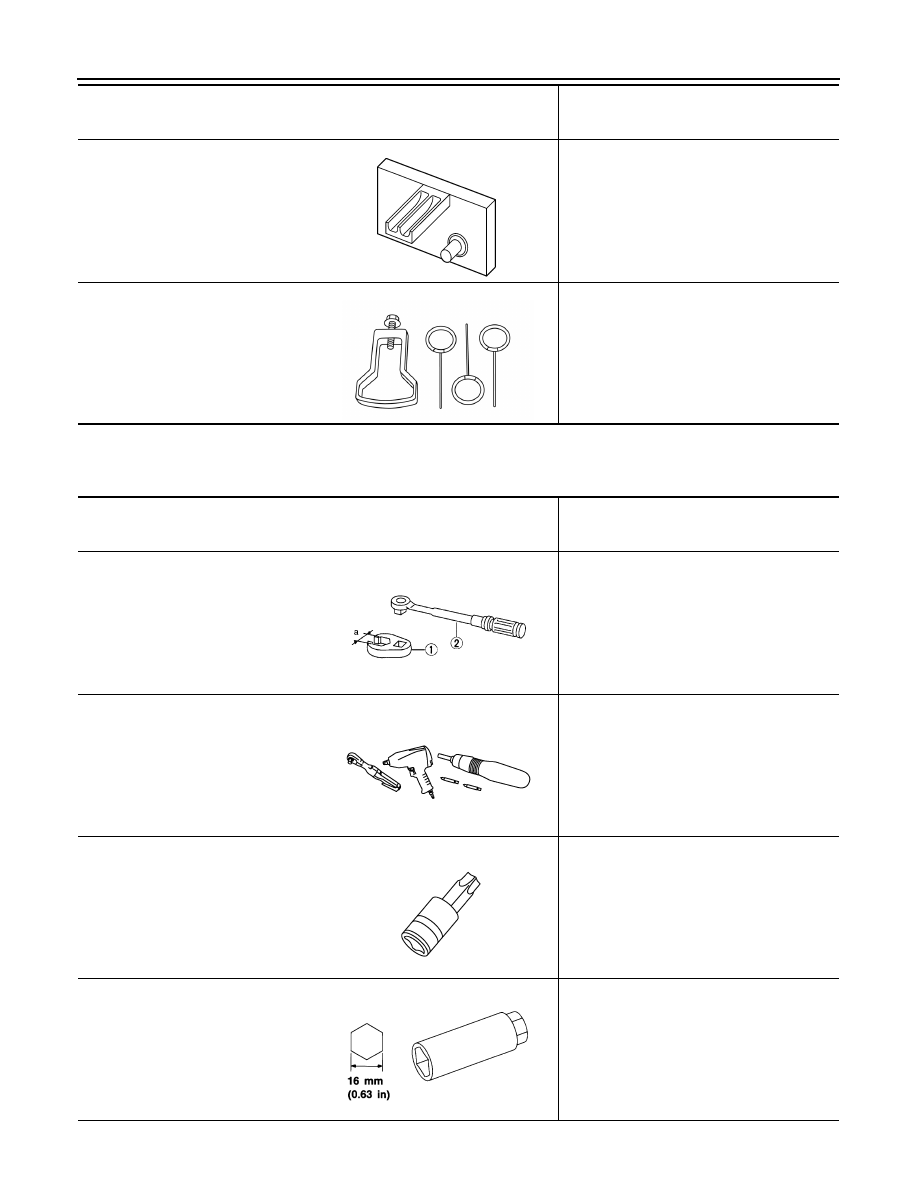

KV11105210
(J-44716)
Ring gear stopper

Removing and installing crankshaft pulley

—

(J-50246)
Tensioner shoe installer and chain ten-
sioner pins

Installing secondary timing chain tensioner
shoes and locking chain tensioners in com-
pressed position

Tool number
(TechMate No.)
Tool name

Description

ALBIA0523ZZ

ALBIA0678ZZ

Tool number
(TechMate No.)
Tool name

Description

1. Crowfoot
2. Torque wrench

Installing exhaust manifold nuts
a: 14 mm (0.55 in)

Power tool

Loosening nuts, screws and bolts

KV991J0100
(J-46531)
Socket

Removing and installing flywheel
Size: T55

( — )
Spark plug wrench

Removing and installing spark plug

S-NT360

PIIB1407E

PBIC1113E

NT047
