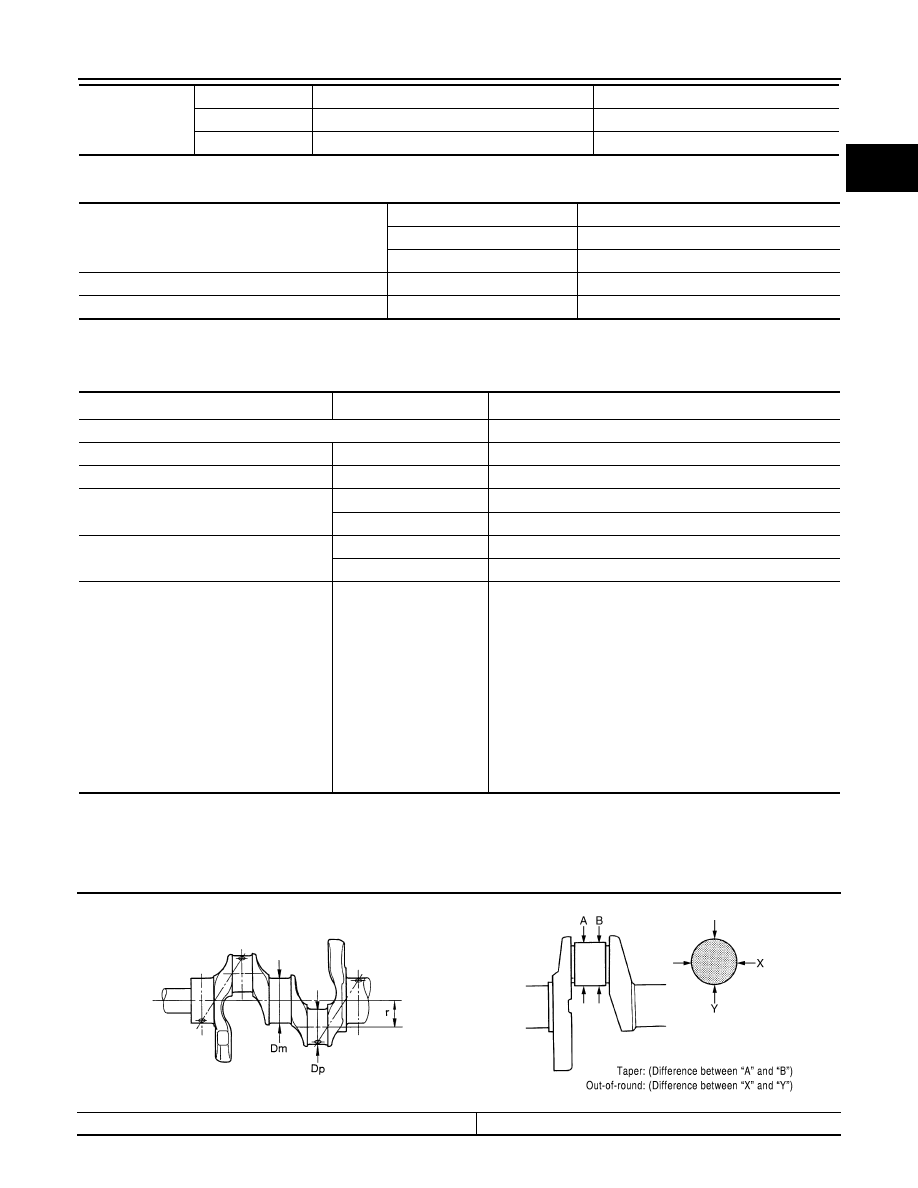

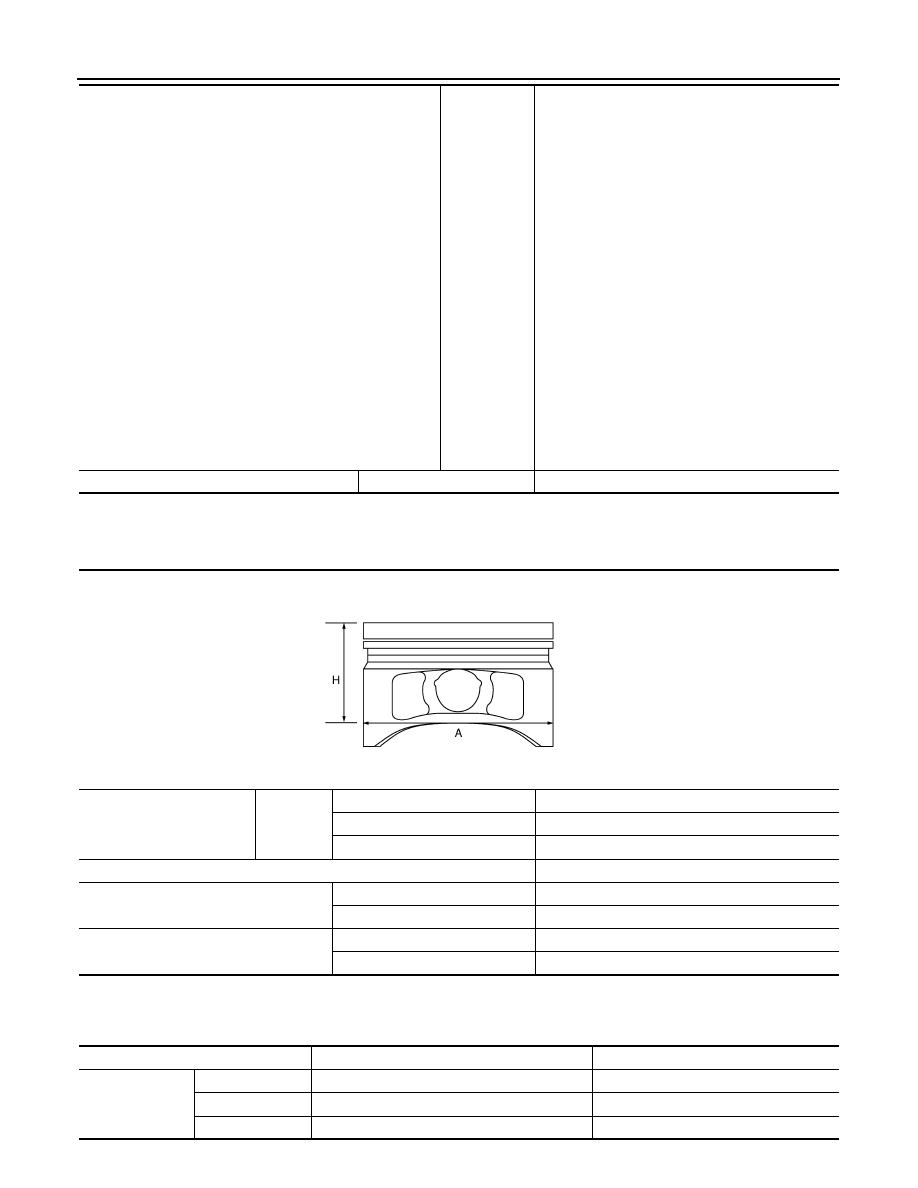

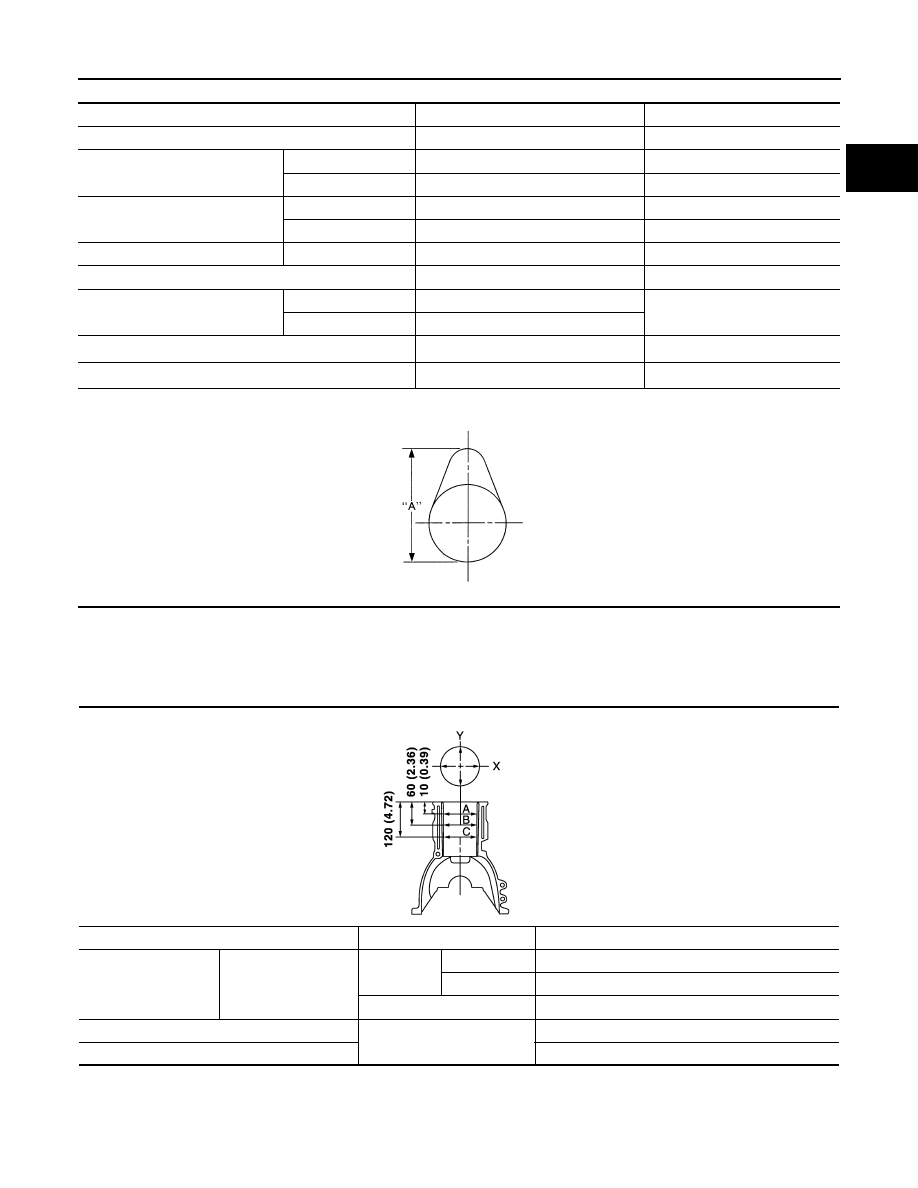

SERVICE DATA AND SPECIFICATIONS (SDS) EM-113 < SERVICE DATA AND SPECIFICATIONS (SDS) [QR25DE] C D E F G H I J K L M A EM N P O Unit: mm (in) * 1 : Cam wear limit * 2 : Total indicator reading CYLINDER BLOCK Unit: mm (in) Items Standard Limit Camshaft journal oil clearance 0.045 - 0.086 (0.0018 - 0.0034) — Camshaft bracket inner diameter No. 1 28.000 - 28.021 (1.1024 - 1.1032) — No. 2, 3, 4, 5 23.500 - 23.521 (0.9252 - 0.9260) — Camshaft journal outer diameter No. 1 27.935 - 27.955 (1.0998 - 1.1006) — No. 2, 3, 4, 5 23.435 - 23.455 (0.9226 - 0.9234) — Camshaft journal length No. 1 25.800 - 25.848 (1.0157 - 1.0176) — Camshaft end play 0.115 - 0.188 (0.0045 - 0.0074) — Camshaft cam height “A” Intake 45.015 - 45.205 (1.7722 - 1.7797) 0.2 (0.008)* 1 Exhaust 43.975 - 44.165 (1.7313 - 1.7388) Camshaft runout [TIR* 2 ] Less than 0.02 (0.0008) — Camshaft sprocket runout [TIR* 2 ] — 0.15 (0.0059) SEM671 Surface distortion Limit 0.1 (0.004) Cylinder bore Inner diameter Standard* Grade No. 2 89.010 - 89.020 (3.5043 - 3.5047) Grade No. 3 89.020 - 89.030 (3.5047 - 3.5051) Wear limit 0.2 (0.008) Out-of-round (Difference between “X” and “Y”) Limit 0.015 (0.0006) Taper (Difference between “A” and “C”) 0.01 (0.0004) PBIC0281E |
