P1572 ASCD BRAKE SWITCH

EC-1295

< DTC/CIRCUIT DIAGNOSIS >

[VQ40DE FOR MEXICO]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

NG

>> Replace stop lamp switch. Refer to

BR-20, "Exploded View"

.

11.

CHECK INTERMITTENT INCIDENT

Refer to

GI-42, "Intermittent Incident"

.

>> INSPECTION END

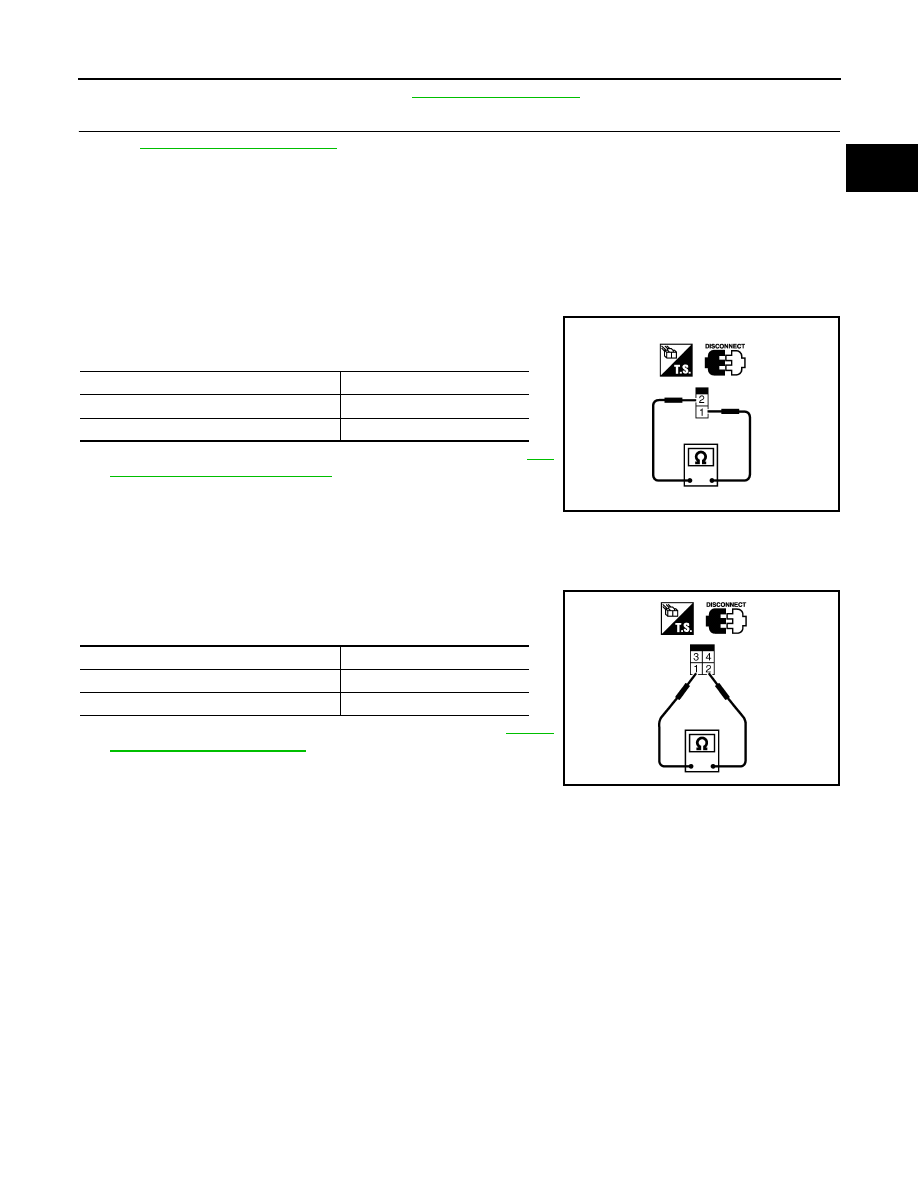

Component Inspection

INFOID:0000000009481961

BRAKE PEDAL POSITION SWITCH

1. Turn ignition switch OFF.
2. Disconnect brake pedal position switch harness connector.
3. Check harness continuity between brake pedal position switch

terminals 1 and 2 under the following conditions.

If NG, adjust brake pedal position switch installation, refer to

BR-

16, "Inspection and Adjustment"

, and perform step 3 again.

STOP LAMP SWITCH

1. Turn ignition switch OFF.
2. Disconnect stop lamp switch harness connector.
3. Check harness continuity between stop lamp switch terminals 1

and 2 under the following conditions.

If NG, adjust stop lamp switch installation, refer to

BR-16,

"Inspection and Adjustment"

, and perform step 3 again.

Condition

Continuity

When brake pedal: Fully released.

Should exist.

When brake pedal: Slightly depressed.

Should not exist.

SEC023D

Condition

Continuity

When brake pedal: Fully released.

Should not exist.

When brake pedal: Slightly depressed.

Should exist.

PBIB1185E

EC-1296

< DTC/CIRCUIT DIAGNOSIS >

[VQ40DE FOR MEXICO]

P1574 ASCD VEHICLE SPEED SENSOR

P1574 ASCD VEHICLE SPEED SENSOR

Component Description

INFOID:0000000009481962

The ECM receives two vehicle speed sensor signals via CAN communication line. One is sent from combina-

tion meter, and the other is from TCM (Transmission control module). The ECM uses these signals for ASCD

control. Refer to

EC-984, "System Description"

 for ASCD functions.

On Board Diagnosis Logic

INFOID:0000000009481963

This self-diagnosis has the one trip detection logic.

The MIL will not illuminate for this diagnosis.

NOTE:

• If DTC P1574 is displayed with DTC UXXXX, first perform the trouble diagnosis for DTC UXXXX.

• If DTC P1574 is displayed with DTC P0607, first perform the trouble diagnosis for DTC P0607. Refer

to

EC-1251, "DTC Logic"

.

• If DTC P1574 is displayed with DTC P0500, first perform the trouble diagnosis for DTC P0500. Refer

to

EC-1240, "On Board Diagnosis Logic"

.

• If DTC P1574 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605. Refer

to

EC-1251, "DTC Logic"

.

DTC Confirmation Procedure

INFOID:0000000009481964

CAUTION:

Always drive vehicle at a safe speed.

NOTE:

If DTC Confirmation Procedure has been previously conducted, always perform the following before conduct-

ing the next step.

1. Turn ignition switch OFF and wait at least 10 seconds.

2. Turn ignition switch ON.

3. Turn ignition switch OFF and wait at least 10 seconds.

TESTING CONDITION:

Step 3 may be conducted with the drive wheels lifted in the shop or by driving the vehicle. If a road test

is expected to be easier, it is unnecessary to lift the vehicle.
1. Start engine.
2. Drive the vehicle at more than 40 km/h (25 MPH).
3. Check DTC.
4. If DTC is detected, go to

EC-1296, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000009481965

1.

CHECK DTC WITH TCM

Check DTC with TCM. Refer to

TM-155, "OBD-II Diagnostic Trouble Code (DTC)"

.

OK or NG

OK

>> GO TO 2.

NG

>> Perform trouble shooting relevant to DTC indicated.

2.

CHECK DTC WITH “ABS ACTUATOR AND ELECTRIC UNIT (CONTROL UNIT)”

Refer to

BRC-8, "Work Flow"

 (TYPE 1),

BRC-120, "Work Flow"

 (TYPE 2).

DTC No.

Trouble Diagnosis

Name

DTC Detecting Condition

Possible Cause

P1574
1574

ASCD vehicle speed
sensor

The difference between the two vehicle speed
signals is out of the specified range.

• Harness or connectors

(The CAN communication line is open or
shorted.)

• Combination meter
• ABS actuator and electric unit (control unit)
• Wheel sensor
• TCM
• ECM

P1574 ASCD VEHICLE SPEED SENSOR

EC-1297

< DTC/CIRCUIT DIAGNOSIS >

[VQ40DE FOR MEXICO]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

OK or NG

OK

>> GO TO 3.

NG

>> Repair or replace.

3.

CHECK COMBINATION METER FUNCTION

Refer to

MWI-4, "Work Flow"

.

>> INSPECTION END

EC-1298

< DTC/CIRCUIT DIAGNOSIS >

[VQ40DE FOR MEXICO]

P1715 INPUT SPEED SENSOR

P1715 INPUT SPEED SENSOR

Description

INFOID:0000000009481966

ECM receives input speed sensor signal from TCM through CAN communication line. ECM uses this signal for

engine control.

On Board Diagnosis Logic

INFOID:0000000009481967

NOTE:

• If DTC P1715 is displayed with DTC UXXXX first perform the trouble diagnosis for DTC UXXXX.

• If DTC P1715 is displayed with DTC P0607, first perform the trouble diagnosis for DTC P0607. Refer

to

EC-1253, "DTC Logic"

.

• If DTC P1715 is displayed with DTC P0335, first perform the trouble diagnosis for DTC P0335. Refer

to

EC-1196, "Component Description"

.

• If DTC P1715 is displayed with DTC P0340, P0345 first perform the trouble diagnosis for DTC P0340,

P0345. Refer to

EC-1200, "Component Description"

.

• If DTC P1715 is displayed with DTC P0605, first perform the trouble diagnosis for DTC P0605. Refer

to

EC-1251, "DTC Logic"

.

The MIL will not illuminates for this diagnosis.

Diagnosis Procedure

INFOID:0000000009481968

1.

CHECK DTC WITH TCM

Check DTC with TCM. Refer to

TM-155, "OBD-II Diagnostic Trouble Code (DTC)"

.

OK or NG

OK

>> GO TO 2.

NG

>> Perform trouble shooting relevant to DTC indicated.

2.

REPLACE TCM

Replace TCM.  Refer to

TM-288, "Removal and Installation"

.

>> INSPECTION END

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P1715
1715

Input speed sensor
(TCM output)

Input speed sensor signal is different from
the theoretical value calculated by ECM
from output speed sensor signal and en-
gine rpm signal.

• Harness or connectors

(The CAN communication line is open or short-
ed)

• Harness or connectors

(Input speed sensor circuit is open or shorted)

• TCM
