P0442 EVAP CONTROL SYSTEM

EC-1215

< DTC/CIRCUIT DIAGNOSIS >

[VQ40DE FOR MEXICO]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

OK or NG

OK

>> GO TO 25.

NG

>> Replace fuel level sensor unit. Refer to

FL-10, "Removal and Installation"

.

25.

CHECK INTERMITTENT INCIDENT

Refer to

GI-42, "Intermittent Incident"

.

>> INSPECTION END

Component Inspection

INFOID:0000000009481857

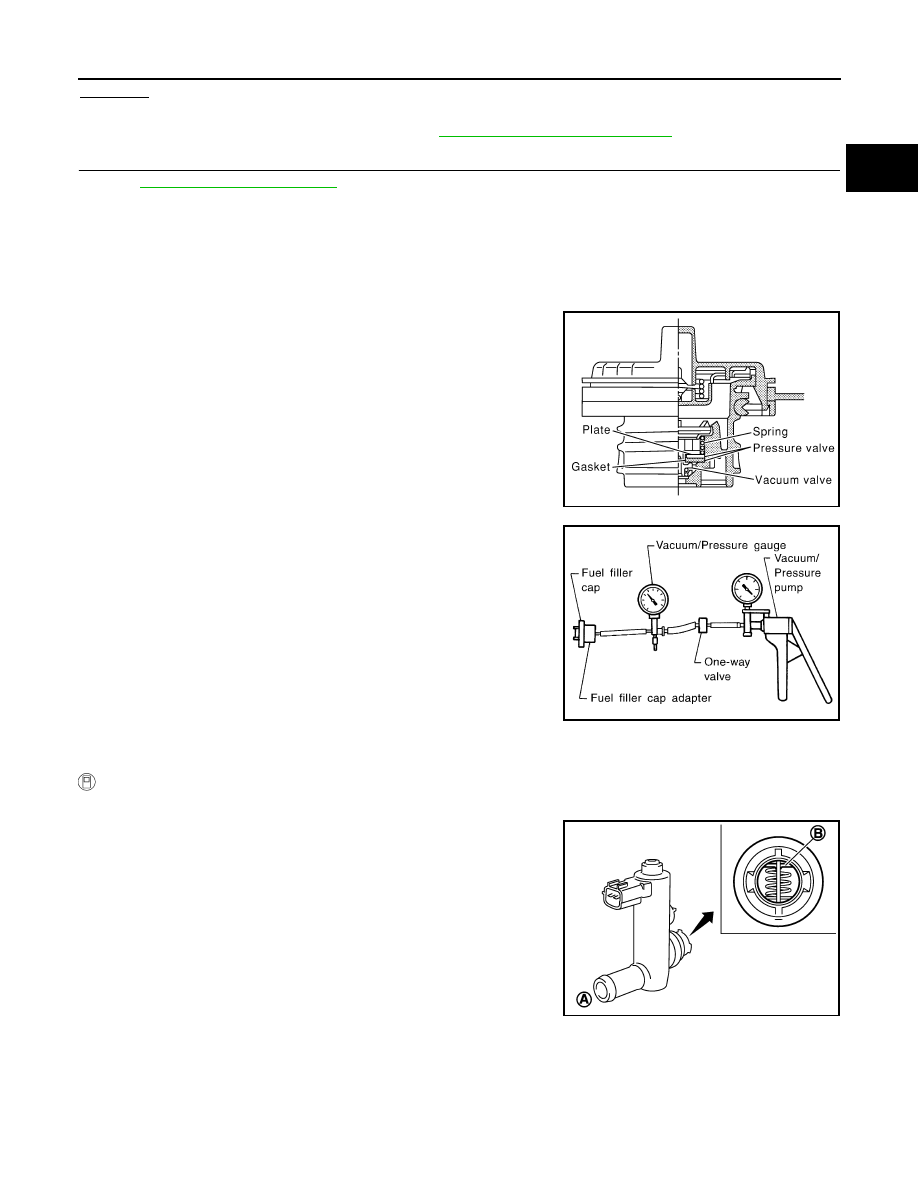

FUEL TANK VACUUM RELIEF VALVE (BUILT INTO FUEL FILLER CAP)

1. Wipe clean valve housing.

2. Check valve opening pressure and vacuum.

3. If out of specification, replace fuel filler cap as an assembly.

CAUTION:

Use only a genuine fuel filler cap as a replacement. If an incor-

rect fuel filler cap is used, the MIL may illuminate.

EVAP CANISTER VENT CONTROL VALVE

 With CONSULT

1. Remove EVAP canister vent control valve from EVAP canister.
2. Check portionof B EVAP canister vent control valve for being

rusted.

If NG, go to next step.

3. Reconnect harness connectors disconnected.
4. Turn ignition switch ON.

5. Perform “VENT CONTROL/V” in “ACTIVE TEST” mode.
6. Check air passage continuity and operation delay time.

Check new O-ring is installed properly.

SEF445Y

Pressure: 15.3 - 20.0 kPa (0.156 - 0.204 kg/cm

2

, 2.22 -

2.90 psi)

Vacuum:

−6.0 to −3.3 kPa (−0.061 to −0.034 kg/cm

2

,

−0.87 to −0.48 psi)

SEF943S

PBIB1033E

EC-1216

< DTC/CIRCUIT DIAGNOSIS >

[VQ40DE FOR MEXICO]

P0442 EVAP CONTROL SYSTEM

Operation takes less than 1 second.

If NG, replace EVAP canister vent control valve.

If OK, go to next step.

7. Clean the air passage (portion A to B) of EVAP canister vent control valve using an air blower.
8. Perform step 6 again.
9. If NG, replace EVAP canister vent control valve.

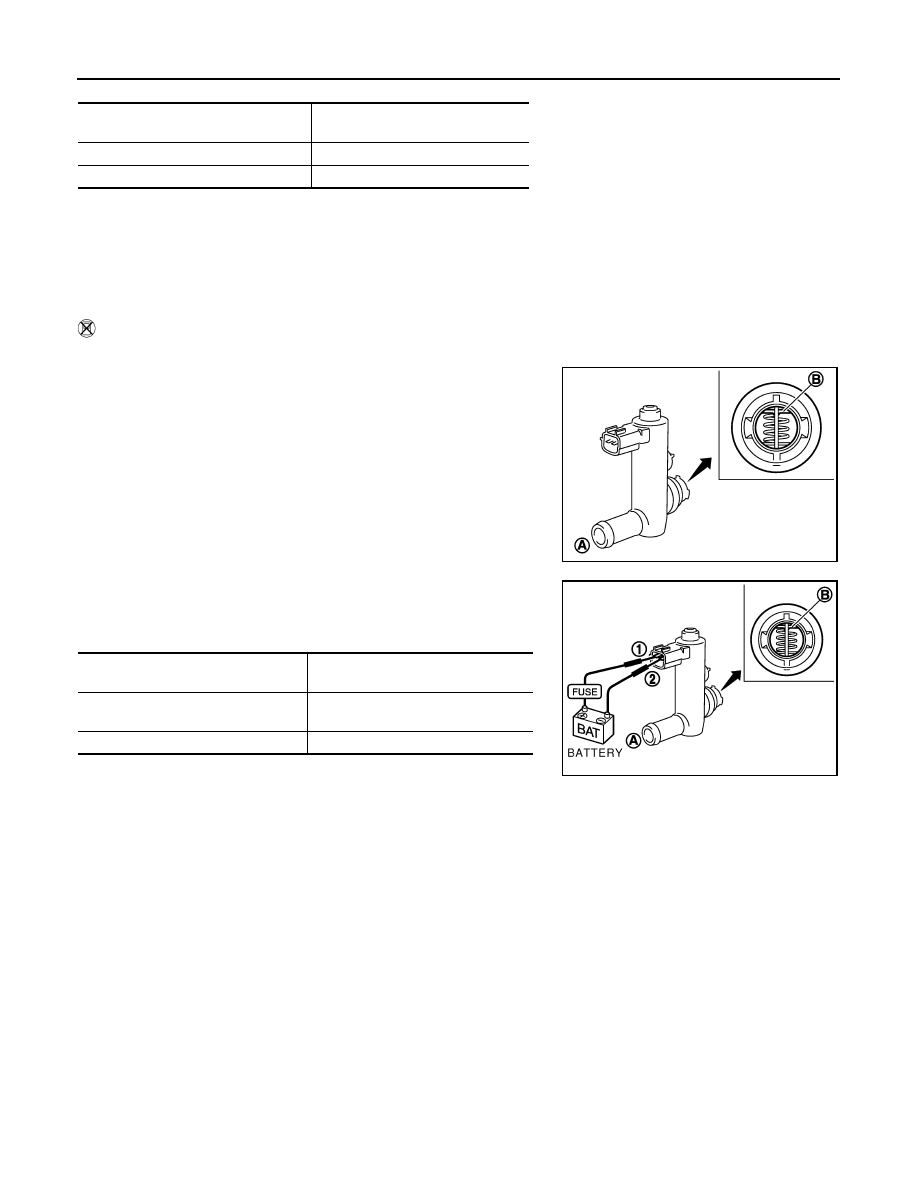

 Without CONSULT

1. Remove EVAP canister vent control valve from EVAP canister.
2. Check portion B of EVAP canister vent control valve for being

rusted.

3. Check air passage continuity and operation delay time under the

following conditions.

Check new O-ring is installed properly.

Operation takes less than 1 second.

If NG, go to next step.

4. Clean the air passage (portion A to B) of EVAP canister vent control valve using an air blower.
5. Perform step 3 again.
6. If NG, replace EVAP canister vent control valve.

DRAIN FILTER

1. Check visually for insect nests in the drain filter air inlet.
2. Check visually for cracks or flaws in the appearance.
3. Check visually for cracks or flaws in the hose.

Condition VENT CONTROL/V

Air passage continuity

 between (A) and (B)

ON

No

OFF

Yes

PBIB1033E

Condition

Air passage continuity

 between (A) and (B)

12V direct current supply between
 terminals 1 and 2

No

OFF

Yes

PBIB1034E

P0442 EVAP CONTROL SYSTEM

EC-1217

< DTC/CIRCUIT DIAGNOSIS >

[VQ40DE FOR MEXICO]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

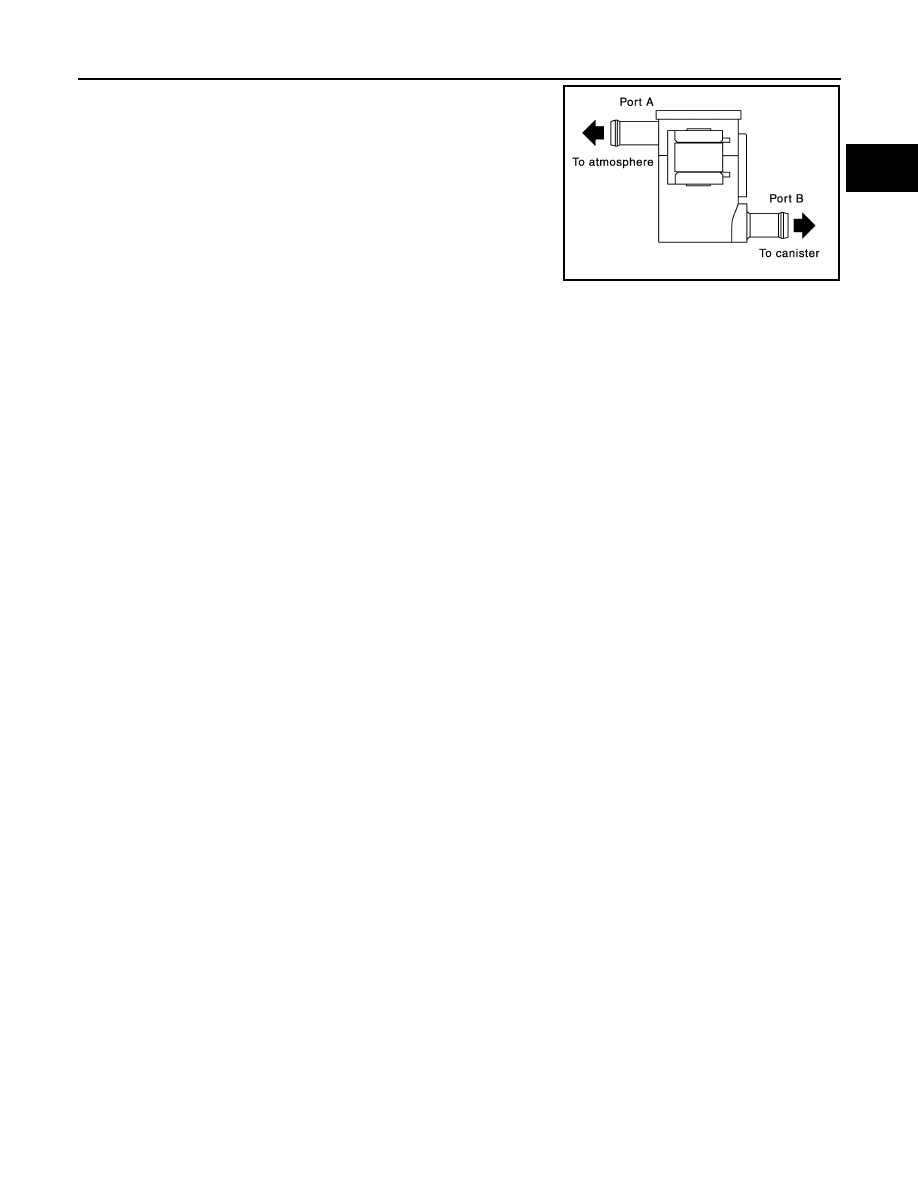

4. Blow air into port A and check that it flows freely out of port B.
5. Block port B.
6. Blow air into port A and check that there is no leakage.
7. If NG, replace drain filter.

PBIB3641E

EC-1218

< DTC/CIRCUIT DIAGNOSIS >

[VQ40DE FOR MEXICO]

P0443 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

P0443 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE

Description

INFOID:0000000009481858

SYSTEM DESCRIPTION

*1: ECM determines the start signal status by the signals of engine speed and battery voltage.
*2: This signal is sent to the ECM through CAN communication line.

This system controls flow rate of fuel vapor from the EVAP canister. The opening of the vapor by-pass pas-

sage in the EVAP canister purge volume control solenoid valve changes to control the flow rate. The EVAP

canister purge volume control solenoid valve repeats ON/OFF operation according to the signal sent from the

ECM. The opening of the valve varies for optimum engine control. The optimum value stored in the ECM is

determined by considering various engine conditions. When the engine is operating, the flow rate of fuel vapor

from the EVAP canister is regulated as the air flow changes.

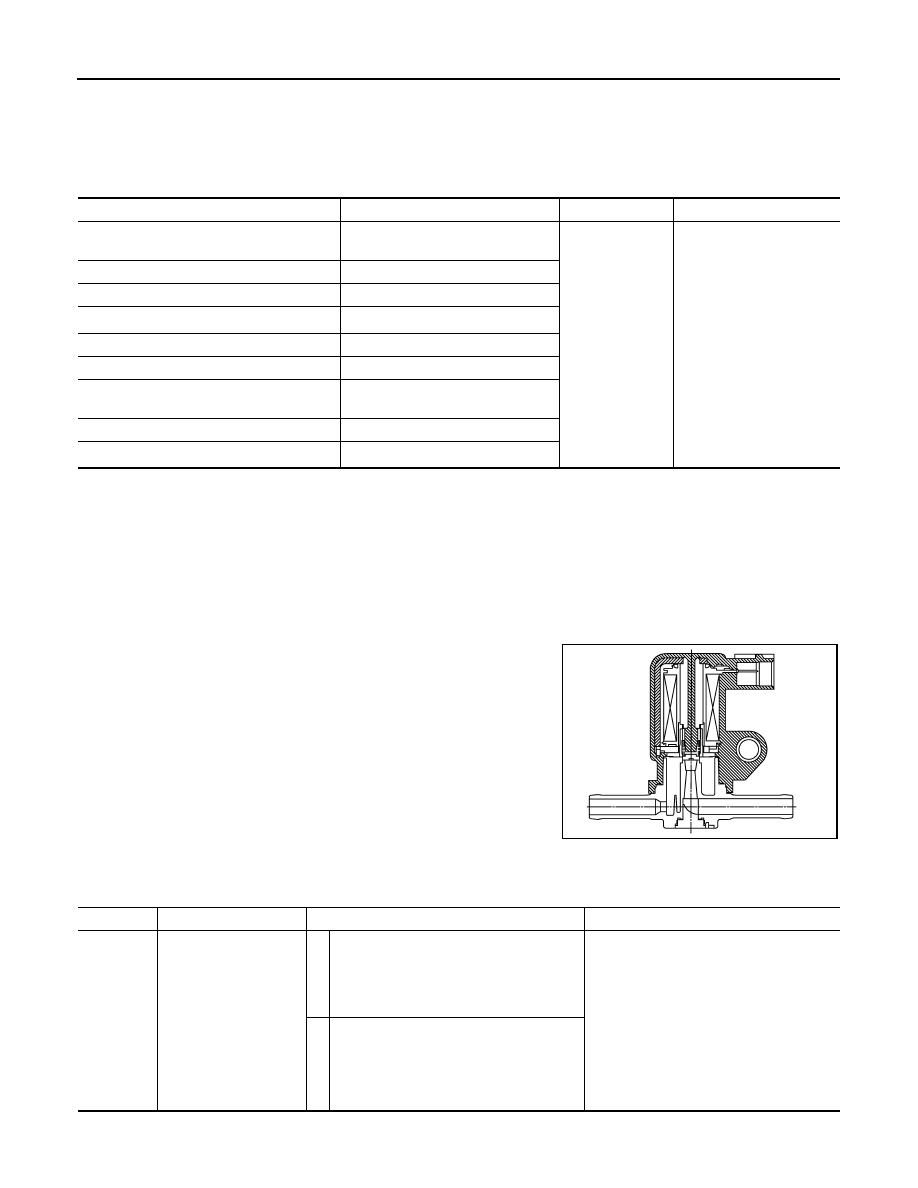

COMPONENT DESCRIPTION

The EVAP canister purge volume control solenoid valve is used to

control the flow rate of fuel vapor from the EVAP canister. The EVAP

canister purge volume control solenoid valve is moved by ON/OFF

pulses from the ECM. The longer the ON pulse, the greater the

amount of fuel vapor that will flow through the valve.

On Board Diagnosis Logic

INFOID:0000000009481859

Sensor

Input Signal to ECM

ECM function

Actuator

Crankshaft position sensor (POS)
Camshaft position sensor (PHASE)

Engine speed*

1

EVAP canister
purge flow control

EVAP canister purge vol-
ume control solenoid valve

Mass air flow sensor

Amount of intake air

Engine coolant temperature sensor

Engine coolant temperature

Battery

Battery voltage*

1

Throttle position sensor

Throttle position

Accelerator pedal position sensor

Accelerator pedal position

Air fuel ratio (A/F) sensor 1

Density of oxygen in exhaust gas
(Mixture ratio feedback signal)

Fuel tank temperature sensor

Fuel temperature in fuel tank

Wheel sensor

Vehicle speed*

2

PBIB2057E

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P0443
0443

EVAP canister purge
volume control solenoid
valve

A

The canister purge flow is detected during
the vehicle is stopped while the engine is
running, even when EVAP canister purge
volume control solenoid valve is completely
closed.

• EVAP control system pressure sensor
• EVAP canister purge volume control so-

lenoid valve
(EVAP canister purge volume control so-
lenoid valve is stuck open.)

• EVAP canister vent control valve
• Drain filter
• EVAP canister
• Hoses

(Hoses are connected incorrectly or
clogged.)

B

The canister purge flow is detected during
the specified driving conditions, even when
EVAP canister purge volume control sole-
noid valve is completely closed.
