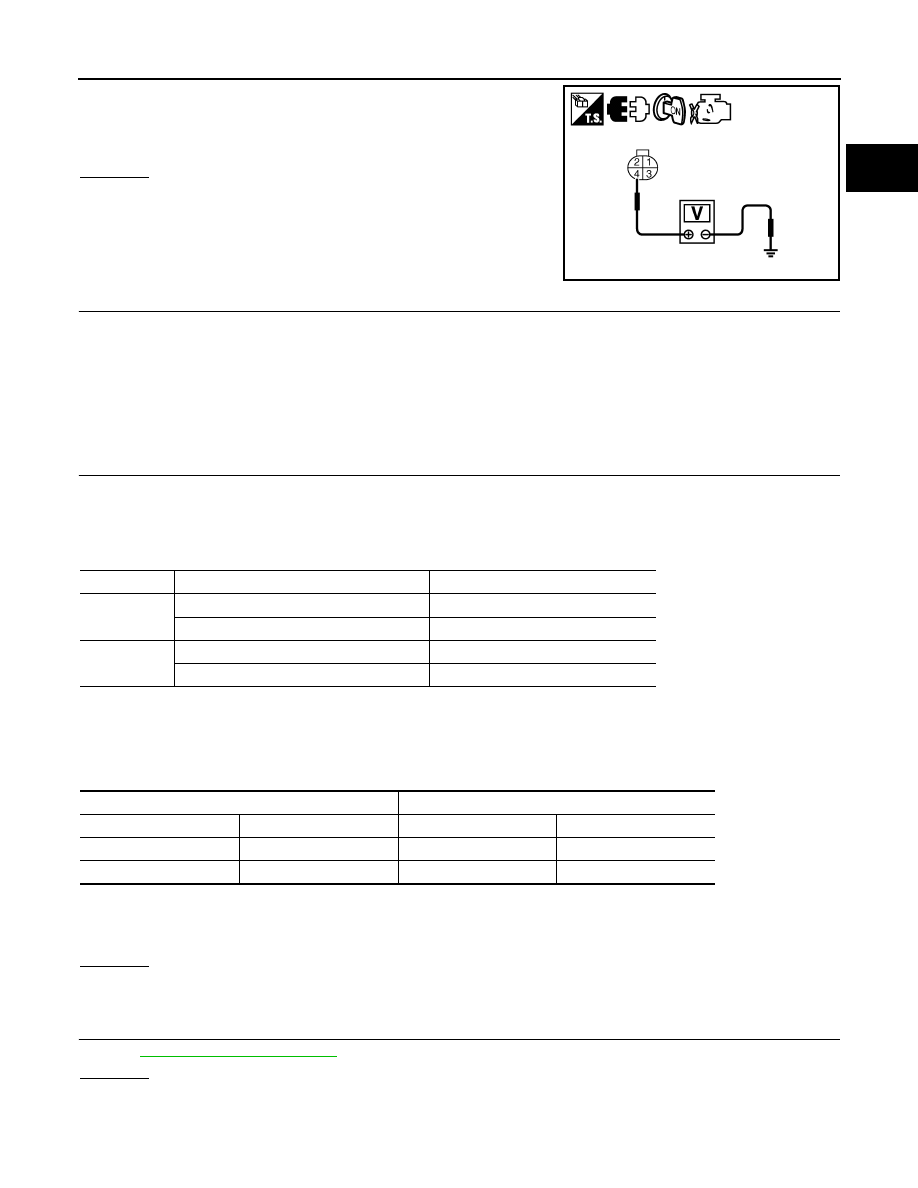

P0131, P0151 A/F SENSOR 1 EC-1135 < DTC/CIRCUIT DIAGNOSIS > [VQ40DE FOR MEXICO] C D E F G H I J K L M A EC N P O 3. Check voltage between A/F sensor 1 terminal 4 and ground with CONSULT or tester. OK or NG OK >> GO TO 4. NG >> GO TO 3. 3. DETECT MALFUNCTIONING PART Check the following. • Harness connectors E2, F32 • IPDM E/R connector E119 • 15 A fuse (No.54) • Harness for open or short between A/F sensor 1 and fuse >> Repair or replace harness or connectors. 4. CHECK A/F SENSOR 1 INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT 1. Turn ignition switch OFF. 2. Disconnect ECM harness connector. 3. Check harness continuity between A/F sensor 1 terminal and ECM terminal as follows. Refer to Wiring Diagram. 4. Check harness continuity between the following terminals and ground. Refer to Wiring Diagram. 5. Also check harness for short to power. OK >> GO TO 5. NG >> Repair open circuit or short to ground or short to power in harness or connectors. 5. CHECK INTERMITTENT INCIDENT Perform GI-42, "Intermittent Incident" . OK or NG OK >> GO TO 6. NG >> Repair or replace. Voltage: Battery voltage PBIB3308E A/F sensor 1 terminal ECM terminal Bank1 1 35 2 56 Bank 2 1 16 2 75 Continuity should exist. Bank 1 Bank 2 A/F sensor 1 terminal ECM terminal A/F sensor 1 terminal ECM terminal 1 35 1 16 2 56 2 75 Continuity should not exist. |
