P2135 TP SENSOR

EC-427

< DTC/CIRCUIT DIAGNOSIS >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

OK or NG

OK

>> GO TO 5.

NG

>> Repair short to ground or short to power in harness or connectors.

5.

CHECK APP SENSOR

Refer to

EC-424, "Component Inspection"

.

OK or NG

OK

>> GO TO 11.

NG

>> GO TO 6.

6.

REPLACE ACCELERATOR PEDAL ASSEMBLY

1. Replace accelerator pedal assembly. Refer to

ACC-3, "Component"

.

2. Perform

EC-123, "Accelerator Pedal Released Position Learning"

.

3. Perform

EC-123, "Throttle Valve Closed Position Learning"

.

4. Perform

EC-124, "Idle Air Volume Learning"

.

>> INSPECTION END

7.

CHECK THROTTLE POSITION SENSOR GROUND CIRCUIT FOR OPEN AND SHORT

1. Turn ignition switch OFF.

2. Disconnect ECM harness connector.

3. Check harness continuity between electric throttle control actuator terminal 4 and ECM terminal 36.

Refer to Wiring Diagram.

4. Also check harness for short to ground and short to power.
OK or NG

OK

>> GO TO 8.

NG

>> Repair open circuit, short to ground or short to power in harness or connectors.

8.

CHECK THROTTLE POSITION SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1. Check harness continuity between ECM terminal 37 and electric throttle control actuator terminal 1, ECM

terminal 38 and electric throttle control actuator terminal 3.

Refer to Wiring Diagram.

2. Also check harness for short to ground and short to power.
OK or NG

OK

>> GO TO 9.

NG

>> Repair open circuit, short to ground or short to power in harness or connectors.

9.

CHECK THROTTLE POSITION SENSOR

Refer to

EC-428, "Component Inspection"

.

OK or NG

OK

>> GO TO 11.

NG

>> GO TO 10.

10.

REPLACE ELECTRIC THROTTLE CONTROL ACTUATOR

1. Replace the electric throttle control actuator. Refer to

EM-27, "Exploded View"

.

2. Perform

EC-123, "Throttle Valve Closed Position Learning"

.

3. Perform

EC-124, "Idle Air Volume Learning"

.

>> INSPECTION END

11.

CHECK INTERMITTENT INCIDENT

Refer to

GI-42, "Intermittent Incident"

.

Continuity should exist.

Continuity should exist.

EC-428

< DTC/CIRCUIT DIAGNOSIS >

[QR25DE]

P2135 TP SENSOR

>> INSPECTION END

Component Inspection

INFOID:0000000009481136

THROTTLE POSITION SENSOR

1. Reconnect all harness connectors disconnected.
2. Perform

EC-123, "Throttle Valve Closed Position Learning"

.

3. Turn ignition switch ON.
4. Set shift lever to D (A/T) or 1st (M/T) position.
5. Check voltage between ECM terminals 37 (TP sensor 1 signal), 38 (TP sensor 2 signal) and ground under

the following conditions.

6. If NG, replace electric throttle control actuator and go to the next step.
7. Perform

EC-123, "Throttle Valve Closed Position Learning"

.

8. Perform

EC-124, "Idle Air Volume Learning"

.

Terminal

Accelerator pedal

Voltage

37
(Throttle position sensor 1)

Fully released

More than 0.36V

Fully depressed

Less than 4.75V

38
(Throttle position sensor 2)

Fully released

Less than 4.75V

Fully depressed

More than 0.36V

P2138 APP SENSOR

EC-429

< DTC/CIRCUIT DIAGNOSIS >

[QR25DE]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

P2138 APP SENSOR

Component Description

INFOID:0000000009481137

The accelerator pedal position sensor is installed on the upper end

of the accelerator pedal assembly. The sensor detects the accelera-

tor position and sends a signal to the ECM.

Accelerator pedal position sensor has two sensors. These sensors

are a kind of potentiometers which transform the accelerator pedal

position into output voltage, and emit the voltage signal to the ECM.

In addition, these sensors detect the opening and closing speed of

the accelerator pedal and feed the voltage signals to the ECM. The

ECM judges the current opening angle of the accelerator pedal from

these signals and controls the throttle control motor based on these

signals.

Idle position of the accelerator pedal is determined by the ECM

receiving the signal from the accelerator pedal position sensor. The ECM uses this signal for the engine oper-

ation such as fuel cut.

On Board Diagnosis Logic

INFOID:0000000009481138

This self-diagnosis has the one trip detection logic.

NOTE:

If DTC P2138 is displayed with DTC P0643, first perform the trouble diagnosis for DTC P0643.

Refer to

EC-350

.

FAIL-SAFE MODE

When the malfunction is detected, the ECM enters fail-safe mode and the MIL lights up.

DTC Confirmation Procedure

INFOID:0000000009481139

NOTE:

If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at

least 10 seconds before conducting the next test.

TESTING CONDITION:

Before performing the following procedure, confirm that battery voltage is more than 8V at idle.

 WITH CONSULT

1. Start engine and let it idle for 1 second.
2. Check DTC.
3. If DTC is detected, go to

EC-430, "Diagnosis Procedure"

.

 WITH GST

Follow the procedure “WITH CONSULT” above.

PBIB1741E

DTC No.

Trouble diagnosis name

DTC detecting condition

Possible cause

P2138
2138

Accelerator pedal position
sensor circuit range/perfor-
mance problem

Rationally incorrect voltage is sent to ECM
compared with the signals from APP sensor
1 and APP sensor 2.

• Harness or connector

(The APP sensor 1 and 2 circuit is open
or shorted.)
(TP sensor circuit is shorted.)

• Accelerator pedal position sensor

(APP sensor 1 and 2)

• Electric throttle control actuator

(TP sensor 1 and 2)

Engine operating condition in fail-safe mode

The ECM controls the electric throttle control actuator in regulating the throttle opening in order for the idle position to be within +10
degrees.
The ECM regulates the opening speed of the throttle valve to be slower than the normal condition.
So, the acceleration will be poor.

EC-430

< DTC/CIRCUIT DIAGNOSIS >

[QR25DE]

P2138 APP SENSOR

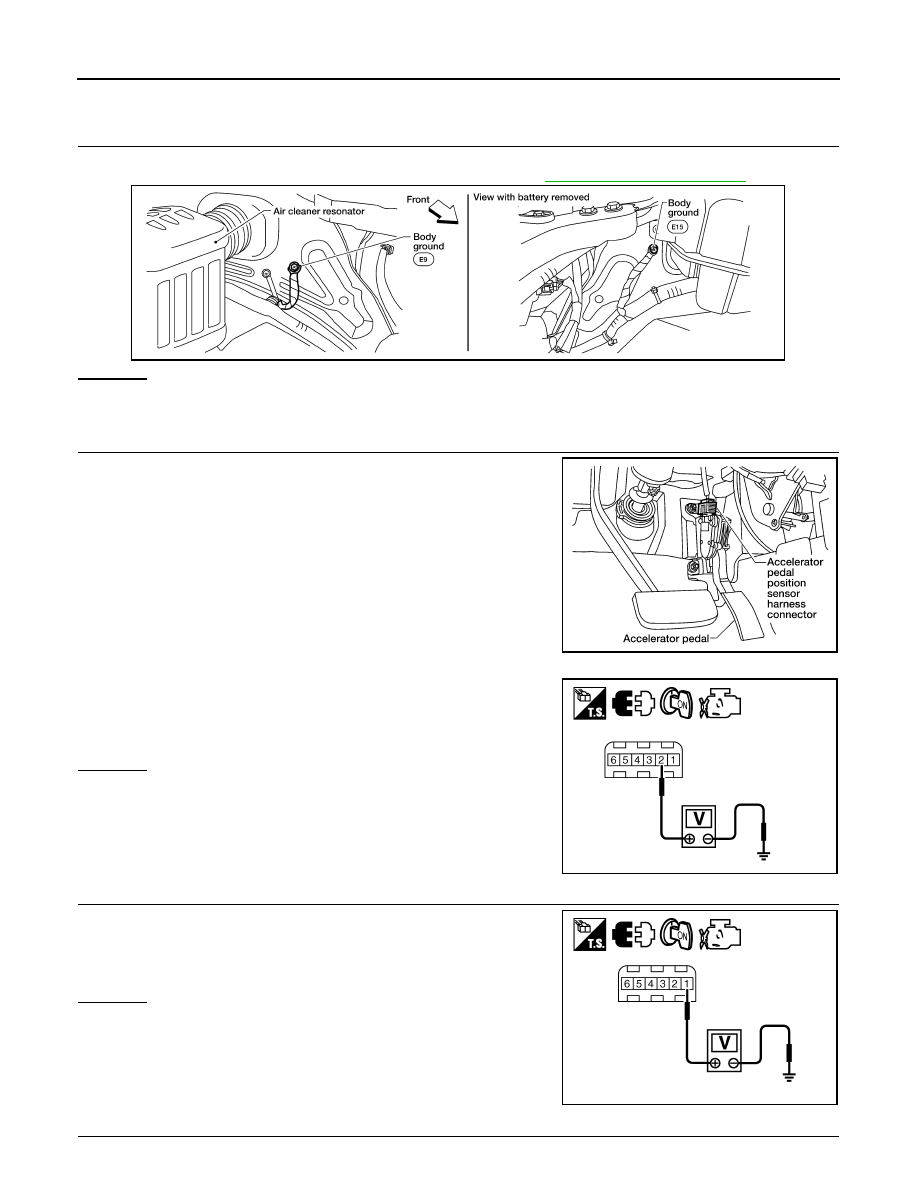

Diagnosis Procedure

INFOID:0000000009481140

1.

CHECK GROUND CONNECTIONS

1. Turn ignition switch OFF.

2. Loosen and retighten two ground screws on the body. Refer to

EC-149, "Ground Inspection"

.

OK or NG

OK

>> GO TO 2.

NG

>> Repair or replace ground connections.

2.

CHECK APP SENSOR 1 POWER SUPPLY CIRCUIT

1. Disconnect accelerator pedal position (APP) sensor harness

connector.

2. Turn ignition switch ON.

3. Check voltage between APP sensor terminal 2 and ground with

CONSULT or tester.

OK or NG

OK

>> GO TO 3.

NG

>> Repair open circuit, short to ground or short to power in

harness or connectors.

3.

CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-I

Check voltage between APP sensor terminal 1 and ground with

CONSULT or tester.

OK or NG

OK

>> GO TO 8.

NG

>> GO TO 4.

4.

CHECK APP SENSOR 2 POWER SUPPLY CIRCUIT-II

BBIA0614E

BBIA0592E

Voltage: Approximately 5V

PBIB2608E

Voltage: Approximately 5V

PBIB2611E
