Nissan Frontier. Manual - part 330





DLN-222

< REMOVAL AND INSTALLATION >

[C200]

FRONT OIL SEAL

INSTALLATION

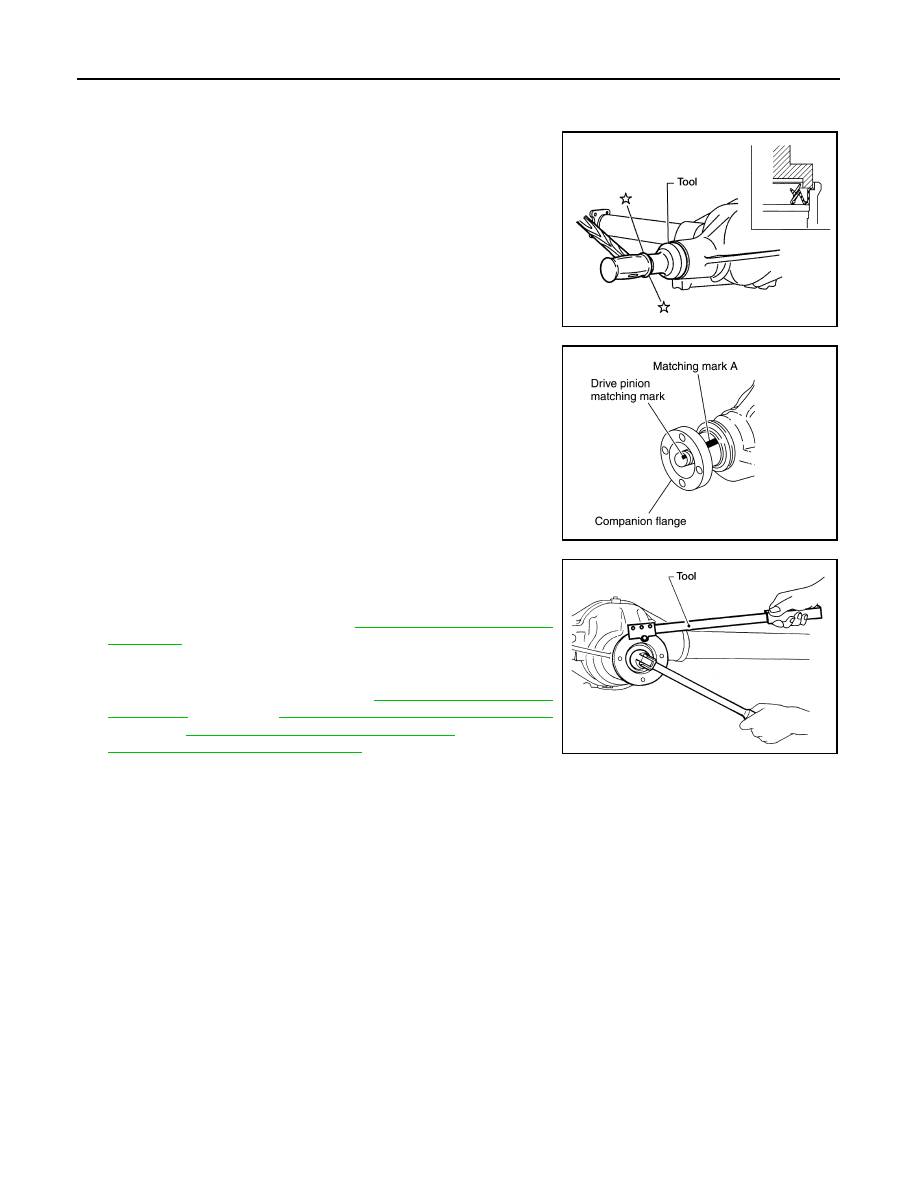

1. Apply multi-purpose grease to the front oil seal lips.
2. Install the new front oil seal using Tool.

CAUTION:

• Do not reuse oil seal.

• Do not incline oil seal when installing.

3. Align the matching mark of drive pinion with the matching mark

(A) of companion flange, then install the companion flange.

4. Apply gear oil on the screw part of drive pinion and the seating

surface of drive pinion lock nut.

5. Install the new drive pinion lock nut and tighten to the specified

torque using suitable tool. Refer to

DLN-225, "Disassembly and

Assembly"

.

CAUTION:

Do not reuse drive pinion lock nut.

6. Install the propeller shaft. Refer to

DLN-143, "Removal and

Installation"

 (2S1330),

DLN-152, "Removal and Installation"

(3S1310),

DLN-163, "Removal and Installation"

 (3S1330) or

DLN-174, "Removal and Installation"

 (3S1330-2BJ100).

Tool number

: KV38100500 (J-25273)

WDIA0234E

PDIA0675E

WDIA0241E

CARRIER COVER

DLN-223

< REMOVAL AND INSTALLATION >

[C200]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

CARRIER COVER

Removal and Installation

INFOID:0000000009479792

REMOVAL

1. Drain the differential gear oil. Refer to

DLN-220, "Changing Differential Gear Oil"

.

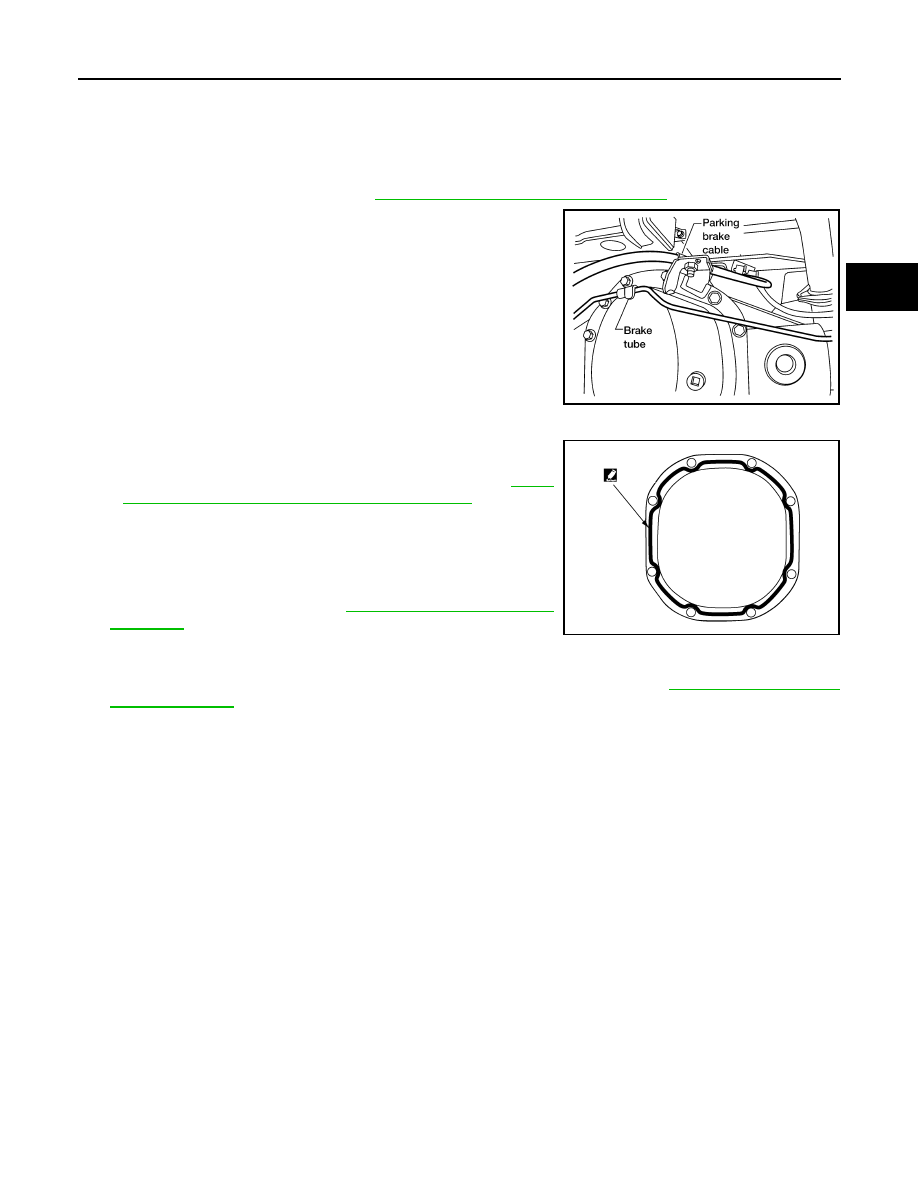

2. Disconnect the parking brake cable and brake tube from the car-

rier cover.

3. Remove the carrier cover bolts and separate the carrier cover

from the gear carrier using Tool.

CAUTION:

• Do not damage the mating surface.

• Do not insert flat-bladed screwdriver, this will damage the

mating surface.

INSTALLATION

1. Apply a bead of sealant to the mating surface of the carrier

cover as shown.

• Use Genuine Silicone RTV or equivalent. Refer to

GI-21,

"Recommended Chemical Products and Sealants"

.

CAUTION:

Remove any old sealant adhering to the mating surfaces.

Also remove any moisture, oil, or foreign material adhering

to the application and mating surfaces.

2. Install the carrier cover to the gear carrier. Tighten the bolts to

the specified torque. Refer to

DLN-225, "Disassembly and

Assembly"

.

3. Connect the parking brake cable and brake tube to the carrier

cover.

4. Fill the rear final drive assembly with recommended differential gear oil. Refer to

DLN-220, "Checking Dif-

ferential Gear Oil"

.

Tool number

: KV10111100 (J-37228)

LDIA0126E

WDIA0282E

DLN-224

< UNIT REMOVAL AND INSTALLATION >

[C200]

REAR FINAL DRIVE

UNIT REMOVAL AND INSTALLATION

REAR FINAL DRIVE

Removal and Installation

INFOID:0000000009479793

REMOVAL

CAUTION:

• Do not damage spline, companion flange and front oil seal when removing propeller shaft.

• Before removing final drive assembly or rear axle assembly, disconnect wheel sensor harness con-

nector from the assembly and move it away from final drive/rear axle assembly area. Failure to do so

may result in sensor wires being damaged and sensor becoming inoperative.

1. Remove the rear disc brake rotors. Refer to

BR-40, "Removal and Installation of Brake Caliper and Disc

Rotor"

.

2. Remove the rear propeller shaft. Refer to

DLN-143, "Removal and Installation"

 (2S1330),

DLN-152,

"Removal and Installation"

 (3S1310),

DLN-163, "Removal and Installation"

 (3S1330) or

DLN-174,

"Removal and Installation"

 (2S1330-BJ100).

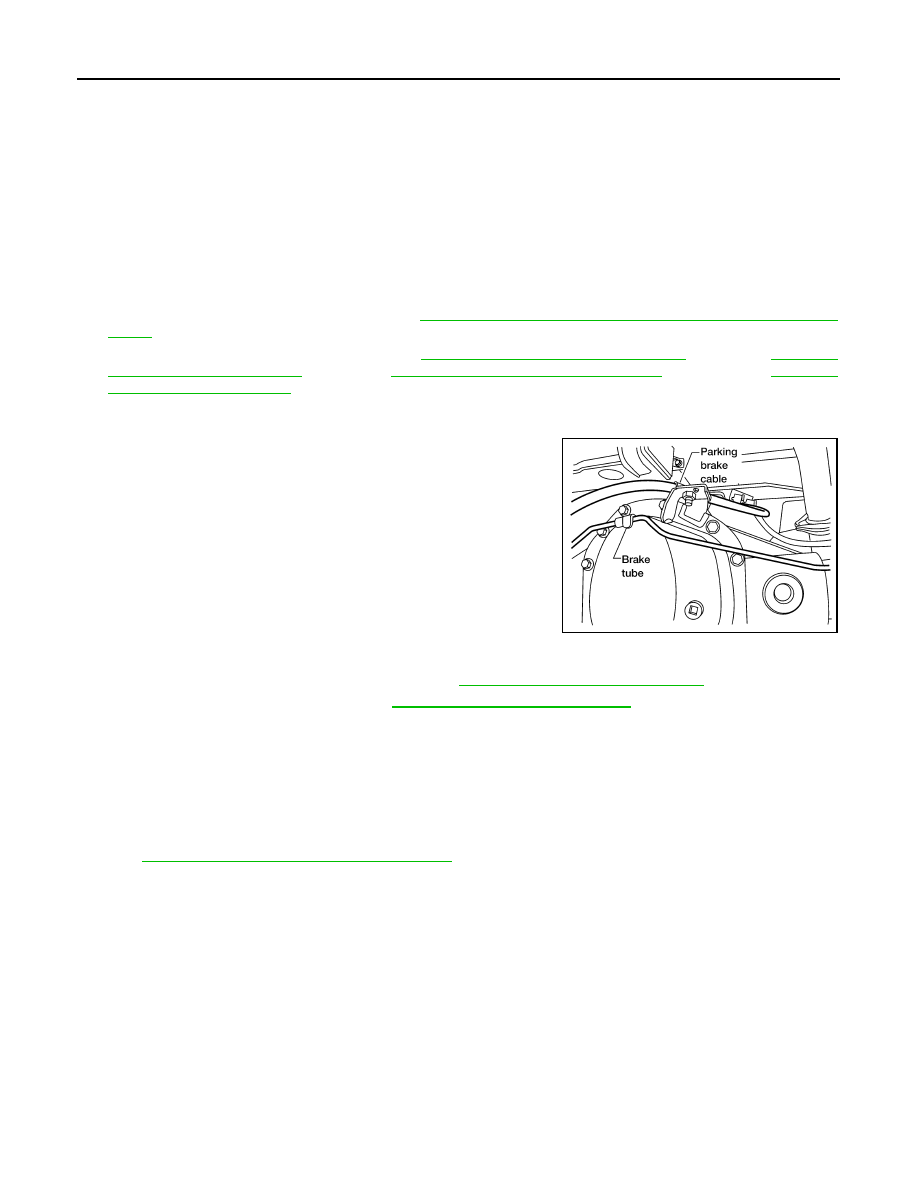

3. Disconnect the following components from the rear final drive.

• Wheel sensor harness

• Parking brake cable

• Brake hoses and tubes

4. Support rear final drive assembly using a suitable jack.
5. Remove rear shock absorber lower bolts. Refer to

FSU-14, "Removal and Installation"

.

6. Remove leaf spring U-bolt nuts. Refer to

RSU-9, "Removal and Installation"

.

7. Remove rear final drive assembly

CAUTION:

Secure rear final drive assembly to the jack while removing it.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

Check the rear final drive assembly differential gear oil and refill as necessary. Check for fluid leaks.

Refer to

DLN-220, "Checking Differential Gear Oil"

.

LDIA0126E

REAR FINAL DRIVE

DLN-225

< UNIT DISASSEMBLY AND ASSEMBLY >

[C200]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

UNIT DISASSEMBLY AND ASSEMBLY

REAR FINAL DRIVE

Disassembly and Assembly

INFOID:0000000009479794

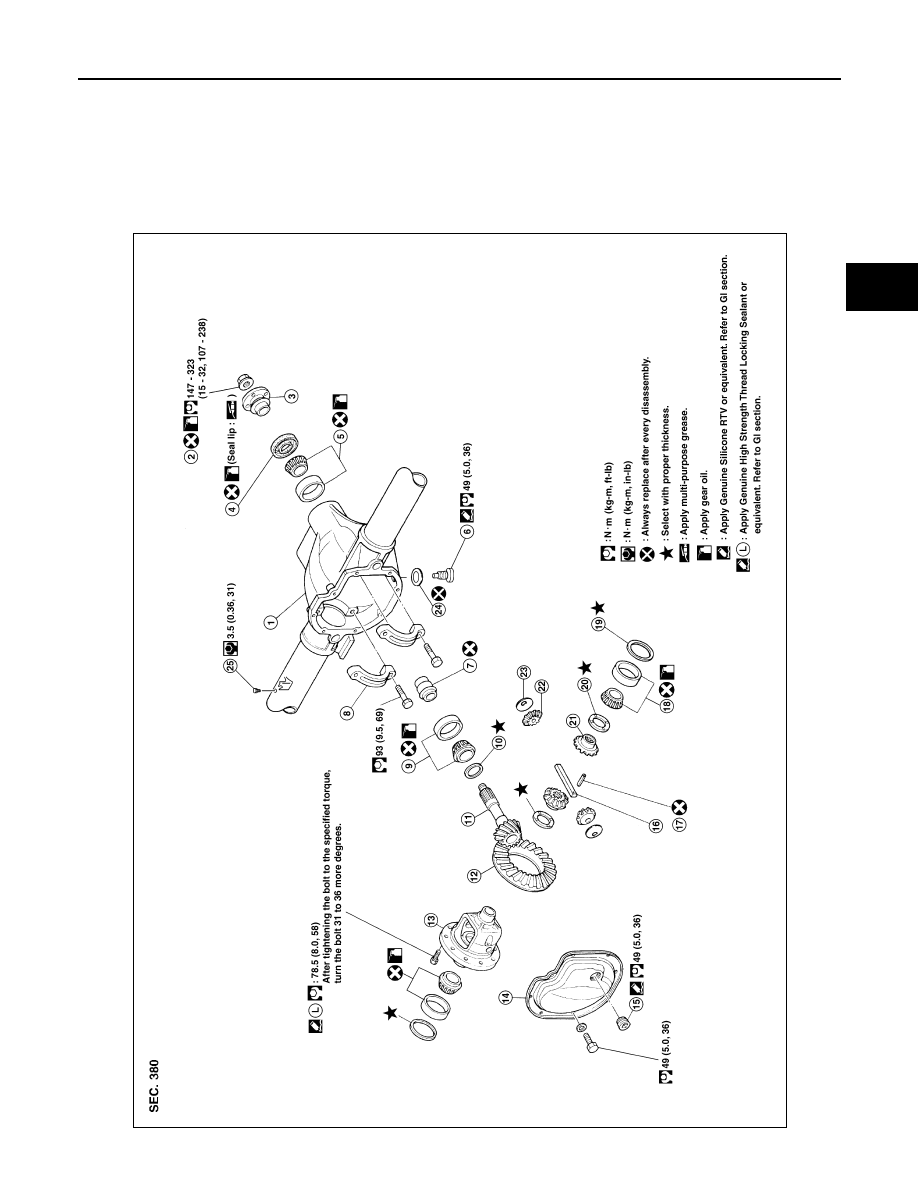

COMPONENTS

WDIA0281E
