DLN-218

< SYSTEM DESCRIPTION >

[C200]

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

SYSTEM DESCRIPTION

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

NVH Troubleshooting Chart

INFOID:0000000009479787

Use the chart below to help you find the cause of the symptom. If necessary, repair or replace these parts.

×: Applicable

Reference page

DL

N-22

5, "Dis

as

se

mb

ly

 an

d Ass

em

bl

y"

DL

N-22

5, "Dis

as

se

mb

ly

 an

d Ass

em

bl

y"

DL

N-22

5, "Dis

as

se

mb

ly

 an

d Ass

em

bl

y"

DL

N-22

5, "Dis

as

se

mb

ly

 an

d Ass

em

bl

y"

DL

N-22

5, "Dis

as

se

mb

ly

 an

d Ass

em

bl

y"

MA-1

6,

 "FO

R

 U

S

A AND CANADA : Fl

ui

ds

 a

n

d Lu

bri

ca

n

ts

"

 (Un

ite

d S

tat

es

 an

d Ca

na

da

)

or

M

A

-18

, "FOR MEXI

CO : Fl

ui

ds

 an

d Lu

bri

can

ts

"

 (M

ex

ic

o).

DL

N-17

2,

 "NVH T

ro

u

bl

es

ho

ot

in

g Ch

art

"

DL

N-17

2,

 "NVH T

ro

u

bl

es

ho

ot

in

g Ch

art

"

RAX-1

7

, "NVH T

rou

bl

es

ho

ot

in

g Cha

rt

"

WT

-4

4,

 "NVH T

ro

ub

les

ho

ot

ing

 Ch

art"

WT

-4

4,

 "NVH T

ro

ub

les

ho

ot

ing

 Ch

art"

F

AX-4,

 "NVH T

rou

bl

es

ho

ot

in

g Cha

rt"

BR-5,

"NVH T

rou

bl

es

ho

ot

ing

 Cha

rt"

ST

-5

, "NVH T

rou

bl

es

ho

ot

in

g Cha

rt

"

Possible cause and SUSPECTED PARTS

G

e

ar t

oo

th ro

ug

h

G

e

ar c

on

ta

ct

im

pro

per

To

ot

h s

u

rf

ac

es

 worn

Ba

ck

la

sh

 in

co

rre

ct

Co

mp

an

io

n fl

an

ge

 ex

ce

ss

iv

e

 run

ou

t

Ge

ar o

il

im

pro

pe

r

PROPELLE

R

 SHAFT

REAR AXLE

REAR SUSPENSION

TI

RE

S

ROAD W

H

E

E

L

DRIVE

 SHAFT

BRAK

ES

ST

EERING

Symptom

Noise

×

×

×

×

×

×

×

×

×

×

×

×

×

DESCRIPTION

DLN-219

< SYSTEM DESCRIPTION >

[C200]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

DESCRIPTION

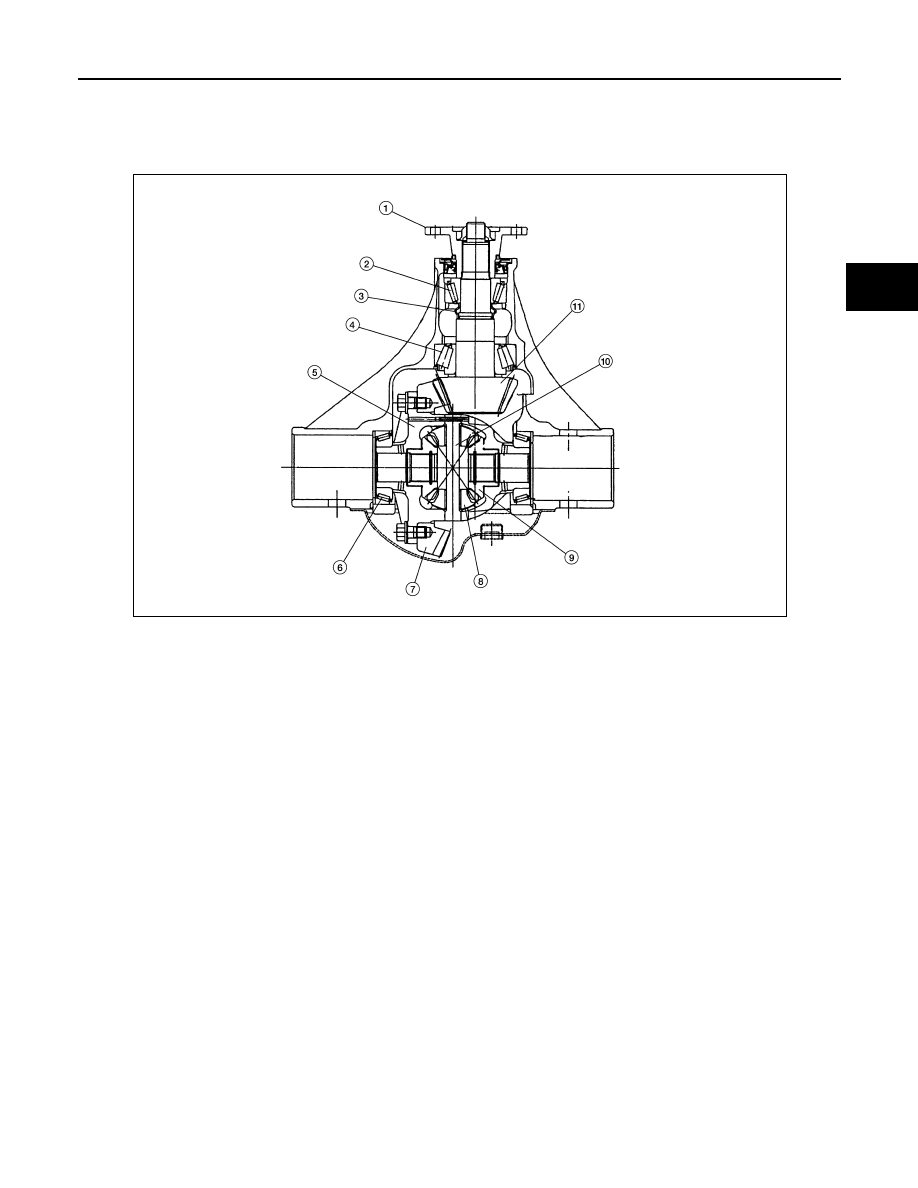

Cross-Sectional View

INFOID:0000000009479788

1.

Companion flange

2.

Pinion front bearing

3.

Collapsible spacer

4.

Pinion rear bearing

5.

Differential case

6.

Side bearing

7.

Drive gear

8.

Pinion mate gear

9.

Side gear

10. Pinion mate shaft

11. Drive pinion

LDIA0191E

DLN-220

< PERIODIC MAINTENANCE >

[C200]

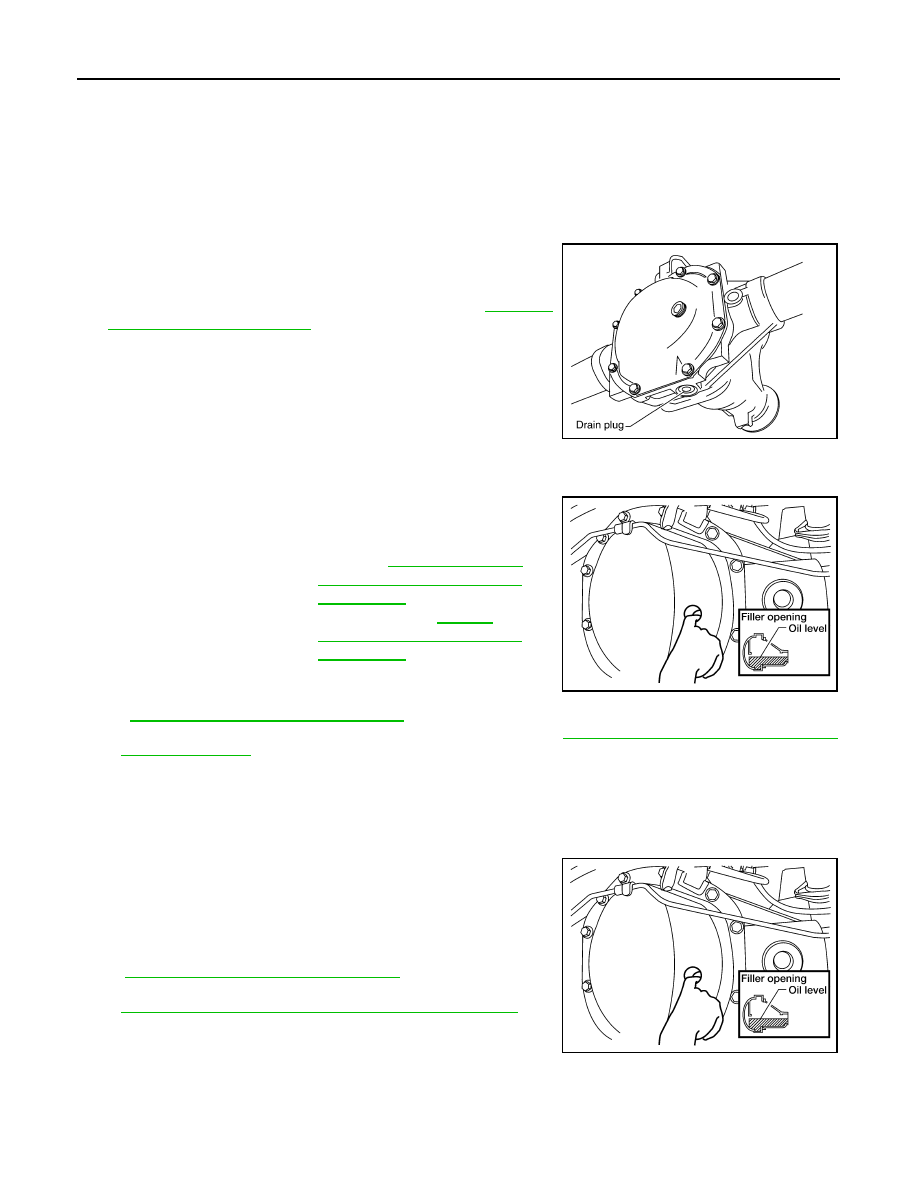

DIFFERENTIAL GEAR OIL

PERIODIC MAINTENANCE

DIFFERENTIAL GEAR OIL

Changing Differential Gear Oil

INFOID:0000000009479789

DRAINING

1. Stop engine.
2. Remove the drain plug from the rear final drive assembly to

drain the differential gear oil.

3. Install the drain plug with a new gasket to the rear final drive

assembly. Tighten to the specified torque. Refer to

DLN-225,

"Disassembly and Assembly"

.

CAUTION:

Do not reuse gasket.

FILLING

1. Remove the filler plug from the rear final drive assembly.
2. Fill the rear final drive assembly with new differential gear oil

until the level reaches the specified level near the filler plug hole.

3. Install the filler plug with sealant applied on the threads to the

rear final drive assembly. Tighten to the specified torque. Refer

to

DLN-225, "Disassembly and Assembly"

.

• Use High Performance Thread Sealant or equivalent. Refer to

GI-21, "Recommended Chemical Prod-

ucts and Sealants"

.

Checking Differential Gear Oil

INFOID:0000000009479790

DIFFERENTIAL GEAR OIL LEAKAGE AND LEVEL

1. Make sure that differential gear oil is not leaking from the rear final drive assembly or around it.
2. Check the differential gear oil level from the filler plug hole as

shown.

CAUTION:

Do not start engine while checking differential gear oil level.

3. Install the filler plug with sealant applied on the threads to the

rear final drive assembly. Tighten to the specified torque. Refer

to

DLN-225, "Disassembly and Assembly"

.

• Use High Performance Thread Sealant or equivalent. Refer to

GI-21, "Recommended Chemical Products and Sealants"

.

LDIA0187E

Differential gear oil
grade and capacity

: Refer to

MA-16, "FOR USA

AND CANADA : Fluids and
Lubricants"

 (United States

and Canada) or

MA-18,

"FOR MEXICO : Fluids and
Lubricants"

 (Mexico).

LDIA0127E

LDIA0127E

FRONT OIL SEAL

DLN-221

< REMOVAL AND INSTALLATION >

[C200]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

REMOVAL AND INSTALLATION

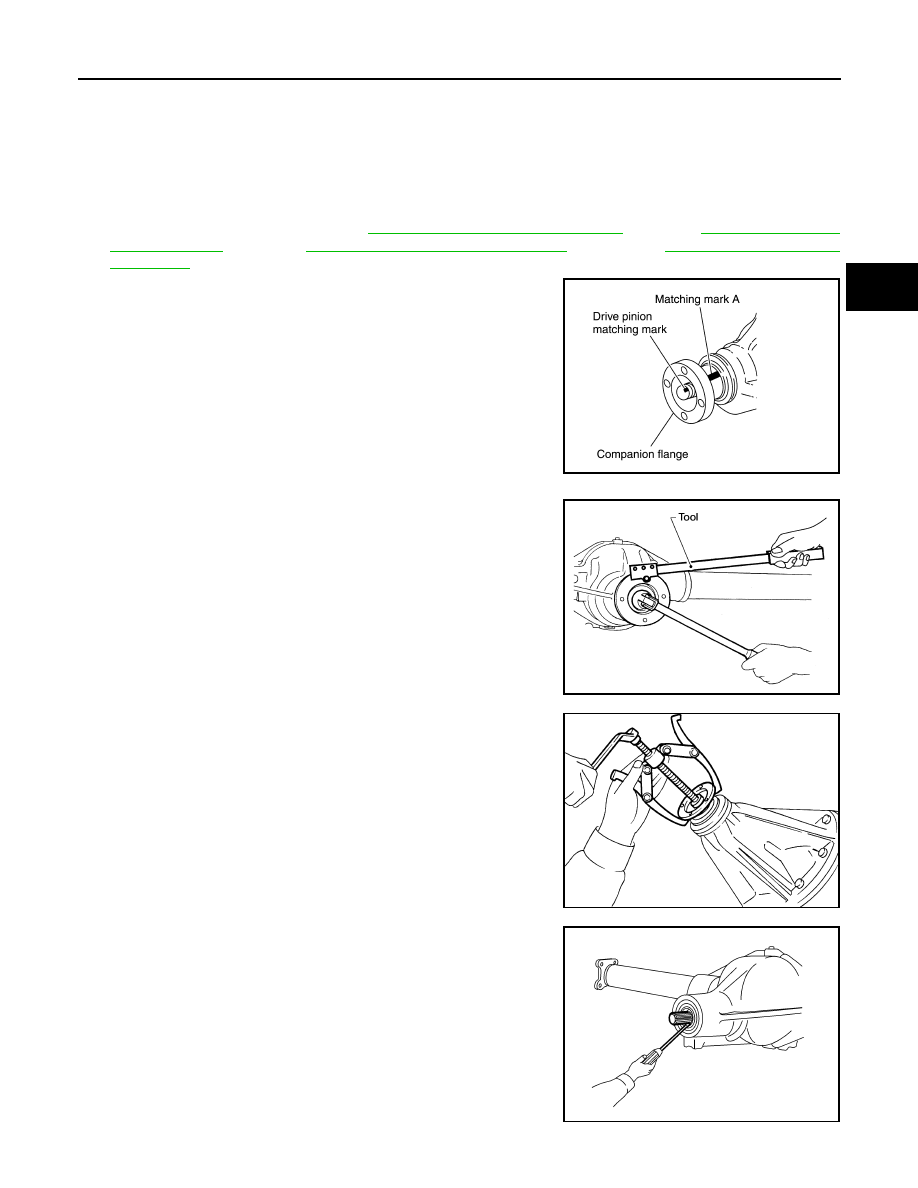

FRONT OIL SEAL

Removal and Installation

INFOID:0000000009479791

REMOVAL

1. Remove the propeller shaft. Refer to

DLN-143, "Removal and Installation"

 (2S1330),

DLN-152, "Removal

and Installation"

 (3S1310),

DLN-163, "Removal and Installation"

 (3S1330) or

DLN-174, "Removal and

Installation"

 (3S1330-2BJ100).

2. Put matching mark on the end of the drive pinion. The matching

mark should be in line with the matching mark A on companion

flange.

CAUTION:

For matching mark, use paint. Do not damage drive pinion.

NOTE:

The matching mark (A) on the final drive companion flange indi-

cates the maximum vertical runout position.

3. Remove the drive pinion lock nut using suitable tool.

4. Remove the companion flange using suitable tool.

5. Remove the front oil seal using suitable tool.

PDIA0675E

WDIA0241E

SPD737
