Nissan Frontier. Manual - part 321





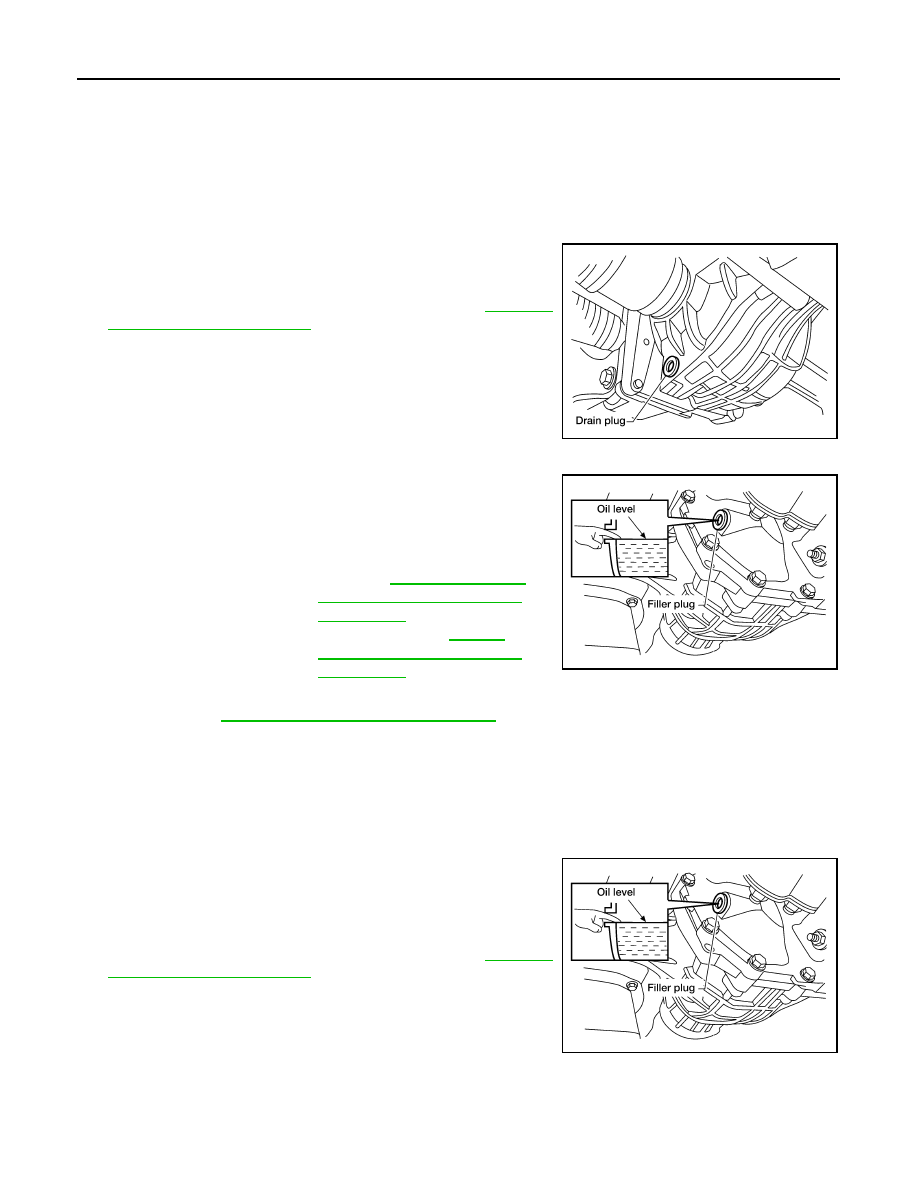

DLN-186

< PERIODIC MAINTENANCE >

[FRONT FINAL DRIVE: R180A]

DIFFERENTIAL GEAR OIL

PERIODIC MAINTENANCE

DIFFERENTIAL GEAR OIL

Changing Differential Gear Oil

INFOID:0000000009479774

DRAINING

1. Stop the engine.
2. Remove the drain plug and gasket from the front final drive

assembly to drain the differential gear oil.

3. Install the drain plug with a new gasket to the front final drive

assembly. Tighten to the specified torque. Refer to

DLN-193,

"Disassembly and Assembly"

.

CAUTION:

Do not reuse gasket.

FILLING

1. Remove the filler plug and gasket from the front final drive

assembly.

2. Fill the front final drive assembly with new differential gear oil

until the level reaches the specified level near the filler plug hole.

3. Install the filler plug with a new gasket on it to the front final drive assembly. Tighten to the specified

torque. Refer to

DLN-193, "Disassembly and Assembly"

.

CAUTION:

Do not reuse gasket.

Checking Differential Gear Oil

INFOID:0000000009479775

DIFFERENTIAL GEAR OIL LEAKAGE AND LEVEL

1. Make sure that differential gear oil is not leaking from the front final drive assembly or around it.
2. Check the differential gear oil level from the filler plug hole as

shown.

CAUTION:

Do not start engine while checking differential gear oil level.

3. Install the filler plug with a new gasket on it to the front final drive

assembly. Tighten to the specified torque. Refer to

DLN-193,

"Disassembly and Assembly"

.

CAUTION:

Do not reuse gasket.

LDIA0175E

Differential gear oil
grade and capacity

: Refer to

MA-16, "FOR USA

AND CANADA : Fluids and
Lubricants"

 (United States

and Canada) an

MA-18,

"FOR MEXICO : Fluids and
Lubricants"

 (Mexico).

LDIA0176E

LDIA0176E

FRONT OIL SEAL

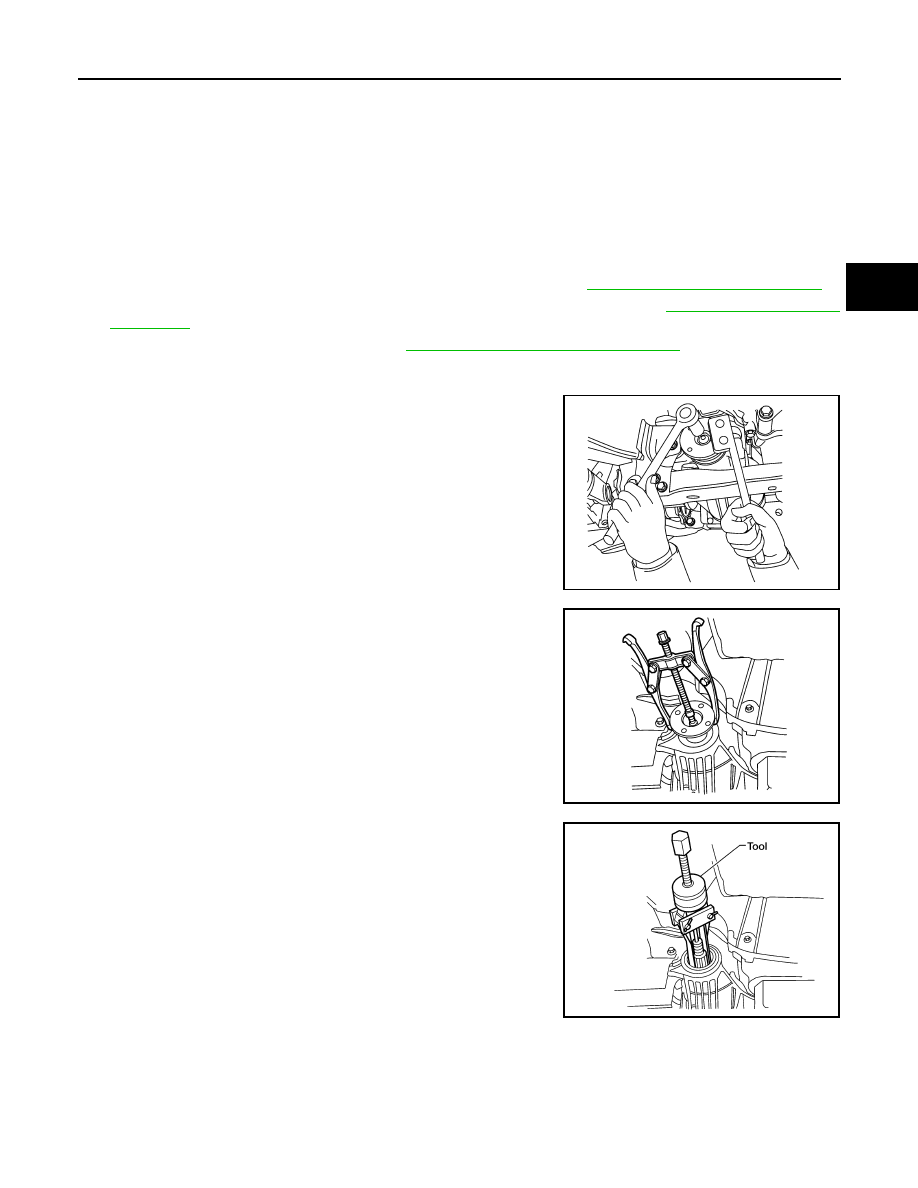

DLN-187

< REMOVAL AND INSTALLATION >

[FRONT FINAL DRIVE: R180A]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

REMOVAL AND INSTALLATION

FRONT OIL SEAL

Removal and Installation

INFOID:0000000009479776

NOTE:

When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-

ing.

REMOVAL

1. Remove the drive shafts from the front final drive assembly. Refer to

FAX-6, "Removal and Installation"

.

2. Remove the front propeller shaft from the front final drive assembly. Refer to

DLN-134, "Removal and

Installation"

.

3. Measure the total preload torque. Refer to

DLN-193, "Disassembly and Assembly"

.

NOTE:

Record the total preload torque measurement.

4. Remove the drive pinion lock nut using suitable tool.
5. Put matching marks on the companion flange and drive pinion

using paint.

CAUTION:

Use paint to make the matching marks. Do not damage the

companion flange or drive pinion.

6. Remove the companion flange using suitable tool.

7. Remove the front oil seal using Tool.

INSTALLATION

BDIA0001E

LDIA0171E

Tool number

: ST33290001 (J-34286)

LDIA0172E

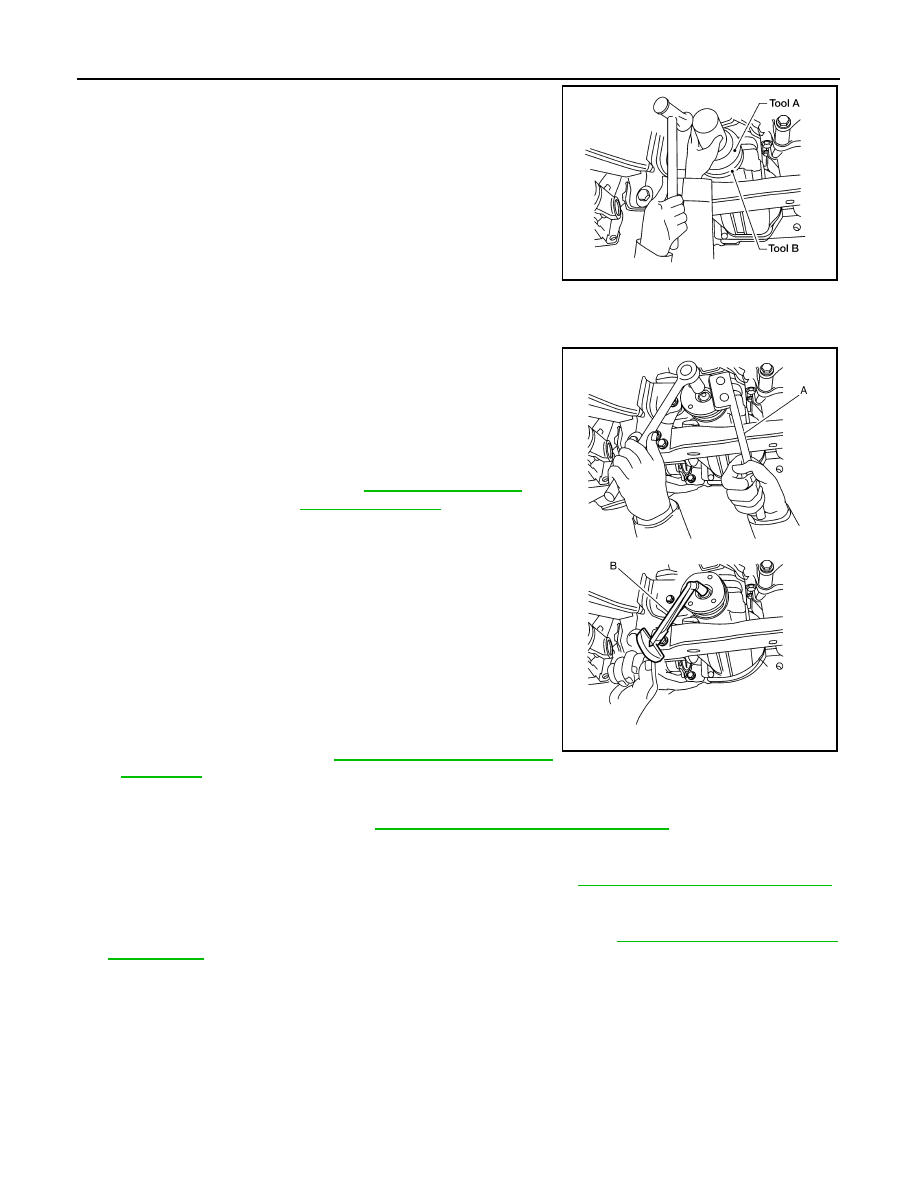

DLN-188

< REMOVAL AND INSTALLATION >

[FRONT FINAL DRIVE: R180A]

FRONT OIL SEAL

1. Apply multi-purpose grease to the lips and differential gear oil to

the circumference of the new front oil seal. Then drive the new

front oil seal in evenly until it becomes flush with the gear carrier

using Tools.

CAUTION:

• Do not reuse front oil seal.

• Do not incline the new front oil seal when installing.

• Apply multi-purpose grease to the lips and differential

gear oil to the circumference of the new front oil seal.

2. Install the companion flange to the drive pinion while aligning the matching marks.
3. Apply anti-corrosive oil to the threads of the drive pinion and the

seating surface of the new drive pinion lock nut. Then adjust the

drive pinion lock nut tightening torque using suitable tool (A),

and check the total preload torque using Tool (B).

• The total preload torque should be within the total preload

torque specification. When not replacing the collapsible

spacer, it should also be equal to the measurement taken dur-

ing removal plus an additional 0.56 N·m (0.06 Kg-m, 5 in-lb).

• If the total preload torque is low, tighten the drive pinion lock

nut in 6.8 N·m (0.69 Kg-m, 5ft-lb) increments until the total pre-

load torque is met.

CAUTION:

• Do not reuse drive pinion lock nut.

• Apply anti-corrosive oil to the threads of the drive pinion

and the seating surface of the new drive pinion lock nut.

• Adjust the drive pinion lock nut tightening torque to the

lower limit first. Do not exceed the drive pinion lock nut

specified torque. Refer to

DLN-193, "Disassembly and

Assembly"

.

• Do not loosen drive pinion lock nut to adjust the total preload torque. If the drive pinion lock nut

torque or the total preload torque exceeds the specifications, replace the collapsible spacer and

tighten it again to adjust. Refer to

DLN-193, "Disassembly and Assembly"

.

• After adjustment, rotate drive pinion back and forth 2 to 3 times to check for unusual noise, rota-

tion malfunction, and other malfunctions.

4. Install new side oil seals into the front final drive assembly. Refer to

DLN-189, "Removal and Installation"

.

5. Installation of the remaining components is in the reverse order of removal.

CAUTION:

Check the differential gear oil level and refill as necessary. Refer to

DLN-186, "Checking Differen-

tial Gear Oil"

.

Tool number

(A): ST30720000 (J-25405)
(B): ST27863000 ( — )

WDIA0147E

Tool number

(B): ST3127S000 (J-25765-A)

Total preload torque: Refer to

DLN-193, "Disassem-

bly and Assembly"

.

WDIA0381E

SIDE OIL SEAL

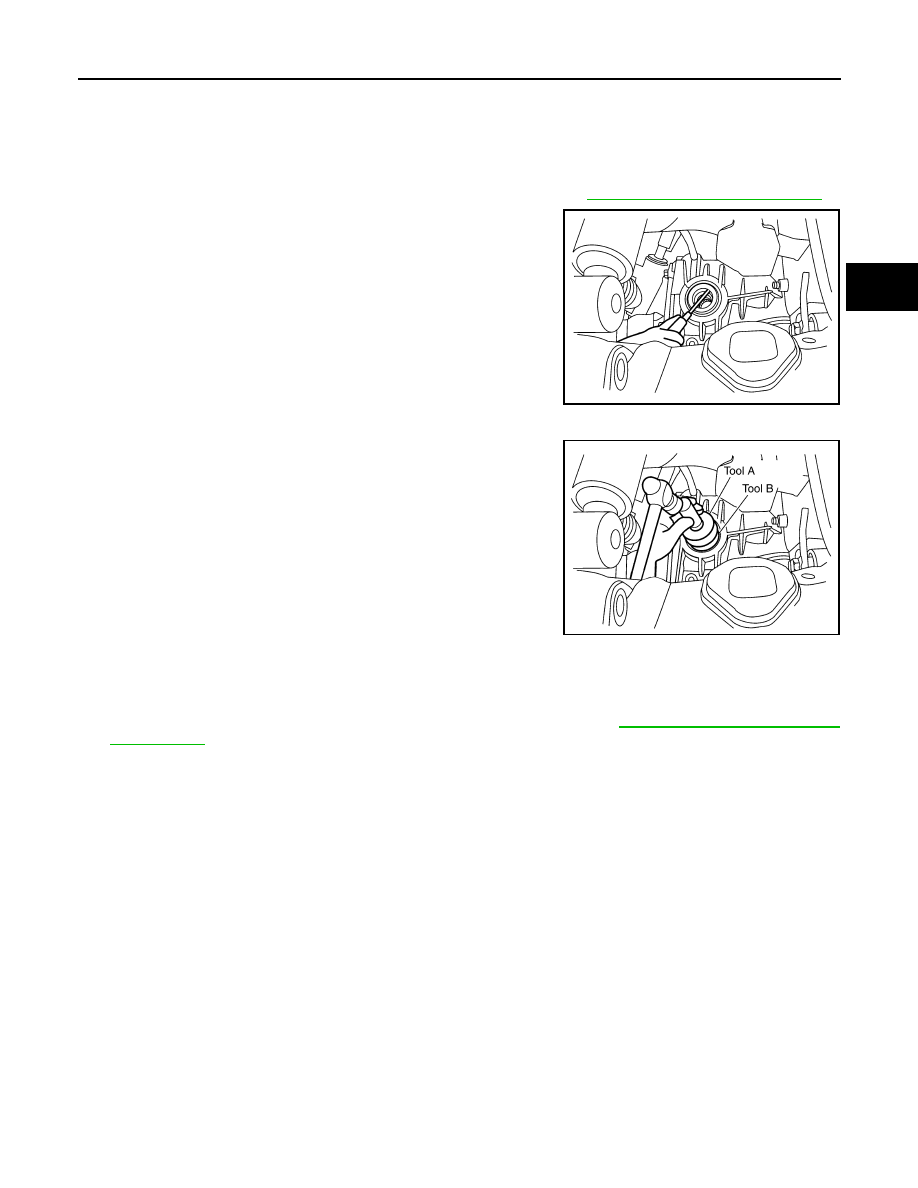

DLN-189

< REMOVAL AND INSTALLATION >

[FRONT FINAL DRIVE: R180A]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

SIDE OIL SEAL

Removal and Installation

INFOID:0000000009479777

REMOVAL

1. Remove the drive shafts from the front final drive assembly. Refer to

FAX-6, "Removal and Installation"

.

2. Remove the side oil seal using suitable tool.

CAUTION:

Do not reuse the side oil seal.

INSTALLATION

1. Apply multi-purpose grease to the lips and differential gear oil to

the circumference of the new side oil seal. Then drive the new

side oil seal in evenly until it becomes flush with the gear carrier

using Tools.

CAUTION:

• Do not reuse side oil seal.

• Do not incline the new side oil seal when installing.

• Apply multi-purpose grease to the lips and differential

gear oil to the circumference of the new side oil seal.

2. Installation of the remaining components is in the reverse order of removal.

CAUTION:

Check the differential gear oil level and refill as necessary. Refer to

DLN-186, "Checking Differen-

tial Gear Oil"

.

LDIA0173E

Tool number

(A): ST30720000 (J-25405)
(B): ST27863000 ( — )

PDIA0826E
