Nissan Frontier. Manual - part 311





DLN-146

< UNIT DISASSEMBLY AND ASSEMBLY >

[PROPELLER SHAFT: 2S1330]

PROPELLER SHAFT

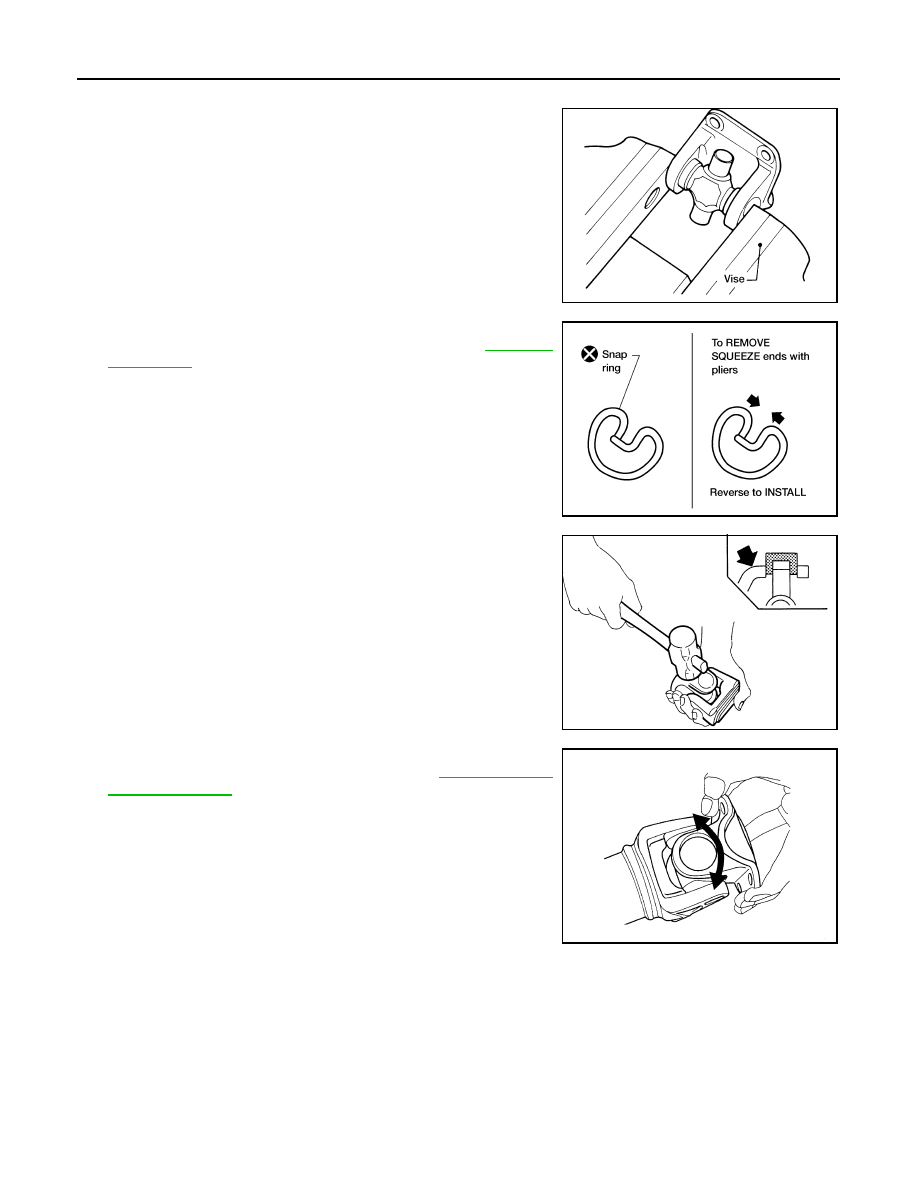

Journal

1. Assemble the journal bearings. Apply multipurpose grease on

the bearing inner surface.

NOTE:

During assembly, use caution so that the needle bearings do not

fall down.

2. Select new snap rings that will provide the specified play in an

axial direction of the journal, and install them. Refer to

DLN-147,

"Snap Ring"

.

CAUTION:

Do not reuse snap rings

NOTE:

Select snap rings with a difference in thickness at both sides

within 0.02 mm (0.0008 in).

3. Adjust the thrust clearance between the bearing and snap ring

to zero by tapping the yoke.

4. Make sure that the journal moves smoothly and is below the

propeller joint flex effort specification. Refer to

DLN-147, "Gen-

eral Specification"

.

WPD019

APD012

SPD732

LDIA0119E

SERVICE DATA AND SPECIFICATIONS (SDS)

DLN-147

< SERVICE DATA AND SPECIFICATIONS (SDS)

[PROPELLER SHAFT: 2S1330]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specification

INFOID:0000000009479739

Snap Ring

INFOID:0000000009479740

Unit: mm (in)

*: Always check with the Parts Department for the latest parts information.

Applied model

VQ40DE

4WD Short bed

Transmission type

6M/T

5A/T

Grade

S,SV, PRO-4X

S, SV, SL

PRO-4X

Number of pinion joints

2

Coupling method with rear final drive

Flange type

Coupling method with transmission

Sleeve type

Shaft length (spider to spider)

1266.8

± 1.5 mm (49.87 ± 0.06 in) 1280.8 ± 1.5 mm

(50.43

± 0.06 in)

1266.8

±   1.5 mm

(49.87

± 0.06 in)

Shaft outer diameter

102.5 + 0.17/ -0.25 mm (4.00

± 0.01 in)

Journal axial play

0.02 mm (0.0008 in) or less

Propeller shaft runout limit

1.02 mm (0.04 in) or less

Propeller shaft joint flex effort

2.26 N·m (0.23 kg-m, 20 in-lb) or less

Thickness

Color

Part Number*

1.600 - 1.638 (0.0630 - 0.0645)

Black

37146-EA500

1.549 - 1.588 (0.0610 - 0.0625)

Black

37147-EA500

1.524 - 1.562 (0.0600 - 0.0615)

Black

37148-EA500

1.499 - 1.537 (0.0590 - 0.0605)

Black

37149-EA500

DLN-148

< PRECAUTION >

[PROPELLER SHAFT: 3S1310]

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000010118353

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS

system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front

air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.

Information necessary to service the system safely is included in the SR and SB section of this Service Man-

ual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.

PREPARATION

DLN-149

< PREPARATION >

[PROPELLER SHAFT: 3S1310]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

PREPARATION

PREPARATION

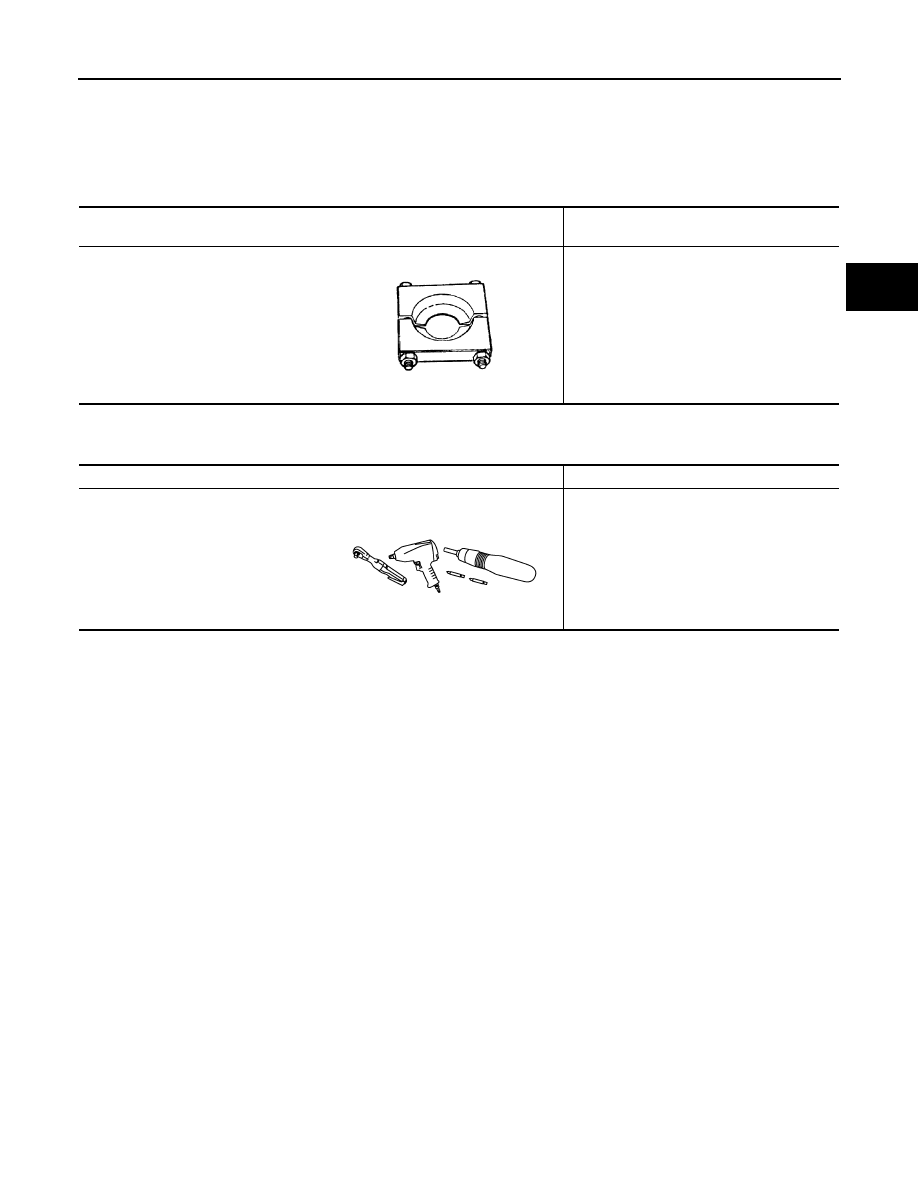

Special Service Tools

INFOID:0000000009479742

Commercial Service Tool

INFOID:0000000009479743

Tool number
Tool name

Description

205-D002
Bearing splitter

Removing center support bearing assembly

ZZA0700D

Tool name

Description

Power tool

Loosening nuts, screws and bolts

PIIB1407E
