DLN-142

< BASIC INSPECTION >

[PROPELLER SHAFT: 2S1330]

PROPELLER SHAFT ASSEMBLY

BASIC INSPECTION

PROPELLER SHAFT ASSEMBLY

Inspection

INFOID:0000000009479736

APPEARANCE AND NOISE INSPECTION

• Check the propeller shaft tube surface for dents or cracks. If damaged, replace the propeller shaft assembly.

• Check the bearings for noise and damage. Repair or replace the bearings as necessary.

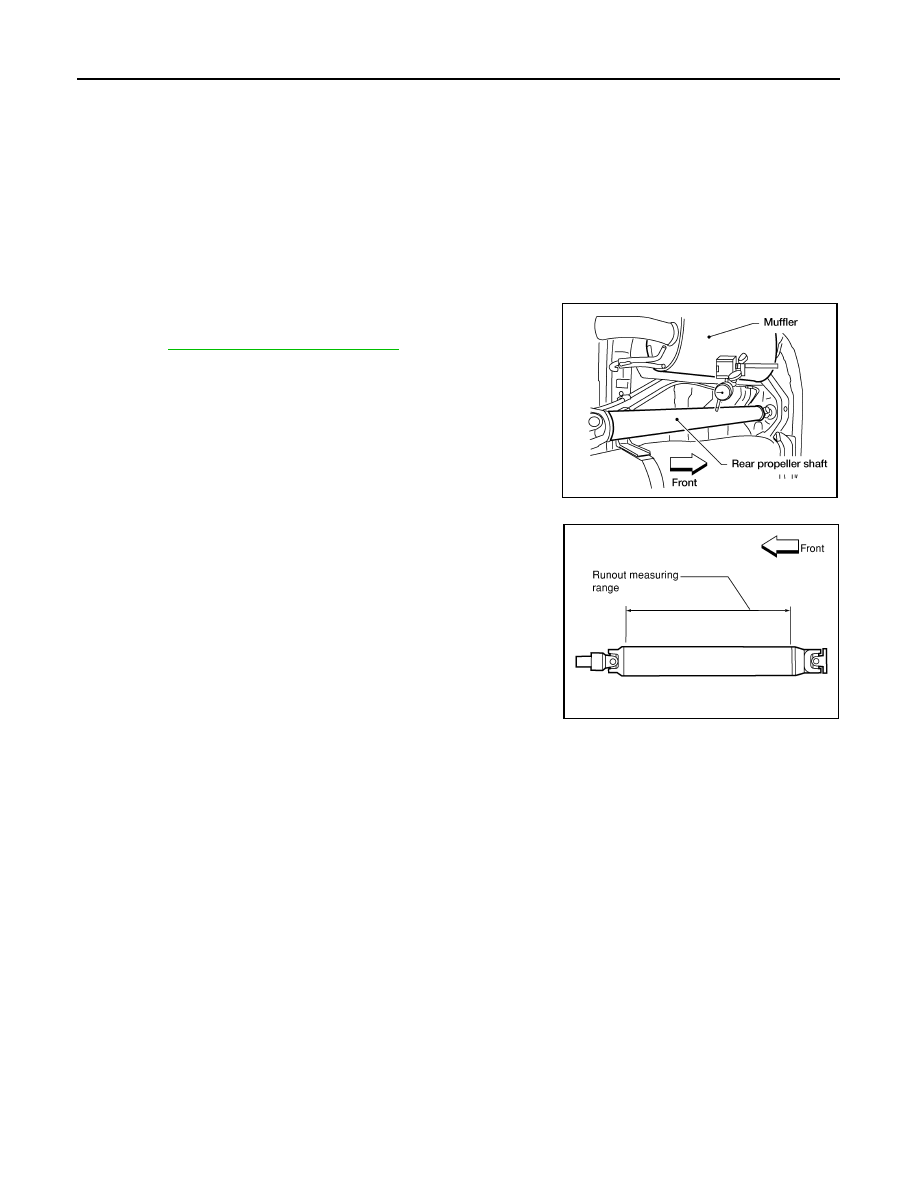

PROPELLER SHAFT VIBRATION

If a vibration is present at high speed, inspect the propeller shaft runout first.
1. Measure the runout of the propeller shaft tube at several points

by rotating the final drive companion flange with your hands.

Refer to

DLN-147, "General Specification"

.

2. If the runout exceeds specifications, disconnect the propeller shaft at the final drive companion flange;

then rotate the companion flange 90

°, 180° and 270° and reconnect the propeller shaft.

3. Check the runout again. If the runout still exceeds specifications, replace the propeller shaft assembly.
4. After installation, check for vibration by driving vehicle.

LDIA0161E

LDIA0121E

PROPELLER SHAFT

DLN-143

< UNIT REMOVAL AND INSTALLATION >

[PROPELLER SHAFT: 2S1330]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

UNIT REMOVAL AND INSTALLATION

PROPELLER SHAFT

Removal and Installation

INFOID:0000000009479737

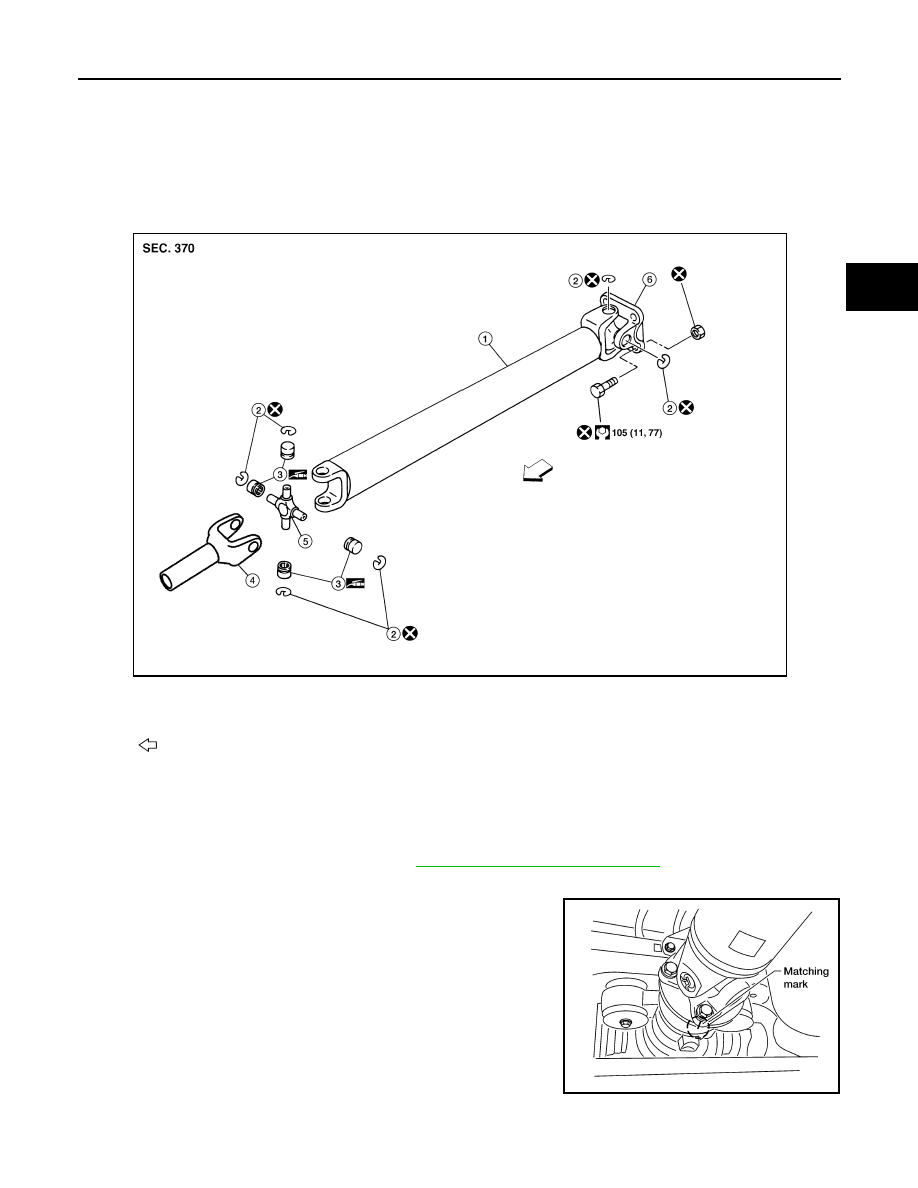

COMPONENTS

NOTE:

When removing components such as hoses, tubes/lines, etc., cap or plug openings to prevent fluid from spill-

ing.

REMOVAL

1. Remove under cover (if equipped). Refer to

EXT-15, "Removal and Installation"

.

2. Put transmission in neutral and release the parking brake.
3. Put matching marks on the rear propeller shaft flange yoke and

the rear final drive companion flange as shown.

CAUTION:

For matching marks, use paint. Do not damage the rear pro-

peller shaft flange yoke or the companion flange.

4. Remove the bolts, then remove the propeller shaft from the rear

final drive and transfer.

INSPECTION

1.

Propeller shaft tube

2.

Snap ring

3.

Journal bearing

4.

Sleeve yoke

5.

Journal

6.

Flange yoke

Front

AWBIA0800GB

WDIA0049E

DLN-144

< UNIT REMOVAL AND INSTALLATION >

[PROPELLER SHAFT: 2S1330]

PROPELLER SHAFT

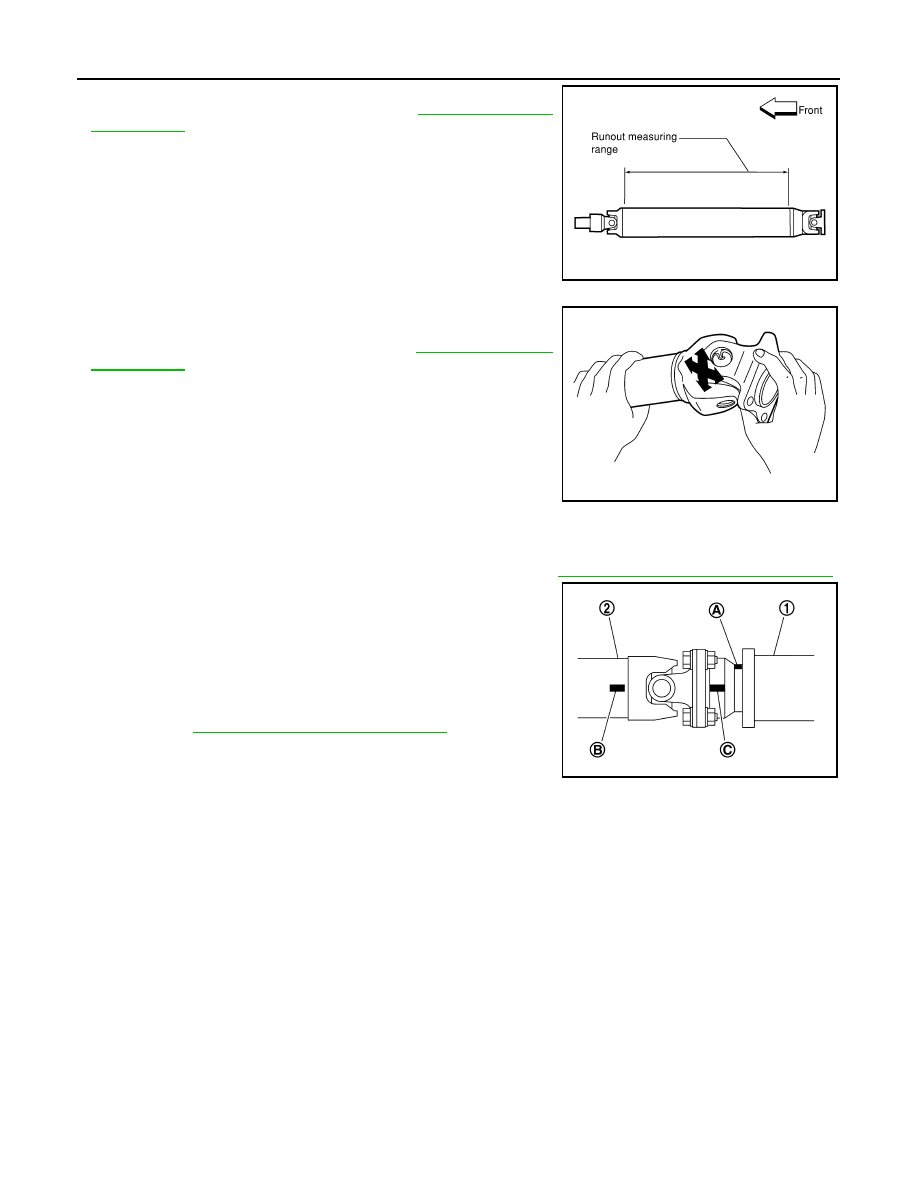

• Inspect the propeller shaft runout. If runout exceeds the limit,

replace the propeller shaft assembly. Refer to

DLN-147, "General

Specification"

.

• While holding the flange yoke on one side, check axial play of the

joint as shown. If the journal axial play exceeds the specification,

repair or replace the journal parts. Refer to

DLN-147, "General

Specification"

.

• Check the propeller shaft tube for dents or cracks. If damage is

detected, replace the propeller shaft assembly.

INSTALLATION

Installation is in the reverse order of removal.

• After installation, check for vibration by driving the vehicle. Refer to

DLN-141, "NVH Troubleshooting Chart"

.

• If propeller shaft assembly or final drive assembly has been

replaced, connect them as follows:

- Face companion flange mark (A) of the final drive (1) upward. With

the mark (A) faced upward, couple the propeller shaft and the final

drive so that the matching mark (B) of the propeller shaft (2) can be

positioned as closest as possible with the matching mark (C) of the

final drive companion flange.

- Tighten propeller shaft and final drive bolts and nuts to specifica-

tions. Refer to

DLN-143, "Removal and Installation"

.

CAUTION:

Do not reuse the bolts and nuts. Always install new ones.

LDIA0121E

LDIA0117E

PDIA0892J

PROPELLER SHAFT

DLN-145

< UNIT DISASSEMBLY AND ASSEMBLY >

[PROPELLER SHAFT: 2S1330]

C

E

F

G

H

I

J

K

L

M

A

B

DLN

N

O

P

UNIT DISASSEMBLY AND ASSEMBLY

PROPELLER SHAFT

Disassembly and Assembly

INFOID:0000000009479738

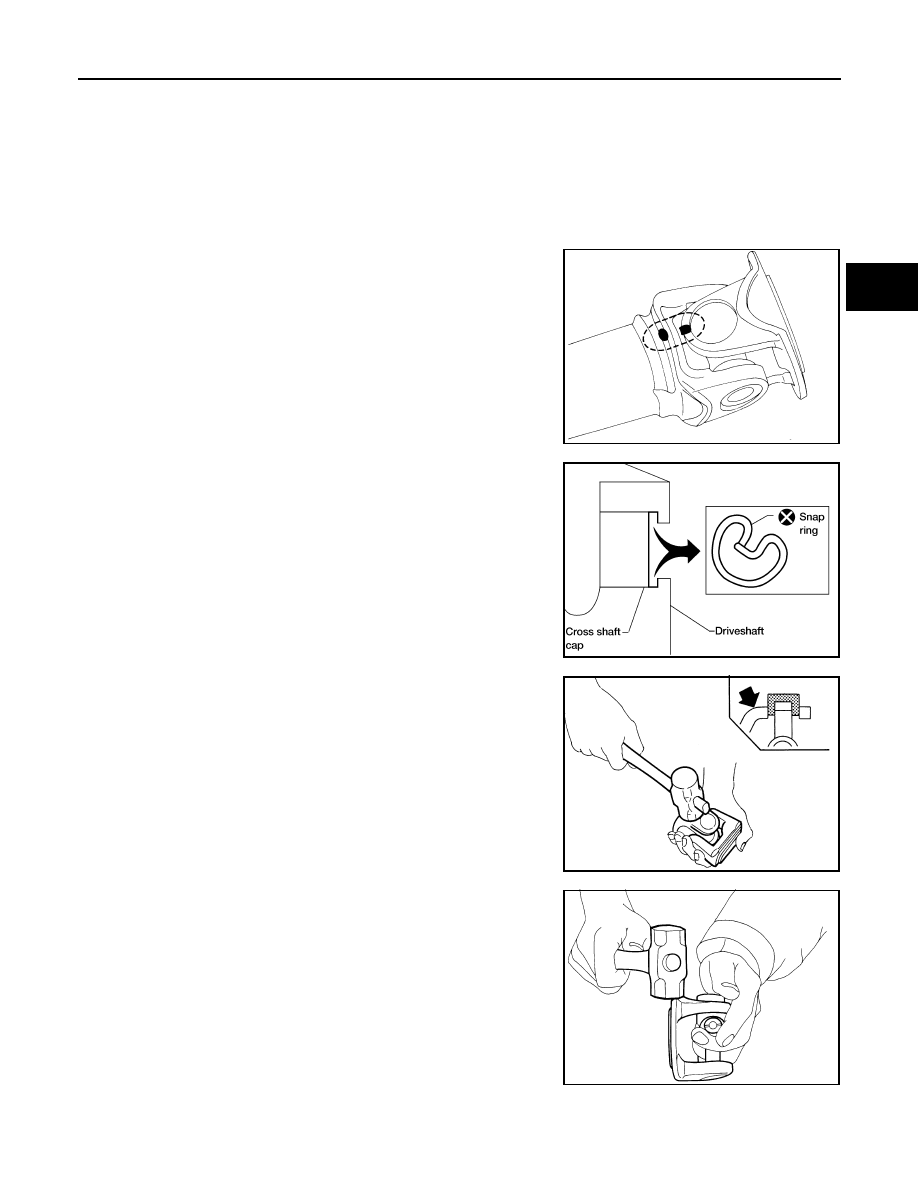

DISASSEMBLY

Journal

1. Put matching marks on the rear propeller shaft and flange yoke

as shown.

CAUTION:

For matching marks use paint. Do not damage the rear pro-

peller shaft or flange yoke.

2. Remove the snap rings.

CAUTION:

Do not reuse snap rings.

3. Push out and remove the journal bearings by lightly tapping the

flange yoke with a hammer, taking care not to damage the jour-

nal or flange yoke hole.

NOTE:

Put marks on the disassembled parts so that they can be rein-

stalled in their original positions from which they were removed.

4. Push out and remove the remaining journal bearings at the

opposite side by lightly tapping the flange yoke with a hammer,

taking care not to damage the journal or flange yoke hole.

NOTE:

Put marks on the disassembled parts so that they can be rein-

stalled in their original positions from which they were removed.

ASSEMBLY

SPD128

APD011

SPD732

SPD131
