SERVICE DATA AND SPECIFICATIONS (SDS)
CL-25
< SERVICE DATA AND SPECIFICATIONS (SDS)
C
E
F
G
H
I
J
K
L
M
A
B
CL
N
O
P
SERVICE DATA AND SPECIFICATIONS (SDS)
SERVICE DATA AND SPECIFICATIONS (SDS)

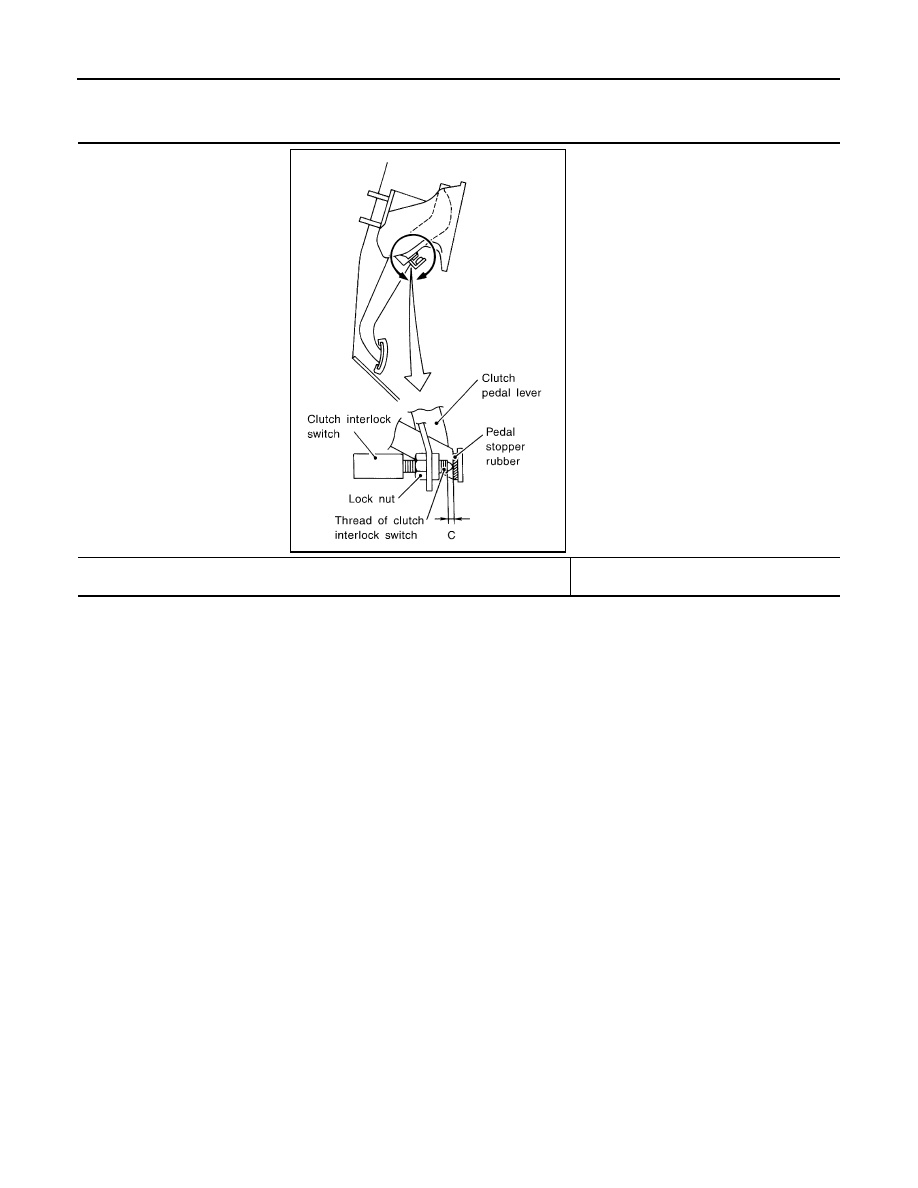

Clutch Control System
INFOID:0000000009478229
Clutch Master Cylinder
INFOID:0000000009478230
Unit: mm (in)
Clutch Operating Cylinder
INFOID:0000000009478231
Unit: mm (in)
Clutch Disc
INFOID:0000000009478232
Unit: mm (in)
Clutch Cover
INFOID:0000000009478233
Unit: mm (in)
Type of clutch control
Hydraulic
Inner diameter
15.87 (5/8)
Inner diameter
19.05 (3/4)
Engine model
QR25DE
VQ40DE
Model
240
260
Transmission Model
5 M/T
6 M/T
Facing size (Outer dia.
× inner dia. × thickness)
240
× 160 × 3.5 (9.45 × 6.30 × 0.138)
260
× 190 × 3.2 (10.24 × 7.48 × 0.126)
Wear limit (depth to rivet head)
0.3 (0.012)
Runout limit/diameter of the area to be measured
0.7 (0.028) or less/230 (9.06) dia.
1.0 (0.039) or less/250 (9.84) dia.
Maximum backlash of spline (at outer disc edge)
1.0 (0.039)
Engine model
QR25DE
VQ40DE
Transmission Model
5 M/T
6 M/T
Set-load
5890 N (600 kg, 1324 lb)
8340 N (850 kg, 1875 lb)
Diaphragm spring lever height
37.0 - 39.0 (1.457 - 1.535)
44.0 - 46.0 (1.732 - 1.811)
Uneven limit of diaphragm spring toe height
0.7 (0.028)
