PREPARATION

CL-5

< PREPARATION >

C

E

F

G

H

I

J

K

L

M

A

B

CL

N

O

P

PREPARATION

PREPARATION

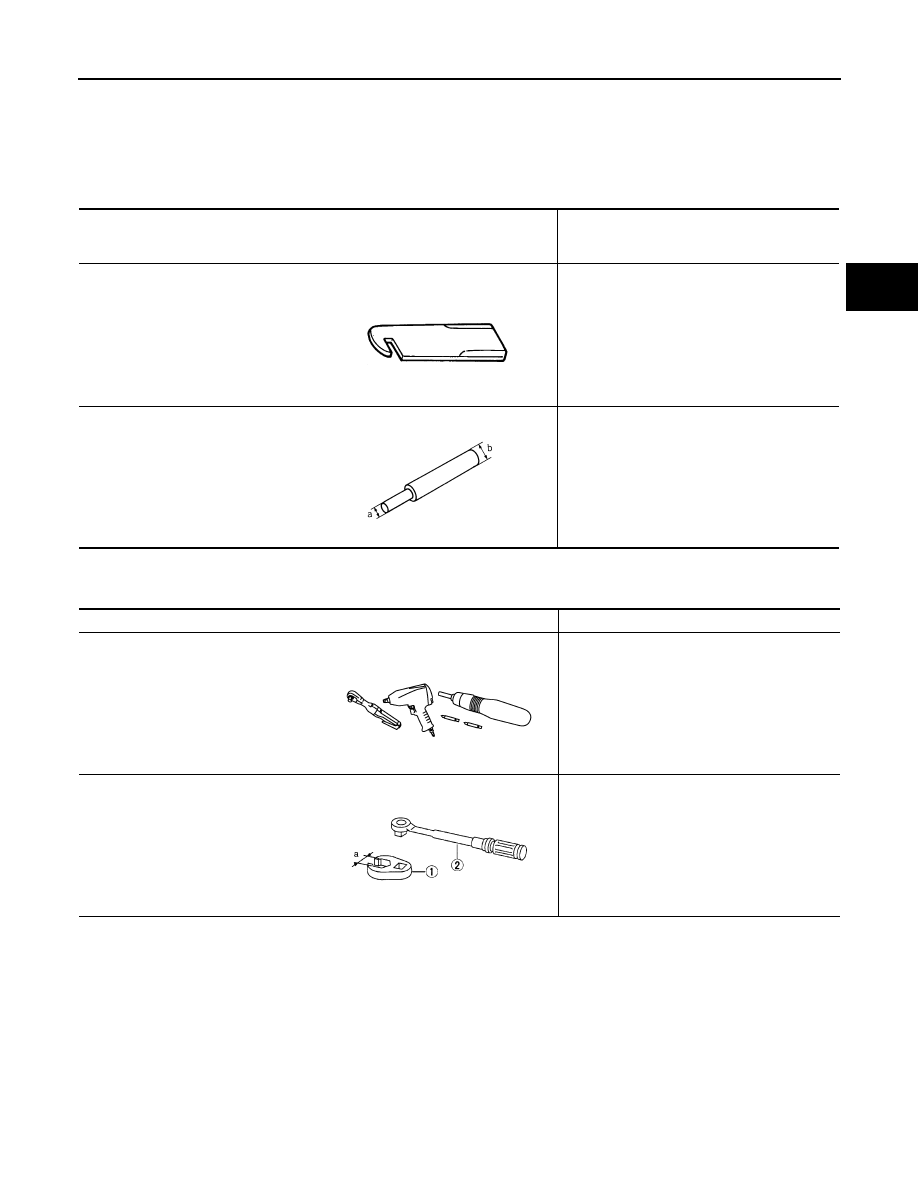

Special Service Tool

INFOID:0000000009478201

The actual shape of the tools may differ from those illustrated here.

Commercial Service Tool

INFOID:0000000009478202

Tool number
(TechMate No.)
Tool name

Description

ST20050240
( — )
Diaphragm adjusting wrench

Adjusting unevenness of diaphragm spring of
clutch cover

ST20630000
(J-26366)
Clutch aligning bar

Installing clutch disc
a: 15.8 mm (0.622 in) dia.
b: 22.9 mm (0.902 in) dia.

ZZA0508D

ZZA1178D

Tool name

Description

Power tool

Loosening nuts, screws and bolts

1. Flare nut crowfoot
2. Torque wrench

Removing and installing clutch piping
a: 10 mm (0.39 in)

PIIB1407E

S-NT360

CL-6

< PREPARATION >

PREPARATION

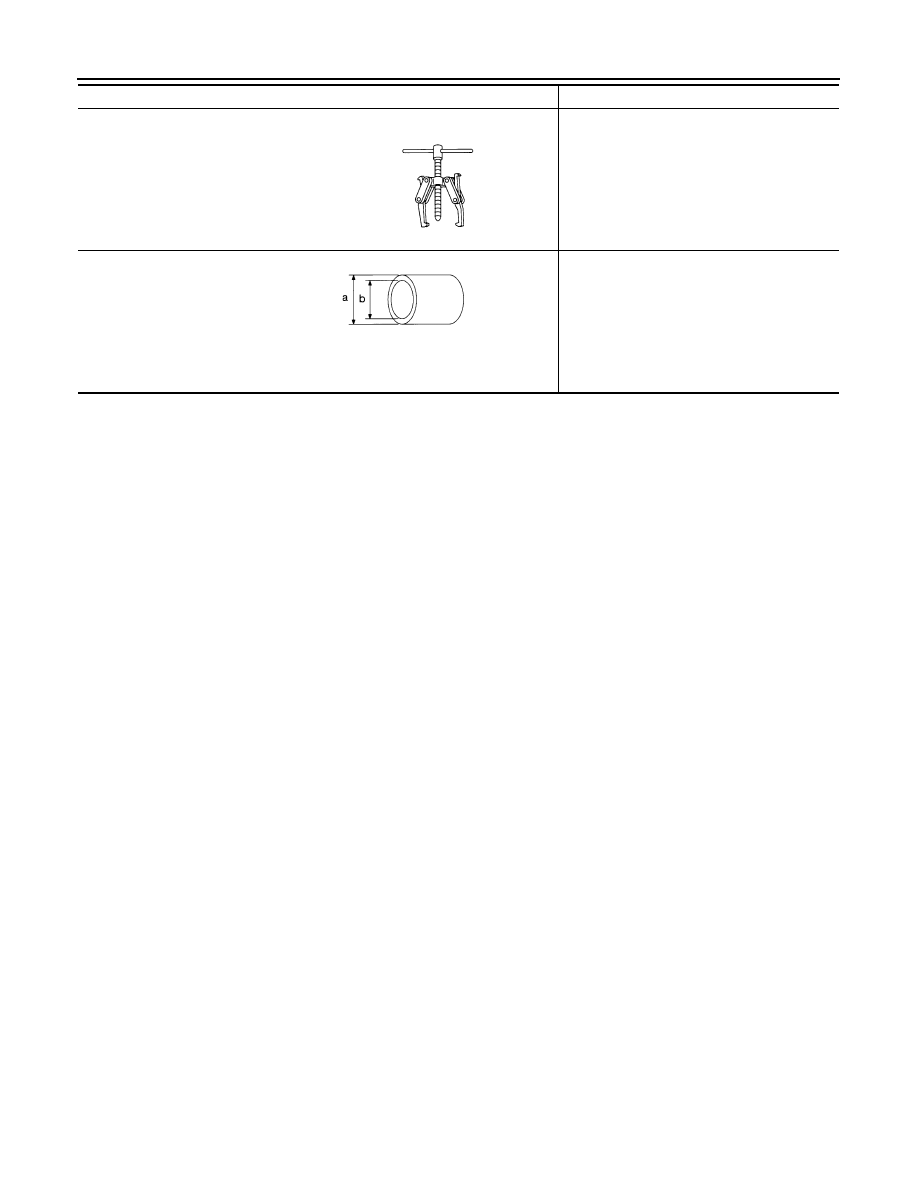

Bearing puller

Removing release bearing

Bearing drift

Installing release bearing
a: 52 mm (2.05 in) dia.
b: 45 mm (1.77 in) dia.

Tool name

Description

NT077

NT474

CLUTCH PEDAL

CL-7

< PERIODIC MAINTENANCE >

C

E

F

G

H

I

J

K

L

M

A

B

CL

N

O

P

PERIODIC MAINTENANCE

CLUTCH PEDAL

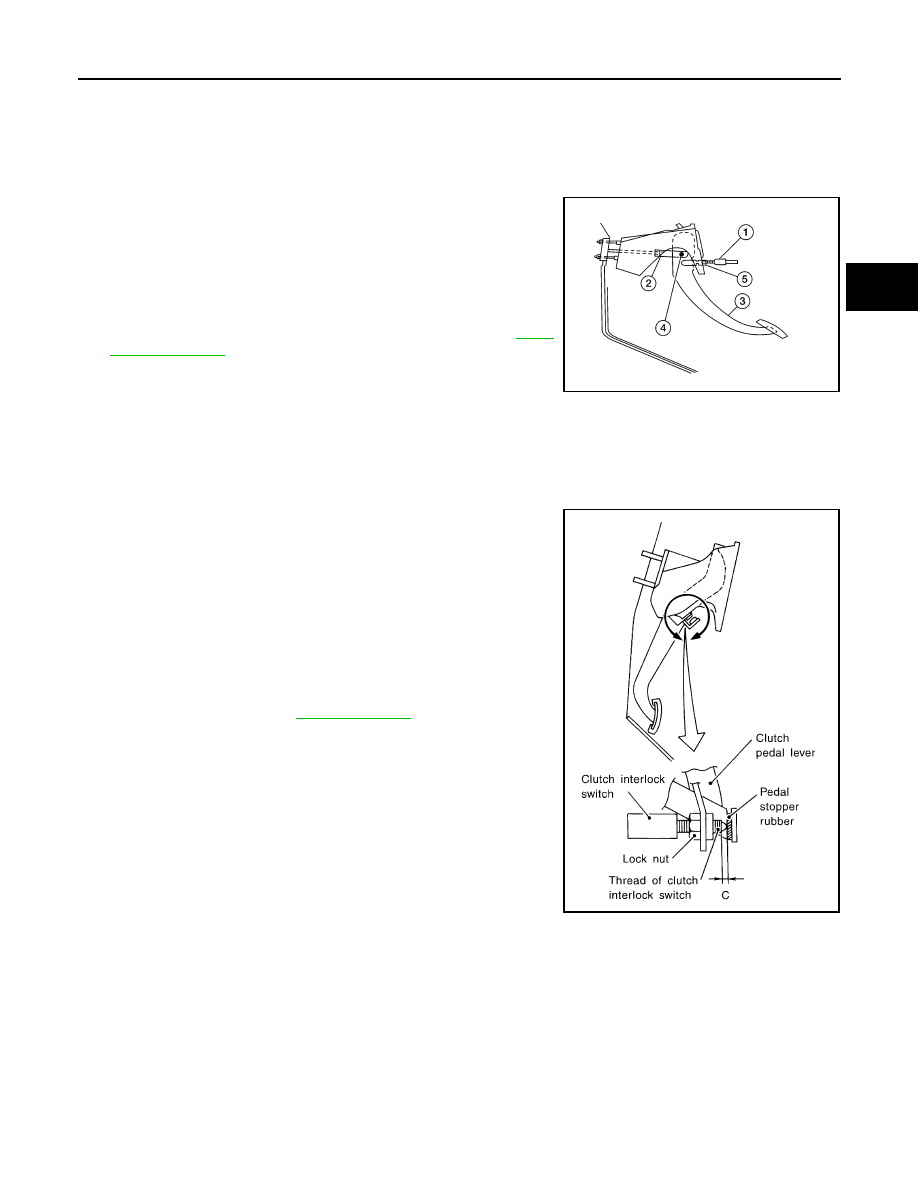

On-Vehicle Inspection and Adjustment

INFOID:0000000009478203

1. Check to see if the clevis pin (4) floats freely in the bore of the

clutch pedal. It should not be bound by the clevis (2) or clutch

pedal.

a. If the clevis pin (4) is not free, check that the ASCD clutch switch

(if equipped) (1) is not applying pressure to the clutch pedal

causing the clevis pin (4) to bind. To adjust, loosen the lock nut

and turn the ASCD clutch switch (if equipped) (1).

b. Tighten the lock nut(5) to the specified torque. Refer to

CL-9,

"Exploded View"

.

c. Verify that the clevis pin (4) floats in the bore of the clutch pedal

(3). It should not be bound by the clutch pedal.

d. If the clevis pin (4) is still not free, remove the clevis pin and check for deformation or damage. Replace

clevis pin if necessary. Leave pin (4) removed for step 2.

2. Check clutch pedal stroke for free range of movement.
a. With the clevis pin removed, manually move the clutch pedal up and down to determine if it moves freely.
b. If any sticking is noted, replace the assembly.
3. Adjust clearance (C) while depressing clutch pedal fully. (With

clutch interlock switch)

4. Check clutch hydraulic and system components (clutch master

cylinder, clutch operating cylinder, clutch withdrawal lever and

clutch release bearing) for sticking or binding.

a. If any sticking or binding noted, repair or replace related parts as

necessary.

b. If hydraulic system repair was necessary, bleed the clutch

hydraulic system. Refer to

CL-8, "Bleeding"

.

Clearance (C)

: 0.1 - 1.0 mm (0.004 - 0.039 in)

AWDIA1130ZZ

SCL800

CL-8

< PERIODIC MAINTENANCE >

CLUTCH FLUID

CLUTCH FLUID

Bleeding

INFOID:0000000009478204

WARNING:

Brake and clutch fluid is poison and should be stored carefully in marked containers out of the reach

of children.

CAUTION:

• Use only new fluid from a sealed container.

• Clean the filler cap before removing (if applicable).

• Do not spill clutch fluid onto painted surfaces. If it spills, wipe up immediately and wash the affected

area with water.

NOTE:

Monitor the fluid level in the reservoir tank to make sure it does not empty.
1. Top off reservoir with new recommended brake fluid. Refer to

MA-16, "FOR USA AND CANADA : Fluids

and Lubricants"

.

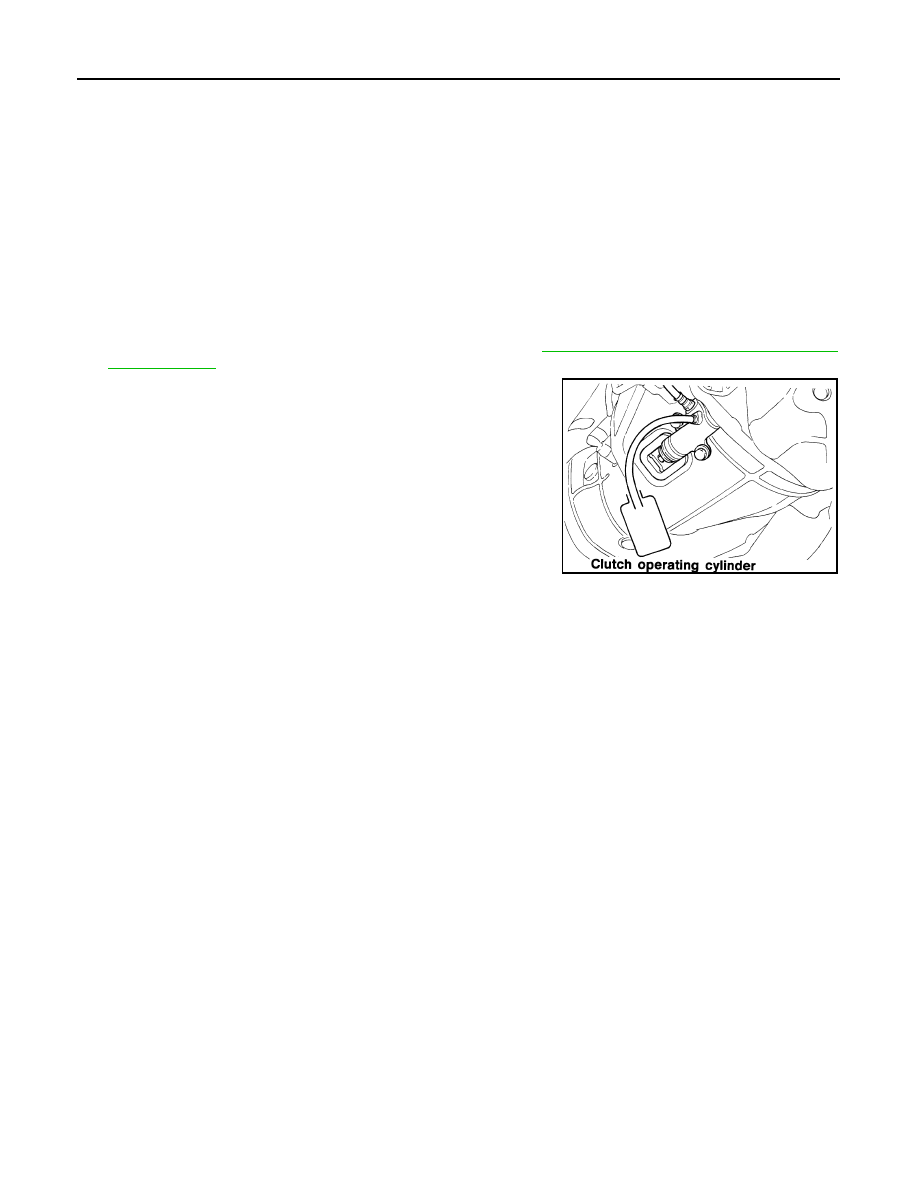

2. Connect a transparent vinyl tube and container to the air bleeder

valve on the clutch operating cylinder.

3. Fully depress the clutch pedal several times.
4. With the clutch pedal depressed, open the bleeder valve to

release the air.

5. Close the bleeder valve.
6. Repeat steps 3 to 5 until clear brake fluid comes out of the air

bleeder valve.

7. Tighten the air bleeder to the specified torque.

Air bleeder

7.9 N·m (0.81 kg-m, 70 in-lb)

SCL203-A
