Nissan Frontier. Manual - part 154

BRC-144

< SYSTEM DESCRIPTION >

[TYPE 2]

EBD

EBD

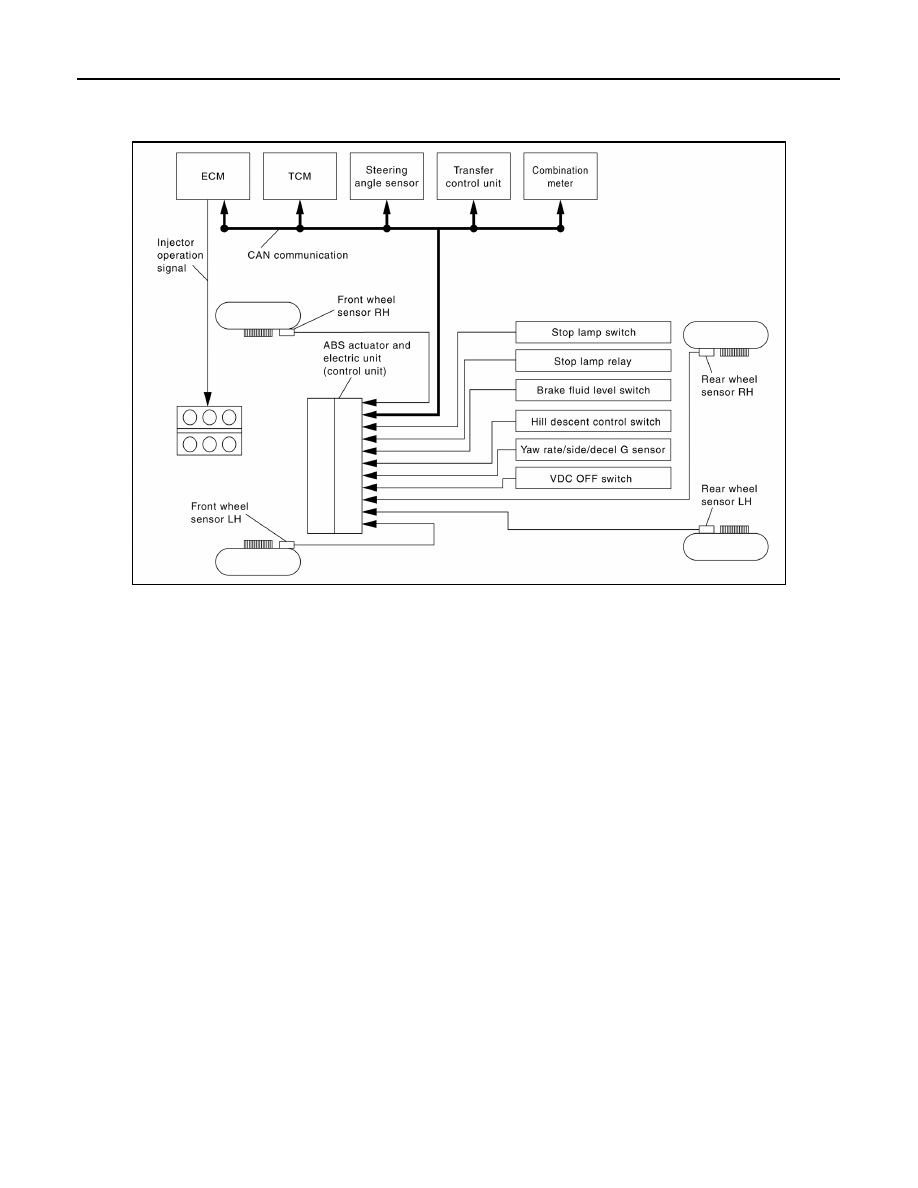

System Diagram

INFOID:0000000009479415

System Description

INFOID:0000000009479416

• Electric Brake force Distribution is a following function. ABS actuator and electric unit (control unit) detects

subtle slippages between the front and rear wheels during braking. Then it electronically controls the rear

braking force (brake fluid pressure) to reduce rear wheel slippage. Accordingly, it improves vehicle stability.

• Electrical system diagnosis by CONSULT is available.

AWFIA0680GB

EBD

BRC-145

< SYSTEM DESCRIPTION >

[TYPE 2]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

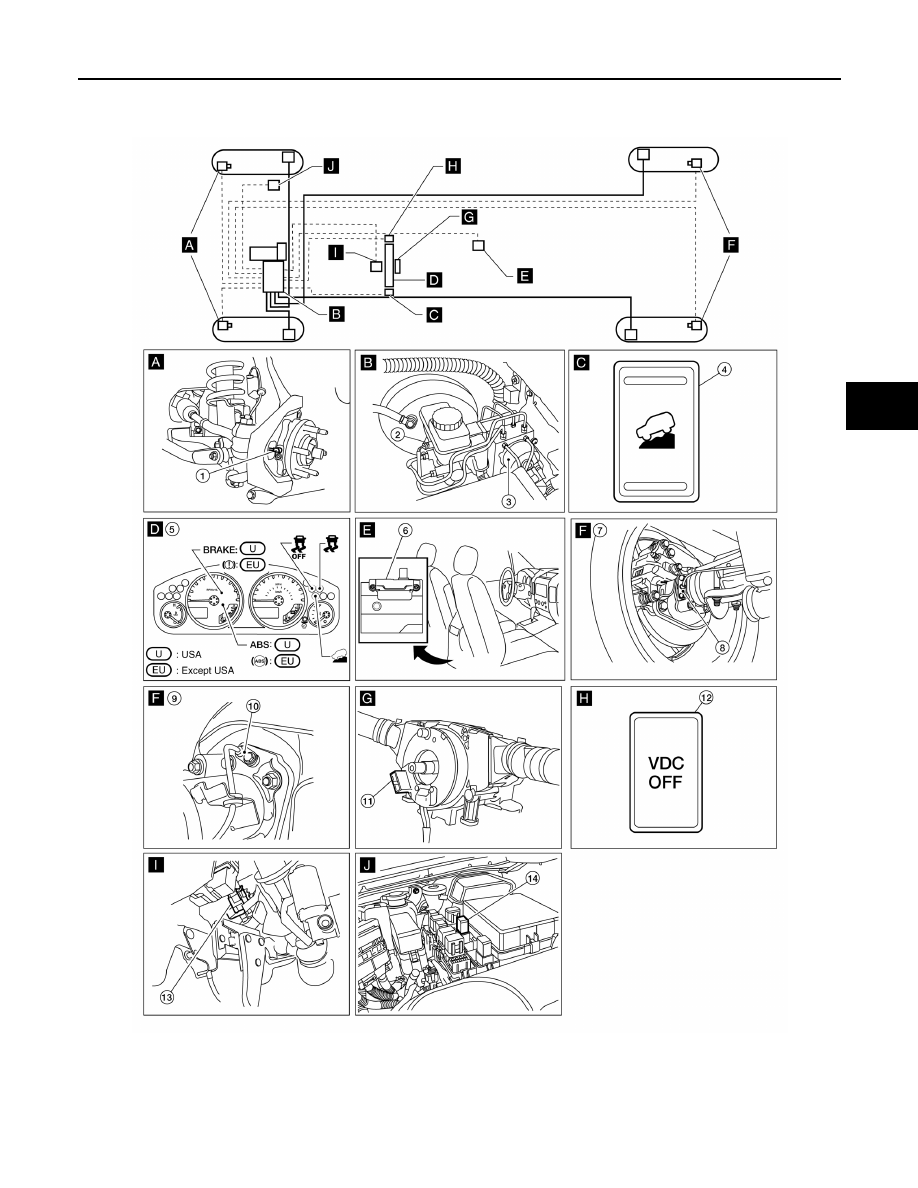

Component Parts Location

INFOID:0000000009479417

AWFIA0842GB

1.

Front wheel sensor LH E18
Front wheel sensor RH E117

2.

Brake fluid level switch E21

3.

ABS actuator and electric unit (control unit)
E127

4.

Hill descent control switch M155 5.

Combination meter M24

6.

Yaw rate/side/decel G sensor B73

7.

C200 rear axle

8.

Rear wheel sensor LH C11
Rear wheel sensor RH C10

9.

M226 rear axle

BRC-146

< SYSTEM DESCRIPTION >

[TYPE 2]

EBD

Component Description

INFOID:0000000009479418

10. Rear wheel sensor LH C11

Rear wheel sensor RH C10

11.

Steering angle sensor (behind spiral ca-
ble) M47
(Steering wheel removed for clarity)

12. VDC OFF switch M154

13. Stop lamp switch E39

14.

Stop lamp relay E12

Component parts

Reference

ABS actuator and electric unit (control unit)

Pump

BRC-164, "Description"

Motor

Actuator relay

BRC-180, "Description"

Solenoid valve

BRC-173, "Description"

VDC switch-over valve
(CV1, CV2, SV1, SV2)

BRC-191, "Description"

Wheel sensor

BRC-168, "Description"

Yaw rate/side/decel G sensor

BRC-166, "Description"

Stop lamp switch

BRC-171, "Description"

Steering angle sensor

BRC-182, "Description"

Brake fluid level switch

BRC-185, "Description"

Hill descent control switch

BRC-196, "Description"

VDC OFF switch

BRC-198, "Description"

ABS warning lamp

BRC-200, "Description"

Brake warning lamp

BRC-201, "Description"

Hill descent control indicator lamp

BRC-202, "Description"

VDC OFF indicator lamp

BRC-203, "Description"

SLIP indicator lamp

BRC-205, "Description"

DIAGNOSIS SYSTEM [ABS ACTUATOR AND ELECTRIC UNIT (CONTROL

UNIT)]

BRC-147

< SYSTEM DESCRIPTION >

[TYPE 2]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

DIAGNOSIS SYSTEM [ABS ACTUATOR AND ELECTRIC UNIT (CONTROL
UNIT)]

CONSULT Function (ABS)

INFOID:0000000009479419

FUNCTION

CONSULT can display each diagnostic item using the following direct diagnostic modes.

SELF DIAGNOSTIC RESULT

Operation Procedure

1. Before performing the self-diagnosis, start engine and drive vehicle at 30 km/h (19 MPH) or more for

approximately 1 minute.

How to Erase Self-diagnosis Results

1. After erasing DTC memory, start engine and drive vehicle at 30 km/h (19 MPH) or more for approximately

1 minute as the final inspection, and make sure that the ABS warning lamp, VDC OFF indicator lamp,

SLIP indicator lamp and brake warning lamp turn OFF.

CAUTION:

If memory cannot be erased, perform applicable diagnosis.

NOTE:

• When the wheel sensor malfunctions, after inspecting the wheel sensor system, the ABS warning lamp,

VDC OFF indicator lamp, SLIP indicator lamp and brake warning lamp will not turn OFF even when the

system is normal unless the vehicle is driving at approximately 30 km/h (19 MPH) or more for approxi-

mately 1 minute.

• Brake warning lamp will turn ON in case of parking brake operation (when switch is ON) or of brake fluid

level switch operation (when brake fluid is insufficient).

• VDC OFF switch should not stay “ON” position.

Display Item List

Refer to

BRC-211, "DTC No. Index"

.

DATA MONITOR

Direct Diagnostic Mode

Description

ECU Identification

The ABS actuator and electric unit (control unit) part number is displayed.

Self Diagnostic Result

The ABS actuator and electric unit (control unit) self diagnostic results are displayed.

Data Monitor

The ABS actuator and electric unit (control unit) input/output data is displayed in real time.

Active Test

The ABS actuator and electric unit (control unit) activates outputs to test components.

Work support

The settings for ABS actuator and electric unit (control unit) functions can be changed.

CAN Diag Support Mntr

The result of transmit/receive diagnosis of CAN communication is displayed.

Item

(Unit)

Data monitor item selection

Remarks

ECU INPUT

SIGNALS

MAIN

SIGNALS

SELECTION

FROM MENU

FR LH SENSOR
 (km/h, mph)

×

×

×

Wheel speed calculated by front LH
wheel sensor signal is displayed.

FR RH SENSOR
 (km/h, mph)

×

×

×

Wheel speed calculated by front RH
wheel sensor signal is displayed.

RR LH SENSOR
 (km/h, mph)

×

×

×

Wheel speed calculated by rear LH
wheel sensor signal is displayed.

RR RH SENSOR
 (km/h, mph)

×

×

×

Wheel speed calculated by rear RH
wheel sensor signal is displayed.

DECEL G-SEN
(G)

×

×

×

Longitudinal acceleration detected
by decel G-sensor is displayed.
