BRC-140

< SYSTEM DESCRIPTION >

[TYPE 2]

TCS

Component Description

INFOID:0000000009479410

10. Rear wheel sensor LH C11

Rear wheel sensor RH C10

11.

Steering angle sensor (behind spiral ca-
ble) M47
(Steering wheel removed for clarity)

12. VDC OFF switch M154

13. Stop lamp switch E39

14.

Stop lamp relay E12

Component parts

Reference

ABS actuator and electric unit (control unit)

Pump

BRC-164, "Description"

Motor

Actuator relay

BRC-180, "Description"

Solenoid valve

BRC-173, "Description"

VDC switch-over valve
(CV1, CV2, SV1, SV2)

BRC-191, "Description"

Wheel sensor

BRC-168, "Description"

Yaw rate/side/decel G sensor

BRC-166, "Description"

Stop lamp switch

BRC-171, "Description"

Steering angle sensor

BRC-182, "Description"

Brake fluid level switch

BRC-185, "Description"

Hill descent control switch

BRC-196, "Description"

VDC OFF switch

BRC-198, "Description"

ABS warning lamp

BRC-200, "Description"

Brake warning lamp

BRC-201, "Description"

Hill descent control indicator lamp

BRC-202, "Description"

VDC OFF indicator lamp

BRC-203, "Description"

SLIP indicator lamp

BRC-205, "Description"

ABS

BRC-141

< SYSTEM DESCRIPTION >

[TYPE 2]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

ABS

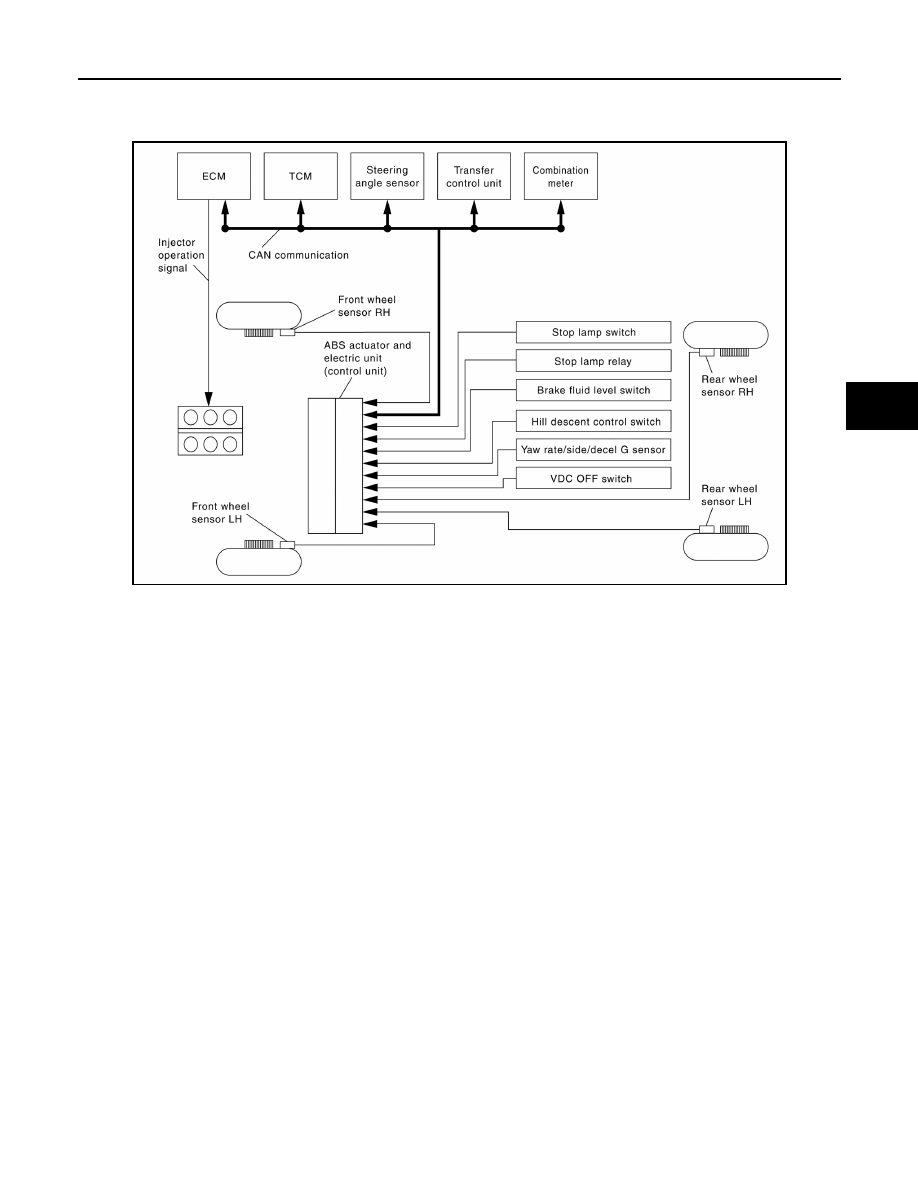

System Diagram

INFOID:0000000009479411

System Description

INFOID:0000000009479412

• Anti-Lock Braking System is a function that detects wheel revolution while braking, electronically controls

braking force, and prevents wheel locking during sudden braking. It improves handling stability and maneu-

verability for avoiding obstacles.

• Electrical system diagnosis by CONSULT is available.

AWFIA0680GB

BRC-142

< SYSTEM DESCRIPTION >

[TYPE 2]

ABS

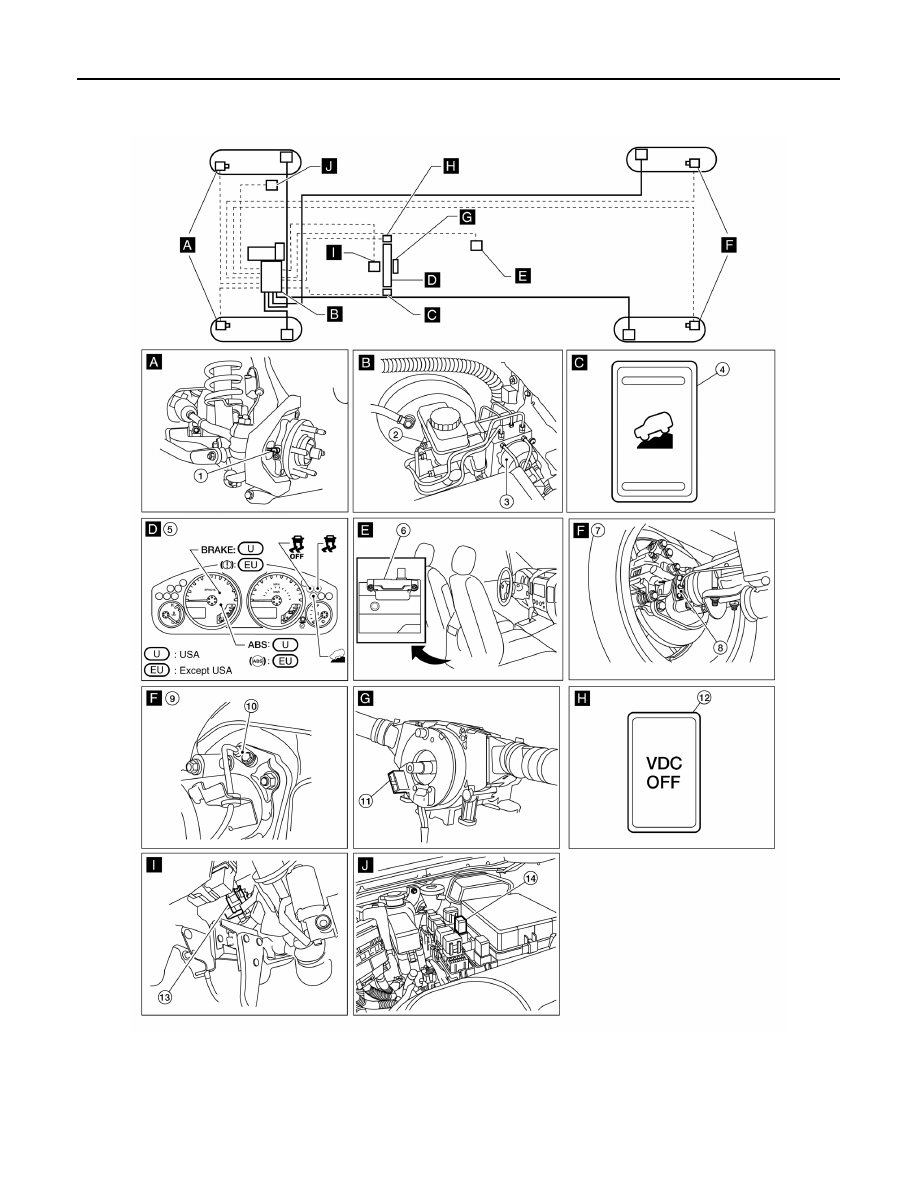

Component Parts Location

INFOID:0000000009479413

AWFIA0842GB

1.

Front wheel sensor LH E18
Front wheel sensor RH E117

2.

Brake fluid level switch E21

3.

ABS actuator and electric unit (control unit)
E127

4.

Hill descent control switch M155 5.

Combination meter M24

6.

Yaw rate/side/decel G sensor B73

7.

C200 rear axle

8.

Rear wheel sensor LH C11
Rear wheel sensor RH C10

9.

M226 rear axle

ABS

BRC-143

< SYSTEM DESCRIPTION >

[TYPE 2]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

Component Description

INFOID:0000000009479414

10. Rear wheel sensor LH C11

Rear wheel sensor RH C10

11.

Steering angle sensor (behind spiral ca-
ble) M47
(Steering wheel removed for clarity)

12. VDC OFF switch M154

13. Stop lamp switch E39

14.

Stop lamp relay E12

Component parts

Reference

ABS actuator and electric unit (control unit)

Pump

BRC-164, "Description"

Motor

Actuator relay

BRC-180, "Description"

Solenoid valve

BRC-173, "Description"

VDC switch-over valve
(CV1, CV2, SV1, SV2)

BRC-191, "Description"

Wheel sensor

BRC-168, "Description"

Yaw rate/side/decel G sensor

BRC-166, "Description"

Stop lamp switch

BRC-171, "Description"

Steering angle sensor

BRC-182, "Description"

Brake fluid level switch

BRC-185, "Description"

Hill descent control switch

BRC-196, "Description"

VDC OFF switch

BRC-198, "Description"

ABS warning lamp

BRC-200, "Description"

Brake warning lamp

BRC-201, "Description"

Hill descent control indicator lamp

BRC-202, "Description"

VDC OFF indicator lamp

BRC-203, "Description"

SLIP indicator lamp

BRC-205, "Description"
