Nissan Frontier. Manual - part 134





BRC-64

< DTC/CIRCUIT DIAGNOSIS >

[TYPE 1]

C1143, C1144 STEERING ANGLE SENSOR

C1143, C1144 STEERING ANGLE SENSOR

Description

INFOID:0000000009479308

The steering angle sensor detects the rotation amount, angular velocity and direction of the steering wheel,

and transmits the data to the ABS actuator and electric unit (control unit) via CAN communication.

DTC Logic

INFOID:0000000009479309

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

CHECK SELF-DIAGNOSIS RESULTS

Check the self-diagnosis results.

Is above displayed on the self-diagnosis display?

YES

>> Proceed to diagnosis procedure. Refer to

BRC-64, "Diagnosis Procedure"

.

NO

>> Inspection End

Diagnosis Procedure

INFOID:0000000009479310

Regarding Wiring Diagram information, refer to

BRC-92, "Wiring Diagram - VDC WITHOUT HILL DESCENT

CONTROL/HILL START ASSIST"

.

1.

CONNECTOR INSPECTION

1. Turn ignition switch OFF.

2. Disconnect ABS actuator and electric unit (control unit) connector.

3. Disconnect steering angle sensor connector.

4. Check terminals for deformation, disconnection, looseness, and so on. If any malfunction is found, repair

or replace terminals.

5. Reconnect connectors and then perform the self-diagnosis. Refer to

BRC-29, "CONSULT Function

(ABS)"

.

Is any item indicated on the self-diagnosis display?

YES

>> GO TO 2

NO

>> Poor connection of connector terminals. Repair or replace connector.

2.

CHECK STEERING ANGLE SENSOR HARNESS

DTC

Display item

Malfunction detected condition

Possible cause

C1143

ST ANG SEN CIRCUIT

Neutral position of steering angle sensor is dislocated, or
the steering angle sensor is malfunctioning.

• Harness or connector
• Steering angle sensor
• ABS actuator and electric unit

(control unit)

C1144

ST ANG SEN SIGNAL

Neutral position of steering angle sensor is not finished.

Self-diagnosis results

ST ANG SEN CIRCUIT

ST ANG SEN SIGNAL

C1143, C1144 STEERING ANGLE SENSOR

BRC-65

< DTC/CIRCUIT DIAGNOSIS >

[TYPE 1]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

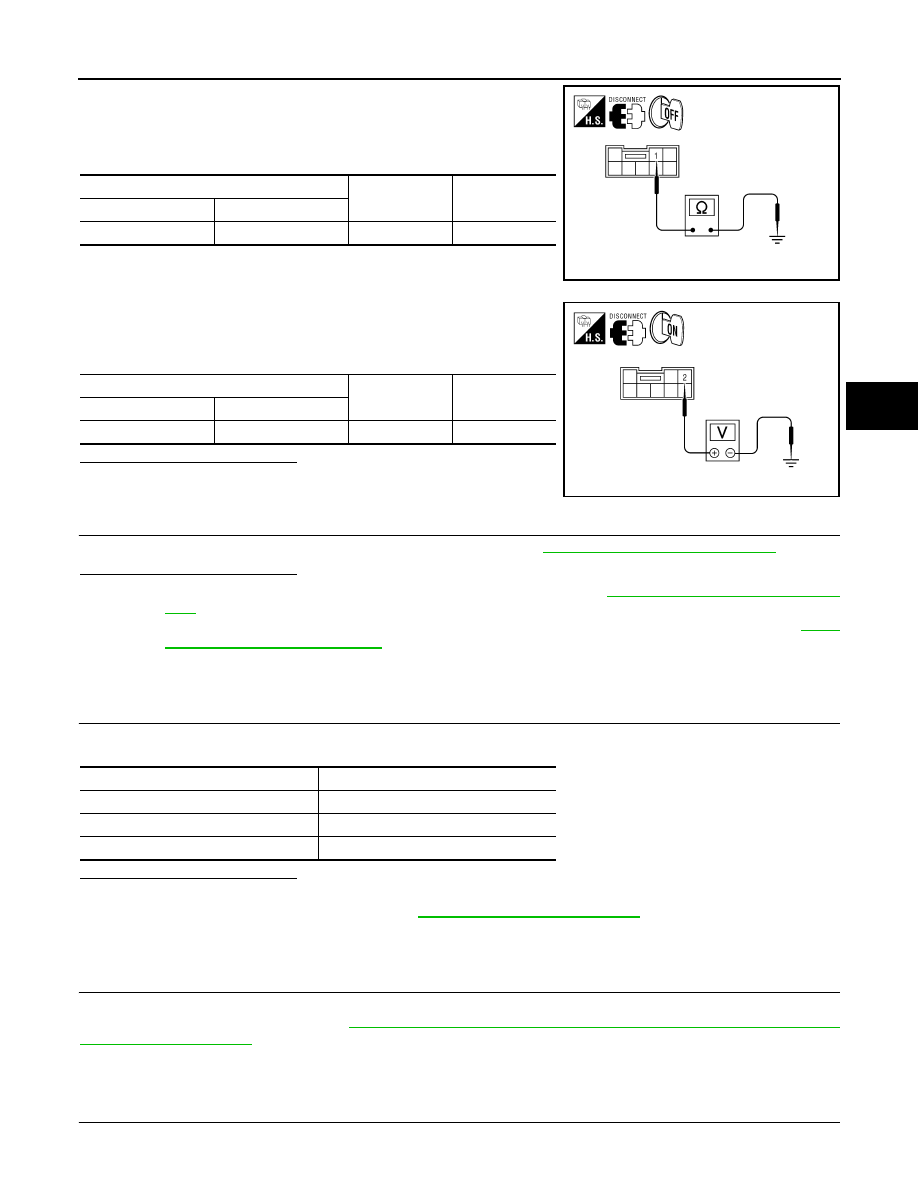

1. Turn ignition switch OFF.

2. Disconnect steering angle sensor connector.

3. Check continuity between steering angle sensor connector M47

terminal 1 and ground.

4. Turn ignition switch ON.

5. Check voltage between steering angle sensor connector M47

terminal 2 and ground.

Is the inspection result normal?

YES

>> GO TO 3

NO

>> Repair or replace malfunctioning components.

3.

CHECK DATA MONITOR

Perform the steering angle sensor component inspection. Refer to

BRC-65, "Component Inspection"

.

Is the inspection result normal?

YES

>> Replace ABS actuator and electric unit (control unit). Refer to

BRC-115, "Removal and Installa-

tion"

.

NO

>> Replace steering angle sensor and adjust neutral position of steering angle sensor. Refer to

BRC-

117, "Removal and Installation"

.

Component Inspection

INFOID:0000000009479311

1.

CHECK DATA MONITOR

Select “STR ANGLE SIG” in “DATA MONITOR” and check steering angle sensor signal.

Is the inspection result normal?

YES

>> Inspection End

NO

>> Go to diagnosis procedure. Refer to

BRC-64, "Diagnosis Procedure"

.

Special Repair Requirement

INFOID:0000000009479312

1.

ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL POSITION

Always perform neutral position adjustment for the steering angle sensor when replacing the ABS actuator

and electric unit (control unit). Refer to

BRC-12, "ADJUSTMENT OF STEERING ANGLE SENSOR NEUTRAL

POSITION : Description"

.

>> GO TO 2

2.

CALIBRATION OF DECEL G SENSOR

Steering angle sensor

Continuity

Connector

Terminal

M47

1

Ground

Yes

AWFIA0447ZZ

Steering angle sensor

Voltage

Connector

Terminal

M47

2

Ground

Battery voltage

AWFIA0448ZZ

Steering condition

STR ANGLE SIG (DATA MONITOR)

Driving straight

0

±2.5 °

Turn 90

° to left

Approx. +90

°

Turn 90

° to right

Approx.

−90 °

BRC-66

< DTC/CIRCUIT DIAGNOSIS >

[TYPE 1]

C1143, C1144 STEERING ANGLE SENSOR

Always perform calibration of decel G sensor when replacing the ABS actuator and electric unit (control unit).

Refer to

BRC-13, "CALIBRATION OF DECEL G SENSOR : Description"

.

>> END

C1155 BRAKE FLUID LEVEL SWITCH

BRC-67

< DTC/CIRCUIT DIAGNOSIS >

[TYPE 1]

C

D

E

G

H

I

J

K

L

M

A

B

BRC

N

O

P

C1155 BRAKE FLUID LEVEL SWITCH

Description

INFOID:0000000009479313

The brake fluid level switch converts the brake fluid level to an electric signal and transmits it to the ABS actu-

ator and electric unit (control unit).

DTC Logic

INFOID:0000000009479314

DTC DETECTION LOGIC

DTC CONFIRMATION PROCEDURE

1.

CHECK SELF-DIAGNOSIS RESULTS

Check the self-diagnosis results.

Is above displayed on the self-diagnosis display?

YES

>> Proceed to diagnosis procedure. Refer to

BRC-67, "Diagnosis Procedure"

.

NO

>> Inspection End

Diagnosis Procedure

INFOID:0000000009479315

Regarding Wiring Diagram information, refer to

BRC-92, "Wiring Diagram - VDC WITHOUT HILL DESCENT

CONTROL/HILL START ASSIST"

.

1.

CONNECTOR INSPECTION

1. Disconnect ABS actuator and electric unit (control unit) connector and brake fluid level switch connector.

2. Check the terminals for deformation, disconnection, looseness or damage.
Is the inspection result normal?

YES

>> GO TO 2

NO

>> Repair or replace as necessary.

2.

CHECK HARNESS BETWEEN BRAKE FLUID LEVEL SWITCH AND ABS ACTUATOR AND ELECTRIC

UNIT (CONTROL UNIT)

1. Check continuity between ABS actuator and electric unit (control unit) connector E127 (A) Terminal 28

and brake fluid level switch connector E21 (B) terminal 1.

2. Check continuity between ABS actuator and electric unit (control unit) connector E127 (A) Terminal 28

and ground.

DTC

Display item

Malfunction detected condition

Possible cause

C1155

BR FLUID LEVEL LOW

Brake fluid level is low or communication line between
the ABS actuator and electric unit (control unit) and brake
fluid level switch is open or shorted.

• Harness or connector
• Brake fluid level switch
• Brake fluid level

Self-diagnosis results

BR FLUID LEVEL LOW

ABS actuator and electric unit

(control unit)

Brake fluid level switch

Continuity

Connector

Terminal

Connector

Terminal

E127 (A)

28

E21 (B)

1

Yes
