Nissan Frontier. Manual - part 1300

VTL-22

< REMOVAL AND INSTALLATION >

AIR MIX DOOR MOTOR

AIR MIX DOOR MOTOR

Component

INFOID:0000000009478825

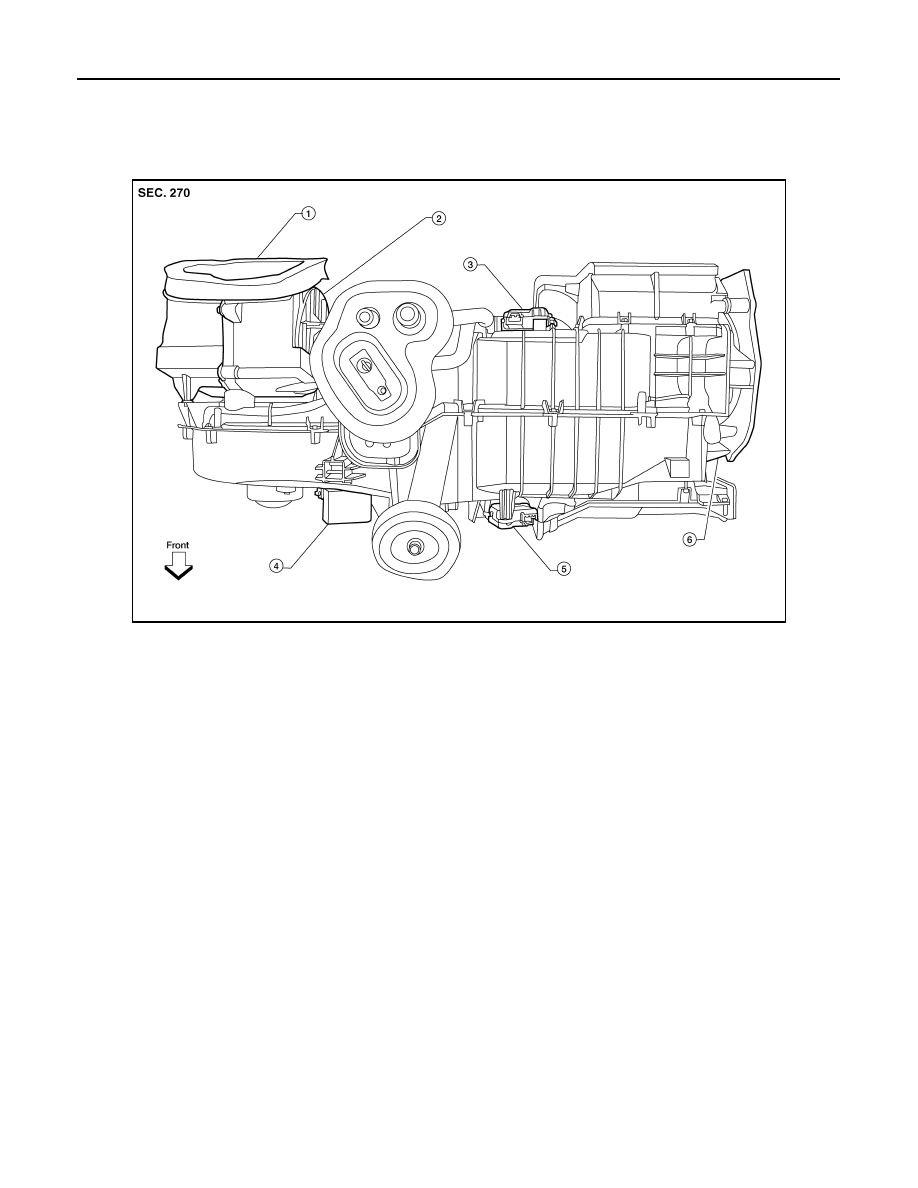

Air Mix Door Motors - ATC

LBIA0415E

1.

Heater and cooling unit assembly

2.

Intake door motor

3.

Air mix door motor (driver)

4.

Variable blower control

5.

Air mix door motor (passengr)

6.

Mode door motor

AIR MIX DOOR MOTOR

VTL-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

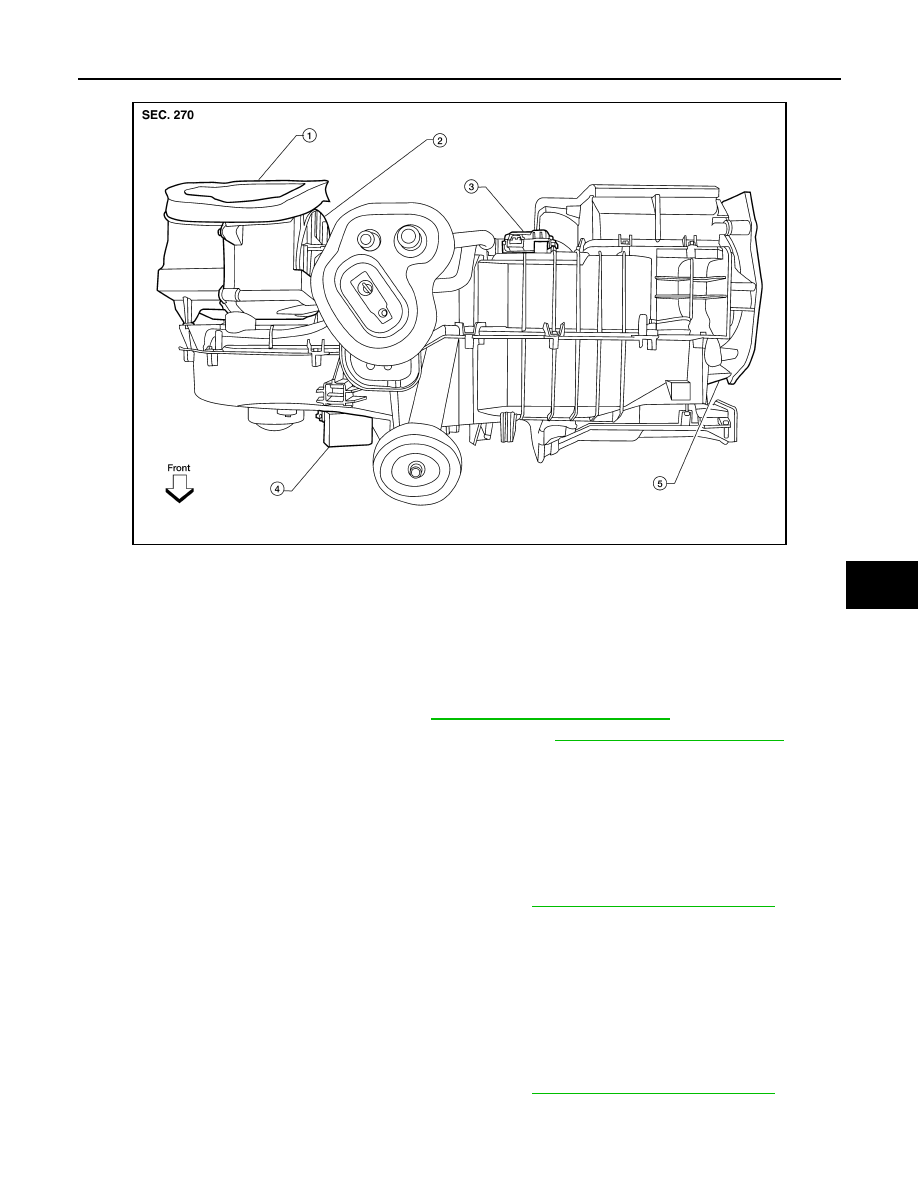

Air Mix Door Motor - MTC

Removal and Installation

INFOID:0000000009478826

FRONT AIR MIX DOOR MOTOR - DRIVER - ATC

Removal

1. Remove the lower dash side finisher. Refer to

INT-19, "Removal and Installation"

.

2. Remove the instrument lower panel RH and glove box. Refer to

IP-24, "Removal and Installation"

.

3. Disconnect the harness connector from air mix door motor.
4. Remove the three screws and the air mix door motor.

Installation

Installation is in the reverse order of removal.

FRONT AIR MIX DOOR MOTOR - PASSENGER - ATC

Removal

1. Remove the front heater and cooling unit assembly. Refer to

VTL-14, "Removal and Installation"

.

2. Remove the steering member from the front heater and cooling unit assembly.
3. Disconnect the harness connector from air mix door motor.
4. Remove the three screws and the air mix door motor.

Installation

Installation is in the reverse order of removal.

FRONT AIR MIX DOOR MOTOR - MTC

Removal

1. Remove the front heater and cooling unit assembly. Refer to

VTL-14, "Removal and Installation"

.

2. Remove the steering member from the front heater and cooling unit assembly.
3. Disconnect the harness connector from air mix door motor.

WJIA1312E

1.

Heater and cooling unit assembly

2.

Intake door motor

3.

Air mix door motor

4.

Blower motor resistor

5.

Mode door motor

VTL-24

< REMOVAL AND INSTALLATION >

AIR MIX DOOR MOTOR

4. Remove the three screws and the air mix door motor.

Installation

Installation is in the reverse order of removal.

DUCTS AND GRILLES

VTL-25

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

DUCTS AND GRILLES

Component

INFOID:0000000009478827

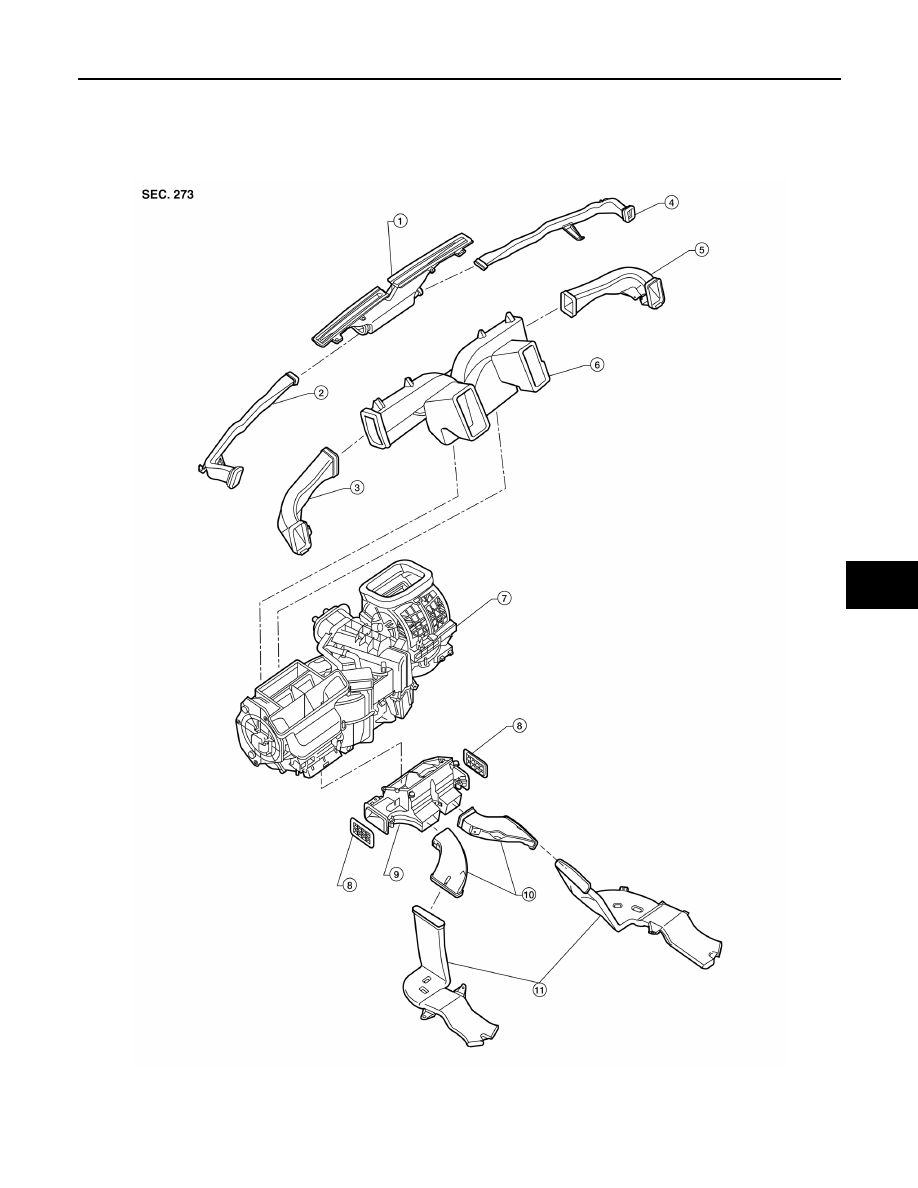

Ducts

AWIIA1535ZZ

1.

Defroster nozzle

2.

LH side demister duct

3.

LH ventilator duct

4.

RH side demister duct

5.

RH ventilator duct

6.

Center ventilator duct
