DISASSEMBLY

TM-339

< UNIT DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

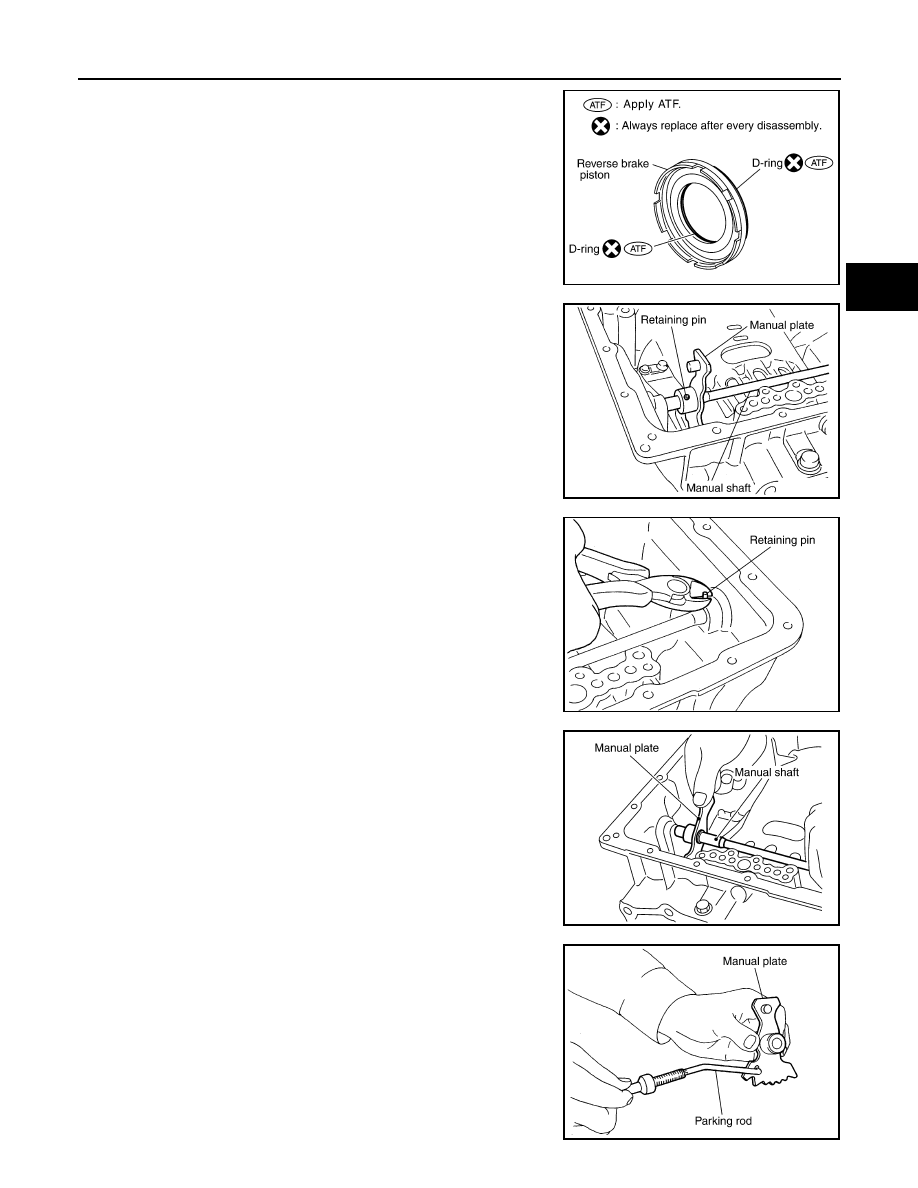

57. Remove D-rings from reverse brake piston.

58. Knock out retaining pin using suitable tool.

59. Remove manual shaft retaining pin using suitable tool.

60. Remove manual plate (with parking rod) from manual shaft.

61. Remove parking rod from manual plate.

SCIA6330E

SCIA2328E

SCIA2329E

SCIA5715E

SCIA5220E

TM-340

< UNIT DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

DISASSEMBLY

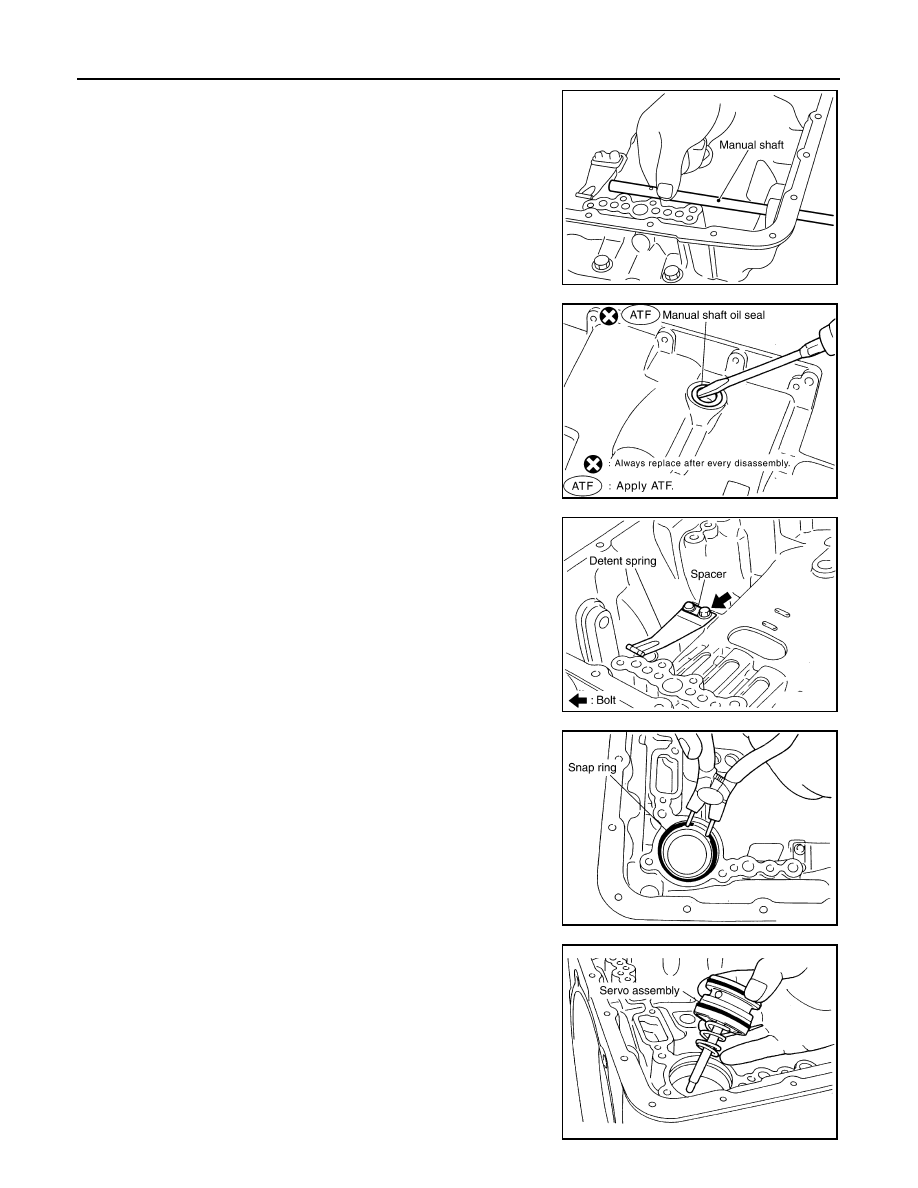

62. Remove manual shaft from transmission case.

63. Remove manual shaft oil seals using suitable tool.

CAUTION:

Do not scratch transmission case.

64. Remove detent spring and spacer from transmission case.

65. Remove snap ring from transmission case using suitable tool.

66. Remove servo assembly (with return spring) from transmission

case.

SCIA5716E

SCIA2331E

SCIA5248E

SCIA2333E

SCIA5679E

DISASSEMBLY

TM-341

< UNIT DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

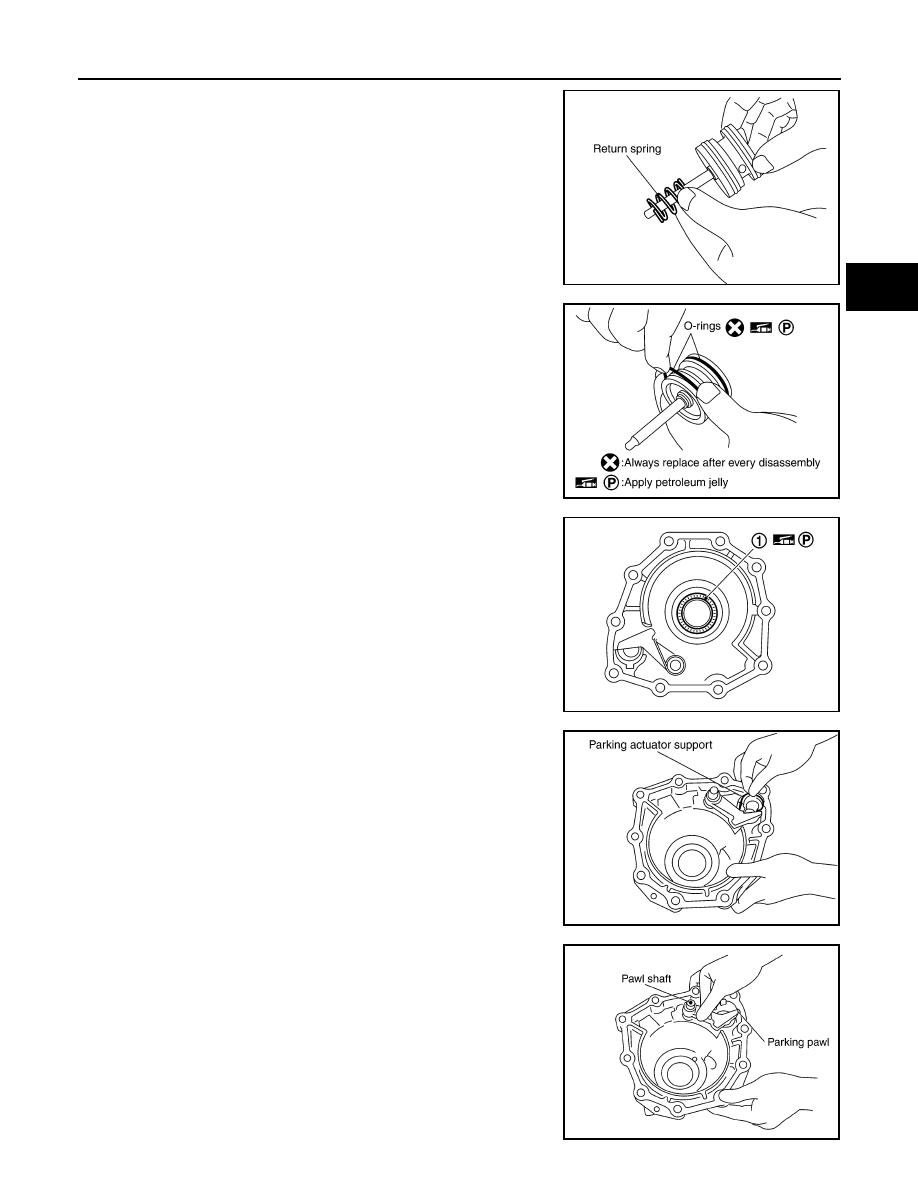

67. Remove return spring from servo assembly.

68. Remove O-rings from servo assembly.

CAUTION:

Do not reuse O-rings.

69. Remove needle bearing (1) from rear extension (2WD models)

or adapter case (4WD models).

70. Remove parking actuator support from rear extension (2WD

models) or adapter case (4WD models).

71. Remove parking pawl (with return spring) and pawl shaft from

rear extension (2WD models) or adapter case (4WD models).

SCIA5717E

SCIA5719E

SCIA6179J

SCIA3423E

SCIA3424E

TM-342

< UNIT DISASSEMBLY AND ASSEMBLY >

[5AT: RE5R05A]

DISASSEMBLY

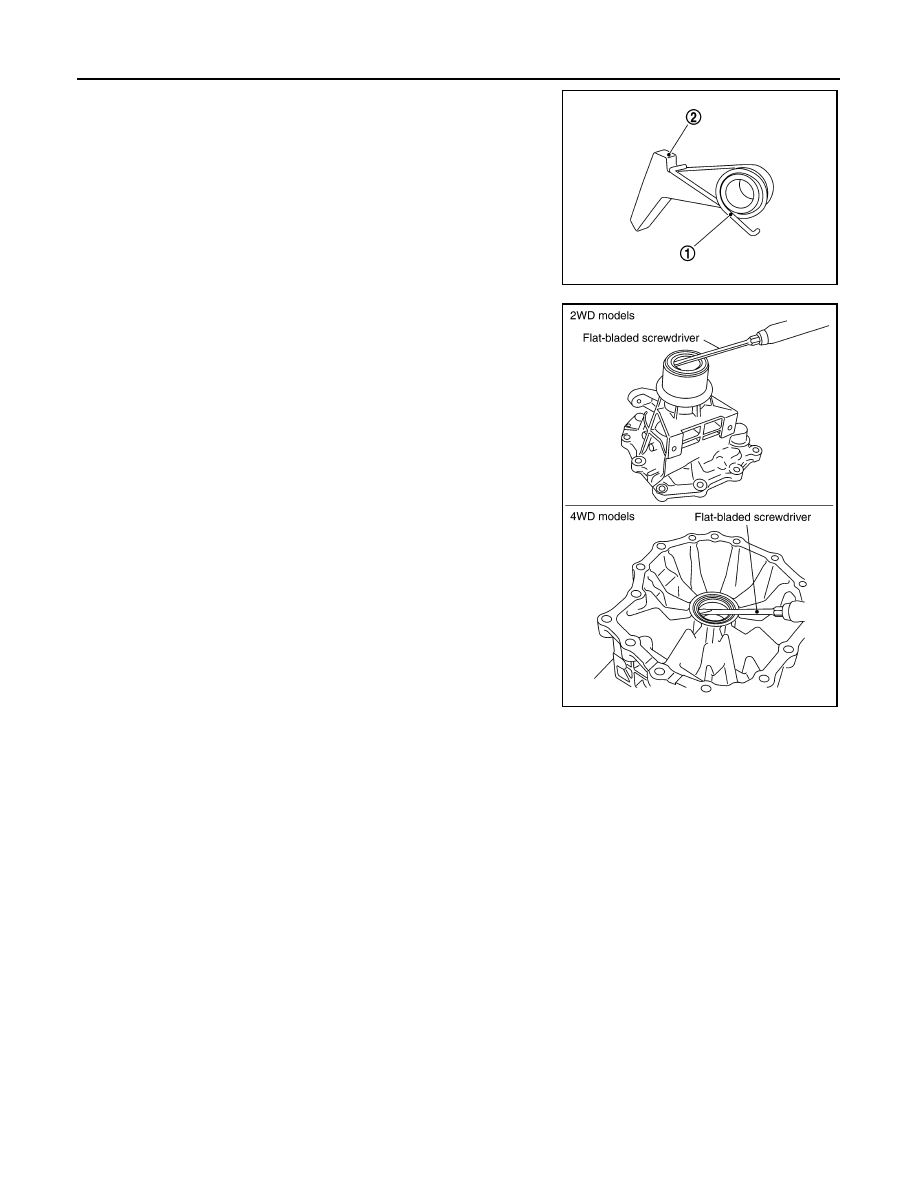

72. Remove return spring (1) from parking pawl (2).

73. Remove rear oil seal from rear extension (2WD models) or

adapter case (4WD models) using suitable tool.

CAUTION:

Do not scratch rear extension (2WD models) or adapter

case (4WD models).

SCIA6180J

SCIA5272E
