KEY INTERLOCK CABLE

TM-299

< REMOVAL AND INSTALLATION >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

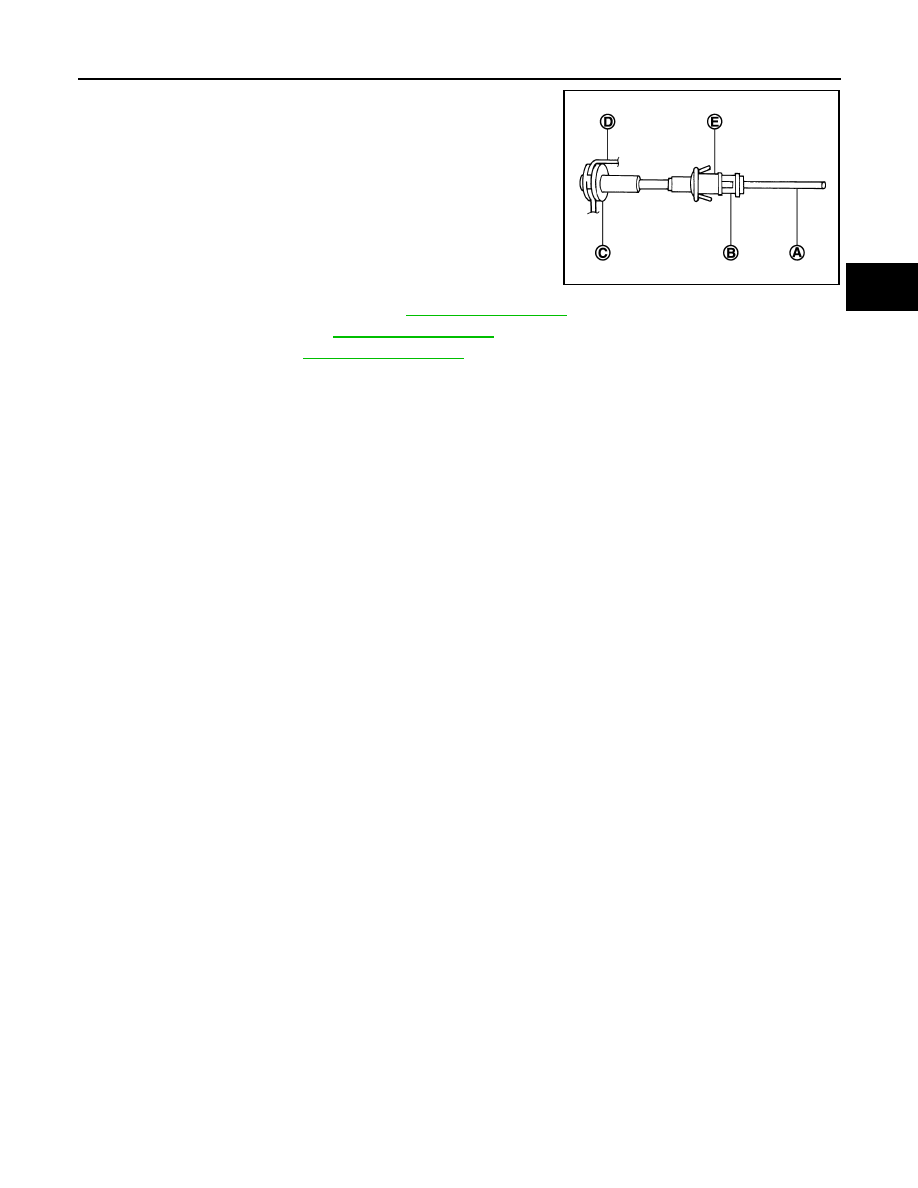

4. Insert key interlock rod (A) into adjuster holder (B).
5. Install casing cap (C) to bracket (D).
6. Move slider (E) toward key interlock rod (A) to secure adjuster

holder (B) to key interlock rod (A).

7. Install instrument lower panel LH. Refer to

IP-14, "Exploded View"

.

8. Install lower glove box. Refer to

IP-14, "Exploded View"

.

9. Install A/T finisher. Refer to

IP-14, "Exploded View"

.

JSDIA0698ZZ

TM-300

< REMOVAL AND INSTALLATION >

[5AT: RE5R05A]

AIR BREATHER HOSE

AIR BREATHER HOSE

Removal and Installation for QR25DE Engine

INFOID:0000000009480685

COMPONENTS

REMOVAL

1. Release air breather hose from clip.
2. Disconnect air breather hose from transmission tube.
3. Disconnect air breather hose from air breather tube.

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

• Install air breather hose with paint mark at upper side.

• When installing the air breather hose, do not crush or block by folding or bending the hose.

• When inserting the hose to the transmission tube, be sure to insert it fully until its end reaches the

tube bend portion.

• Make sure clip is securely installed to bracket.

Removal and Installation for VQ40DE Engine

INFOID:0000000009480686

COMPONENTS (2WD MODELS)

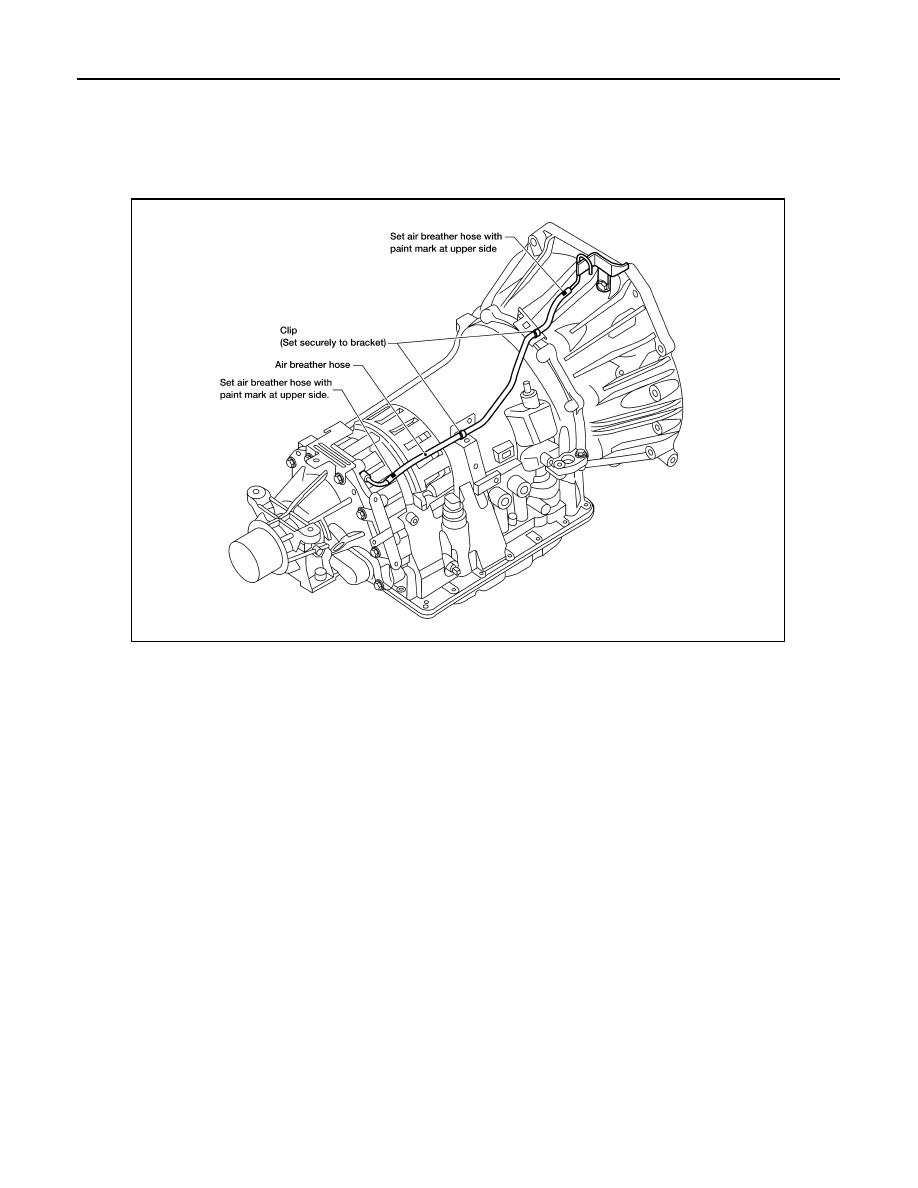

LCIA0395E

AIR BREATHER HOSE

TM-301

< REMOVAL AND INSTALLATION >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

REMOVAL (2WD MODELS)

1. Release air breather hose from clip.
2. Disconnect air breather hose from transmission tube.
3. Disconnect air breather hose from air breather tube.

INSTALLATION (2WD MODELS)

Installation is in the reverse order of removal.

CAUTION:

• Install air breather hose with paint mark at upper side.

• When installing the air breather hose, do not crush or block by folding or bending the hose.

• When inserting the hose to the transmission tube, be sure to insert it fully until its end reaches the

tube bend portion.

• Make sure clip is securely installed to bracket.

COMPONENTS (4WD)

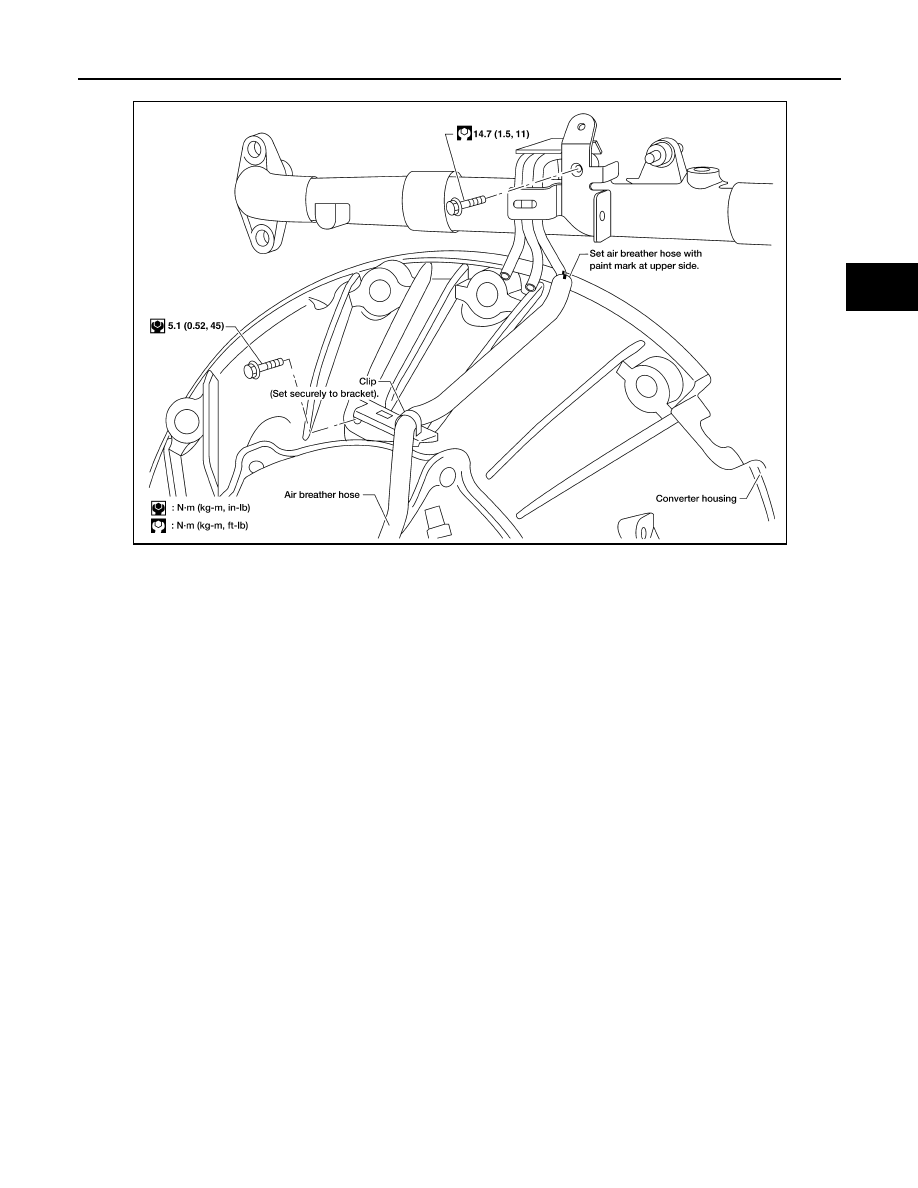

LCIA0389E

TM-302

< REMOVAL AND INSTALLATION >

[5AT: RE5R05A]

AIR BREATHER HOSE

REMOVAL (4WD MODELS)

1. Release air breather hose from clip.
2. Disconnect air breather hose from transmission tube.
3. Disconnect air breather hose from air breather tube.

INSTALLATION (4WD MODELS)

Installation is in the reverse order of removal.

CAUTION:

• Install air breather hose with paint mark at upper side.

• When installing the air breather hose, do not crush or block by folding or bending the hose.

• When inserting the hose to the transmission tube, be sure to insert it fully until its end reaches the

tube bend portion.

• Make sure clip is securely installed to bracket.

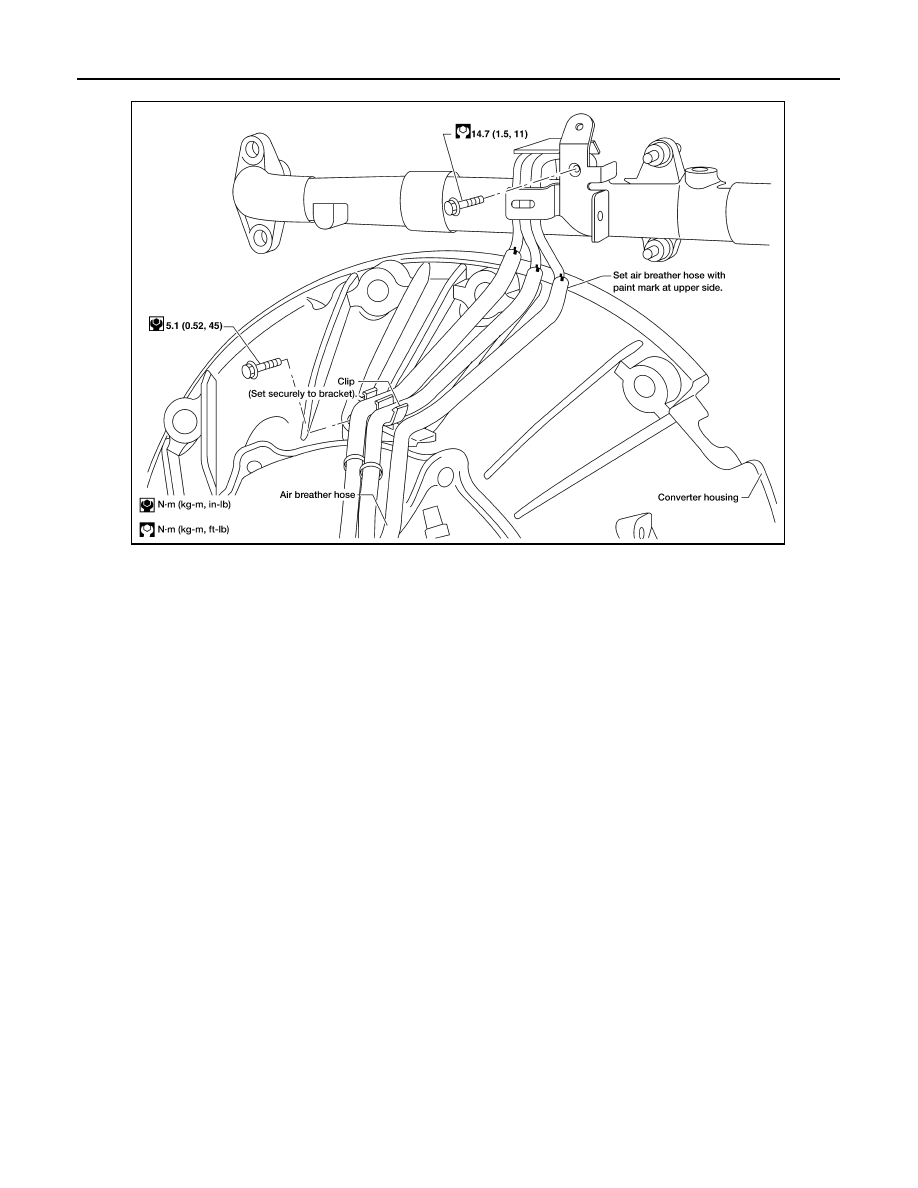

LCIA0390E
