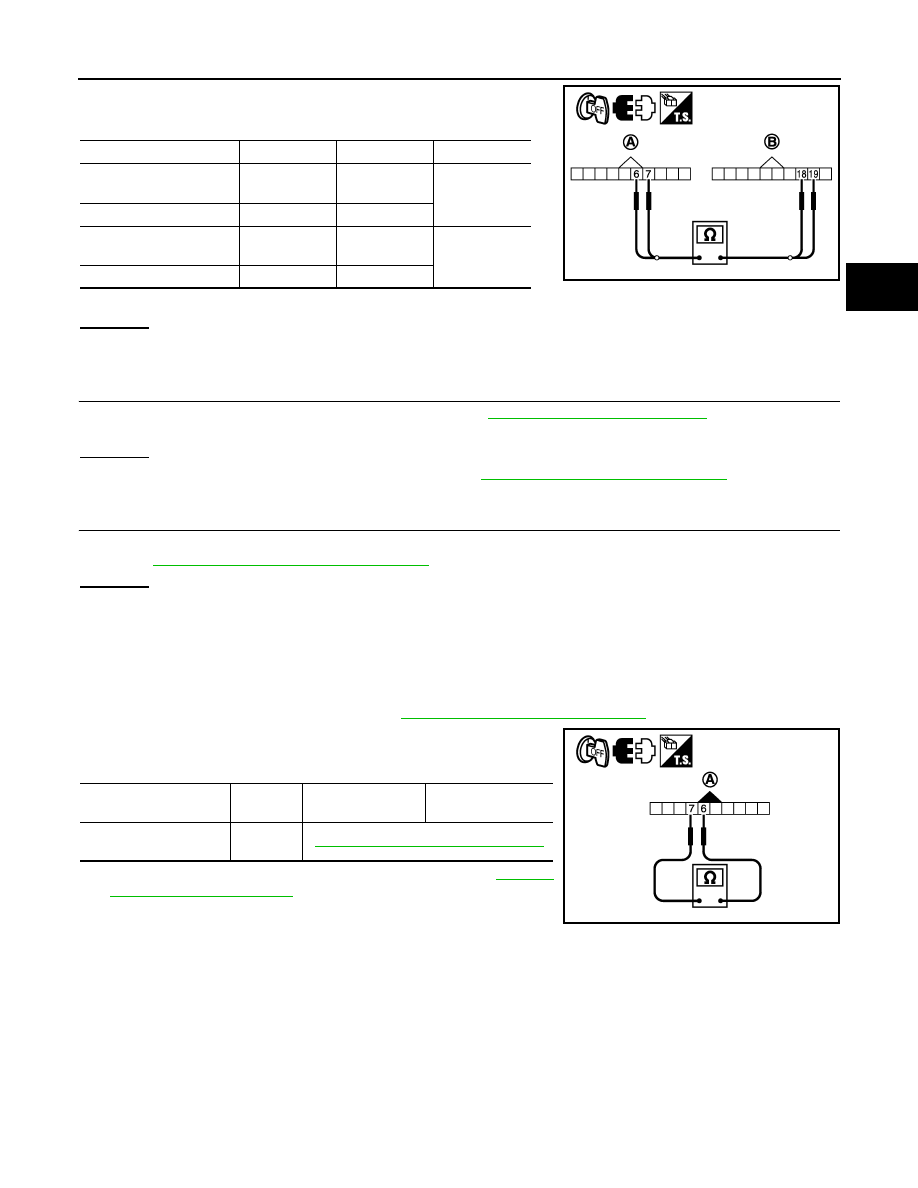

P1710 TRANSMISSION FLUID TEMPERATURE SENSOR TM-199 < DTC/CIRCUIT DIAGNOSIS > [5AT: RE5R05A] C E F G H I J K L M A B TM N O P 2. Check continuity between transmission range switch connector (A) terminals and TCM connector (B) terminals. 3. If OK, check harness for short to ground and short to power. OK >> GO TO 4. NG >> Replace open circuit or short to ground and short to power in harness or connectors. 4. CHECK TCM POWER SUPPLY AND GROUND CIRCUIT 1. Check TCM power supply and ground circuit. Refer to . 2. Reinstall any part removed. OK >> Replace the control valve with TCM. Refer to TM-288, "Removal and Installation" NG >> Repair or replace damaged parts. 5. CHECK DTC Perform “DTC Confirmation Procedure”. • Refer to TM-197, "DTC Confirmation Procedure" . OK or NG OK >> INSPECTION END NG >> GO TO 1. Component Inspection INFOID:0000000009480585 A/T FLUID TEMPERATURE SENSOR 1. Remove control valve with TCM. Refer to TM-288, "Removal and Installation" . 2. Check resistance between transmission range switch connector (A) terminals. 3. If NG, replace the control valve with TCM. Refer to Item Connector Terminal Continuity Transmission range F505 6 Yes TCM connector F503 19 Transmission range F505 7 Yes TCM connector F503 18 JSDIA1330ZZ Name Terminal Temperature °C ( °F) Resistance (Ap- prox.) A/T fluid temperature 6 - 7 TM-387, "A/T Fluid Temperature Sensor" JSDIA1331ZZ |
