A/T CONTROL SYSTEM

TM-151

< SYSTEM DESCRIPTION >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

FUNCTION OF PRESSURE SWITCH

Front brake control valve

When the front brake is coupled, adjusts the line pressure to the optimum pressure (front
brake pressure) and supplies it to the front brake. (In 1GR, 2GR, 3GR, and 5GR, adjusts
the clutch pressure.)

Accumulator control valve

Adjusts the pressure (accumulator control pressure) acting on the accumulator piston
and low coast reducing valve to the pressure appropriate to the driving state.

Pilot valve A

Adjusts the line pressure and produces the constant pressure (pilot pressure) required
for line pressure control, shift change control, and lock-up control.

Pilot valve B

Adjusts the line pressure and produces the constant pressure (pilot pressure) required
for shift change control.

Low coast brake switching valve

During engine braking, supplies the line pressure to the low coast brake reducing valve.

Low coast brake reducing valve

When the low coast brake is coupled, adjusts the line pressure to the optimum pressure
(low coast brake pressure) and supplies it to the low coast brake.

N-R accumulator

Produces the stabilizing pressure for when N-R is selected.

Direct clutch piston switching valve

Operates in 4GR and switches the direct clutch coupling capacity.

High and low reverse clutch control valve

When the high and low reverse clutch is coupled, adjusts the line pressure to the opti-
mum pressure (high and low reverse clutch pressure) and supplies it to the high and low
reverse clutch. (In 1GR, 3GR, 4GR and 5GR, adjusts the clutch pressure.)

Input clutch control valve

When the input clutch is coupled, adjusts the line pressure to the optimum pressure (in-
put clutch pressure) and supplies it to the input clutch. (In 4GR and 5GR, adjusts the
clutch pressure.)

Direct clutch control valve

When the direct clutch is coupled, adjusts the line pressure to the optimum pressure (di-
rect clutch pressure) and supplies it to the direct clutch. (In 2GR, 3GR, and 4GR, adjusts
the clutch pressure.)

TCC control valve
TCC control plug
TCC control sleeve

Switches the lock-up to operating or released. Also, by performing the lock-up operation
transiently, lock-up smoothly.

Torque converter lubrication valve

Operates during lock-up to switch the torque converter, cooling, and lubrication system
oil path.

Cool bypass valve

Allows excess oil to bypass cooler circuit without being fed into it.

Line pressure relief valve

Discharges excess oil from line pressure circuit.

N-D accumulator

Produces the stabilizing pressure for when N-D is selected.

Manual valve

Sends line pressure to each circuit according to the select position. The circuits to which
the line pressure is not sent drain.

Name

Function

Name

Function

Pressure switch 2 (LC/B)

Detects any malfunction in the low coast brake hydraulic pressure. When it detects any
malfunction, it puts the system into fail-safe mode.

TM-152

< SYSTEM DESCRIPTION >

[5AT: RE5R05A]

A/T CONTROL SYSTEM

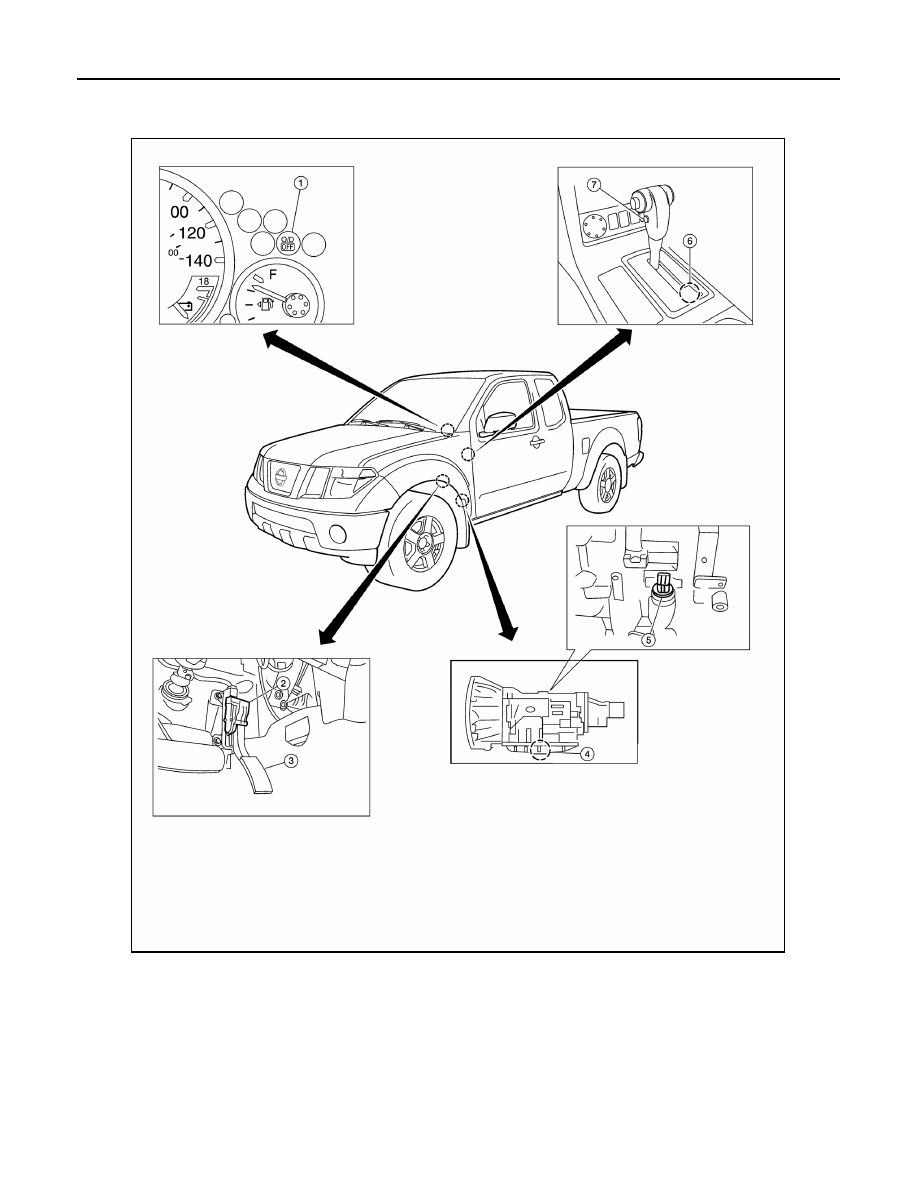

A/T Electrical Parts Location

INFOID:0000000009480475

*1: The following components are included in the control valve with TCM.
• TCM (transmission control module)
• Input speed sensor 1
• Input speed sensor 2
• Output speed sensor

1.

O/D OFF indicator lamp

2.

Accelerator pedal position sensor

3.

Accelerator pedal

4.

Control valve with TCM*1

5.

A/T assembly harness connector

6.

1st position switch

7.

Overdrive control switch

AWDIA0965ZZ

A/T CONTROL SYSTEM

TM-153

< SYSTEM DESCRIPTION >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

• A/T fluid temperature sensor
• Transmission range switch
• Line pressure solenoid valve
• Torque converter clutch solenoid valve
• Direct clutch solenoid valve
• High and low reverse clutch solenoid valve
• Input clutch solenoid valve
• Front brake solenoid valve
• Low coast brake solenoid valve
• ATF pressure switch 2

TM-154

< SYSTEM DESCRIPTION >

[5AT: RE5R05A]

A/T SHIFT LOCK SYSTEM

A/T SHIFT LOCK SYSTEM

System Description

INFOID:0000000009480476

• The selector lever cannot be shifted from “P” (Park) unless the brake pedal is applied and the ignition switch

is in the “ON” position.

• Battery voltage is supplied to the shift lock solenoid by the stop lamp switch.

• Ground is supplied to the shift lock solenoid by the park position switch (shift selector).

• With the the ignition switch “ON”, brake pedal applied and the A/T shift selector in “P” (Park), the shift lock

solenoid is energized, allowing the selector lever to be shifted from Park.

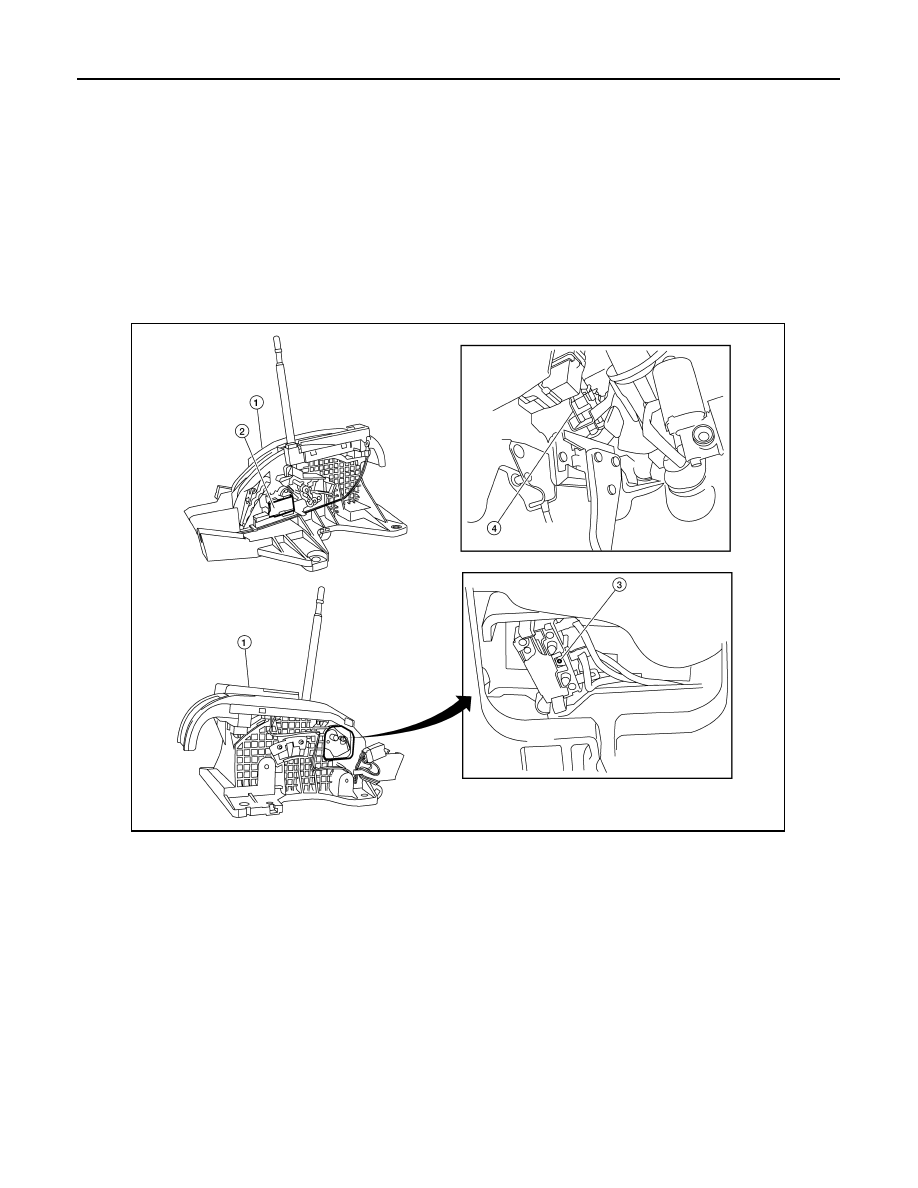

Component Parts Location

INFOID:0000000009480477

1.

A/T shift selector

2.

Shift lock solenoid

3.

Park position switch (shift selector)

4.

Stop lamp switch E39

AWDIA0735GB
