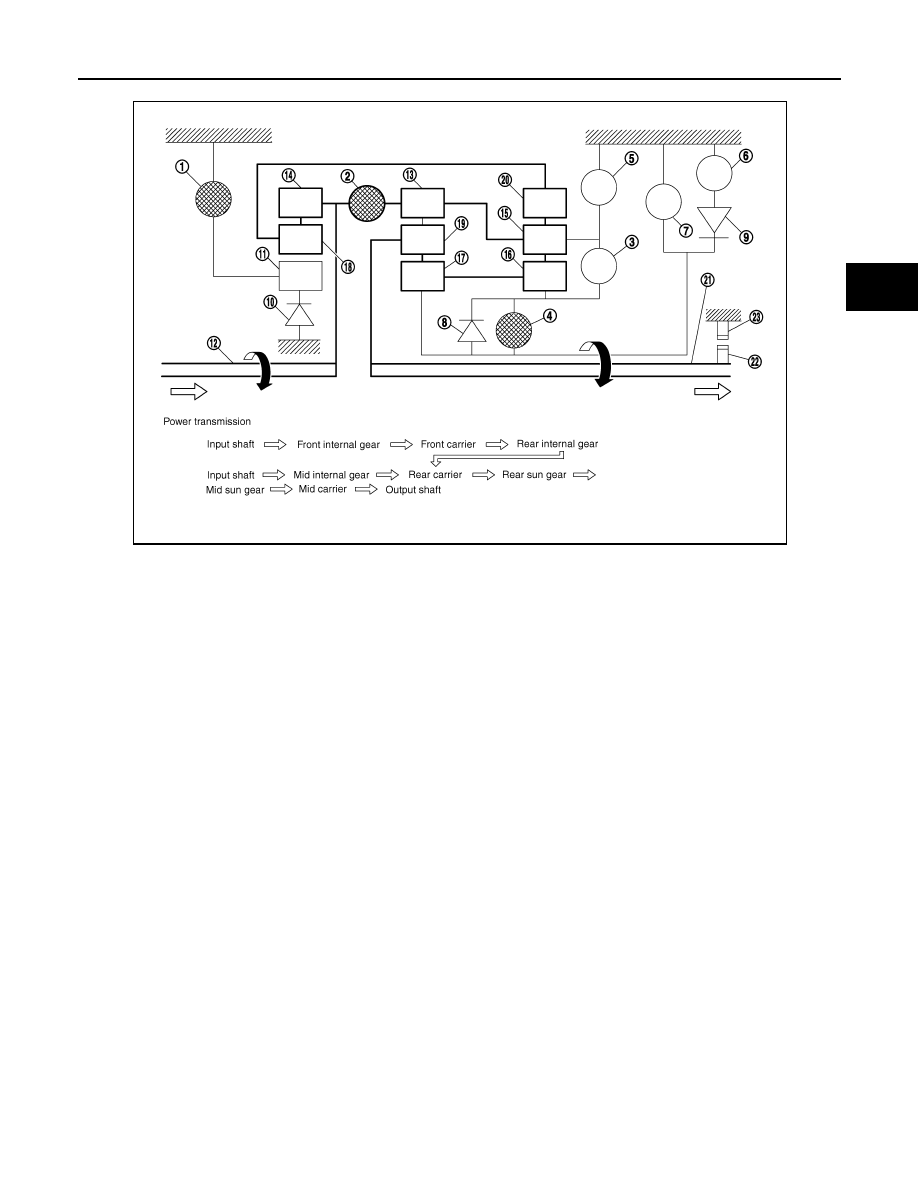

“R” Position

• The front brake fastens the front sun gear.

• The high and low reverse clutch is coupled, and the mid sun gear and rear sun gear are connected.

• The reverse brake fastens the rear carrier.

1.

Front brake

2.

Input clutch

3.

Direct clutch

4.

High and low reverse clutch

5.

Reverse brake

6.

Forward brake

7.

Low coast brake

8.

1st one-way clutch

9.

Forward one-way clutch

10. 3rd one-way clutch

11. Front sun gear

12. Input shaft

13. Mid internal gear

14. Front internal gear

15. Rear carrier

16. Rear sun gear

17. Mid sun gear

18. Front carrier

19. Mid carrier

20. Rear internal gear

21. Output shaft

22. Parking gear

23. Parking pawl

SCIA4984E

TM-144

< SYSTEM DESCRIPTION >

[5AT: RE5R05A]

A/T CONTROL SYSTEM

TCM Function

INFOID:0000000009480467

The function of the TCM is to:

• Receive input signals sent from various switches and sensors.

• Determine required line pressure, shifting point, lock-up operation, and engine brake operation.

• Send required output signals to the respective solenoids.

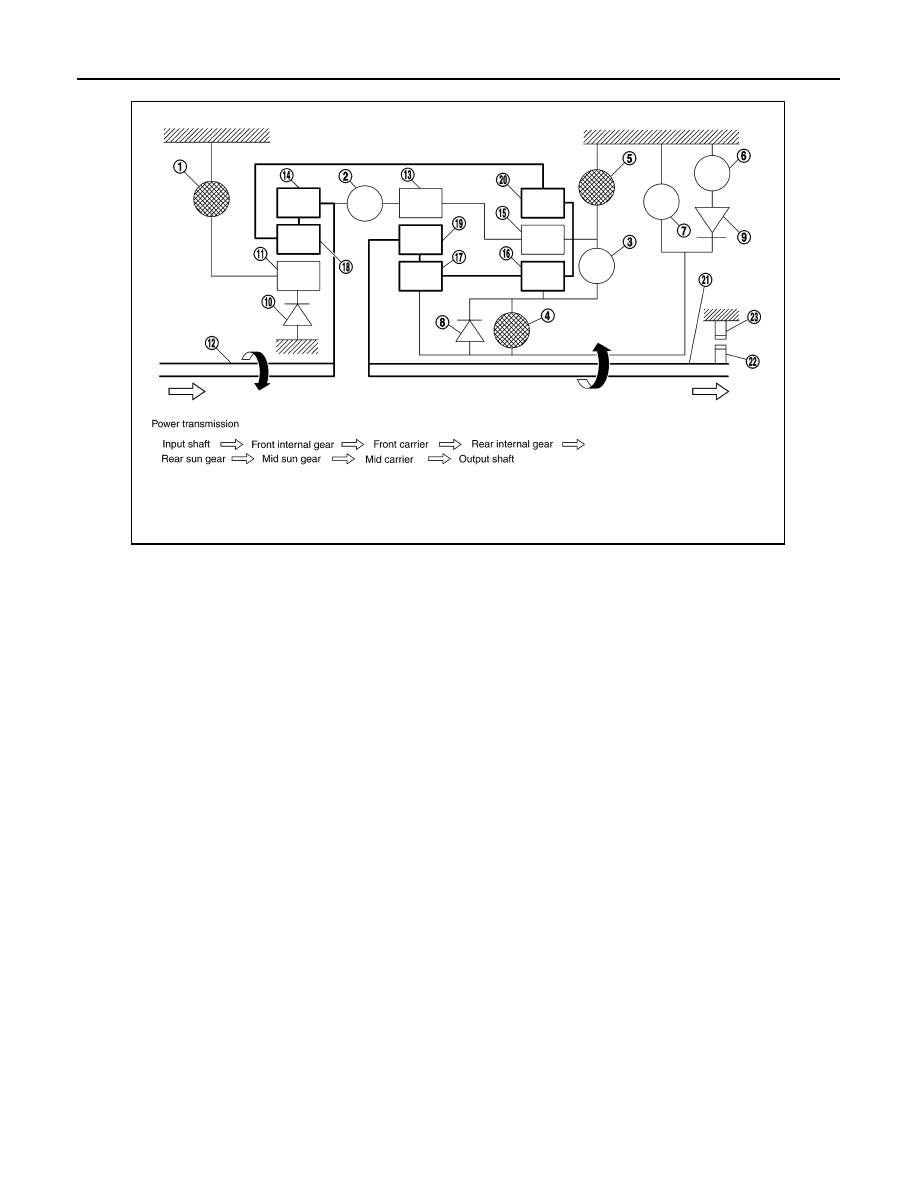

CONTROL SYSTEM OUTLINE

The A/T senses vehicle operating conditions through various sensors or signals. It always controls the opti-

mum shift position and reduces shifting and lock-up shocks.

1.

Front brake

2.

Input clutch

3.

Direct clutch

4.

High and low reverse clutch

5.

Reverse brake

6.

Forward brake

7.

Low coast brake

8.

1st one-way clutch

9.

Forward one-way clutch

10. 3rd one-way clutch

11. Front sun gear

12. Input shaft

13. Mid internal gear

14. Front internal gear

15. Rear carrier

16. Rear sun gear

17. Mid sun gear

18. Front carrier

19. Mid carrier

20. Rear internal gear

21. Output shaft

22. Parking gear

23. Parking pawl

SCIA1519E

A/T CONTROL SYSTEM

TM-145

< SYSTEM DESCRIPTION >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

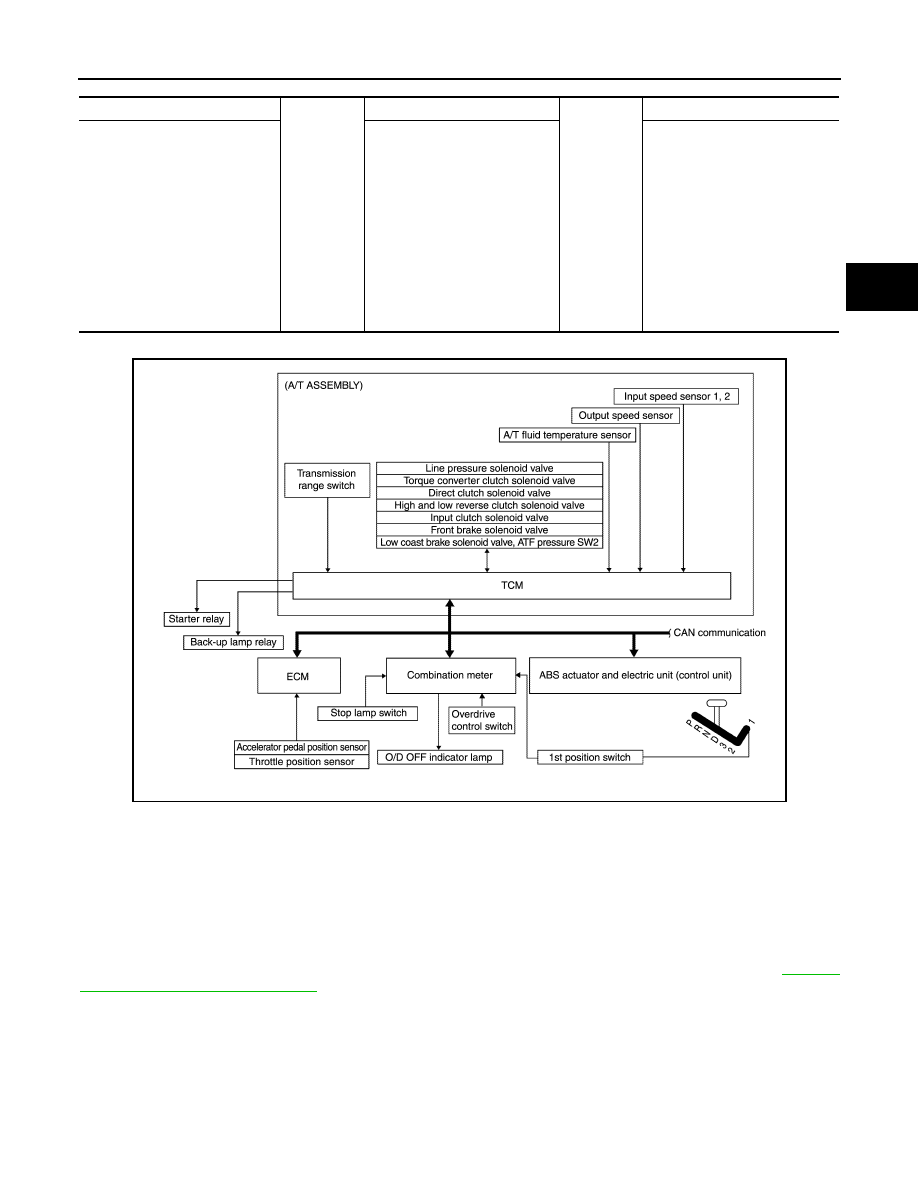

CONTROL SYSTEM DIAGRAM

CAN Communication

INFOID:0000000009480468

SYSTEM DESCRIPTION

CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-

tiplex communication line with high data communication speed and excellent error detection ability. Many elec-

tronic control units are equipped onto a vehicle, and each control unit shares information and links with other

control units during operation (not independent). In CAN communication, control units are connected with 2

communication lines (CAN H line, CAN L line) allowing a high rate of information transmission with less wiring.

Each control unit transmits/receives data but selectively reads required data only. For details, refer to

LAN-53,

"CAN System Specification Chart"

.

SENSORS (or SIGNALS)

⇒

TCM

⇒

ACTUATORS

Transmission range switch
Accelerator pedal position sensor
Closed throttle position signal
Wide open throttle position signal
Engine speed signal
A/T fluid temperature sensor
Output speed sensor
Vehicle speed signal
Stop lamp switch signal
Input speed sensor
1st position switch signal
Overdrive control switch signal
ATF pressure switch signal

Shift control
Line pressure control
Lock-up control
Engine brake control
Timing control
Fail-safe control
Self-diagnosis
CONSULT communication line
Duet-EA control
CAN system

Input clutch solenoid valve
Direct clutch solenoid valve
Front brake solenoid valve
High and low reverse clutch sole-
noid valve
Low coast brake solenoid valve
Torque converter clutch solenoid
valve
Line pressure solenoid valve
O/D OFF indicator lamp
Starter relay
Back-up lamp relay

JSDIA2262GB

TM-146

< SYSTEM DESCRIPTION >

[5AT: RE5R05A]

A/T CONTROL SYSTEM

Input/Output Signal of TCM

INFOID:0000000009480469

*1: Spare for output speed sensor.
*2: Spare for accelerator pedal position signal.
*3: If these input and output signals are different, the TCM triggers the fail-safe function.
*4: Used as a condition for starting self-diagnosis; if self-diagnosis is not started, it is judged that there is some kind of error.
*5: Input by CAN communications.
*6: Output by CAN communications.

Line Pressure Control

INFOID:0000000009480470

• When an input torque signal equivalent to the engine drive force is sent from the ECM to the TCM, the TCM

controls the line pressure solenoid.

Control item

Line

pressure

control

Vehicle

speed

control

Shift

control

Lock-up

control

Engine

brake

control

Fail-safe

function

(*3)

Self-diag-

nostics

function

Input

Accelerator pedal position signal

(*5)

X

X

X

X

X

X

X

Output speed sensor

X

X

X

X

X

X

X

Vehicle speed signal

(*1) (*5)

X

Closed throttle position signal

(*5)

X

(*2)

X

X

X

X

(*4)

Wide open throttle position signal

(*5)

X

X

(*4)

Input speed sensor 1

X

X

X

X

X

Input speed sensor 2
(for 4th speed only)

X

X

X

X

X

Engine speed signals

(*5)

X

X

X

X

X

X

X

Stop lamp switch signal

(*5)

X

X

X

X

(*4)

A/T fluid temperature sensor

X

X

X

X

X

X

ASCD

Operation signal

(*5)

X

X

X

Overdrive cancel sig-
nal

(*5)

X

Output

Direct clutch solenoid

X

X

X

X

Input clutch solenoid

X

X

X

X

High and low reverse clutch sole-
noid

X

X

X

X

Front brake solenoid

X

X

X

X

Low coast brake solenoid
(ATF pressure switch 2)

X

X

X

X

X

Line pressure solenoid

X

X

X

X

X

X

X

TCC solenoid

X

X

X

O/D OFF indictor lamp

(*6)

X

(*4)

Starter relay

X

X
