INSPECTION AND ADJUSTMENT

TM-131

< BASIC INSPECTION >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

INSPECTION AND ADJUSTMENT

ADDITIONAL SERVICE WHEN REPLACING TRANSMISSION ASSEMBLY
ADDITIONAL SERVICE WHEN REPLACING TRANSMISSION ASSEMBLY : Descrip-
tion

INFOID:0000000010169202

When replacing transmission assembly, save current TCM data using CONSULT before replacement.

ADDITIONAL SERVICE WHEN REPLACING TRANSMISSION ASSEMBLY : Special
Repair Requirement

INFOID:0000000010169203

1.

SAVE TCM DATA

 With CONSULT

Save the TCM data according to the CONSULT display.

NOTE:

Even when TCM data is not saved in CONSULT, GO TO 2.

>> GO TO 2.

2.

REPLACE TRANSMISSION ASSEMBLY

Replace the transmission assembly. Refer to

TM-306, "Removal and Installation for QR25DE"

,

TM-308,

"Removal and Installation for VQ40DE 2WD Models"

,

TM-310, "Removal and Installation for VQ40DE 4WD

Models"

.

>> GO TO 3.

3.

PERFORM TCM PROGRAMMING

 With CONSULT

1. During programming, maintain the following conditions:

2. Perform programming according to the CONSULT display.

3. After completing the programming, maintain the following conditions and turn ignition switch ON

→ OFF

→ ON → OFF.

>> GO TO 4.

4.

CONFIRM SHIFT POSITION INDICATOR

1. Turn ignition switch ON.

2. Shift the selector lever to P position.

3. Shift the selector lever to P

→ R → N → D → P, confirm the shift position indicator shows correct shift

position.

>> WORK END

Ignition switch

: ON

Selector lever

: P

Engine speed

: 0 rpm

ATF temp.

: 72

°C (161°F) or less

Brake pedal

: Depressed

Selector lever

: R

Accelerator pedal

: 2.0/8

ATF temp.

: 72

°C (161°F) or less

TM-132

< SYSTEM DESCRIPTION >

[5AT: RE5R05A]

A/T CONTROL SYSTEM

SYSTEM DESCRIPTION

A/T CONTROL SYSTEM

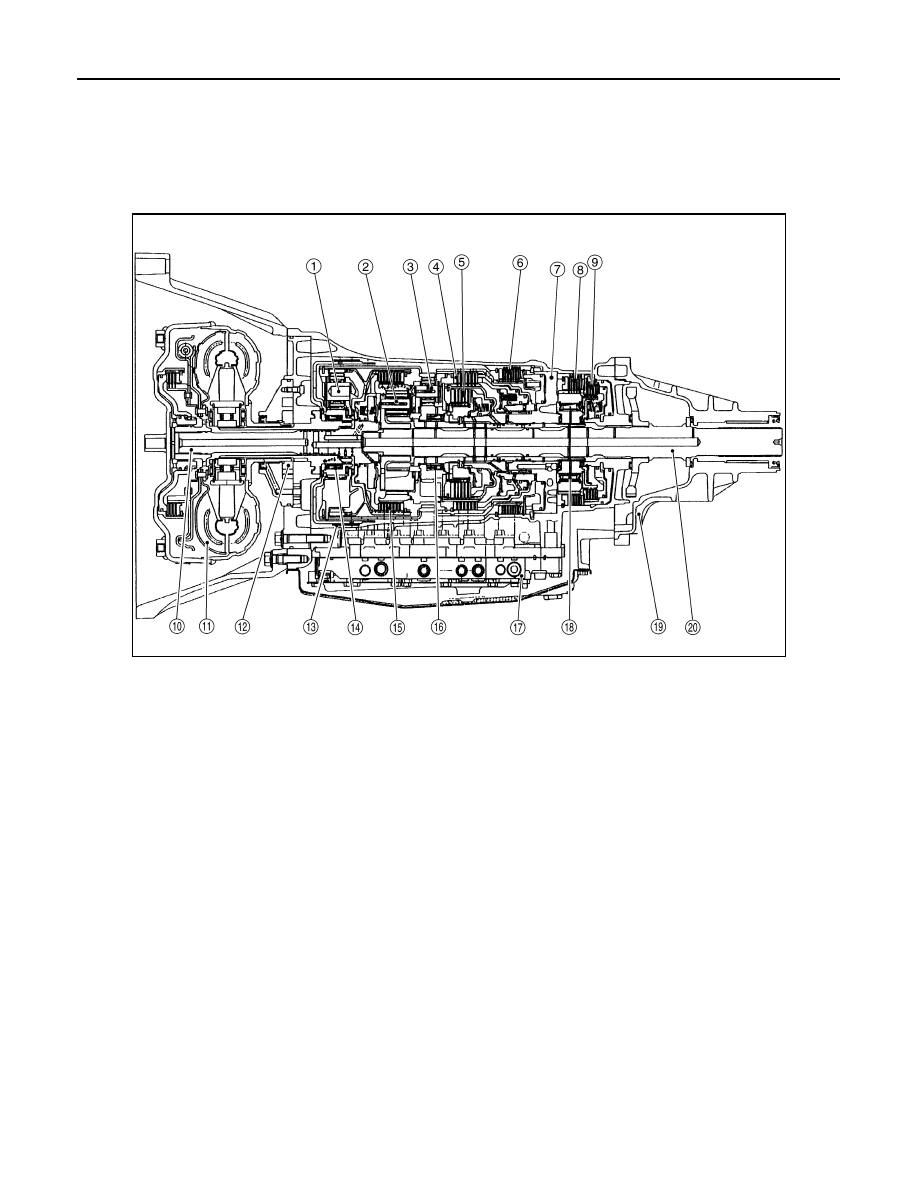

Cross-Sectional View

INFOID:0000000009480465

2WD models

SCIA5267E

1.

Front planetary gear

2.

Mid planetary gear

3.

Rear planetary gear

4.

Direct clutch

5.

High and low reverse clutch

6.

Reverse brake

7.

Drum support

8.

Forward brake

9.

Low coast brake

10. Input shaft

11. Torque converter

12. Oil pump

13. Front brake

14. 3rd one-way clutch

15. Input clutch

16. 1st one-way clutch

17. Control valve with TCM

18. Forward one-way clutch

19. Rear extension

20. Output shaft

A/T CONTROL SYSTEM

TM-133

< SYSTEM DESCRIPTION >

[5AT: RE5R05A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

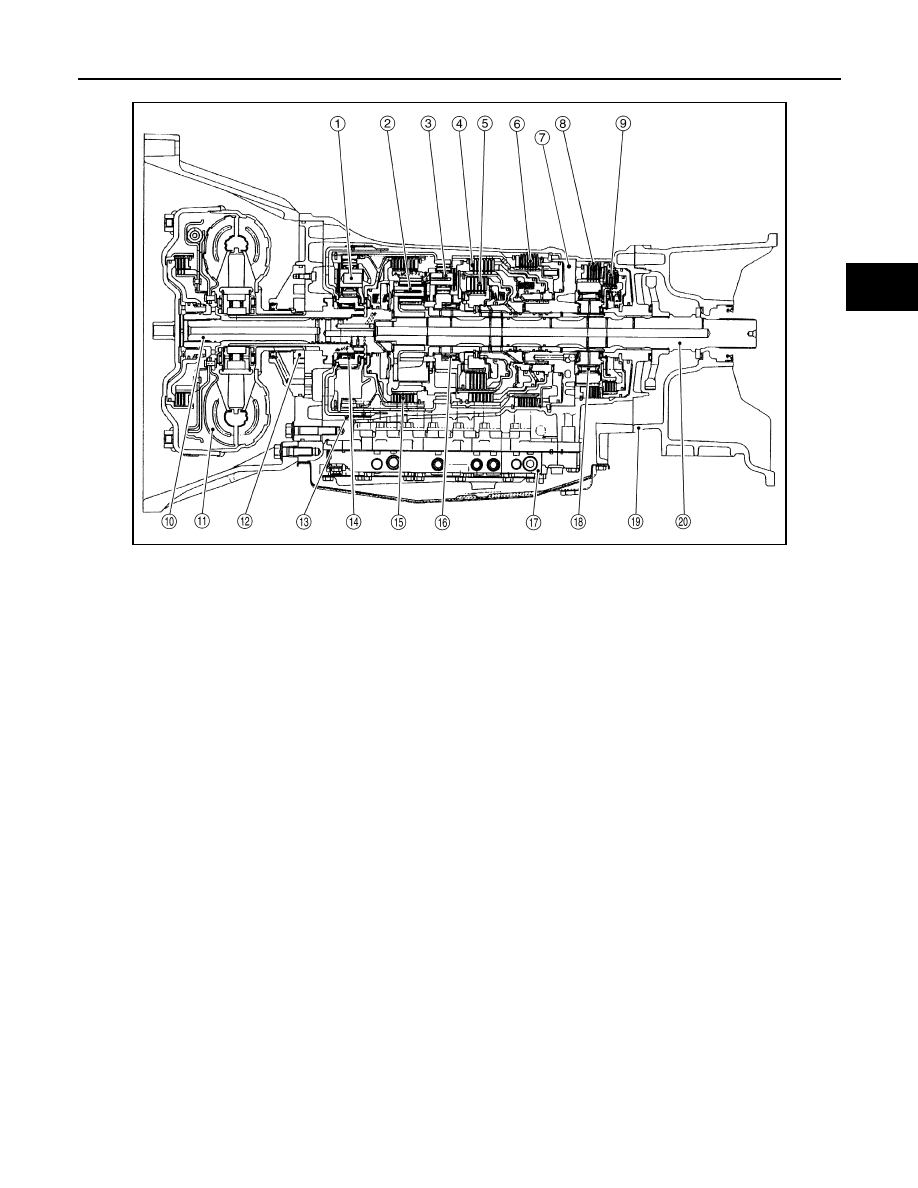

4WD models

Shift Mechanism

INFOID:0000000009480466

The automatic transmission uses compact triple planetary gear systems to improve power-transmission effi-

ciency, simplify construction and reduce weight.

It also employs an optimum shift control and super wide gear ratios. They improve starting performance and

acceleration during medium and high-speed operation.

CONSTRUCTION

SCIA5268E

1.

Front planetary gear

2.

Mid planetary gear

3.

Rear planetary gear

4.

Direct clutch

5.

High and low reverse clutch

6.

Reverse brake

7.

Drum support

8.

Forward brake

9.

Low coast brake

10. Input shaft

11. Torque converter

12. Oil pump

13. Front brake

14. 3rd one-way clutch

15. Input clutch

16. 1st one-way clutch

17. Control valve with TCM

18. Forward one-way clutch

19. Adapter case

20. Output shaft

TM-134

< SYSTEM DESCRIPTION >

[5AT: RE5R05A]

A/T CONTROL SYSTEM

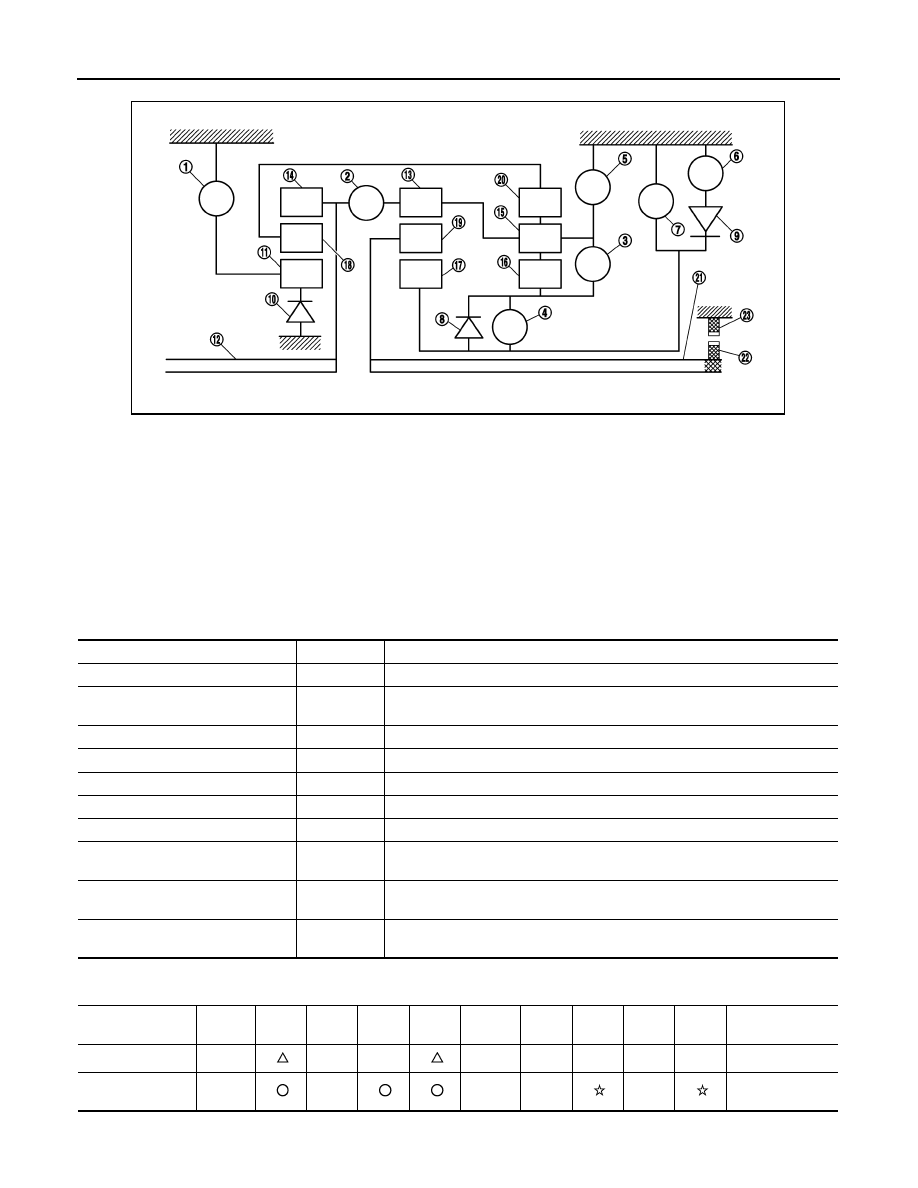

FUNCTION OF CLUTCH AND BRAKE

CLUTCH AND BAND CHART

1.

Front brake

 2.

Input clutch

3.

Direct clutch

4.

High and low reverse clutch

5.

Reverse brake

6.

Forward brake

7.

Low coast brake

8.

1st one-way clutch

9.

Forward one-way clutch

10. 3rd one-way clutch

11. Front sun gear

12. Input shaft

13. Mid internal gear

14. Front internal gear

15. Rear carrier

16. Rear sun gear

17. Mid sun gear

18. Front carrier

19. Mid carrier

20. Rear internal gear

21. Output shaft

22. Parking gear

23. Parking pawl

PCIA0002J

Name of the Part

Abbreviation

 Function

Front brake (1)

FR/B

Fastens the front sun gear (11).

Input clutch (2)

I/C

Connects the input shaft (12), the front internal gear (14) and the mid internal
gear (13).

Direct clutch (3)

D/C

Connects the rear carrier (15) and the rear sun gear (16).

High and low reverse clutch (4)

HLR/C

Connects the mid sun gear (17) and the rear sun gear (16).

Reverse brake (5)

R/B

Fastens the rear carrier (15).

Forward brake (6)

Fwd/B

Fastens the mid sun gear (17).

Low coast brake (7)

LC/B

Fastens the mid sun gear (17).

1st one-way clutch (8)

1st WOC

Allows the rear sun gear (16) to turn freely forward relative to the mid sun gear
(17) but fastens it for reverse rotation.

Forward one-way clutch (9)

Fwd OWC

Allows the mid sun gear (17) to turn freely in the forward direction but fastens it
for reverse rotation.

3rd one-way clutch (10)

3rd OWC

Allows the front sun gear (11) to turn freely in the forward direction but fastens
it for reverse rotation.

Shift position

I/C

HLR/C

D/C

R/B

FR/B

LC/B

Fwd/B

1st

OWC

Fwd

OWC

3rd

OWC

Remarks

P

PARK POSITION

R

REVERSE POSI-

TION
