GEAR COMPONENTS
TM-123
< UNIT DISASSEMBLY AND ASSEMBLY >
[6MT: FS6R31A]
C
E
F
G
H
I
J
K
L
M
A
B
TM
N
O
P

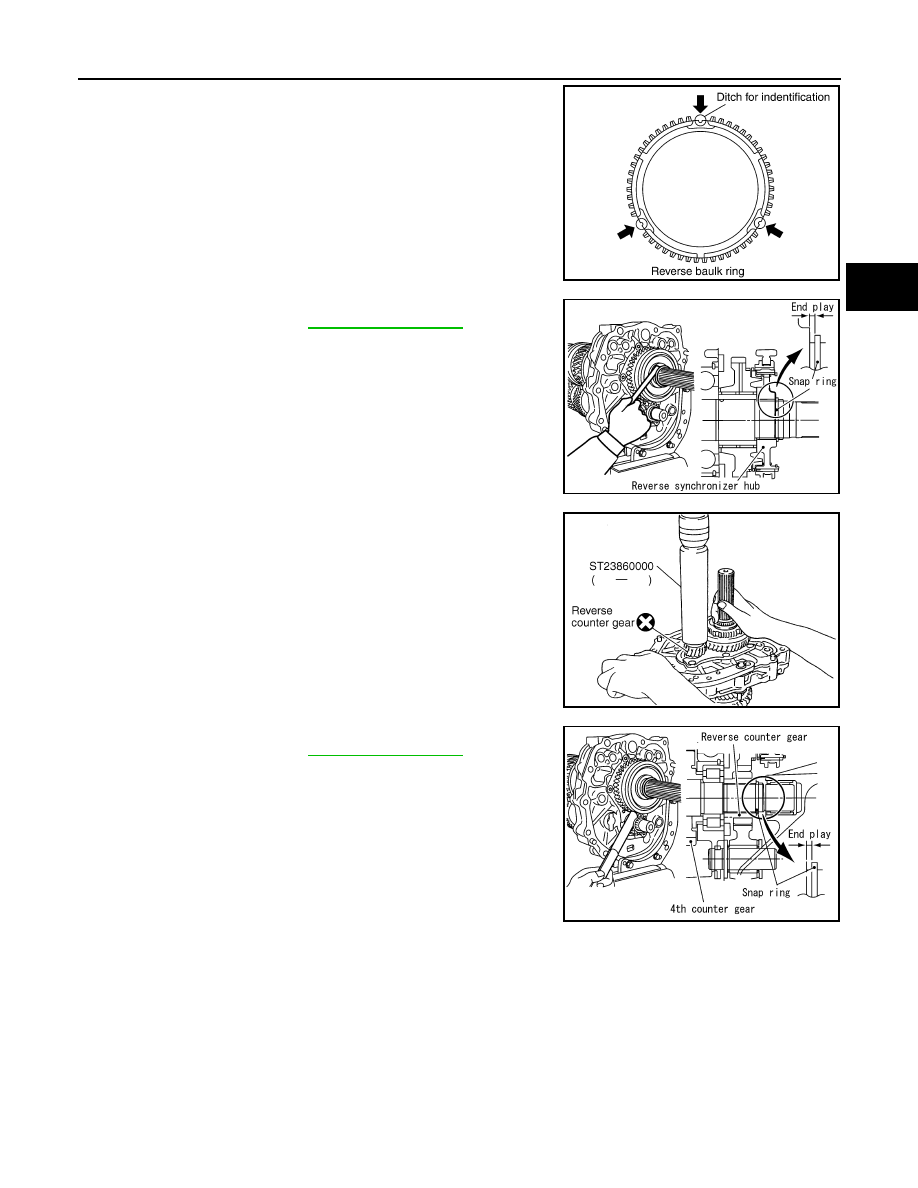

Reverse baulk ring has three spaces that two gear teeth are
missing, and each space has small ditch for identification as
shown.
26. Select and install a snap ring so that the end play comes within
the standard value. Refer to
CAUTION:
Do not reuse snap ring.
27. Press in reverse counter gear using Tool.
CAUTION:
• Do not reverse counter gear.
• Be careful with the orientation counter gear.
28. Select and install a snap ring so that the end play comes within
the standard value. Refer to
CAUTION:
Do not reuse snap ring.

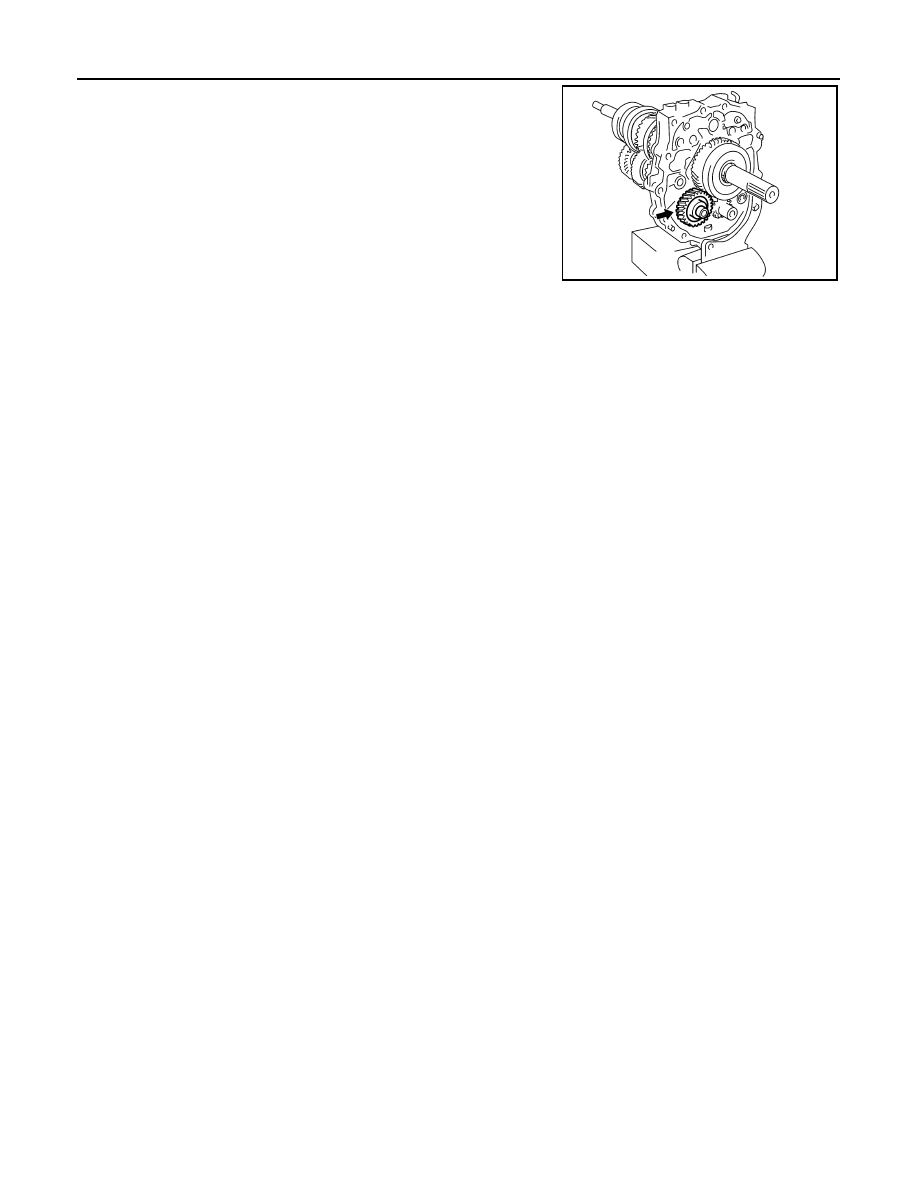

29. Install reverse idler shaft assembly according to the following.
a. Install reverse idler needle bearing, reverse idler gear and reverse idler thrust washer to reverse idler
shaft.
CAUTION:
Apply gear oil to reverse idler needle bearing.
PCIB0168E
End play
: 0 - 0.10 mm (0 - 0.004 in)
PCIB0225E
Tool number
: ST23860000 ( — )
PCIB1269E
End play
: 0 - 0.10 mm (0 - 0.004 in)
PCIB0226E
