PREPARATION

TM-59

< PREPARATION >

[6MT: FS6R31A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

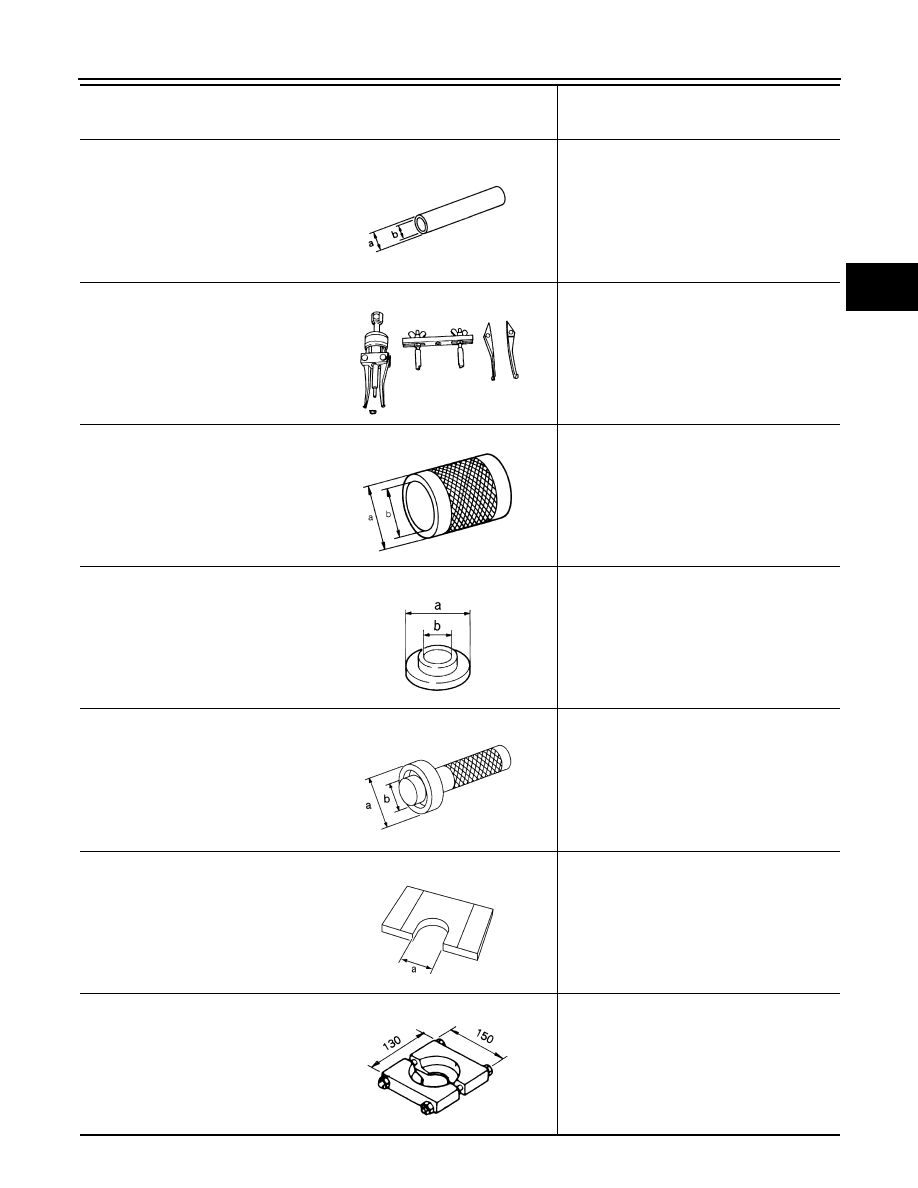

ST01530000
(

—

)

Drift

Installing reverse synchronizer hub assembly
a: 50 mm (1.97 in) dia.
b: 41 mm (1.61 in) dia.

KV381054S0
(J-34286)
Puller

Removing rear oil seal

ST33200000
(J-26082)
Drift

• Installing counter rear bearing
• Installing rear oil seal
a: 60 mm (2.36 in) dia.
b: 44.5 mm (1.752 in) dia.

KV40100630
(J-26092)
Inserter

Installing 4th counter gear thrust washer
a: 67 mm (2.64 in) dia.
b: 38 mm (1.50 in) dia.

KV38102100
(J-25803-01)
Drift

Installing front cover oil seal
a: 44 mm (1.73 in) dia.
b: 28 mm (1.10 in) dia.

KV32103300
(J-46529)
Press plate

Installing reverse synchronizer hub assembly
a: 73 mm (2.87 in)

ST30031000
(J-22912-01)
Puller

Measuring wear of inner baulk ring

Tool number
(TechMate No.)
Tool name

Description

ZZA0534D

ZZA0601D

ZZA1002D

ZZA0920D

NT084

PCIB0165J

ZZC0499D

TM-60

< PREPARATION >

[6MT: FS6R31A]

PREPARATION

Commercial Service Tool

INFOID:0000000009480439

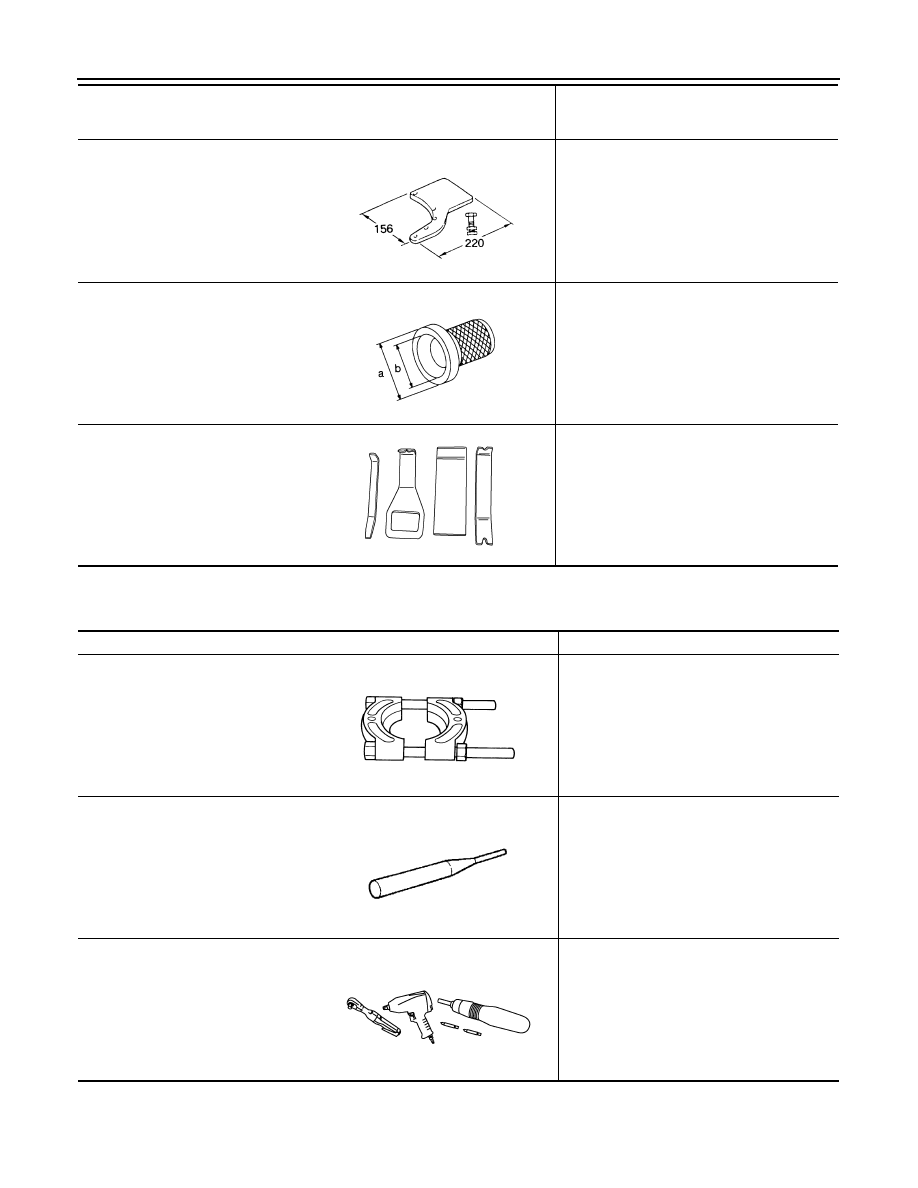

ST22490000
(

—

)

Adapter setting plate

Holding a adapter plate

ST33400001
(J-26082)
Drift

Installing oil seal
a: 60 mm (2.36 in) dia.
b: 47 mm (1.85 in) dia.

—

(J-46534)
Trim Tool Set

Removing trim components

Tool number
(TechMate No.)
Tool name

Description

ZZC0465D

NT086

AWJIA0483ZZ

Tool name

Description

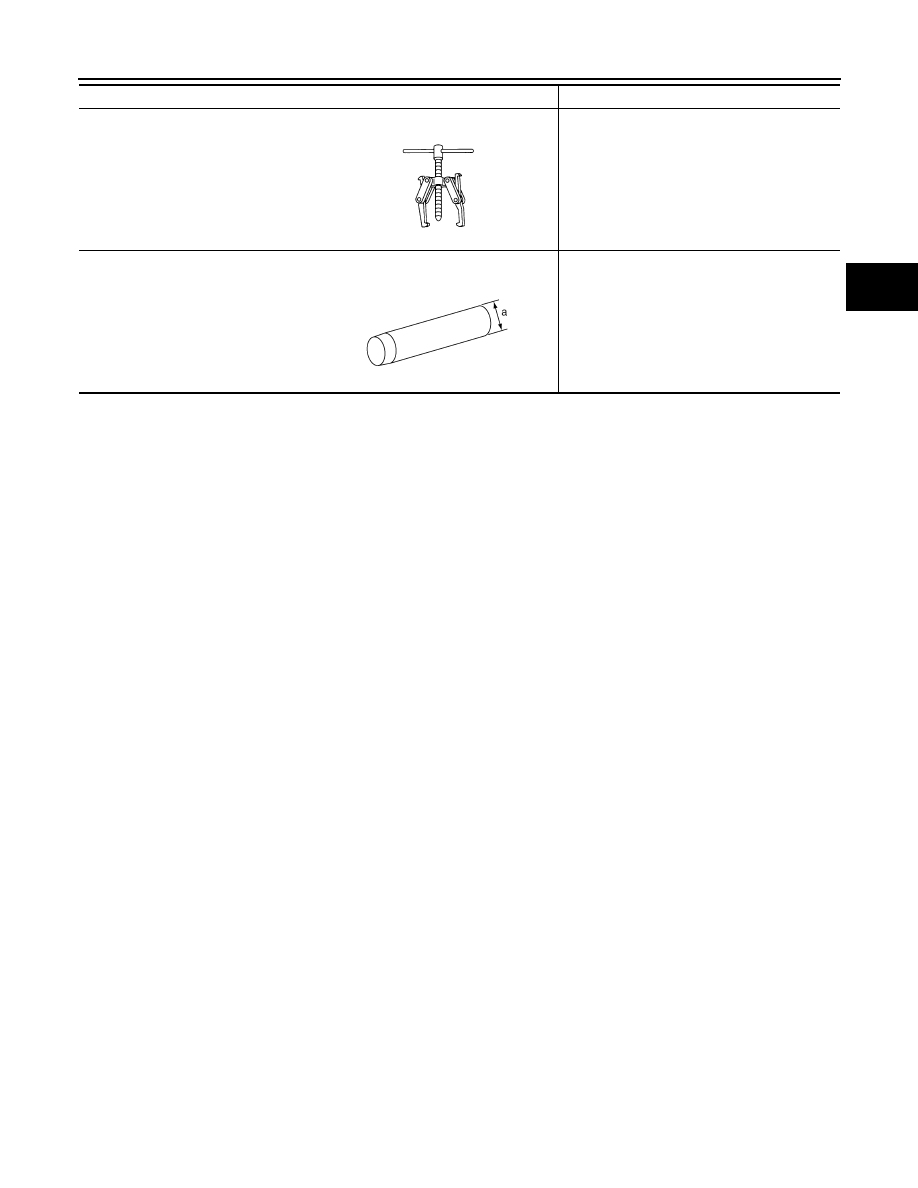

Puller

Removing each bearing, gear and bushing

Pin punch

Removing and installing each retaining pin
Tip diameter: 6.0 mm (0.236 in) dia.

Power tool

Loosening nuts, screws and bolts

ZZB0823D

ZZA0815D

PIIB1407E

PREPARATION

TM-61

< PREPARATION >

[6MT: FS6R31A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

Puller

• Removing reverse synchronizer hub as-

sembly

• Removing reverse counter gear
• Removing reverse main gear

Drift

Removing counter end bearing
a: 32 mm (1.26 in) dia.

Tool name

Description

NT077

LCIA0362E

TM-62

< SYMPTOM DIAGNOSIS >

[6MT: FS6R31A]

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

SYMPTOM DIAGNOSIS

NOISE, VIBRATION AND HARSHNESS (NVH) TROUBLESHOOTING

NVH Troubleshooting Chart

INFOID:0000000009480440

Use the chart below to help you find the cause of the symptom. The numbers indicate the order of the inspec-

tion. If necessary, repair or replace these parts.

Reference page

TM-65

TM-77

TM-69

TM-69

TM-108

SUSPECTED PARTS
(Possible cause)

OIL (Oi

l l

ev

el

is

 lo

w

.)

O

IL (W

ro

ng

 oi

l.)

O

IL (O

il l

ev

el

is

 hi

gh

.)

GASKET (Damaged)

OI

L

SEAL

 (W

orn

 o

r

da

ma

ge

d)

SHIFT CO

NTRO

L LINKAGE (W

orn)

CHECK PLUG

 R

E

TURN SPRING AND CHECK

BALL (W

orn or damaged)

SHIFT

 FORK (W

orn

)

G

EAR (W

orn

 or

da

ma

ge

d)

BEARING (W

orn or damaged)

BAULK

 RING

 (W

orn

 or

dam

a

ge

d)

INSER

T SPRING (Damaged)

Symptoms

Noise

1

2

3

3

Oil  leakage

3

1

2

2

Hard to shift or will not shift

1

1

2

2

2

Jumps  out  of  gear

1

1

2

2
